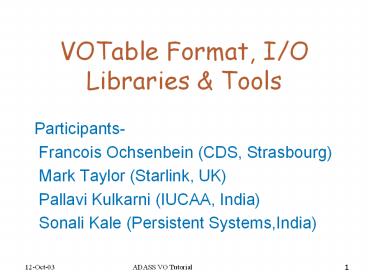

VOTable Format, I/O Libraries Tools

• Participants-
• Francois Ochsenbein (CDS, Strasbourg)
• Mark Taylor (Starlink, UK)
• Pallavi Kulkarni (IUCAA, India)
• Sonali Kale (Persistent Systems,India)

2
Agenda

• VOTable format
• I/O Libraries
• Plotting tools for VOTables
• Mirage
• VOPlot
• Topcat
• VOTable browsers
• Treeview

3
Understanding VOTableFrançois Ochsenbein
(francois_at_simbad.u-strasbg.fr), on behalf
ofRoy Willliams, Clive Davenhall, Daniel
Durand, Pierre Fernique, David Giaretta, Robert
Hanish, Tom McGlynn, Alex Szalay, Andreas Wicenec
4
Overview

• The VOTable format is a proposed XML standard for
  representing tabular data in the context of the
  Virtual Observatory
• VOTable was designed to be compatible with FITS
  Binary Tables (the data part can be addressed
  directly)
• VOTable is designed as a flexible storage and
  exchange format for tabular data, with particular
  emphasis on astronomical tables

5
Why move to VOTable ?

• Interoperability is encouraged through the use of
  standard data structures and descriptions
  (metadata)
• FITS is a widely accepted structure, but FITS
  keywords are rarely shared beyond the basic ones.
• XML built-ins
• easy validation of input document
• easy transformations and displays via XSLT
  engine
• VOTable can cope with very large datasets
• does not require the huge XML overhead
• direct access to binary files and existing FITS
  files

6
Data Model

• VOTable hierarchy of Metadata Tables
• Metadata Infos Descriptions Parameters
  Links Fields
• Resource set of tables
• Table list of Fields/Parameters Data
• Data stream of Rows (or binary stream (remote))
• Row list of Cells
• Cell Primitive
• or variable-length list of Primitives
• or or multidimensional array of Primitives
• Primitive integer, character, float,
  floatComplex

7
A VOTable document
Contains the following elements

• DEFINITIONS typically about used coordinate
  system(s)
• RESOURCE contains a DESCRIPTION and a list of
  tables, eventually (recursively) other RESOURCEs
• TABLE contains
• a textual DESCRIPTION of the table
• a list of FIELD (columns) which describe the
  table layout and eventually PARAMETER which may
  specify some constants
• the DATA part which can be present in the
  document, or remotely accessible in several
  formats including FITS, or absent (description of
  the data structure)
• possibly LINK for getting details, explanations,
  related data,...
• Example

8
Table Element in Detail

• Written as DESCRIPTION and a collection of FIELD
  elements, plus possible PARAMETER and LINK
  elements, all representing the metadata followed
  by the DATA
• Fields describe the nature of table columns
• Table data start with the DATA element, followed
  by the actual rows containing the values of the
  fields, in the same order as their description.

9
FIELD in detail

• Has sub elements like DESCRIPTION, LINK, and
  possibly a VALUES element
• Provides information for a corresponding cell in
  the DATA element
• For identification, the FIELD has a name, and
  also an ID
• name is the field designation (column header)
• ID is an identifier which follows the XML rules
  (restricted character set, unicity in an XML
  document)
• The FIELD must contain a datatype attribute
• Each table cell may contain more than one of the
  specified datatype and is specified by arraysize,
  which can be variable and multidimensional
  (64x64x)

10
Available Datatypes
11
Field cont..

• unit attribute precises the units in a controlled
  vocabulary
• ucd (Unified Content Descriptors)
• This provides information about the semantics of
  the field expressed as a standardized string
  originally created at CDS and currently being
  reviewed.
• precision indicates the number of significant
  digits for edition purposes
• VALUES element
• Holds the domain information (min, max, null,
  set of available values)
• LINK Element
• It is used to provide pointers to other documents
  or data servers through URL.

12
Parameter definitions

• A PARAMETER is similar to a FIELD it may
  contain a DESCRIPTION, the attributes unit, ucd,
  name,ID,... plus a value attribute
• may be considered as a constant column
• Typical examples
• frequency or wavelength of flux measurements
• statistical error of results

13
Data Content

• The data content of the table is in a single DATA
  element and is organized in a reading order.
• Data can be stored or accessed in several
  formats
• TABLEDATA introduces an XML coding of the table
• FITS refers to an external FITS file
• BINARY indicates a binary coding of the data used
  for its efficiency
• STREAM introduces remote or encoded data
• Data can be in the input stream or stored
  separately
• Example

14
VOTable Additions

• Several new features are being considered
• GROUP of fields introduces a view of the fields
  as a structure
• utype attribute to characterize the role of a
  field in the context of a data model
• encoding attribute of a cell element in order to
  store e.g. images in table cells

15
VOTable I/O librariesPallavi Kulkarni
(pck_at_iucaa.ernet.in)
16
I/O Libraries

• Why are parsers required ?
• Why are writers required ?
• Tree Structured Approach.
• Event Driven Approach.
• Tree Structured vs. Event Driven Approach.
• VOTable Parsers Writers.

17
Why are parsers required ?

• Provide a library for API based access to
  VOTable files.
• These APIs can be directly used to develop
  VOTable applications without having to do raw
  VOTable processing.

18
Why are writers required ?

• Writer provides APIs for generating
• syntactically correct documents.
• The user doesnt need to be aware of low level
  APIs.
• Simplifies the process of writing a document.

19
Tree Structured Approach

• Tree structured approach is a two step process.
• The entire XML data is loaded in memory.
• Operations are performed on the loaded data.

VOTable
Resource
Resource
Table
Table
Table
Table
20
Event Driven Approach

• Does not create a tree structure in memory.
• Single step process.
• Data is passed from XML document to the
  application on the fly.

21
Tree Structured vs. Event Driven

• Event driven approach is faster.
• Event driven approach is good for large documents
  because it takes comparatively less memory.
• With event driven approach, one can access the
  data but not modify it. With tree structured
  approach, one can modify data.
• Tree structured parsing allows back and forth
  traversal in the XML data.
• Event driven parsing can be stopped once desired
  XML data has been extracted.

22
VOTable Parsers Writers

• JAVOT (NVO)
• SAVOT (European VO)
• VOTable Java Streaming Writer (VO-India)
• C Parser (VO-India)
• VOTable Perl Modules (NVO)
• VOTableDOM (NVO)

23
JAVOT

• Developed at Caltech.
• Written in JAVA.
• Creates a tree structure in memory.
• Current version supports reading of VOTables.
• Editing and writing of tables not yet supported.
• More information can be found athttp//www.us-vo.
  org/VOTable/JAVOT/

24
SAVOT

• Developed at CDS.
• Written in JAVA.
• Supports reading, writing editing of VOTables.
• Can work in both full (tree structured)
  sequential (event driven) modes for parsing the
  data.
• Suitable for large VOTable files as well.
• More information can be found at
  http//simbad.u-strasbg.fr/public/cdsjava.gml

25
Sample VOTable

• ltVOTABLEgt
• ltRESOURCEgt
• ltTABLEgt
• ltFIELD namearea datatypeint/gt
• ltDATAgtltTABLEDATAgt
• ltTRgtltTDgt2000lt/TDgtlt/TRgt
• ltTRgtltTDgt35467lt/TDgtlt/TRgt
• lt/TABLEDATAgtlt/DATAgt
• lt/TABLEgt
• lt/RESOURCEgt
• lt/VOTABLEgt

26
Sample Code (Sequential mode)
Get resource element

• SavotResource currentResource
  sb.getNextResource()
• TRSet tr currentResource.getTRSet(0)
• TDSet theTDs tr.getTDSet(0)
• for (int k 0 k lt theTDs.getItemCount() k)
• System.out.println(theTDs.getContent(k))

Fetch all the rows From first table
Fetch first row from the set of rows.
Print the data Field wise
27
VOTable JAVA Streaming Writer

• Developed at IUCAA and Persistent Systems.
• Written in JAVA.
• It supports only writing of data.
• Takes a streaming approach i.e. event based
  approach to write the data.
• More information can be found at
  http//vo.iucaa.ernet.in/voi/votableStreamWriter.
  htm

28
VOTable to be generated

• ltVOTABLEgt
• ltRESOURCEgt
• ltTABLEgt
• ltFIELD namePlanet datatypechargt
• ltDATAgtltTABLEDATAgt
• ltTRgtltTDgtMercurylt/TDgtlt/TRgt
• lt/TABLEDATAgtlt/DATAgt
• lt/TABLEgt
• lt/RESOURCEgt
• lt/VOTABLEgt

29
Sample Code
Initiallize the streaming writer

• VOTableStreamWriter voWrite new
  VOTableStreamWriter(prnStream)
• VOTable vot new VOTable()
• voWrite.writeVOTable(vot)
• VOTableResource voResource new
  VOTableResource()
• voWrite.writeResource(voResource)
• VOTableTable voTab new VOTableTable()
• VOTableField voField new VOTableField()
• voField.setName("Planet")
• voField.setDataType(char)
• voTab.addField(voField1)

Create write VOTable element.
Create write Resource element.
Create a table element
Create a field add it to the table.
30
Sample code contd.
Write the table to output stream

• voWrite.writeTable(voTab)
• String firstRow "Mercury"
• voWrite.addRow(firstRow, 1)
• voWrite.endTable()
• voWrite.endResource()
• voWrite.endVOTable()

Create a row write it to output stream
End the respective elements.
31
C Parser

• Developed at Persistent Systems and IUCAA.
• Written in C.
• Available as both streaming and non-streaming
  parser.
• It runs on Windows NT 4.0, Windows 2000, and
  Redhat Linux 7.1.

32
C Parser

• Currently, supports reading of VOTables and
  pure-xml table data.
• Currently, doesnt support reading of binary or
  FITS data doesnt support writing of VOTables.
• More information can be found at
  http//vo.iucaa.ernet.in/voi/cplusparser.htm

33
VOTable PERL modules

• Developed by the ClassX project at GSFC (NVO).
• Written in PERL.
• Builds a tree structure in memory.
• Optimizations to handle large TABLEDATA elements.
• Can be used for parsing existing VOTables and
  creating new ones from scratch.
• More information can be found at
• http//heasarc.gsfc.nasa.gov/classx/pub/votable/

34
PERL for formatting printing

• Developed at NCSA (NVO).
• Written in PERL.
• It supports writing of VOTable documents.
• Takes a streaming i.e. event driven approach to
  write data.
• More information can be found at
  http//monet.ncsa.uiuc.edu/rplante/VO/VOTable-DOM
  .pm

35
VOTable Applications VOPLOT MIRAGESonali
Kale (sonali_at_persistent.co.in)
36
Plotting Tools for VOTables

• VOPlot
• Developed under Virtual Observatory India
  initiative.
• Mirage
• Developed by Lucent Technologies, Bell Labs.
• Topcat
• Developed by Starlink, UK.

37
VOPlot Introduction

• Visualization toolkit developed by Persistent
  Systems and IUCAA in collaboration with CDS.
• Motivation Allow web-based visualization of
  astronomy data.
• Available as web-based version as well as a
  standalone desktop application.
• Web-based version is successfully integrated with
  Vizier Catalogue Service.

38
VOPlot Visualization

• Has all the features of versatile graphical tool
• Scatter plots
• Connected plots
• Histograms
• Logarithmic axes
• Overlaying
• Auto-ranging

39
VOPlot Features

• Column transformations based on expression.
• Data subset creation based on filter condition.
• Save graph in EPS format.
• Ability to select points on graph.
• View meta data and data in tabular and VOTable
  format.

40
VOPlot Features

• Inter-operable with Aladin developed by CDS.
• This enables simultaneous visualization of some
  graph in VOPlot together with a representation as
  a sky plot in Aladin.
• Selecting some region in the graph highlights the
  corresponding points in the sky plot and vice
  versa.

41
VOPlot Features

• VOPlot can be used for basic statistical
  analysis. Basic uni-variate and multivariate
  functions supported.
• Displays box plot.
• A box plot provides a visual summary important
  aspects of data distribution.

42
VOPlot Features

• Allows overlaying from multiple catalogues.
• Allows drawing of error bars.
• Can be integrated with any web-based catalogue
  service that creates output in VOTable format.
• Example Successfully integrated with LEDAS (UK).

43
Launch VOPlot from Vizier
44
Launch VOPlot from Vizier (cont.)
45
Launch VOPlot from Vizier (cont.)
Choose Y column
46
VOPlot Inter-operation with Aladin
47
Inter-operation with Aladin (cont.)
Object selected in Aladin.
Point highlighted in VOPlot
48
VOPlot References

• VOPlot
• http//vo.iucaa.ernet.in/voi/voplot.htm
• Vizier Catalogue Service
• http//vizier.u-strasbg.fr/viz-bin/VizieR
• Aladin
• http//aladin.u-strasbg.fr/
• Virtual Observatory India
• http//vo.iucaa.ernet.in/voi/

49
Mirage Introduction

• Mirage is a Java-based tool for data
  visualization tool and exploratory analysis.
• Developed at Bell Laboratories, Lucent
  Technologies.
• Support for VOTables added in collaboration with
  John Hopkins University.
• Ray Plante produced an XSL stylesheet to convert
  from VOTable to Mirage format.

50
Mirage Data Visualization Features

• Mirage provides multiple simultaneous views of
  data.
• Data visualization is provided through
• Data matrix view
• Scatter Plots
• Histogram.
• Feature vector plot.

51
Mirage Operations On Graph

• Points on plot can be selected using different
  selection methods (box, Bezier curve or free
  hand).
• Selection can be broadcasted to other views.
• Automatic walk in through graphs.
• Grid of plots can be created.
• Coloring of plot points.

52
Mirage Command Interpreter

• Command line interpreter supports
• Creation of new columns based on arithmetic
  expressions.
• Addition of new columns from other data file.
• Selection of points using a logical expression.
• Color selection of points.

53
Mirage Data Matrix View
Data read from file
One row for each entry and one column for each
attribute.
54
Mirage Scatter Plot
Walking through a plot.
Choose a column for plotting
55
Mirage Histogram
Change bin width
56
Mirage Multiple Simultaneous Views
Make a selection
Broadcast selection
57
Mirage Grid of plots
Zoom in and out
Command to add column
58
Mirage References

• Mirage
• http//www.bell-labs.com/project/mirage/
• VO Enabled Mirage
• http//skyservice.pha.jhu.edu/develop/vo/mirage/
• XSL Stylesheet to convert VOTable to Mirage
  format
• http//www.euro-vo.org/pub/articles/ScienceWithPro
  toVOtools /vot2mirage.xml

59
VOTable Applications TOPCAT TreeviewMark
Taylor (m.b.taylor_at_bristol.ac.uk)
60
TOPCATTool for OPerations on Catalogues And
Tables

• Generic table read/view/edit/analyse/plot/write
• Format-neutral VOTable, FITS, SQL and others
• Pure java
• Full online help
• Powerful expression language
• Supports large tables
• Under active development

61
TOPCAT capabilities

• View/edit table data
• View/edit table and column metadata
• Units, UCDs, type, array shape, format-specific
  items...
• Create new columns using algebraic expressions
• Powerful language conditionals, nulls, string
  handling...
• Move/delete columns
• Sort rows
• Create row subsets in various ways
• Algebraic, graphical, boolean columns, selected
  rows
• Plot columns against each other
• Distinguish different defined subsets
• Calculate per-column statistics

62
Table I/O
format-neutral view

• VOTable
• FITS
• SQL
• ASCII
• LaTeX
• Mirage
• others

TOPCAT (view/edit GUI)

• VOTable
• TABLEDATA, FITS, STREAM?
• FITS
• TABLE, BINTABLE
• SQL
• ...others

Tablecopy (command line)
Tables class library (your code here)
tablecopy -ofmt fits my-votable.xml
63
(No Transcript)
64
Treeview

• Find tables in deep hierarchies
• Directory trees
• VOTable hierarchical structure
• Multi-extension FITS files
• Compression .gz, .bz2, .Z
• Tar, zip, jar files
• FTP, HTTP
• Quick preview of VOTables
• XML, table data, table/column metadata
• Launch TOPCAT
• Recent versions of TOPCAT (v0.4) have embedded
  Treeview

65
References

• TOPCAT
• http//www.starlink.ac.uk/topcat/
• Treeview
• http//www.starlink.ac.uk/treeview/
• Starlink
• http//www.starlink.rl.ac.uk/
