Building distributed systems using WS-CDL

1

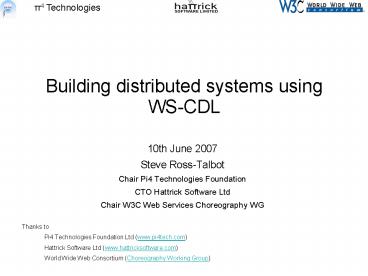

Building distributed systems using WS-CDL

• 10th June 2007
• Steve Ross-Talbot
• Chair Pi4 Technologies Foundation
• CTO Hattrick Software Ltd
• Chair W3C Web Services Choreography WG
• Thanks to
• Pi4 Technologies Foundation Ltd
  (www.pi4tech.com)
• Hattrick Software Ltd (www.hattricksoftware.com)

• World Wide Web Consortium (Choreography Working
  Group)

2
Agenda

• Background
• p4 Technologies Foundation
• Hattrick Software Ltd
• WS-CDL
• Simple example
• Case study
• Research

3
Background
4
p4 Technologies Foundation

• Founded in November 2005
• Kohei Honda, Nobuko Yoshida, Marco Carbone, Robin
  Milner, Steve Ross-Talbot, Gary Brown
• Enable collaborative research between industry
  and academia in applying formalisms to
  distributed systems development

5
p4 Technologies Foundation

• Bi-directional (open format for collaboration)
• Real world examples -gt academia
• Academia research -gt industry
• Forums for discussion
• www.pi4tech.org
• Open source environment for research and
  development. (Apache 2.0)
• CDL toolsuite
• Advanced type system

6
p4 Technologies Foundation

• Results so far
• CDL tool suite - eclipse-based community edition
• Modeling editor
• Generation to wsdl, java, ws-bpel
• Export to html, bpmn, ws-cdl, uml
• Scenarios
• Editor
• Validation
• Vertical standards use (FpML, TWIST, ISO WG4)
• Modeling editor with wsdl, html, bpmn, ws-cdl and
  uml
• Scenrios editor and validation
• Complements existing vertical standards packs
• Static
• Document, Validated example message, XMLSchema,
  Example scenarios
• Dynamic
• Document, Validated example scenarios, WS-CDL
  description

7
p4 Technologies Foundation
An example in CDM
8
p4 Technologies Foundation
Exported to BPMN
9
p4 Technologies Foundation
Exported to HTML
10
p4 Technologies Foundation
Exported to HTML
11
p4 Technologies Foundation
Exported to CDL
12
p4 Technologies Foundation
Exported to CDL
13
p4 Technologies Foundation
Support for scenarios validated against the
choreography
14
Hattrick Software Ltd

• Commercial entity charged with solving the
  problems of automation of OTC Derivatives
  Trading.
• Long lived, complex peered processes in which
  parties may change roles
• ClearGate generic WS-CDL-based protocol
  enforcer/monitor

15
WS-CDL
16
WS-CDL

• A language to describe the collaborative
  external observable behavior of a set of peered
  systems/services/applications as an ordered set
  of interactions over one or more logical channels
  that connect them.

17
Simple example
x
18
Simple example
19
Roles
20
Relationships and Participants
21
Channels and Info types
22
Bindings
23
Variables
24
Interactions
25
Choice
26
Workunits
27
Workunits
28
Workunits
This is what we used
29
Workunits
30
Theory

• Global Calculus
• Distillation of WS-CDL
• Reduction rules, etc
• End point Calculus
• Correspondance to Global Calculus
• Reduction riles, etc

http//www.w3.org/2002/ws/chor/edcopies/theory/not
e.pdf
31
Theory
http//www.w3.org/2002/ws/chor/edcopies/theory/not
e.pdf
32
Theory
http//www.w3.org/2002/ws/chor/edcopies/theory/not
e.pdf
33
WS-CDL Benefits

• A complete and unambiguous description of a
  distributed system of how peered roles or
  participants should interact and the order in
  which these interactions should take place.
• Enables code generation for a distrbuted system
  (end point projections) and guarantees
  interoperability of that system by design.
• Enables us to ask questions of a system so
  described
• Is it free from deadlocks, livelocks and races?

34
Case Study

• FpML
• Financial Products Markup Language
• Policed by ISDA
• FpML today is
• A set of documents that describe the structure of
  how to encode financial products in XML
• XMLSchema to enable validation of correct message
  formats and a set of example messages
• There are a set of sequence diagrams to govern
  when to send what to whom

35
Why WS-CDL?

• Consider the following
• Three companies wish to embark on a common
  business process. They are PartyA, PartyB and
  Confirmer.
• PartyA Is a seller selling some commodity
• PartyB Is a buyer buying some commodity
• Confirmer Acts as a central/brokered matching
  service that both PartyA and PartyB use to ensure
  that the contract between them matches (is
  valid). Confirming is legally binding.

36
Why WS-CDL?

• This is a distributed system in which no one
  company has dominion over any other.
• PartyA, PartyB and Confirmer are all peers.
• PartyA, PartyB and Confirmer could be different
  parts of the same company or different companies.
• PartyA, PartyB and Confirmer need to interact to
  progress some common goal such as buying and
  selling some goods.

37
Why WS-CDL?
Confirmer
PartyA
PartyB
38
Why WS-CDL?

• How we do this today using older technology
• XMLSchema, UML Activity Models, Sequence
  Diagrams, etc
• How we do this with WS-CDL
• XML Schema, WS-CDL description,
  Scenarios/Sequence Diagrams, multiple formats for
  review

39
Today
XMLSchema for data formats
40
Today
41
Today
42
Today
43
Today
44
Using WS-CDL
Choreography description Parallel // PartyA
thread RequestTradeConfirmation
PartyA2Confirmer RequestTradeMatch
Confirmer2Matcher // PartyA thread //
PartyB thread RequestTradeConfirmation
PartyB2Confirmer RequestTradeMatch
Confirmer2Matcher .
45
Using WS-CDL
While (not inConfirm) Choice // ----
Modification by PartyA ModifyTradeConfirmation
PartyA2Confirmer ModifyTradeMatch
Confirmer2Matcher // ---- Modification
by PartyB ModifyTradeConfirmation
PartyB2Confirmer ModifyTradeMatch
Confirmer2Matcher
46
Using WS-CDL
Choice Sequence // ---- Confirmation
process Choice Sequence // ----
TradeMatched ---- TradeMatched
Matcher2Confirmer Parallel
TradeMatched Confirmer2PartyA
TradeMatched Confirmer2PartyB
ConfirmTrade PartyA2Confirmer Pa
rallel TradeConfirmed Confirmer2PartyA
TradeConfirmed Confirmer2PartyA
.. // End
Choice // End Sequence
47
Using WS-CDL
Choice // ---- TradeMismatched
---- TradeMismatched Matcher2Confirmer Par
allel TradeMismatched Confirmer2Alleger
TradeMismatched Confirmer2Acceptor
// Alleger cancels CancelTradeCo
nfirmation Alleger2Confirmer CancelTradeMatch
Confirmer2Matcher Parallel
ConfirmationCancelled Confirmer2Alleger
ConfirmationCancelled Confirmer2Acceptor
.. // same but other way around // End
Choice
48
Using WS-CDL
49
Question
50
Question
Is this valid against our model?
51
Question
Session Joining?
52
Completeness

• Sequence diagrams do not capture everything.
• WS-CDL does. It is unambiguous and precise.

53
Research
54
Future Directions

• WS-CDL 2
• Added participant instances, notifications,
  semantic annotations
• Type system implementation
• Carbone et al
• Scribble - language for multicore, multi-process
  communication-based programming
• Honda et al
• Two research project proposals
• COWS Contract Oriented Web Services
• ModelWeb Model-Driven Engineering of Policy- and
  Choreography- Based Web Services

55
