Internet2 E2E piPEs Update

1

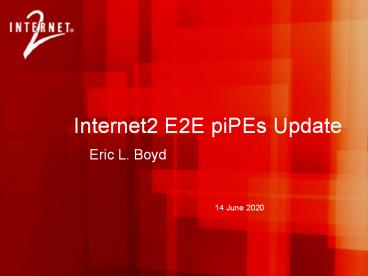

Internet2 E2E piPEs Update

• Eric L. Boyd

2
Overview

• E2E piPEs Overview
• What is piPEs?
• Goals
• E2E piPEs Measurement Infrastructure
• LA ?? CERN Measurement Demo
• piPEs Status
• Where are we? Whats available?
• Whats next? What can you do?

3
Internet2 E2E piPEs

• Project End-to-End Performance Initiative
  Performance Environment System (E2E piPEs)
• Approach Collaborative project combining the
  best work of many organizations, including
  DANTE/GEANT, Daresbury, EGEE, GGF NMWG,
  NLANR/DAST, UCL, Georgia Tech, etc.

4
Internet2 E2E piPEs Goals

• Enable end-users network operators to
• determine E2E performance capabilities
• locate E2E problems
• contact the right person to get an E2E problem
  resolved.
• Enable remote initiation of partial path
  performance tests
• Make partial path performance data publicly
  available
• Interoperable with other performance measurement
  frameworks

5
Measurement Infrastructure Components
6
Sample piPEs Deployment
7
Measurement Software Components
8
piPEs Deployment
9
Overview

• E2E piPEs Overview
• What is piPEs?
• Goals
• E2E piPEs Measurement Infrastructure
• LA ?? CERN Measurement Demo
• piPEs Status
• Where are we? Whats available?
• Whats next? What can you do?

10
American/European Collaboration Goals

• Awareness of ongoing Measurement Framework
  Efforts / Sharing of Ideas (Good / Not
  Sufficient)
• Interoperable Measurement Frameworks (Minimum)
• Common means of data extraction
• Partial path analysis possible along
  transatlantic paths
• Open Source Shared Development (Possibility, In
  Whole or In Part)
• End-to-end partial path analysis for
  transatlantic research communities
• VLBI Onsala, Sweden ?? Haystack, Mass.
• HENP CERN, Switzerland ?? Caltech, Calif.

11
American/European Demonstration Goals

• Demonstrate ability to do partial path analysis
  between Caltech (Los Angeles Abilene router)
  and CERN.
• Demonstrate ability to do partial path analysis
  involving nodes in the GEANT network.
• Compare and contrast measurement of a lightpath
  versus a normal IP path.
• Demonstrate interoperability of piPEs and
  analysis tools such as Advisor and MonALISA

12
Demonstration Details

• Path 1 Default route between LA and CERN is
  across Abilene to Chicago, then across Datatag
  circuit to CERN
• Path 2 Announced addresses so that route between
  LA and CERN traverses GEANT via London node
• Path 3 Lightpath (discussed earlier by Rick
  Summerhill)
• Each measurement node consists of a BWCTL box
  and an OWAMP box next to the router.

13
All Roads Lead to Geneva
14
Results

• BWCTL http//abilene.internet2.edu/ami/bwctl_stat
  us_eu.cgi/BW/14123130651515289600_1412424390274344
  5504
• OWAMP http//abilene.internet2.edu/ami/owamp_stat
  us_eu.cgi/14123130651515289600_1412424390274344550
  4
• MONALISA
• NLANR Advisor

15
Insights (1)

• Even with shared source and a single team of
  developer-installers, inter-administrative domain
  coordination is difficult.
• Struggled with basics of multiple paths.
• IP addresses, host configuration, software
  (support source addresses, etc.)
• Struggled with cross-domain administrative
  coordination issues.
• AA (accounts), routes, port filters, MTUs, etc.
• Struggled with performance tuning measurement
  nodes.
• host tuning, asymmetric routing, MTUs

16
Insights (2)

• Connectivity takes a large amount of coordination
  and effort performance takes even more of the
  same.
• Current measurement approaches have limited
  visibility into lightpaths.
• Having hosts participate in the measurement is
  one possible solution.

17
Insights (3)

• Consider interaction with security lack of
  end-to-end transparency is problematic.
• Security filters are set up based on expected
  traffic patterns
• Measurement nodes create new traffic
• Lightpaths bypass expected ingress points

18
Overview

• E2E piPEs Overview
• What is piPEs?
• Goals
• E2E piPEs Measurement Infrastructure
• LA ?? CERN Measurement Demo
• piPEs Status
• Where are we? Whats available?
• Whats next? What can you do?

19
piPEs Status

• Tools
• BWCTL (released) Traceroute (ongoing)
• OWAMP (released) NDT/piPEs Integration (ongoing)
• Measurement Framework
• Abilene Measurement Infrastructure (deployed)
• Measurement Infrastructure Glue (prototype,
  ongoing)
• Edge-to-Middle Testing (deployed)
• Outreach
• Application Communities (HENP, VLBI, ongoing)
• Establishing Measurement Domains (ITECs, ongoing)
• Collaboration Partners (DANTE, ESnet, APAN,
  ongoing)
• Standards Integration (GGF NMWG Advisor,
  MonALISA, IETF, ongoing)
• Measurement Framework Federation

20
BWCTL (Jeff Boote)http//e2epi.internet2.edu/bwct
l
21
OWAMP (Jeff Boote)http//e2epi.internet2.edu/owam
p
22
NDT (Rich Carlson)

• Network Diagnostic Tester
• Developed at Argonne National Lab
• Ongoing integration into piPEs framework
• Redirects from well-known host to nearest
  measurement node
• Detects common performance problems in the first
  mile (edge to campus DMZ)
• In deployment on Abilene
• http//ndt-seattle.abilene.ucaid.edu7123

23
Abilene Measurement Domain

• Part of the Abilene Observatory
• http//abilene.internet2.edu/observatory
• Regularly scheduled OWAMP (1-way latency) and
  BWCTL (Iperf wrapper) Tests
• Web pages displaying
• Latest results http//abilene.internet2.edu/ami/bw
  ctl_status.cgi/TCP/now Weathermap
  http//abilene.internet2.edu/ami/bwctl_status_map.
  cgi/TCP/now
• Worst 10 Performing Links http//abilene.internet2
  .edu/ami/bwctl_worst_case.cgi/TCP/now
• Data available via web service
• http//abilene.internet2.edu/ami/webservices.html

24
AMI Web Service (W. Matthews)http//abilene.inter
net2.edu/ami/webservices.html

• my request ( networkCharacteristic gt
  "path.delay.oneway",
• subject gt source gt address
  gt name gt "ATLA", , ,
• destination
  gt address gt name gt "LOSA", , ,
• type gt
  "IPv4", ,
• startTime gt 2004-02-01T000000
  -500",
• endTime gt 2004-02-01T235959-5
  00",
• )
• my webService SOAPLite
• -gt uri('http//abilene.internet2.edu/PIPES
  ')
• -gt proxy('http//usernamepassword_at_abilene
  .internet2.edu/ami/services/soap_server.cgi')
• -gt NetworkMeasurementSet(\request)
• -gt result

Wrap the request up in an object
Send it to the webservice
25
Test from the Edge to the Middle

• Divide and conquer Partial Path Analysis
• Install OWAMP and / or BWCTL
• Obtain a BWCTL key here
• http//e2epi.internet2.edu/pipes/ami/bwctl/
• http//e2epi.internet2.edu/pipes/ami/owamp/
• Begin testing!

26
Outreach

• Establishing Application Communities
• HENP, VLBI
• Establishing Measurement Domains
• ITECs, CERN, GEANT
• Collaboration Partners
• DANTE, ESnet, APAN
• Standards Integration
• GGF NMWG, IETF
• ? NLANR / DAST Advisor, MonALISA

27
Measurement Infrastructure Federation

• Why a Federation?
• Multiple measurement frameworks in existence and
  under development (piPEs, NLANR Advisor, NLANR
  AMP, etc.).
• No static best practice measurement framework
  is likely to emerge, given academics being
  academics.
• Future measurement frameworks can build on
  shoulders of current efforts, not feet.
• Performance Measurement Architecture Workshop
  (NSF Grant ANI-0314723)
• Matt Zekauskas

28
Measurement Infrastructure Federation Interfaces
29
Using piPEs

• Download, try out BWCTL, OWAMP
• Test Edge ? Middle
• Set up Measurement Beacons
• Identify machines locations
• Determine policies and limitations
• Install BWCTL, OWAMP daemons
• (Future) Set up measurement domain or
  application community

30
Summary

• We can do partial path analysis, although making
  sense of the results is still a big issue.
• We can speak the same measurement language,
  although its still evolving.
• We are working together in growing numbers, but
  we need critical mass (become de facto standard).
• We need to be able to find each other.
• We need to be able to verify each others
  identity.

31
(No Transcript)
32
Extra Slides
33
Data Collection / Correlation

• Collection Today
• Iperf (Throughput)
• OWAMP (1-Way Latency, Loss)
• SNMP Data
• Anonymized Netflow Data
• Per Sender, Per Receiver, Per Node Pair
• IPv4 and IPv6
• Collection in the Future
• NTP (Data)
• Traceroute
• BGP Data
• First Mile Analysis

• Correlation Today
• Worst 10 Throughputs
• Worst 10 Latencies
• Correlation in the Future
• 99th Percentile Throughput over Time
• Throughput/Loss for all E2E paths using a
  specific link
• Commonalities among first mile analyzers
• Sum of Partial Paths vs. Whole Path

34
Data Analysis

• Analysis Today
• Throughput over Time
• Latency over Time
• Loss over Time
• Worrisome Tests? (Any bad apples in Worst Ten?)
• Not the Network (If Worst Ten is good enough)

• Analysis in the Future
• Latency vs. Loss
• How good is the network?
• Do common first mile problems exist?
• Does a link have problems that only manifest in
  the long-haul?
• Is the network delivering the performance
  required by a funded project?

35
Data Discovery / Interoperability

• Discovery in the Future
• Where are the measurement nodes corresponding to
  a specific node?
• Where are the test results for a specific partial
  path?

• Interoperability in the Future
• Can I have a test within or to another
  measurement framework?
• Can I have a measurement result from within or to
  another measurement framework?

36
piPEs Deployment
NC State
APAN
3) Campus, European, APAN Deployment (In Progress)
