Architectural Features of Transactional Memory Designs for an Operating System

1

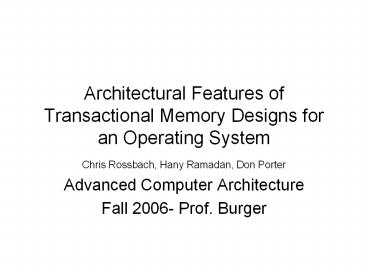

Architectural Features of Transactional Memory
Designs for an Operating System

• Chris Rossbach, Hany Ramadan, Don Porter
• Advanced Computer Architecture
• Fall 2006- Prof. Burger

2
Motivation

• What would a realistic HTM system actually
  support? (primitives/design choices)
• Current Transactional Memory proposals make
  architectural design choices with inadequate
  information
• shared counter, linked list benchmarks
• focus on user mode avoids OS issues

3
HTM OS are you nuts?

• Large concurrent program with complex data access
  patterns
• Complex code simplify programming model
• Many apps spend a lot of time in kernel
• Diverse synchronization primitives
• spinlocks, semaphores, per-CPU variables, RCU,
  seqlocks, completions, mutexes

4
Our HTM System

• Basic primitives
• xbegin, xend
• OS-specific primitives
• xpush, xpop
• stack management interrupts on x86 re-use stack
• Configurable Hardware Parameters
• Conflict detection granularity
• Commit abort penalties
• Overflow costs
• Configurable contention management
• Conflict resolution policies which tx restarts?
• Backoff policies how long to wait before restart

5
An Issue Unique to an OS Using transactions in
interrupt handlers
No tx in interrupts
system_call() XBEGIN modify 0x10 XEND
intr_handler() XPUSH XBEGIN modify
0x30 XEND XPOP
0x10
TX 1 0x10
0x20
Interrupts abort active tx
0x30
TX 1 0x10
0x40
interrupt
TX 2 0x30
Nest the transactions
TX 1 0x10, 0x30
TX 1 0x10
Multiple active transactions
TX 1 0x10
TX 2 0x30
6
Converting Linux to TxLinux

• TxLinux based on kernel 2.6.16.1
• Converted core primitives to use transactions
• spin-locks, RCU primitives, r/w locks
• critical sections become transactions
• Converted high traffic subsystems
• memory allocators, FS directory cache, mapping
  addresses to pages data structures, memory
  mapping files into address spaces, ip routing,
  and socket locking
• Modified interrupt-handling code to use
  primitives in our HTM model (xpush, xpop)

7
HTM Implementation

• Implemented HTM model as x86 extensions
• Simulation environment
• Simics 3.0.17 machine simulator
• transactional L1 cache (variable 4k-32k)
• 4MB L2 1GB RAM
• 1 cycle/instruction, 16 cycle/L1 miss, 200
  cycle/L2 miss
• 4 8 processors

8
Experimental Setup

• Benchmarks
• micro kernalloc, Counter, directory cache
  punisher
• macro pmake, netcat, MAB, configure, find
• Measurements
• Execution time
• Transactions statistics created/restarted/overflo
  wed, working sets, footprint
• Cache statistics (e.g. miss rate)
• Variables
• Contention management (conflict/backoff policies)
• Transactional cache size
• Commit, abort, overflow penalties
• Conflict granularity (byte vs. word vs. cache
  line)

9
TxLinux Results (4 processors)
Transactions Created 105,972 425,888 475,860 1,810,602 1,408,610 243,934

• Performance change minimal, lots of transactions

• Unique Transaction restarts were lt 0.07
• Data cache miss rates do not change appreciably

10
Contention Management Matters!
linear back off policy, 4 processors
11
Conclusions

• TxLinux is cooler than, and has comparable
  performance to Linux
• Cache line granularity is good enough
• 16KB Transactional cache covers the vast majority
  of transactions
• Best contention management policy is workload
  dependent.
• Exponential back off is too conservative

12
Backup Slides
13
Contention Management Restart Rates
14
Conflict Granularity Backoff Policy
15
Stack Management Issue

• Treating the Stack as a shared resource
• Checkpoint
• Partition

16
Txl Memory Allocator Investigation

• Examine Tx complexity/performance trade-off
• The slab is the default Kernel memory allocator
• Highly tuned for performance
• Avoids contention/locks , uses per-CPU structures
• About 3,880 lines of code
• The slob is a drop-in replacement
• Designed for minimal bookkeeping memory overhead
• Uses two coarse-grained locks (386 lines)
• The slob-opt is slob with modifications
• Removed obvious transaction bottlenecks
• Only a couple of dozen lines of code changed

17
Txl Memory Allocator Results (4 proc)
Kernalloc Pmake MAB configure Find
slab 1.4 13.9 8.0 14.1 1.8
0 0.04 0.07 0.04 0
slob - 14.3 21.3 16.3 1.8
- 1.78 19.72 5.93 0.71
slob-optimized 16.7 14.1 12.7 14.9 1.8
18.17 0.45 8.48 1.42 0.12
Execution time (in seconds) Unique restarts
18
Transactional Memory Issues

• Hardware vs. Software
• Different interfaces
• strong (HW) vs. weak (SW) atomicity
• Will transactions make programming easier?
• Transactions for blocking primitives?
• Using transactions for security?
