Heat Modalities

1

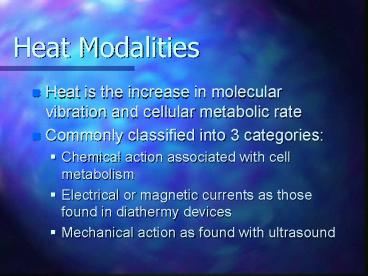

Heat Modalities

• Heat is the increase in molecular vibration and
  cellular metabolic rate
• Commonly classified into 3 categories
• Chemical action associated with cell metabolism
• Electrical or magnetic currents as those found in
  diathermy devices
• Mechanical action as found with ultrasound

2
Heat Modalities

• Methods of thermotherapy can be classified as
  superficial or deep
• Superficial
• Infrared lamps
• Moist heat packs
• Paraffin baths
• Warm whirlpool or immersion
• Deep
• Microwave diathermy
• Shortwave diathermy
• Ultrasound

3
Heat Modalities

• Superficial agents must be able to ? skin
  temperature to 104º to 113ºF to produce
  therapeutic effects
• Superficial agents are limited to depths of less
  than 2 cm
• Effects of heat are essentially opposite of cold,
  thus treatment indications will be different

4
Heat Modalities Local Effects of Heat

• Local Effects of Heat Application
• Vasodilation
• Increased rate of cell metabolism
• Increased delivery of leukocytes
• Increased capillary permeability
• Increased venous and lymphatic draining
• Edema formation
• Removal of metabolic wastes
• Increased elasticity of ligaments, capsules and
  muscle

5
Heat Modalities Local Effects of Heat

• Local Effects of Heat Continued
• Analgesia and sedation of nerves
• Decreased muscle tone
• Decreased muscle spasm
• Perspiration
• Increased nerve conduction velocity

6
Heat Modalities Systemic Effects of Heat

• Systemic Effects of Heat
• Increased body temperature
• Increased pulse rate
• Increased respiratory rate
• Decreased blood pressure
• These effects occur primarily when entire body is
  exposed to warm temps

7
Heat Modalities Indications

• General Indications
• Subacute or chronic inflammatory conditions
• Reduction of subacute or chronic pain
• Subacute or chronic muscle spasm
• Decreased ROM
• Hematoma resolution
• Reduction of joint contractures

8
Heat Modalities Contraindications

• Contraindications
• Acute injuries
• Impaired circulation
• Poor thermal regulation
• Anesthetic areas
• Neoplasms
• Thrombophlebitis

9
Heat Modalities Magnitude and Duration of Temp
Increase

• Maximum therapeutic benefits occur when the skin
  temperature rapidly increases
• Most be careful too much injury too little
  limited therapeutic effect
• During the first 5 to 6 minutes of treatment, the
  body absorbs heat faster than it can be
  dissipated
• At 7-9 minutes the temp begins to plateau

10
Heat Modalities Magnitude and Duration of Temp
Increase

• When maximum vasodilation occurs and the
  intensity of the treatment stays constant, the
  vessels will begin to constrict Rebound
  Vasoconstriction
• This occurs approx. 20 minutes into the tx
• Mottling
• Warning sign of skin white areas with red
  splotches

11
Heat Modalities Tissue Cooling

• Tissue cools faster after a heat treatment then
  it re-warms after a cold treatment
• Superficial intramuscular temperatures remain
  elevated for approximately 30 minutes after the
  removal of the modality

12
Heat Modalities Dissipation of Heat in the
Treatment Area
13
Heat Modalities Therapeutic Temperature
Benchmarks

• Increased temp causes blood hemoglobin to release
  oxygen, providing more oxygen for the healing
  process
• At 106F the release of O2 is doubled
• Enzymatic activity increases at 102 and
  continues until 122
• From 104 to 113 tissue has a greater ability to
  be stretched

14
Heat Modalities Effects on the Injury Response
Process

• Timing is important in determining when heat
  should be applied
• If applied to early it will ? cell metabolism and
  the rate of inflammation

15
Heat Modalities Cellular Response - Blood and
Fluid Dynamics

• For each increase of 18ºF in skin temp, the
  cells metabolic rate increases two to three
  times (Q10 Effect) ? need for oxygen
• Rise in temp vasodilation of blood vessels,
  which will result in ? edema to the area, but,
  also an ? in removal
• This ? in removal is necessary in order for edema
  not to return

16
Heat Modalities Effect on Inflammation

• Heat accelerates inflammation
• Soft tissue repair is facilitated through an
  increase in metabolic rate and increased blood
  supply
• Increase in nutrients delivered to the cell and
  there is an increase in the delivery of
  leukocytes, encouraging phagocytosis

17
Heat Modalities Muscle Spasm and Tissue
Elasticity

• Increased temp reduces the muscle spindles
  sensitivity to stretch, decreasing the amount of
  muscle spasm
• There is also an increase in extensibility of the
  collagen and other tissues
• Heat alone will not increase ROM, must also
  include gentle passive stretching

18
Heat Modalities Pain Control

• In chronic conditions pain is caused by chemical
  (lack of oxygen) pain and mechanical (pressure)
  pain
• Heat increases oxygen delivery to limit chemical
  pain
• Heat increases circulation to and away from the
  injury, removing edema and irritants

19
Heat Modalities Exercise as a Form of Heat

• Moderate to intense exercise increases
  intramuscular temps 4 at a depth of 5 cm in the
  involved muscles
• Does not result in vigorous heating, but can be
  considered more functional than the use of a
  standard heating modality

20
Heat Modalities Moist Heat Pack

• Superficial heat modality
• Water in unit is 160º to 170ºF
• Capable of maintaining temp for 30 to 45 minutes

21
Heat Modalities Moist Heat Pack

• Application
• Cover with towel or commercial covering
• Duration
• 20 to 30 minutes
• Frequency
• As necessary, with sufficient time between
  treatments

• Indications
• Subacute or chronic conditions
• reduction of subacute or chronic pain
• Decreased ROM
• Hematoma resolution
• Reduction of joint contractures
• Infection

22
Heat Modalities Moist Heat Packs

• Contraindications
• Acute conditions
• Peripheral vascular disease
• Impaired circulation
• Poor thermal regulation

• Precautions
• Do not let heat pack come in direct contact with
  skin
• Infected areas need to be covered with sterile
  gauze

23
Heat Modalities Moist Heat Packs

• Other thoughts and concerns
• Place pack on athlete in a comfortable manner
• Athlete should not sit or lay on hot pack
• Check athlete after first 5 minutes to look for
  mottling
• Clean all towels or covers if used over open wound

24
Heat Modalities Paraffin Bath

• Contains mixture of wax and mineral oil (71)
• Superficial agent used to deliver heat to small,
  irregular shaped areas
• Used in chronic conditions of the hands and feet

25
Heat Modalities Paraffin Bath

• May increase intra-articular temps as much as
  6.3F
• Paraffin is kept at a constant temp between 118
  and 126
• Can provide 6 times the heat as compared to water

26
Heat Modalities Paraffin Bath

• Application
• Immersion Bath
• Glove Method
• Duration
• 15-20 minutes
• Frequency
• Can be applied several times daily

• Indications
• Subacute or chronic conditions
• Limitations of motion after immobilization
• Contraindications
• Open wounds
• Skin infections
• Sensory loss
• Peripheral vascular disease

27
Heat Modalities Fluidotherapy

• Dry heat modality that uses a suspended air
  stream, which has the properties of a liquid
• Applies heat, massage, sensory stimulation for
  desensitization and pressure
• Good success in treatment of pain, decreased ROM,
  wounds, swelling and blood flow
• Treatment of the hand at 115 results in a 6 fold
  increase in blood flow and a 4 fold increase in
  metabolic rates

28
Heat Modalities Fluidotherapy

• Applied at 118 fluidotherapy can increase joint
  capsule temps by 16.2 and superficial muscle by
  9.5
• Commonly used for the wrist, hand and fingers
  and the ankle and toes

29
Heat Modalities Fluidotherapy

• Temp Range
• 110 to 125F
• Duration
• 20 minutes
• Frequency
• Can be applied several times daily

• Indications
• Pain reduction
• Prior to or during joint mobilization
• ROM exercises
• Non-rheumatoid arthritis
• Contraindications
• Open wounds
• Sensory loss
• Peripheral vascular disease
• Cancerous lesions

30
Heat Modalities Warm Whirlpool

• Effective for irregularly shaped areas
• Allows for ROM exercises
• Turbine provides massage effect
• Temp at 90º to 110ºF (Lower if whole body
  treatment

31
Heat Modalities Warm Whirlpool

• Duration
• 20-30 minutes
• Frequency
• Treatments can be once or twice per day

• Indications
• Decreased ROM
• Subacute or chronic inflam. Conditions
• Perphiral vascular disease or nerve injuries
• Contraindications
• Acute conditions
• Patients requiring postural support
• Fever
• Skin conditions

32
Heat Modalities Warm Whirlpool

• Other thoughts and concerns
• Never turn on or off WP while in water
• Plugged into GFI
• Use disinfectant as necessary
• Completely drain and clean if used by athlete
  with open wound
• Do not use with acute injury

33
Heat Modalities Contrast Bath

• Most commonly used in subacute or chronic
  conditions
• Try to create a pumping action to stimulate
  blood flow
• May start or finish in either hot or cold

34
Heat Modalities Contrast Bath

• Duration
• 20-30 minutes
• Frequency
• May be repeated as necessary
• Same temps and concerns as with the cold or warm
  whirlpool application

• Indications
• Ecchymosis removal
• Edema removal
• Subacute or chronic conditions
• Pain reduction
• Increasing ROM
• Contraindications
• Acute injuries
• Any contraindication to heat or cold applications

35
Heat Modalities Counterirritants

• Not an infrared modality, but commonly referred
  to in this area due to the sensation produced.
• Topical ointments containing
• Menthol and methyl salicylate (found in
  peppermint and wintergreen oils)
• Camphor
• Capsaicin

36
Heat Modalities Counterirritants

• Exact mechanism of pain relief is not known
• Most likely due to the stimulation of the A-beta
  nerves
• No evidence of temp increases, however, some
  studies have shown a decrease in pain and an
  increase in range of motion

37
Heat Modalities Counterirritants

• Apply to skin in a massaging motion
• May also apply a pad or wrap to the area after
  application of the ointment
• Use with caution, but do not underestimate the
  psychological effects

38
Comparison of Heat Cold
39
Use of Heat vs. Cold

• Not a real clear cut answer when to switch from
  heat to cold
• Remember that each athlete is different
• Always use cold after exercise
• Try to answer the following questions?

40
Use of Heat vs. Cold

• Does the body area feel warm to the touch?
• Is the injured area still sensitive to light or
  moderate touch?
• Does the amount of swelling continue to increase
  over time?
• Does swelling increase during activity?
• Does pain limit the joints ROM?
• Would you consider the acute inflammation process
  to still be active?
• Does the athlete continue to show improvement
  with the use of cold modalities?
