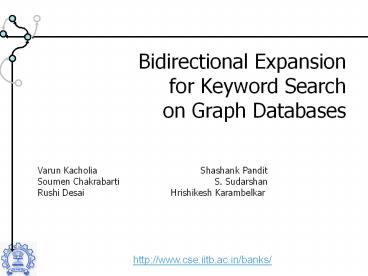

Bidirectional Expansion for Keyword Search on Graph Databases

1
Bidirectional Expansion for Keyword Searchon
Graph Databases
Varun Kacholia
Shashank Pandit Soumen Chakrabarti
S. Sudarshan Rushi Desai
Hrishikesh Karambelkar
http//www.cse.iitb.ac.in/banks/
2
Keyword Search on Graph Representation of Data

• Keyword search on relational, XML, HTML, etc.
  data
• BANKS, Discover, DBXplorer, XRank, etc.
• Need to find a (closely) connected set of nodes
  that together match all given keywords
• Focus of our work
• Search algorithms to find connections between
  nodes

3
Outline

• Data, Query and Response Models
• Backward Search Algorithm
• Bidirectional Search Algorithm
• Experiments
• Related Work
• Conclusions

4
Graph Data Model

• Data modeled as a directed weighted graph BANKS
  ICDE02
• Can model relational, XML, HTML, etc. data
• E.g., DBLP database
• Node tuple
• Edge foreign key reference

5
Graph Data Model (2)

• E.g., XML data
• ltproceedingsgt
• ltpaper id1gt
• lttitlegtDatabaseslt/titlegt
• lt/papergt
• ltpaper id2gt
• lttitlegtKeyword Searchlt/titlegt
• ltcite ref1gtDatabaseslt/citegt
• lt/papergt
• lt/proceedingsgt

proceedings
paper (_at_id 1)
paper (_at_id 2)
cite
title
title
6
Response Model

• Response Minimal, rooted tree connecting keyword
  nodes
• Undirected Discover, DBXplorer
• Directed BANKS

paper
Multi-Query Optimization
E.g., Sudarshan Roy
writes
writes
author
author
Prasan Roy
Sudarshan
7
Response Ranking

• Edge Score EA
• Smaller tree gt higher score
• E.g., BANKS EA 1/ (S edge weights)
• Node Score NA
• Measure of authority of nodes in tree
• E.g., BANKS NA S (leaf and root node
  authorities)
• Overall score f (EA, NA)
• E.g., BANKS f (EA, NA) EA . NAl

8
Finding Answer Trees

• Backward Expanding Search
• BANKS ICDE02
• Intuition travel backwards from keyword nodes
  till you hit a common node

Query sudarshan roy
MultiQuery Optimization
paper
writes
Sudarshan
Prasan Roy
authors
9
Backward Search Algorithm

• Algorithm
• Run concurrent single source shortest path
  iterators from each node matching a keyword
• Traverse the graph edges in reverse direction
• Output next nearest node on each get-next() call
• Do best-first search across iterators
• Output node if in the intersection of sets of
  nodes reached from each keyword

10
Backward Search Limitations

• Wasteful exploration of graph
• Frequently occurring keywords
• Hub nodes in the graph (high in-degree)

Shashank Sudarshan Database

Schema Legend
Database

author
writes
paper
Shashank
Sudarshan
11
Bidirectional Search Motivation
12
Bidir Search Intuition

• First cut solution
• Dont go backward if keyword matches many nodes
• Dont go backward if node points to a hub
• Instead explore forward from other keywords

13
Bidir Search Example
Shashank Sudarshan Database


Database
Schema Legend

author
writes
Shashank
Sudarshan
paper
14
Bidir Search Issues

• What should threshold for not expanding be?
• Our solution prioritize expansion of nodes based
  on spreading activation
• to penalize frequent keywords and bushy trees
• How to manage exploration in both directions?

15
Bidir Search Spreading Activation

• Spreading Activation
• Node with highest activation explored first
• Every node given an initial activation
• Gives low activation to frequently occurring
  keywords

1/5
1/5
1/5
1/5
1/5
John
16
Bidir Search Spreading Activation

• Spreading Activation
• Node with highest activation explored first
• Activation spread to neighbors (µ 0.3)
• Gives low activation to neighbors of hubs

0.7 x 1/5 x 1/4
0
1
1/5
1
0.7 x 1/5 x 1/4
0
1
0
0.7 x 1/5 x 1/4
0.3 x 1/5
1
0.7 x 1/5 x 1/4
0
17
Bidir Search Iterators

• How to manage exploration in both directions?
• Single backward iterator single forward
  iterator w/ suitable datastructures
• E.g., to keep track of parents of nodes
• Details in full paper

Dist from A, Dist from B
7
6
8,8
2,3 8
8,8 2
2,8

8,1
8,1
1,8
3
4
5
0,8
8,0
2
1
A
B
18
Bidir Search Algorithm

• Algorithm
• Activate matching nodes insert into backward
  iterator
• while (iterators are not empty)
• Choose iterator for expansion in best-first
  manner
• Explore node with highest activation
• Spread activation to neighbors
• Update path weights (and other datastructures)
• Propagate values to ancestors if necessary
• Insert nodes explored in the backward direction
  into the forward iterator / for future forward
  exploration /
• Stop when top-k results are produced

19
Bidir Search top-k results

• Results need not be generated in-order
• Naïve solution
• Store results in an intermediate heap
• Output top k results after mk total results have
  been generated (m 10)
• Can do better
• Compute upper bound on score of next result
  output answers with a higher score
• Similar to NRA algorithm (Fagin et al., PODS01)

20
Experiments

• Datasets
• DBLP, IMDB 2 million nodes, 9 million edges
• US Patent DB 4 million nodes, 15 million edges
• Workload
• Keywords randomly picked from results of SQL join
  statements
• Search algorithms
• MI-Bkwd original backward search
• Iterator for every node matching a keyword
• SI-Bkwd backward search with single backward
  iterator
• Bidirec bidirectional search
• Time taken/nodes explored
• Measured when 10th answer is generated (or last
  answer if answers lt 10)
• Origin size
• nodes matched by keywords in the query

21
Experiments (2)

• MI-Bkwd versus SI-Bkwd
• SI-Bkwd gain increases with origin size,
  keywords

22
Experiments (3)

• SI-Bkwd versus Bidirec
• Bidirec gain increases with origin size,
  keywords

23
Experiments (4)

• Precision/Recall experiments
• Relevant answers are well-defined can be
  generated through SQL statements
• Both MI-Backward and Bidirectional show similar
  performance
• Recall 100
• Precision 100 at near full recall
• Few irrelevant answers produced before generating
  all relevant answers
• Bidirectional runs faster, yet minimal loss of
  relevant results!

24
Experiments (5)

• Comparison with Sparse
• Hristidis et al. VLDB03
• Generate join expressions leading to query
  results
• Use DB-provided scores for ranking tuples and
  aggregate them to rank answer trees
• For top-k results automatically determine
  required number of join expressions
• Sparse-LB
• Manually generate required join expressions
• Sparse needs to do at least this much (and
  usually a lot more!)
• Bidirectional versus Sparse-LB
• Bidirectional outperforms by a factor of 3
  (esp. when joins is large)

25
Experiments (6)

• SI-Bkwd versus Bidirec by origin size
• Bidirec gains more with unbalanced origin sizes

A (T,S,S,S) B (M,M,M,M) C (M,L,L,L) D
(M,M,L,L) E (T,L,L,L) F (T,S,M,L) G
(T,M,L,L) H (T,T,T,L)
26
Discussion

• Bidirectional search as dynamic per-tuple join
  ordering
• Related work in this area Eddies
• Bidirectional search
• Schema-less
• Prioritization based on activation instead of
  selectivity
• Generate answers in relevance order

27
Related Work

• Keyword querying on relational data Discover
  (UCSD), DBExplorer (Microsoft)
• Use SQL generation, without in-memory data
  structures
• Issues generate join plans, re-use common
  sub-expressions, etc.
• Keyword querying on XML
• XRank (Cornell), Schema-Free XQuery (Michigan),
• Tree model is too limited
• ObjectRank

28
Conclusions

• Graph model
• Convenient common denominator representation
• Schema-free querying leads to graph search
• Purely backward strategy inadequate
• Bidirectional search with spreading activation
  performs much better
• Dynamically choose join order on per-tuple basis

29
Thank You!
Questions??
30
Future of Keyword Search in DBs

• Next generation of intelligent search will
  require context information
• E.g. search email, files, calendar, ..
• Information integration will be important
• Graph structured data will be a key component
• Is there a killer app?
• Deep web?
• Display of answers
• Users dont want to see schema details
• Can we leverage off existing (Web) apps?

31
BANKS Future Work

• Applications of BANKS
• Soumen Chakrabarti, Sunita Sarawagi and students
• Exploit BANKS to integrate different sources of
  data
• Extract information, Infer soft links
• BANKS for personal information management
• SPIN Search Personal Information Networks
• Ongoing/future work on BANKS
• More sysadmin/user control on ranking
• One size does not fit all
• BANKS provides infrastructure
• Characterize bidirectional search better
• And find other applications
• Security

32
Bidir Search top-k results (2)

• Compute upper bound on score of next result
  output answers with a higher score
• Computing the bound
• mi minimum path length explored backward from
  keyword i
• unseen answer node 1/(m1 m2 mn )
• visited answer node suppose reached from first x
  keywords with distance di
• 1/(d1 d2 dx ) (mx1 mx2
  mn )
• combine this with max node prestige
• We simply use 1/(m1 m2 mn )!
• Experiments show no significant loss in using
  this heuristic
