Software Testing Techniques

1

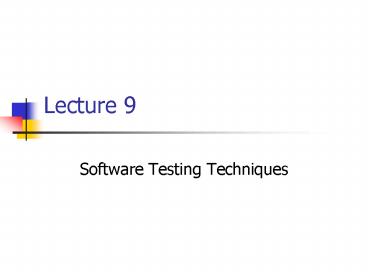

Lecture 9

• Software Testing Techniques

2

• OOD Case Study

3
Software Testing
Testing is the process of exercising a program
with the specific intent of finding (and
removing) errors prior to delivery to the end
user.
4
What Testing Shows
5
Who Tests the Software?



6
Testing Principles

• All tests should be traceable to customer
  requirements
• Tests should be planned long before testing
  begins
• The Pareto (80/20) principle applies to software
  testing
• Testing should begin in the small and progress
  toward testing in the large
• Exhaustive testing is not possible
• Testing should be conducted by an independent
  third party

7
Testability

• Operabilityit operates cleanly
• Observabilitythe results of each test case are
  readily observed
• Controlabilitythe degree to which testing can be
  automated and optimized
• Decomposabilitytesting can be targeted
• Simplicityreduce complex architecture and logic
  to simplify tests
• Stabilityfew changes are requested during
  testing
• Understandabilityof the design

8
What is a good test?

• Has a high probability of finding an error need
  to develop a classification of perceivable errors
  and design test for each case
• Not redundant no two tests intend to uncover
  the same error
• Representative have highest likelihood of
  uncovering error
• Having right level of complexity not too simple
  or too complex

9
Exhaustive Testing
10
Selective Testing
11
Software Testing
black-box methods
white-box methods
Test internal operations, i.e. procedural details
Test functions (at the software interface)
Methods
Strategies
12
Test Case Design
13
White-Box Testing
Paths Decisions Loops Internal data
14
Why Cover?
15
Flow Graph
Flow Graph
Flowchart
16
Flow Graph (cont.)
Predicate node
17
Basis Path Testing
Basis path set path 1 1-11 path 2
1-2-3-4-5-10-1-11 path 3 1-2-3-6-8-9-10-1-11 path
4 1-2-3-6-7-9-10-1-11
18
Cyclomatic Complexity
19
Derive Test Cases

1. Draw a flow graph based on the design or code
2. Determine cyclomatic complexity
3. Determine basis set of linearly independent paths
4. Prepare test cases for basis set

20
Example
PROCEDURE average INTERFACE RETURNS average,
total.input, total.valid INTERFACE ACCEPTS
value, minimum, maximum TYPE value1100 IS
SCALAR ARRAY TYPE average, total.input,
total.valid minimum, maximum, sum IS
SCALAR TYPE i IS INTEGER i 1
total.input total.valid 0 sum 0 DO
WHILE valuei ltgt -999 AND total.input lt 100
increment total.input by 1 IF valuei gt
minimum AND valuei lt maximum THEN
increment total.valid by 1 sum
sum valuei ELSE skip ENDIF
increment i by 1 ENDDO IF total.valid gt
0 THEN average sum / total.valid
ELSE average -999 ENDIF END average
21
Example (cont.)

• path 1 1-2-10-11-13
• path 2 1-2-10-12-13
• path 3 1-2-3-10-11-13
• path 4 1-2-3-4-5-8-9-2-
• path 5 1-2-3-4-5-6-8-9-2-
• path 6 1-2-3-4-5-6-7-8-9-2-
• loop back
• Predicate nodes 2,3,5,6,10
• V(G) 6

• Path 1 test case
• value(k) valid input, where klti for 2?i? 100
• value(i)-999 where 2?i? 100
• Expected results correct average based on k
  values and proper totals
• Note must be tested as part of path 4, 5, and 6
  tests
• Path 2 test case
• value(i) -999
• Expected results average -999

22
Example (cont.)

• Path 5 test case
• value(i) valid input where ilt100
• value(k) gt minimum where k?i
• Expected results correct average based on k
  values and proper totals
• Path 6 test case
• value(i) valid input where ilt100
• Expected results correct average based on k
  values and proper totals

• Path 3 test case
• Attempt to process 101 or more values
• First 100 values should be valid
• Expected results Same as test case 1
• Path 4 test case
• value(i) valid input where ilt100
• value(k) lt minimum where klti
• Expected results Correct average based on k
  values and proper totals

23
Loop Testing
Simple loop
Nested Loops
Concatenated
Loops
Unstructured
Loops
24
Simple Loops
Minimum conditionsSimple Loops
1. skip the loop entirely

2. only one pass through the loop

3. two passes through the loop
4. m passes through the loop m lt n

5. (n-1), n, and (n1) passes through
the loop

where n is the maximum number
of allowable passes
25
Nested Loops

1. Start at the innermost loop. Set all outer loops
   to their minimum iteration parameter values.
2. Test the min1, typical, max-1 and max for the
   innermost loop, while holding the outer loops at
   their minimum values. Add other tests for
   out-of-range or excluded values
3. Move out one loop and set it up as in step 2,
   holding all other loops at typical values.
   Continue this step until the outermost loop has
   been tested.

26
Concatenated Loops
If the loops are independent of one another
then treat each as a simple loop else treat as
nested loops endif
Redesign unstructured loops if possible
27
Black-Box Testing
requirements
output
input
events
28
Equivalence Partitioning

• An equivalence class represents a set of valid or
  invalid states for input conditions
• A test case can uncover classes of errors

user queries
FK input
output formats
mouse clicks
data
prompts
29
Sample Equivalence Classes
Valid data
User supplied commands

• If condition needs
• Range / Specific value
• one valid and two invalid equivalence classes
• Member of a set/ Boolean
• one valid and one invalid equivalence classes

Responses to system prompts
File names
Computational data
physical parameters
bounding values
initiation values
Output data formatting
Responses to error messages
Graphical data (e.g., mouse clicks)
Invalid data
Data outside bounds of the program
Physically impossible data
Proper value supplied in wrong place
30
Bank ID Example

• Area code blank or three-digit number
• Boolean code may or may not be present
• Prefix three-digit number not beginning with 0
  or 1
• Range 200 999, with specific exceptions
• Suffix four-digit number
• Value four digits
• Password six-digit alphanumeric string
• Boolean password may or may not present
• Value six-character string
• Commands check, deposit, bill payment, and the
  like
• Set valid commands

31
Boundary Value Analysis
Concentrates on the boundary conditions!
user queries
FK input
output formats
mouse picks
data
prompts
output domain
input domain
32
BVA Guidelines

• Range (e.g. a and b) test with a, b, and just
  above and below a and b
• Values test with min., max., and values just
  above and below min. and max.
• The above two guidelines apply to output
  conditions
• Test data structure at its boundary (e.g. array)

33
Testing Strategy
unit test (components)
Integration test (architecture)
Validation test (requirement)
System test (interface other system)
34
Unit Testing
white box
module to be tested
results
software engineer
test cases
35
Unit Test Environment
driver

interface
local data structures

module
boundary conditions
dummies
independent paths

error handling paths
stub
stub
test cases
RESULTS
36
Integration Testing
white box
Options the big bang approach an
incremental construction strategy
37
Top Down Integration

• Disadvantages
• Incur development overhead
• Difficult to determine real cause of error

A
top module is tested with
stubs
B
F
G
stubs are replaced one at
a time, depth first
C
breadth first approach would replace stubs of
the same level first
D
E
as new modules are integrated,
some subset of tests is re-run
38
Bottom-Up Integration
A

• Disadvantage
• Dont have a full product until the test is
  finished

B
F
G
drivers are replaced one at a
time, "depth first"
C
worker modules are grouped into
builds and integrated
D
E
cluster / build
39
Sandwich Testing
A
Top modules are tested with stubs
B
F
G
C
Worker modules are grouped into
builds and integrated
D
E
cluster / build
40
Regression Testing

• Retest a corrected module or whenever a new
  module is added as part of the integration test.
• Use part of the previously used test cases
• Can also use automated capture/playback tools
• Regression test suite should contain
• Representative sample tests
• Tests cases for functions likely to be affected
  by the integration
• Tests cases that focus on the changed components

41
Validation Testing
black box

• Aims to test conformity with requirements
• A test plan outlines the classes of tests to be
  conducted
• A test schedule defines specific test cases to be
  used
• Configuration review (audit) make sure the
  correct software configuration is developed
• User acceptance test user test drive
• Alpha Test conducted at the developers site
• Beta Test conducted at customers site

42
System Testing

• Testing interface with other systems
• Recovery testing force some error and see if the
  system can recovery (mean-time-to-repair)
• Security testing verify that protection
  mechanisms are correctly implemented
• Stress testing test with abnormal
  quantity,frequency or volume of transactions
• Performance testing test run time performance of
  software within the context of an integrated
  system

43
The Debugging Process
test cases
results
new test cases
regression tests
suspected causes
Debugging
corrections
identified causes
44
Debugging Effort
time required to diagnose the symptom
and determine the cause
time required to correct the error and
conduct regression tests
45
Symptoms Causes
symptom and cause may be
geographically separated

symptom may disappear when
another problem is fixed

cause may be due to a
combination of non-errors

cause may be due to a system
or compiler error

cause may be due to
symptom
assumptions that everyone
cause
believes

symptom may be intermittent
46
Consequences of Bugs
infectious
damage
catastrophic
extreme
serious
disturbing
annoying
mild
Bug Type
Bug Categories
function-related bugs, system-related bugs,
data bugs, coding bugs, design bugs,
documentation bugs,
standards violations, etc.
47
Debugging Techniques
brute force / testing

backtracking

induction

deduction
48
Debugging Final Thoughts
1.
Don't run off half-cocked,
think
about the

symptom you're seeing.


2.
Use tools
(e.g., dynamic debugger) to gain

more insight.


3.
If at an impasse,
get help
from someone else.


4.
Be absolutely sure to
conduct regression tests

when you do "fix" the bug.
49

• Object-Oriented Testing

50
Object-Oriented Testing

• begins by evaluating the correctness and
  consistency of the OOA and OOD models
• testing strategy changes
• the concept of the unit broadens due to
  encapsulation
• integration focuses on classes and their
  execution across a thread or in the context of
  a usage scenario
• validation uses conventional black box methods
• test case design draws on conventional methods,
  but also encompasses special features
• Encapsulation and inheritance makes OOT difficult

51
Testing the CRC Model

1. Revisit the CRC model and the object-relationship
   model.
2. Inspect the description of each CRC index card to
   determine if a delegated responsibility is part
   of the collaborators definition.
3. Invert the connection to ensure that each
   collaborator that is asked for service is
   receiving requests from a reasonable source.
4. Using the inverted connections examined in step
   3, determine whether other classes might be
   required or whether responsibilities are properly
   grouped among the classes.
5. Determine whether widely requested
   responsibilities might be combined into a single
   responsibility.
6. Steps 1 to 5 are applied iteratively to each
   class and through each evolution of the OOA model.

52
OOT Strategy

• Class testing is the equivalent of unit testing
• operations within the class are tested
• the state behavior of the class is examined
• Integration applied three different strategies
• thread-based testingintegrates the set of
  classes required to respond to one input or event
• use-based testingintegrates the set of classes
  required to respond to one use case
• cluster testingintegrates the set of classes
  required to demonstrate one collaboration
• Validation testing using use cases

53
Test Case Design

• Each test case should be uniquely identified and
  should be explicitly associated with the class to
  be tested,
• The purpose of the test should be stated,
• A list of testing steps should be developed for
  each test and should contain
• a list of specified states for the object that is
  to be tested
• a list of messages and operations that will be
  exercised as a consequence of the test
• a list of exceptions that may occur as the object
  is tested
• a list of external conditions (i.e., changes in
  the environment external to the software that
  must exist in order to properly conduct the test)
• supplementary information that will aid in
  understanding or implementing the
  test. BER93

54
Random Testing

• identify operations applicable to a class
• define constraints on their use
• identify a minimum test sequence
• an operation sequence that defines the minimum
  life history of the class (object)
• generate a variety of random (but valid) test
  sequences
• exercise other (more complex) class instance life
  histories

55
Partition Testing

• reduces the number of test cases required to test
  a class in much the same way as equivalence
  partitioning for conventional software
• state-based partitioning
• categorize and test operations based on their
  ability to change the state of a class
• attribute-based partitioning
• categorize and test operations based on the
  attributes that they use
• category-based partitioning
• categorize and test operations based on the
  generic function each performs

56
Inter-Class Testing

• For each client class, use the list of class
  operators to generate a series of random test
  sequences. The operators will send messages to
  other server classes.
• For each message that is generated, determine the
  collaborator class and the corresponding operator
  in the server object.
• For each operator in the server object (that has
  been invoked by messages sent from the client
  object), determine the messages that it
  transmits.
• For each of the messages, determine the next
  level of operators that are invoked and
  incorporate these into the test sequence
