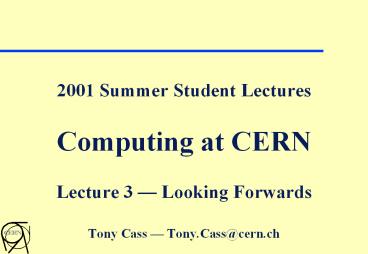

2001 Summer Student LecturesComputing at
CERNLecture 3 Looking ForwardsTony Cass
Tony.Cass_at_cern.ch
2
Data and Computation for Physics Analysis
event filter (selection reconstruction)
detector
processed data
event summary data
raw data
batch physics analysis
event reconstruction
analysis objects (extracted by physics topic)
event simulation
interactive physics analysis
3
LEP and LHC Parameters Compared
4
Evolution of CERN Computing NeedsCPU Capacity
1997-2002
5
Evolution of CERN Computing NeedsTape Storage
1995-2000
6
Evolution of CERN Computing NeedsCPU Capacity
1997-2006
10'000'000
Infrastructure
9'000'000
8'000'000
Engineering
7'000'000
Others
6'000'000
LEP
5'000'000
NA48
CERN Units
4'000'000
NA45
3'000'000
2'000'000
COMPASS
1'000'000
LHC
0
1997
1998
1999
2000
2001
2002
2003
2004
2005
2006
year
7
Evolution of CERNs CPU requirementsA different
view
Estimated CPU Capacity required at CERN
K SI95
5,000
Moores law some measure of the capacity
technology advances provide for a constant number
of processors or investment
4,000
LHC
3,000
2,000
Other experiments
1,000
0
1998
1999
2000
2001
2002
2003
2004
2005
2006
2007
2008
2009
2010
Jan 20003.5K SI95
8
Evolution of CERN Computing NeedsTape Storage
1995-2006
9
HELP!

• The previous slides show that we have to cope
  with a dramatic increase in computing capacity
  before the start of LHC.
• Can we afford it?
• How many boxes are needed (i.e. can we manage the
  equipment)?
• Fortunately, the price of computing equipment
  falls each year. Will this help us?

10
CPU and Disk Cost Predictions
CPU Costs
Disk Costs
11
CPU and Disk Cost Predictions
CPU Costs
Disk Costs
year
12
CPU and Disk Cost Predictions
CPU Costs
Disk Costs
13
CPU and Disk Cost Predictions
CPU Costs
Disk Costs
14
Disk Storage The Bad News
1996
2000
4GB 10MB/s
50GB 20MB/s
?
1TB
?
250x10MB/s2,500MB/s
20x20MB/s400MB/s
I/O
15
Tape Storage Estimates

• Although CPU and disk costs are expected to
  decrease dramatically, current estimates are that
  the cost of tape storage and tape devices will
  fall by less than a factor of 2 over the next 8
  years.
• These are not commodity items!
• Most tape use is for archive storage (write once,
  read never), not HEP like usage.
• Who backs up their home PC?
• Tape storage and tape devices are expected to
  represent a significant fraction of the cost of
  computing for the LHC experiments, particularly
  for ALICE.

!
16
Which system architecture for LHC?
Which of the different system architectures SMP
Scalable Distributedis appropriate for the LHC
experiments?
17
Networks and CPU load

• High bandwidth commodity networks carry the
  baggage of their low speed commodity origins.
• The MTU1 for Gigabit Ethernet is still the 1.5KB
  of Ethernet.
• c.f. 64KB for HiPPI.
• processing packets takes timeand, with Gigabit
  Ethernet, the packets come thick and fast.

1MTU MaximumTransmission Unit
18
Can we build LHC Computing Farms?

• Probably or almost certainly, depending on your
  level of optimism.
• On the positive side
• CPU and disk price/performance trends suggest
  that the raw processing and disk storage
  capacities will be affordable, and
• raw data rates and volumes look manageable
• perhaps not today for ALICE.
• But this does not mean it will be easy.
• Many, many boxes will be needed compared to
  todays systems.
• Building and managing coherent systems from such
  large numbers of boxes will be a challenge.

1999 CDR _at_ 45MB/s for NA48!
2000 CDR _at_ 90MB/s for Alice!
19
LHC Computing Worldwide
This picture, from the CMS CTP, shows how a
regional centre, here Fermilab, fits into the
computing environment between CERN and
universities. It is assumed here that high
bandwidth networks are available between CERN and
this, US based, regional centre. However, the
possibility of an Air Freight link for data
transfers is also indicated.
Although regional centres, in the US and
elsewhere, will certainly exist, we do not yet
know how best to make use of the facilities they
will offer. Can we link CERN and all the regional
centres into one global facility, usable from
everywhere? Or do the regional centres just
provide resources for their local clients?
20
LHC Computing Worldwide - MONARC

• The MONARC Project has been set up to study these
  issues.
• Models Of Networked Analysis at Regional Centres
• More input on the practicalities of global
  analysis is needed for
• the Computing Progress Reports to be produced
  this year by ATLAS and CMS and maybe other
  experiments
• Funding Agencies, especially in the US, and
• Planning!

21
The Grid

• Over the past year, the Grid metaphor for
  providing access to remote computing resource has
  become popular.
• Will the Grid bind Regional centres together?
• Studies are underway in Europe and the US.

22
The Globus Toolkit

• Providing transparent access to different
  computing resources requires an interface layer
  which hides details of
• batch systems (LSF, LoadLeveler, Condor),
• security and authentication
• The Globus Toolkit has been developed as just
  such an interface layer and is being tested at
  CERN and other HEP labs.
• Theres still a long way to go, though!

23
LHC Computing Grid
The LHC Computing Centre
24
Authentication Kerberos vs PKI

• Kerberos is a popular authentication and access
  control system. I prove I know something (my
  password) and a central server gives me a ticket
  to access resources.
• I have a ticket, so I just need to type my
  password once,
• But a central server is needed at each site.
• In a Public Key system, I have a certificate
  signed by some trusted body which I need to show
  to prove who I am.
• My certificate will be accepted by anybody who
  trusts the organisation that signed my
  certificate,
• but I must protect it so you dont steal it and
  use it instead! So I have to type a password or
  passphrase whenever I need to use the
  certificate.

25
Software Concerns for LHC

• Software will throw LHC data away.
• software (human!) errors will lose data forever.
• Would you take this responsibility? Can you write
  bug free code?
• What would you do if you were managing the
  worldwide effort?
• Object Oriented techniques are todays industry
  standard and LHC experiments must impose best
  practice.
• There are also secondary considerations
• widespread use of OO techniques outside HEP
  implies widespread availability of support tools
  and software, and
• OO trained (ex) physicists will find more
  employment opportunities.

26
Software Concerns for LHC II

• Everything will change between now and 2005.
• The computing environment
• Unix vs NT.
• The programming language
• C vs Java.
• The in things
• OO vs ? Java vs ? what will computers look
  like in 2005?
• These all changed for LEP and those planning for
  LHC must take this into account.
• But maybe were being too worried. LEP was
  planned at a time when IBM mainframes and DEC
  minis looked invincible. The LEP experiments
  still coped with change.

27
Data and Computation for Physics Analysis
event simulation
Storage Solutions Zebra, Objectivity/DB, ROOT
event summary data
Simulation Packages GEANT3, GEANT4, FLUKA
raw data
analysis objects (extracted by physics topic)
batch physics analysis
event reconstruction
event filter (selection reconstruction)
interactive Physics analysis
Experiment frameworks provide interfaces to
storage and common services. HEP toolkits and
packages provided to meet common needs.
Analysis and visualisation packages HBOOK, PAW,
ROOT, Lizard, Iguana, JAS
Everything built using language standards, e.g.
STL
28
OO Techniques and Data Storage/Management

• HEP has added many Data Storage and Management
  systems on top of Fortran
• e.g. Zebra for data structures, FATMEN for
  event/file management
• With the move to OO, can HEP use OO databases for
  event storage and management?
• Can it be done?
• Is it efficient?
• It seems the answer is yes. How do we really
  switch to this model?
• LHC software designers have to embrace this model
  of working now and work to provide optimised
  storage/processing environments.

29
Why use an Object Database?
Raw data is reconstructed to produce ESD/AOD and
then interesting eventsare selected for further
study.
Hits
Tracker
In the traditional schemethis produces different
data sets and going back from a high to a low
level is difficult.
?dst/ntuple
Tracks
Raw Data
ESD
Event Header
AOD
Particles
Bookkeeping Database
AOD
Event Tags
With an object model and an object database it is
much easier to navigate between the different
levels of description of an event.
ESD
Event Header
Event Header
Raw
30
Why use an Object Database?

• Hiding the details of the file storage is done by
  the database manager. An RDBMS (e.g. Oracle) also
  hides details of file storage, so why use an
  ODBMS?
• With an ODBMS, the underlying details of the I/O
  are hidden. The program variables are the storage
  variables, there is no need for explicit copying
  by the programmer.
• Physicists dont set out to select all tracks of
  a given event. They might want to access some
  tracks of an event, though. This sort of access
  maps better onto an object database.
• An ODBMS allows applications to suggest that
  parts of an event should be stored close to each
  otherrather than storing all tracks close
  together.
• But these dont seem to be general
  requirementsthe ODBMS market has not taken off.
  We need to be careful!

31
Data Databases in 2001

• RDBMS vendors have been moving towards the ODBMS
  market for some timeintroducing
  Object-Relational DBMS.
• Oracle 9i, with the recently announced C
  interface, provides all the ODBMS features of the
  previous slide.
• You can now navigate between objects in the
  database.
• We are now actively testing the use of Oracle 9i
  for physics data. Particular aspects being
  investigated are
• Scalability Storage overhead
• Mass Storage System Integration Data
  Import/Export
• Initial results are promising.

32
Toolkits versus Frameworks
Toolkits Sets of generic procedures1 that can be invoked to perform related tasks. Do not constrain users (apart from parameter lists!). Can be provided by experiments but also by others, e.g. IT or 3rd parties.
Frameworks Systems to decide the order of execution, invoke procedures to do necessary work in determined order including user procedures. Constrain users to work within the overall architecture. Are experiment specific.
1 Note that the word procedure is used here in
a general sense. In terms of procedural
languages, procedures are subroutines and
functions. For an Object Oriented language, a
procedure is a class.
33
Toolkit Design

• A toolkit should be
• generic so it can be used in more than one
  framework
• independent i.e. not forcing the use of other
  toolkits
• well defined with clear interfaces so it can be
  replaced.

34
Data Analysis Toolkits for LHC

• Just as for the data storage/management, HEP has
  developed a specialised, Fortran based, analysis
  environmentHBOOK, PAW and CERNLIB as a whole.
• These needed to be rewritten/reinvented as HEP
  moved to OO techniques.
• Can we instead profit from commercial data
  analysis tools?
• OO based simulation packages are needed nowand
  GEANT4 is becoming a reality.
• The GEANT4 project, launched in 1994, is also a
  demonstration of effective worldwide
  collaboration on a major software project,
• and there is much interest in GEANT4 beyond HEP.

35
(LHC) Framework Design Choices

• From the user point of view, an experiment
  computing framework ensures that they can write
  code for a specific purpose (e.g. analysis or
  detector reconstruction) without having to worry
  about anything else
• The framework ensures that
• objects and services they need are made
  available, and
• any objects they create will be stored if
  required.
• The three LHC frameworks are best distinguished
  by the choices they have made in two areas.
• Exposure of the persistency model for storage. Do
  users work with transient or persistent objects?
  Do users see the inheritance from the base
  persistence class?
• Procedure invocation. Do users themselves decide
  the order of invocation of a set of procedures to
  produce a given object? Or do they demand the
  object and leave the framework to decide which
  procedures must be invoked to produce it?

36
GAUDI (after the Catalan architect)
Converter
Converter
Application Manager
Converter
Transient Event Store
Data Files
Persistency Service
Message Service
Event Data Service
JobOptions Service
Algorithm
Algorithm
Algorithm
Data Files
Transient Detector Store
Persistency Service
Particle Prop. Service
Detec. Data Service
Other Services
Data Files
Transient Histogram Store
Persistency Service
Histogram Service
37
CARF (CMS Analysis and Reconstruction Framework)
Application Framework
Physics modules
Reconstruction Algorithms
Event Filter
Physics Analysis
Data Monitoring
Calibration Objects
Event Objects
Visualization Objects
Utility Toolkit
ODBMS
C standard library Extension toolkit
Geant4
CLHEP
PAW Successor
LHC
38
AliROOT (Alice and ROOT)
Transport Engine selected at run time
Fast MC
Generators
FLUKA
Geant4
Geant3.21
Virtual MC
Geometry Database
39
LHC Frameworks Another Comparison

• In Object Solutions, Booch says that there are
  three basic types of object oriented
  applications.
• If they focus on they are
• direct visualization and manipulation of
  the user-centric
• objects that define a certain domain
• preserving the integrity of the persistent
  objects data-centric
• in a system
• the transformation of objects that are
  computation-centric interesting to the system

• Using this categorisation, we could say that
• AliROOT is user-centric
• CARF is data-centric
• GAUDI is computation-centric

40
Non-event data

• To make sense of an event, the raw detector data
  is not enough. Non-event data is needed
• for the overall geometry and structure of the
  detector, including information about magnetic
  fields, and
• as they are not perfectly still, to understand
  the real positions of the subdetectors at the
  moment of the collision
• to have the correct detector calibration at the
  time of the collision as detector response also
  changes (e.g. with temperature) and
• about the run conditions of the accelerator, e.g.
  beam energy, at the time of the collision.
• All of these non-event data must also be stored
  and managed.

41
The Overall Picture
Globally, then, tags point to a collection of
events which are in a collection of runseach of
which has certain properties such as energy or
calibration constants.
How do these different collections fit together?
Or event data can be kept in one database with
non event data kept in a different
databaseeither object or relational.
42
When are objects created?

• Once
• as part of some standard processing step (e.g.
  reconstruction) run
• for all (interesting) events in batch mode, or
• when needed for any individual event.
• Many times
• Once at least! See above
• But also as necessary if recomputing using local
  data is faster than fetching the existing objects
  from some remote system.

43
Computer Supported Collaborative Working

• As we have seen, LHC collaborations are huge,
  with people distributed around the globe. A
  notable change from previous CERN experiments is
  the significant contribution expected from US
  institutes. Computers aid wide spread
  collaboration in a number of ways.

44
Video Conferencing

• There are two varieties of Video Conferencing.
• CODEC based video conferencing works well and is
  much used commercially, but
• it is expensive, and conferencies with 3 or more
  sites require special equipment.
• IP based video conferencing is cheapconnections
  already existand many people can participate,
  but
• network links, especially those to the US, are
  already overloaded, and we cant yet reserve
  bandwidth for video conferencing.
• An LHC project is trying to make the two systems
  interoperate.
• Use of Video Conferencing is growing and the LHC
  collaborations will benefit more if network
  bandwith increases
• or if we can manage to reserve bandwidth solely
  for conferences.

45
Looking ForwardsSummary

• LHC demands for CPU and I/O capacity
  significantly exceed those of the LEP
  experiments.
• Fortunately, experiments such as COMPASS have
  intermediate requirements and allow us to study
  the problems before LHC startup.
• CPU cost trends suggest we can afford distributed
  computing farms which provide adequate resources
• but we have to start installing these in
  2003/2004.
• Software quality is a major concern for the LHC
  experiments.
• Object Oriented techniques are being adopted.
• This allows us to consider the use of Object
  Oriented Databases for data management and other
  commercial packages for analysis work.

46
Computing at CERNConclusions

• Computing at CERN is interesting! Computing at
  CERN is about Data!
• Computing facilities at CERN are essential for
  designing, building and operating both
  accelerators and detectors.
• Computers, of course, play a key role in the
  reconstruction and analysis of the raw data
  collected by experiments.
• There are many interesting challenges as we look
  forward to high data rate experiments in the next
  couple of years and beyond to the LHC.
