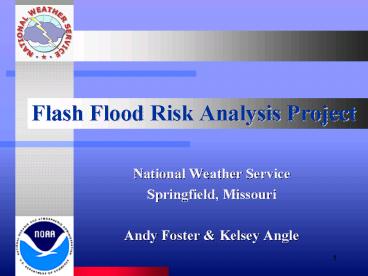

Flash Flood Risk Analysis Project

1
Flash Flood Risk Analysis Project

• National Weather Service
• Springfield, Missouri
• Andy Foster Kelsey Angle

2
Flooding in the Ozarks
Mission The National Weather Service provides
weather, water, and climate forecasts and
warnings for the United States, its territories,
adjacent waters, and ocean areas for the
protection of life and property and the
enhancement of the national economy. And NWS
data and products form a national information
data base and infrastructure which can be used by
other government agencies, the private sector,
and the global community.
3
Flooding in the Ozarks

• NWS SGF issues forecasts warnings for 37
  counties in SE KS and SW MO.

4
Flooding in the Ozarks

• Flash flooding is the 1 weather killer in the
  Ozarks
• The threat is compounded by hundreds of low water
  crossings.

5
Flooding in the Ozarks
6
Flooding in the Ozarks
7
Flooding in the Ozarks
8
Flooding in the Ozarks
9
Flooding in the Ozarks
10
Flooding in the Ozarks
11
Flooding in the Ozarks
1200 Flood Reports in 2007-2008!
6 fatalities in 2008 Hundreds of water rescues
12
Flooding in the Ozarks
2008 Annual 50 Million March 17-19th
40 Million
13
Flooding in the Ozarks
14
Flooding in the Ozarks
15
Flooding in the Ozarks
16
FFRAP Goals

• Development of GIS enhanced Flash Flood Analysis
• Identify flood behavior factors
• Categorize flood risk rating per basins, streams,
  communities, etc.
• Develop GIS utilities that integrate this data
  into the warning process.

www.weather.gov/springfield
17
FFRAP Goals

• Provide emergency management w/ data to assess
  local flood threats
• Create GIS enhanced flash flood warnings for the
  general public
• Detailed flood risk information for specific
  basins, streams, or communities.

www.weather.gov/springfield
18
FFRAP Process

• Physical Characteristics
• Socio-Economic Characteristics
• Meteorology
• More Valuable Flash Flood Warnings

www.weather.gov/springfield
19
FFRAP Process

• Physical Characteristics
• Basin geography steepness
• Soil characteristics conditions
• Vegetation forest coverage
• Land use

www.weather.gov/springfield
20
FFRAP Process

• Socio-Economic Characteristics
• Low Water Crossing locations
• Rate of travel on impacted roads
• Rate of flood occurrence
• Water rescue frequency
• Population Density

www.weather.gov/springfield
21
FFRAP Process

• Meteorology
• Rainfall rates
• Rainfall duration
• Total rainfall amounts
• Saturation

www.weather.gov/springfield
22
FFRAP GIS Analysis
23
FFRAP GIS Analysis
www.weather.gov/springfield
24
FFRAP GIS Analysis
www.weather.gov/springfield
25
FFRAP GIS Analysis
www.weather.gov/springfield
26
FFRAP GIS Analysis
www.weather.gov/springfield
27
FFRAP GIS Analysis
www.weather.gov/springfield
28
FFRAP GIS Analysis
www.weather.gov/springfield
29
FFRAP GIS Risk Analysis
30
FFRAP GIS Risk Analysis
Flood Reports Per Basin
31
FFRAP GIS Risk Analysis
www.weather.gov/springfield
32
FFRAP Visualization
33
FFRAP Visualization
34
FFRAP Visualization
35
FFRAP Operational Tools
www.weather.gov/springfield
36
FFRAP Operational Tools
www.weather.gov/springfield
37
FFRAP on the WEB
www.weather.gov/sgf/?nlowwatercrossings
www.weather.gov/springfield
38
FFRAP on the WEB
www.weather.gov/springfield
39
The Future

• Development of Flash Flood Risk Analysis
• Create additional analysis maps using GIS
• Intertwine risk analysis data into a risk rating
  system
• Analyze edit existing small basins
• Create interactive map or GUI for warning
  operations
• Develop GIS enhanced flash flood guidance for
  individual flood basins

www.weather.gov/springfield
40
The Future

• Development of GIS Flash Flood Warnings
• Warning text integrates specific flood points
  based on risk rating
• Warning polygon and graphics displayed on the web

• Dynamically display population, infrastructure,
  streams, and low water crossings at risk
• Create interactive web GUI for users

www.weather.gov/springfield
41
The Future

• Work with Our Partners to Develop
• Safety campaigns
• Mitigation strategies
• Flood detection and sensors
• Enhance flood response and recovery

www.weather.gov/springfield
42
Flooding Resources
www.crh.noaa.gov/sgf/?nlowwatercrossings
www.srh.noaa.gov/rfcshare/precip_analysis_new.php
www.crh.noaa.gov/sgf/?nflood_briefing
www.weather.gov/springfield
43
