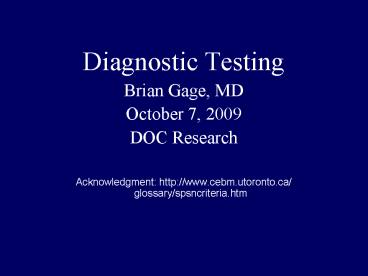

Diagnostic Testing

1

• Diagnostic Testing
• Brian Gage, MD
• October 7, 2009
• DOC Research
• Acknowledgment http//www.cebm.utoronto.ca/
  glossary/spsncriteria.htm

2
Goals

• To use terms used to describe diagnostic tests
• To understand concepts pertaining to Dx tests
• To set up a 2 x 2 table in Excel to do the math
• To understand key principles when designing a
  study re a Dx test

3
2 x 2 Table
4
Accuracy

• Sensitivity
• the proportion of diseased persons who have a
  positive test
• also called the true positive rate and can be
  calculated from a/(ac)
• Specificity
• the proportion of non-diseased persons who have a
  negative test
• also called the true negative rate and can be
  calculated from d/(bd)

5
Why arent Sensitivity Specificity Affected by
Disease Prevalence?
6
SpIn SnOut

• Specificity Remember SpPin
• When a test has a high Specificity (i.e. few
  false positive, a Positive test rules IN the
  disorder.
• Sensitivity Remember SnNout
• When a test has a high Sensitivity, a
  Negative result rules OUT the disorder.

7
Diagnostic Accuracy

• How would you evaluate the accuracy of 4
  commercial platforms that can genotype for 2
  genes (VKORC1, CYP2C9)?
• You have existing DNA genotyping platforms
• What are the most important parts of your study
  design?

8
Accuracy results (95 CI) for CYP2C9 and VKORC1
on 112 DNA samples
C. King et al. Am J Clin Path 2008
9
Calculating 95 Confidence Intervals (CI) with 0
or 100 Results

• Suppose our Dx test was correct 95/100?
• Then, we could calculate the 95 CI
• Formula gt More functions gt Statistical gt Binomial

• CRITBINOM(100,0.95, 0.025) 90
• CRITBINOM(100,0.95, 0.975) 99
• 89-98 calculated at http//faculty.vassar.edu/lo
  wry/prop1.html
• Normal approximation p zSQRT(p(1-p)/n)
• i.e., 95 1.96sqrt((.95.05)/100) 91-99
• 89-98 calculated in SAS (PROC FREQ)
• What if our test was perfect (i.e.,100/100)?
• Excel wont calculate it the website gets
  (96-100).

10
95 CI for a perfect test Rule of 3

• The upper 95 CI is obviously 100.
• Calculate the lower 95 CI using the Rule of 3
• Lower limit 3 failures/ trials
• 97 in this case.
• What is the 95 CI if 1000 out of 1000 test
  results were correct?

11
Predictive Values

• Positive Predictive Value
• The proportion of patients with a positive test
  who have the disease
• Also known as post-test probability or
  posterior probability following a positive
  test.
• Negative Predictive Value
• The proportion of patients with a negative test
  who dont have the disease.
• Are predictive values affected by prevalence?

12
What is the formula for PPV?
13
Odds

• Odds P/(1-P) where P is the probability
• E.g. If the probability is 25 what are the odds?
• P O/ (O1)
• E.g. If the odds are 1/3, what is the probability?

14
Does Baby J. have M.D.?

• In a population of 100,020 we expect 20 true
  positives, but
• Of the 100,000 without M.D.
• Specificity 99.98 False rate 0.02
• 99,980 will be true negative 20 will be false .

15
The post test odds are 11

• Therefore,
• Out of 100,020 infants, 20 will be truly positive
  and 20 will be false positive
• Positive predictive value 50
• An unselected baby boy with a positive screening
  test only has a 50/50 chance of having this rare
  disease.

16
Example PPV of pap smears?

• Rate of atypia in healthy women is 1 out of 1000.
• Sensitivity 0.70
• Specificity 0.90

Find probability that a woman will have atypical
cervical cells given that she had a positive pap
smear.
17
Example Pap Screening for Cervical CAAdapted
from www.stat.psu.edu/ljs_05
18
Example Pap Screening for Cervical CAAdapted
from www.stat.psu.edu/ljs_05
19
Example Pap smear
20
Example Pap smear
21
PAP predictive value

• PPV 70/10,060 0.00696 0.7
• NPV 89,910/89,940 0.999

A healthy woman with a positive pap has tiny
chance (0.7) of truly having disease, while a
healthy woman with negative pap almost certainly
will be disease free.
22
Antman E. et al. N Engl J Med 19963351342
23
Example Cardiac Troponin I to Dx MI

• Hospital B has decreased the threshold of a
  test to 0.2 ng/mL
• How will this change effect
• the of R/O MI pts. who now rule in?
• a quality indicator of post-MI mortality?
• a quality indicator of LOS?
• a quality indicator of post-MI beta-blocker use?
• Medicare reimbursement?

24
Example You are contacted to help design a
study of a D-Dimer test

• Background Plasma D-Dimer is a fibrin
  degradation product (FDP) resulting from
  activation of coagulation and fibrinolysis
• Accuracy of Acme Cardiac D-Dimer
• Area under the ROC curve (sens. vs. 1-spec) 0.89

• Intra-assay reproducibility, CV 12
• Coefficient of Variation SD/mean
• Sensitivity (95) specificity 50 because of
  FPs w/ CA, inflammation, surgery, etc.
• FDA approved for measurement of D-Dimer

25
Question D-Dimer

• D-Dimer is less accurate, but much faster and
  cheaper than Doppler LE, spiral CT, V/Q scan, or
  angiogram
• If using the D-Dimer test to Dx a DVT or PE,
  should you target patients with a low, medium, or
  high pretest probability of disease?
• Could use the pretest probabilities of PE from
  PIOPED, Table 6 9, 30, 68
• Or use the pretest probabilities from Wells
  clinical prediction rule for DVT 3, 17, 75
• Wells PS et al. Value of assessment of pretest
  probability of deep-vein thrombosis in clinical
  management. Lancet 19973501796

26
Question D-Dimer

• Question How would you design the study to
  determine whether availability of the D-Dimer
  test in the ER or outpatient setting reduced the
  use of Doppler LE, V/Q scans, and/or spiral CT?

27
D-Dimer Results Goldstein N. et al. Arch Int Med
2001
28
More Results Goldstein N. et al. 2001
29
If You Dont Have a Gold Standard
Two Classes of Evidence for Validity

• 1. Criterion Validity

2. Construct Validity - Define a model and
collect data to test that model. e.g. vitamin K
supplementation and carboxylation of proteins
with certain base pairs (CALU, MGP) e.g.
warfarin Rx and change in levels of assay.

• Concurrent(Fuchs et al. 2003) used simultaneous
  reading comprehension to validate a reading grade
  level test
• Eg. Troponin I correlates with CPK MB and ECG
  change
• Predictive
• E.g. drivers test and prediction of MVA

30
Reliability

• Inter-rater Reliability Correlations between
  users
• Intra-rater Reliability Correlation w/ same
  users
• Why we have to be careful w/ use of correlation
  in this context?

31
Other Factors Influence the Clinical Decision to
Use a Diagnostic Test

• v Pretest probability of disease
• v Test sensitivity and specificity
• Test costs (clinical and financial)
• Treatment risks and benefits

32
Determining the Optimal Use of Diagnostic Tests
for Patients with Acute Respiratory Infections
Probability of Specific Pathogen
0
100
X
Y
Diagnostic Test
Pathogen Rx
Alternative Dx
No Test/Test
Test/Treat
Adapted from Pauker and Kassirer. NEJM. 1980
33
When Studying a Test

• Calculate the reliability/reproducibility
• Intra- and inter-observer and intra- and interlab
• CV, Kappa to measure concordance of categorical
  vars, intraclass correlation coefficient (ICC)
  for cont. vars.
• Calculate the validity/accuracy
• Sensitivity, Specificity, PPV, NPV often require
  a gold standard
• May need to use rule of 3 to calculate 95 CI
  of accuracy.
• E.g. if you have 100 sensitivity w/ 20 patients,
  the upper limit of the 95 CI 3/20 or 15.
• Study design principles still hold
• Blinded assessment An accepted gold standard
• Adequate sampling
• Estimate the clinical utility

34
Choosing the Threshold of a Test
Downs Syndrome
Normal Karyotype
Probability density function
NL Risk
Downs Risk
AFP
35
Complexity and other characteristics of tests can
also be quantified
36
Summary

• Accuracy of a diagnostic test can be summarized
  by two measures sensitivity specificity
• These numbers determine likelihood ratios, LR
• LR can be used on the odds form of Bayes formula
  to design a study or evaluate the post-test odds
  of disease or on a 2 x 2 table
• The threshold to call a test , is a trade-off
  between sensitivity specificity, costs, and
  treatment benefits/risks

37
Next Week

• 330-545 in Wohl Auditorium
• Scientific writing Jeanne Erdmann. Read
• Writing your manuscript
• "INSTEAD OF" and "TRY" tips in writing
• Time-to-event analysis Brian Gage. Read
• Katz MH. Multivariable Analysis A Primer for
  Readers of Medical Research Ann Intern Med 2003
• Katz MH et al. Proportional hazards (Cox)
  regression. J Gen Intern Med 1993

38
More Examples 1 Lyme Disease

• Antibody assay
• Sensitivity 95 specificity 95
• High Lyme Disease prevalence (20)
• Positive predictive value 83
• Low Lyme Disease prevalence (2)
• Positive predictive value 28
• Brown SL. JAMA 199928262-6.

39
More Examples 2 Use of D-Dimer post Joint
Replacement

• Suppose youd like to use the D-Dimer test to
  determine how long to prescribe an anticoagulant
  after orthopedic surgery, a controversial area
• Youd like to test the hypothesis that
  anticoagulant therapy can be stopped once the
  D-Dimer falls to a certain level.
• Youre not sure what that level is because
  surgery can elevate the D-Dimer.
• Theres also no agreement on how long to Rx an
  anticoagulant (3 to 42 days is used).
• How would you design a study to answer these
  questions?

40
More Examples 3 Mammography

• Mammography in women between 40-50 yrs
• If 100,000 low-risk women are screened
• 6,034 mammograms will have some abnormality
• 5,998 (99.4) will be false-positive
• 36 will actually have breast cancer
• Why? Prevalence 0.036
• Hamm RM. J Fam Pract 19984744-52.
