Communications Systems, Signals, and Modulation

1

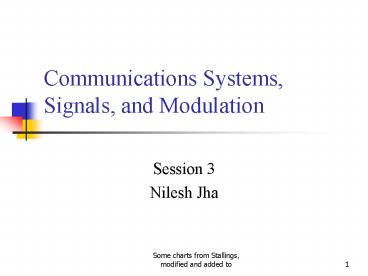

Communications Systems, Signals, and Modulation

• Session 3
• Nilesh Jha

2
About Channel Capacity

• Impairments, such as noise, limit data rate that
  can be achieved
• Channel Capacity the maximum rate at which data
  can be transmitted over a given communication
  path, or channel, under given conditions

3
Transmission Impairments

• Signal received may differ from signal
  transmitted
• Analog - degradation of signal quality
• Digital - bit errors
• Caused by
• Attenuation and attenuation distortion
• Delay distortion
• Noise

4
Attenuation

• Signal strength falls off with distance
• Depends on medium
• Received signal strength
• must be enough to be detected
• must be sufficiently higher than noise to be
  received without error
• Attenuation is an increasing function of
  frequency

5
Noise (1)

• Additional EM energy and signals on the receiver
• Thermal -- usually inserted by receiver circuits
• Due to thermal agitation of electrons
• Uniformly distributed
• White noise
• Intermodulation
• Signals that are the sum and difference of
  original frequencies sharing a medium, and
  falling within the desired signals passband

6
Noise (2)

• Crosstalk
• A signal from one line or channel is picked up by
  another
• Impulse
• Irregular pulses or spikes
• e.g. External electromagnetic interference
• Short duration
• High amplitude
• Multipath
• See in later Sessions, causes distortions

7
Signal-to-Noise Ratio

• Ratio of the power in a signal to the power
  contained in the noise thats present at a
  particular point in the transmission
• Typically measured at a receiver
• Signal-to-noise ratio (SNR, or S/N)
• A high SNR means a high-quality signal, low
  number of required intermediate repeaters
• SNR sets upper bound on achievable data rate

8
Signals and Noise
High SNR
Lower SNR
9
Concepts Related to Channel Capacity

• Data rate - rate at which data can be
  communicated (bps)
• Bandwidth - the bandwidth of the transmitted
  signal as constrained by the transmitter and the
  nature of the transmission medium (Hertz)
• Noise - average level of noise over the
  communications path
• Error rate - rate at which errors occur
• Error transmit 1 and receive 0 transmit 0 and
  receive 1

10
Nyquist Bandwidth

• For binary signals (two voltage levels)
• C 2B
• With multilevel signaling
• C 2B log2 M
• M number of discrete signal or voltage levels

11
Shannon Capacity Formula

• Equation
• Represents theoretical maximum that can be
  achieved
• In practice, somewhat lower rates achieved
• Formula assumes white noise (thermal noise)
• Worse when other forms of noise are included
• Impulse noise
• Attenuation distortion or delay distortion
• Interference

12
Example of Nyquist and Shannon Formulations

• Spectrum of a channel between 3 MHz and 4 MHz
  SNRdB 24 dB
• Using Shannons formula

13
Example of Nyquist and Shannon Formulations

• How many signaling levels are required?

14
Multiplexing

• Capacity of transmission medium usually exceeds
  capacity required for transmission of a single
  signal
• Multiplexing - carrying multiple signals on a
  single medium
• More efficient use of transmission medium

15
Multiplexing
16
Reasons for Widespread Use of Multiplexing

• Cost per kbps of transmission facility declines
  with an increase in the data rate
• Cost of transmission and receiving equipment
  declines with increased data rate
• Most individual data communicating devices
  require relatively modest data rate support

17
Multiplexing Techniques

• Frequency-division multiplexing (FDM)
• Takes advantage of the fact that the useful
  bandwidth of the medium exceeds the required
  bandwidth of a given signal --- different users
  at different frequency bands or subbands
• Time-division multiplexing (TDM)
• Takes advantage of the fact that the achievable
  bit rate of the medium exceeds the required data
  rate of a digital signal --- different users at
  different time slots

18
Frequency-division Multiplexing
19
Time-division Multiplexing
20
Multiplexing and Multiple Access

• Both refer to the sharing of a communications
  resource, usually a channel
• Multiplexing usually refers to sharing some
  resource by doing something at one site --- eg,
  at the multiplexer
• Often a static or pseudo-static allocation of
  fractions of the multiplexed channel, eg, a T1
  line. Often refers to sharing one resource. The
  division of the resource can be made on
  frequency, or time, or other physical feature
• Multiple Access shares an asset in a distributed
  domain
• ie, multiple users at different places sharing an
  overall media, and using a scheme where it is
  divided into channels based on frequency, or time
  or another physical feature
• Usually dynamic

21
Factors Used to CompareModulation and Encoding
Schemes

• Signal spectrum
• With fewer higher frequency components, less
  bandwidth required --- Spectrum Efficiency
• For wired comms with no DC component, AC
  coupling via transformer possible --- DC
  components cause problems
• Transfer function of a channel is worse near band
  edges -- always better to constrain signal
  spectrum well inside the spectrum available
• Synchronization and Clocking
• Determining when 0 phase occurs -- carrier synch
• Determining beginning and end of each bit
  position -- bit sync
• Determining frame sync --- usually layer above
  physical

22
Signal Modulation/Encoding Criteria
Demodulating/Decoding Accurately

• What determines how successful a receiver will be
  in interpreting an incoming signal?
• Signal-to-noise ratio SNR
• signal power/noise power
• Note power energy per unit time
• Data rate (R)
• Bandwidth (BW)
• An increase in data rate increases bit error rate
• An increase in SNR decreases bit error rate
• An increase in bandwidth allows an increase in
  data rate

23
Factors Used to CompareModulation/Encoding
Schemes

• Signal interference and noise immunity ---
• Performance in the presence of interference and
  noise
• For a given signal power level, the effect of
  noise and interference is then labeled the Power
  Efficiency
• For digital modulation, Prob. Of Bit Error
  function (SNR) where N includes the interference
  terms
• More exactly, Prob. Bit Error function (Energy
  per bit/Noise power density, with noise including
  interference and other noise like terms) --- see
  next chart
• Cost and complexity
• Usually the higher the signal and data rates
  require a higher complexity and greater the cost

24
A Figure of Merit in CommunicationsNoise
Immunity

• For digital modulation one bottom line Figure of
  Merit (FOM) is Probability of Bit Error (Psub e)
  -- Lowest for Most Accurate Decoding of Bit
  Stream
• Prob. Bit Error function of (Eb/Nsub 0)
• Many functions for many different modulation and
  coding types have been computed - usually
  decreases with increasing Eb/Nsub 0
• Ebenergy per bit
• Nsub 0noise spectral density Noise Power N
  (Nsub 0) BW
• Note Includes Interference and Intermodulation
  and Crosstalk
• (Eb/Nsub 0) is a critically important number for
  digital comms
• Eb/Nsub0(SNR)(BW/R) ---- important formula --
  derive it
• SNR is signal to noise ratio, a ratio of power
  levels
• BW is signal bandwidth, R is data rate in
  bits/sec
• For analog modulation the FOM is SNR
• Signal quality given by subjective statistical
  scores -- voice 1-5 (high)
• FM requires a lower SNR than AM for the same
  signal quality

25
Basic Modulation/Encoding Techniques

• Digital data to analog signal --- Digital
  Modulation
• Amplitude-shift keying (ASK)
• Amplitude difference of carrier frequency
• Frequency-shift keying (FSK)
• Frequency difference near carrier frequency
• Phase-shift keying (PSK)
• Phase of carrier signal shifted

26
Basic Encoding Techniques
27
Amplitude-Shift Keying

• One binary digit represented by presence of
  carrier, at constant amplitude
• Other binary digit represented by absence of
  carrier
• where the carrier signal is Acos(2pfct)

28
Amplitude-Shift Keying

• Susceptible to sudden gain changes
• Inefficient modulation technique
• On voice-grade lines, used up to 1200 bps
• Used to transmit digital data over optical fiber

29
Binary Frequency-Shift Keying (BFSK)

• Two binary digits represented by two different
  frequencies near the carrier frequency
• where f1 and f2 are offset from carrier frequency
  fc by equal but opposite amounts

30
Binary Frequency-Shift Keying (BFSK)

• Less susceptible to error than ASK
• On voice-grade lines, used up to 1200bps
• Used for high-frequency (3 to 30 MHz) radio
  transmission
• Can be used at higher frequencies on LANs that
  use coaxial cable

31
Multiple Frequency-Shift Keying (MFSK)

• More than two frequencies are used
• More bandwidth efficient but more susceptible to
  error
• f i f c (2i 1 M)f d
• f c the carrier frequency
• f d the difference frequency
• M number of different signal elements 2 L
• L number of bits per signal element

32
Multiple Frequency-Shift Keying (MFSK)

• To match data rate of input bit stream, each
  output signal element is held for
• TsLT seconds
• where T is the bit period (data rate 1/T)
• So, one signal element encodes L bits

33
Multiple Frequency-Shift Keying (MFSK)

• Total bandwidth required
• 2Mfd
• Minimum frequency separation required 2fd1/Ts
• Therefore, modulator requires a bandwidth of
• Wd2L/LTM/Ts

34
Multiple Frequency-Shift Keying (MFSK)
35
Phase Shift Keying (PSK)

• The signal carrier is shifted in phase according
  to the input data stream
• 2 level PSK, also called binary PSK or BPSK or
  2-PSK, uses 2 phase possibilities over which the
  phase can vary, typically 0 and 180 degrees --
  each phase represents 1 bit
• can also have n-PSK -- 4-PSK often is 0, 90, 180
  and 270 degrees --- each phase then represents 2
  bits
• Each phase called a symbol
• Each bit or groups of bits can be represented by
  a phase value (eg, 0 degrees, or 180 degrees), or
  bits can be based on whether or not phase changes
  (differential keying, eg, no phase change is a 0,
  a phase change is a 1) --- DPSK

36
Phase-Shift Keying (PSK)

• Two-level PSK (BPSK)
• Uses two phases to represent binary digits

37
Phase-Shift Keying (PSK)

• Differential PSK (DPSK)
• Phase shift with reference to previous bit
• Binary 0 signal burst of same phase as previous
  signal burst
• Binary 1 signal burst of opposite phase to
  previous signal burst

38
Phase-Shift Keying (PSK)

• Four-level PSK (QPSK)
• Each element represents more than one bit

39
Quadrature PSK

• More efficient use by each signal element (or
  symbol) representing more than one bit
• e.g. shifts of ?/2 (90o)
• In QPSK each element or symbol represents two
  bits
• Can use 8 phase angles and have more than one
  amplitude -- then becomes QAM then (combining PSK
  and ASK)
• QPSK used in different forms in a many cellular
  digital systems
• Offset-QPSK O-QPSK The I (0 and 180 degrees)
  and Q (90 and 270 degrees) quadrature bits are
  offset from each other by half a bit --- becomes
  a more efficient modulation, with phase changes
  not so abrupt so better spectrally, and more
  linear
• Pi/4-QPSK is a similar approach to O-QPSK, also
  used

40
Multilevel Phase-Shift Keying (MPSK)

• Multilevel PSK
• Using multiple phase angles multiple signals
  elements can be achieved
• D modulation rate, baud
• R data rate, bps
• M number of different signal elements or
  symbols 2L
• L number of bits per signal element or symbol
• eg, 4-PSK is QPSK, 8-PSK, etc

41
Quadrature Amplitude Modulation

• QAM is a combination of ASK and PSK
• Two different signals sent simultaneously on the
  same carrier frequency

42
Quadrature Amplitude Modulation
43
Quadrature Amplitude Modulation (QAM)

• The most common method for quad (4) bit transfer
• Combination of 8 different angles in phase
  modulation and two amplitudes of signal
• Provides 16 different signals (or symbols),
  each of which can represent 4 bits (there are 16
  possible 4 bit combinations)

44
Quadrature Amplitude Modulation Illustration --
example of Constellation Diagram
90
135
45
Notice that there are 16 circles or nodes,
each represents a possible amplitude and phase,
and each represents 4 bits Obviously there are
many such constellation diagrams possible --- the
technical issue winds up being that as the nodes
get closer to each other any noise can lead to
the receiver confusing them, and making a bit
error
amplitude 1
0
180
amplitude 2
225
315
270
45
Performance of Digital Modulation Schemes

• Bandwidth or Spectral Efficiency
• ASK and PSK bandwidth directly related to bit
  rate
• FSK bandwidth related to data rate for lower
  frequencies, but to offset of modulated frequency
  from carrier at high frequencies
• Determined by C/BW ie bps/Hz
• Noise Immunity or Power Efficiency In the
  presence of noise, bit error rate of PSK and QPSK
  are about 3dB superior to ASK and FSK ---- ie, x2
  less power for same performance
• Determined by BER as function of Eb/Nsub0

46
Spectral Performance

• Bandwidth of modulated signal (BT)
• ASK, PSK BT(1r)R
• FSK BT2DF(1r)R
• R bit rate
• 0 lt r lt 1 related to how signal is filtered
• DF f2-fcfc-f1

47
SPECTRAL Performance

• Bandwidth of modulated signal (BT)
• MPSK
• MFSK
• L number of bits encoded per signal element
• M number of different signal elements

48
In Stallings
49
In Stallings
50
Power-Bandwidth Efficiency Plane
By Sklar, from Gibson
51
Analog Modulation Techniques

• Analog data to analog signal
• Also called analog modulation
• Amplitude modulation (AM)
• Angle modulation
• Frequency modulation (FM)
• Phase modulation (PM)

52
AM MODULATION
Top left source (baseband) signal to be
modulated bottom left modulated signal, carrier
lines inside white right demodulated after it
is transmitted and received (note after 1.e-3
similarity except for attenuation)
53
Input Voice and Received Voice after Transmission
and Reception, Using FM --- Only a Little Noise
-- Notice Similarity
54
Input Voice and Received Voice after Transmission
and Reception, Using FM --- Lots More Noise in
Channel -- Notice that Received Signal is NOT
What Was Transmitted
55
Amplitude Modulation

• Amplitude Modulation
• cos2?fct carrier
• x(t) input signal
• na modulation index
• Ratio of amplitude of input signal to carrier
• a.k.a double sideband transmitted carrier (DSBTC)

56
Spectrum of AM signal
57
Amplitude Modulation

• Transmitted power
• Pt total transmitted power in s(t)
• Pc transmitted power in carrier

58
Single Sideband (SSB)

• Variant of AM is single sideband (SSB)
• Sends only one sideband
• Eliminates other sideband and carrier
• Advantages
• Only half the bandwidth is required
• Less power is required
• Disadvantages
• Suppressed carrier cant be used for
  synchronization purposes

59
Angle Modulation

• Angle modulation
• Phase modulation
• Phase is proportional to modulating signal
• np phase modulation index

60
Angle Modulation

• Frequency modulation
• Derivative of the phase is proportional to
  modulating signal
• nf frequency modulation index

61
Angle Modulation

• Compared to AM, FM and PM result in a signal
  whose bandwidth
• is also centered at fc
• but has a magnitude that is much different
• Angle modulation includes cos(? (t)) which
  produces a wide range of frequencies
• Thus, FM and PM require greater bandwidth than AM

62
Angle Modulation

• Carsons rule
• where
• The formula for FM becomes

63
Coding

• Encoding sometimes is used to refer to the way in
  which analog data is converted to digital signals
• eg, A/Ds, PCM or DM
• Source Coding refers to the way in which basic
  digitized analog data can be compressed to lower
  data rates without loosing any or to much
  information -- eg, voice, video, fax, graphics,
  etc.
• Channel coding refers to signal transformations
  used to improve the signals ability to withstand
  the channel propagation impairments --- two types
• waveform coding --- transforms signals
  (waveforms) into better ones --- able to
  withstand propagation errors better --- this
  refers to different modulation schemes, Mary
  signaling, spread spectrum
• Sequence coding, also generally labelled error
  coding or FEC, transforms data bits sequences
  into ones less error prone, by inserting
  redundant bits in a smart way -- eg, block and
  convolutional codes

64
Basic Encoding Techniques

• Analog data to digital signal
• Used for digitization of analog sources
• Pulse code modulation (PCM)
• Delta modulation (DM)
• After the above, usually additional processing
  done to compress signal to achieve similar signal
  quality with fewer bits --- called source coding

65
Analog to Digital Conversion

• Once analog data have been converted to digital
  signals, the digital data
• can be transmitted using NRZ-L
• can be encoded as a digital signal using a code
  other than NRZ-L
• can be modulated to an analog signal for wireless
  transmission, using previously discussed
  techniques

66
Pulse Code Modulation

• Based on the sampling theorem
• Each analog sample is assigned a binary code
• Analog samples are referred to as pulse amplitude
  modulation (PAM) samples
• The digital signal consists of block of n bits,
  where each n-bit number is the amplitude of a PCM
  pulse

67
Pulse Code Modulation
68
Pulse Code Modulation

• By quantizing the PAM pulse, original signal is
  only approximated
• Leads to quantizing noise
• Signal-to-noise ratio for quantizing noise
• Thus, each additional bit increases SNR by 6 dB,
  or a factor of 4

69
Delta Modulation

• Analog input is approximated by staircase
  function
• Moves up or down by one quantization level (?) at
  each sampling interval
• The bit stream approximates derivative of analog
  signal (rather than amplitude)
• 1 is generated if function goes up
• 0 otherwise

70
Delta Modulation
71
Delta Modulation

• Two important parameters
• Size of step assigned to each binary digit (?)
• Sampling rate
• Accuracy improved by increasing sampling rate
• However, this increases the data rate
• Advantage of DM over PCM is the simplicity of its
  implementation

72
Source Coding

• Voice or Speech or Audio
• Basic PCM yields 4 KHz2 samples/Hz8
  bits/sample64 Kbps -- music/etc up to 768 Kbps
• Coding can exploit redundancies in the speech
  waveform -- one way is LPC, linear predictive
  coding --- predicts whats next, sends only the
  changes expected
• RPE and CELP (Code Excited LPC) used in cell
  phones, using LPC, at rates of 4 to 9.6 to 13
  kbps
• Graphics and Video eg, JPEG or GIF, MPEG

73
Reasons for Growth of Digital Modulation and
Transmission

• Growth in popularity of digital techniques for
  sending analog or digital source data
• Cheaper components used in creating the
  modulations and doing the encoding, and similarly
  on the receivers
• Best performance in terms of immunity to noise
  and in terms of spectral efficiency --- improved
  digital modulation and channel coding techniques

• Great improvements in digital voice and video
  compression
• Voice to about 8 Kbps at good quality, video
  varies to below 1 Mbps provide increased capacity
  in terms of numbers of users in given BW
• Dynamic and efficient multiple access and
  multiplexing techniques using TDM, TDMA and CDMA,
  even when some larger scale Frequency Allocations
  (FDMA) -- labeled as combinations
• Easier and simpler implementation interfaces to
  the digital landline networks and IP

74
Duplex Modes

• Duplex modes refer to the ways in which two way
  traffic is arranged
• One way vs two way
• simplex (one way only), half duplex (both ways,
  but only one way at a time), duplex (two ways at
  the same time)
• If duplex, question is then how one separates the
  two ways
• In wired systems, it could be in different wires
  (or cables, fibers, etc)
• Both wired and wireless one way is to separate
  the two paths in frequency --- FDD, frequency
  division duplex
• If two frequencies, or frequency bands, are
  separate enough, no cross interference
• Cellular systems are all FDD
• Its clean and easy to do, good performance, but
  it limits channel assignments and is not best for
  asymmetric traffic
• TDD is time division duplex, same frequencies are
  used both ways, but time slots are assigned one
  way or the other
• Good for asymmetrical traffic, allows more
  control through time slot reassignments
• But strong transmissions one way could interfere
  with other users
• Mostly not used in cellular, but 3G has one such
  protocol, and low tier portables also
