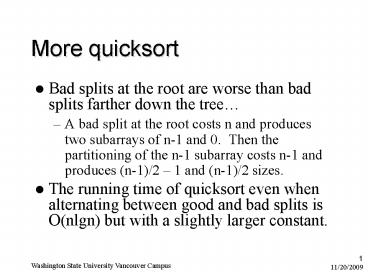

More quicksort

1
More quicksort

• Bad splits at the root are worse than bad splits
  farther down the tree
• A bad split at the root costs n and produces two
  subarrays of n-1 and 0. Then the partitioning of
  the n-1 subarray costs n-1 and produces (n-1)/2
  1 and (n-1)/2 sizes.
• The running time of quicksort even when
  alternating between good and bad splits is
  O(nlgn) but with a slightly larger constant.

2
Quick Sort HW 3

• Homework 3 forces a test between reality (your
  homework) and our mathematical models.
• You should have graphs showing the correlation
  between O(ngln) and O(n2)

3
Randomized quicksort

• The next idea is an improvement for
  quicksortbecause the partition procedure is
  where the breakdown occurs when the data is
  sorted.
• We have assumed that all permutations of the
  input data are equally likelybut that is not
  likely to hold in the real world.
• We could randomize the input to obtain good
  average-case performance over all inputs by
  explicitly permuting the input. However, we will
  use random sampling, meaning that the pivot will
  be chosen randomly from the range subarray
  Ap..r

4
Randomized Quicksort pseudocode
RANDOMIZED-PARTITION(A,p,r) i ?RANDOM(p,r)
exchange Ar Ai return
Partition(A,p,r)

• RANDOMIZED QUICKSORT(A,p,r)
• if pltr
• then q ?RANDOMIZED-PARTITION(A,p,r)
• RANDOMIZED-QUICKSORT(A,p,q-1)
• RANDOMIZED-QUICKSORT(A,q1,r)

5
Exercises

• Why do we analyze the average-case performance of
  a randomized algorithym and not its worst-case
  performance?
• During the running of the procedure
  RANDOMIZED-QUICKSORT, how many calls are made to
  the random-number generator RANDOM in the worst
  case? Answer in terms of T-notation.

6
A randomized version of Quicksort

• The hiring problem (chapter 5)
• New Office Assistant needed
• Previous attempts at hiring were unsuccessful
• Employment agency hired
• One candidate/day being sent over
• Will interview the candidate and decide to hire
  or not
• It costs a small fee to interview the applicant

7
The Hiring Problem(cont)

• To hire an applicant is more costly because
• Must fire the current office assistant
• Must pay a large fee to the employment agency
• We are committed to having the best possible
  person in the job.
• Therefore, if we interview an applicant that is
  better qualified than the current office
  assistant, we will fire the current one and hire
  the new one.
• We are willing to pay this cost but want to know
  what the price of the strategy is.

8
The Hiring Problem (cont)

• Assume candidates are number 1-n
• When we interview candidate i, we assume that we
  are able to determine if candidate i is the best
  candidate seen so far.

9
The Hiring Problem-pseudocode

• HIRE-ASSISTANT(n)
• Best ? 0 Candidate 0 is a least-qualified
  dummy candidate
• For i ?1 to n
• do interview candidate i
• if candidate i is better than
  candidate best
• then best ? i
• hire candidate i

10
Worst-Case Analysis

• In the worst case, we actually hire every
  candidate that we interview
• This occurs when the candidates come in
  increasing order of quality
• Interviewing has a low cost ci
• Hiring has a higher cost ch
• Let m be the number of people hired
• Then the total cost is O(ncimch)

11
Probabilistic Analysis

• Must make assumptions or have knowledge about the
  input distribution
• We assume that each of the n! permutations occur
  with equal probability.
• Stated without proof Lemma 5.2 If the
  candidates are presented in a random order,
  algorithm HIRE-ASSISTANT has a total hiring cost
  of O(ch ln n)

12
Worst-Case analysis of quicksort

• We now prove the assertion that the worst case
  running time is T(n2)
• For an input of size n and q ranges from 0 to n-1
  because PARTITION produces two subproblems with
  total size n-1.
• T(n) max (T(q) T(n-q-1)) T(n)
• Guess that T(n) ?? cn2 for some c then we have by
  substitution into the recurrence

0?q?n-1
13
Worst-Case analysis of quicksort (cont)

• T(n) ? max (cq2 c(n-q-1)2) T(n)
• c max ( q2 (n-q-1)2) T(n)
• We can use a little calculus hereremember that
  for a local minimum the second derivative must be
  gt 0 when the first derivative is 0.

0?q?n-1
0?q?n-1
14
Worst-Case analysis of quicksort (cont)

• Show the mathon an auxillary sheet. Since we
  have maximum at both endpoints
• We then have
• (q2 (n-q-1)2) ? (n-1)2 n2 2n 1
• T(n) ? cn2 c(2n-1) T(n)
• ? cn2
• The worst case running time is T(n2)

0?q?n-1
15
Expected running time

• Using indicator random variables in the proof, we
  state that
• The expected running time of RANDOMIZED-PARTITION
  is T(n lg n)

16
HeapSort(Chapter 6)

• The (binary) heap data structure is a nearly
  complete binary tree.
• Each node of the tree is an element in the array.
• The tree is completely filled out in all levels
  except possibly the lowest
• Think of the number of elements of the heap
  stored in the array A.

17
Heapsort
1
16
3
2
14
10
5
7
4
6
7
3
3
8
9
10
8
9
2
2
1
4
2
4
5
8
10
3
6
7
1
9
18
Heapsort

• Parent(i)
• return?i/2?
• Left(i)
• return 2i
• Right(i)
• return 2i1

19
Heapsort

• There are two kinds of binary heaps
• A max-heap has the property that for every node i
  other than the root
• AParent(i) ? Ai
• A min-heap has the property that for every node i
  other than the root
• AParent(i) ? Ai
• The height of a node in a heap is defined as the
  number of edges on the longest simple downward
  path from that node to a leaf, and the height of
  a heap is the height of its root.

20
Heapsort

• MAX-HEAPIFY runs in O(lgn) time is used to
  maintain the max-heap property
• BUILD-MAX_HEAP runs in O(n) time and produces a
  max-heap from an unordered array.
• HEAPSORT runs in O(n lg n) sorts an array in
  place
• MAX-HEAP-INSERT, HEAP-EXTRACT-MAX,
  HEAP-INCREASE-KEY, and HEAP-MAXIMUM run in O(lg
  n) time allow use as a priority queue.

21
Heapsort

• MAX-HEAPIFY(A,i) Left(i) and Right(i) heaps
• l ? Left(i)
• r ? Right(i)
• if l ? heap-sizeA and Al gt Ai
• then largest ? l
• else largest ? i
• If r ? heap-sizeA and Ar gt Alargest
• then largest ? r
• if largest ? i
• then exchange Ai Alargest
• MAX-HEAPIFY(A,largest)

22
Heapsort (heap-sizeA 10)
1
16
3
2
7
14
10
5
4
6
i
7
4
9
3
1
10
9
(b)
2
1
8
1
16
7
2
3
3
3
14
10
8
5
4
7
6
7
8
9
3
10
9
(a)
2
1
4
i
(c)
23
Heapsort

• Running time of MAX-HEAPIFY is just
• T(n) ? T(2n/3) T(1)
• Where T(1) desribes the time to fix up the
  relationship among the elements Ai, ALeft(i),
  ARight(i), and T(2n/3) arises
• from the fact that the procedure must call
  MAX-HEAPIFY for the subtree rooted at one of the
  children of node i and the fact that the
  childrens subtrees each have size at most 2n/3.
  The worst case occurs when the last row is
  exactly ½ full.
• By the master theorem, T(n) O(lg n)

24
Building a Heap

• We use MAX-HEAPIFY in a bottom-up way to convert
  an array A1..n, where n lengthA, into a
  max-heap.
• Note that A(?n/2? 1)..n are all leaves
• BUILD-MAX-HEAP goes through the non-leave nodes
  of the tree and runs MAX-HEAPIFY on each one.

25
BUILD-MAX-HEAP pseudo code

• BUILD-MAX-HEAP(A)
• heap-sizeA ? lengthA
• for i ? lengthA/2 downto 1
• do MAX-HEAPIFY(A,i)

26
BUILD-MAX-HEAP loop invariants

• Initialization prior to the first iteration of
  the loop, i ?n/2? . Each node ?n/2? 1, ?n/2?
  2, ,n is a leaf and at the root of a trivial
  max-heap.
• Maintenance the children of node i are numbered
  higher than i. They are both roots of max-heaps.

• Termination At termination, i 0. By the loop
  invariant, each node 1,2,,n is the root of a
  max-heap.

27
7
4
A
1
2
9
3
16
10
14
8
1
1
4
4
2
3
3
2
(b)
1
3
(a)
1
3
7
5
4
6
7
5
i
4
6
16
2
i
9
10
16
2
10
9
10
9
8
9
10
1
1
8
14
7
8
7
14
8
4
4
3
3
2
2
i
i
(c)
(d)
1
1
10
3
7
5
5
7
4
4
6
6
16
16
14
14
9
10
9
3
10
10
8
8
9
9
1
1
7
2
i
7
2
8
8
16
4
3
2
3
2
(e)
14
(f)
10
10
16
5
7
4
6
7
5
4
6
7
7
8
9
3
14
9
3
10
9
8
9
8
10
2
4
1
1
2
8
28
Heapsort BUILD-MAX-HEAP

• A loose bound on BUILD-MAX-HEAP is argued as
  follows Each call to MAX-HEAPIFY costs O(lg n)
  time and there are just O(n) of these calls.
  Thus, the running time is O(n lg n)
• A tighter bound is derived in the text but
  essentially has the result that we can build a
  max-heap from an unordered array in linear time
  O(n).

29
The Heapsort algorithm

• Use BUILD-MAX-HEAP to build a max-heap on the
  input array A1n, where n is just lengthA.
• Since the maximum element in the array is stored
  at the root A1 it is easy to put it in its
  correct final position by just exchanging with
  An.
• Now discard node n from the tree.

30
The Heapsort algorithm(cont)

• Now we use MAX-HEAPIFY to build a heap 1 smaller
  than before and keep doing this process until we
  are down to 2.
• This takes O(n lg n) time since the call to
  BUILD-MAX-HEAP takes O(n) and each of the n-1
  calls to MAX-HEAPIFY take O(lg n)

31
Heapsort
14
2
3
16
(b)
8
10
3
2
5
4
6
14
10
(a)
7
3
9
5
4
4
6
10
7
9
3
8
9
i
2
16
1
10
9
1
2
4
9
3
2
(d)
3
8
5
4
6
7
1
2
4
10
9
10
16
14
10
i
32
Heapsort
1
1
7
3
8
2
2
(f)
3
4
(e)
7
3
7
5
4
6
7
5
4
6
2
9
9
8
1
2
9
1
4
9
10
8
9
i
i
10
8
9
10
14
16
10
10
10
14
16
1
1
3
4
3
2
3
2
2
(h)
1
2
(g)
3
7
5
4
i
6
5
7
4
6
i
7
9
8
9
4
7
8
1
9
10
8
9
10
8
9
10
14
16
10
14
16
33
Heapsort
1
1
3
i
2
2
(j)
3
7
5
4
6
7
9
8
4
10
8
9
10
14
16
1
10
8
7
9
2
16
4
14
3
(k)
34
Heapsort Applicationpriority queue

• A priority queue is a data structure for
  maintaining a set S of elements, each with an
  associated value called a key. A max-priority
  queue supports the following
• INSERT(S,x) inserts the element x in set S. We
  could write as S ? S ? x.
• MAXIMUM(S) returns the element of S with the
  largest key.
• EXTRACT-MAX(S) removes and returns the element of
  S with the largest key.
• INCREASE-KEY(S,x,k) increases the value of
  element xs value to k, k ? current key value.

35
Heapsort Applicationpriority queue

• A common application is scheduling jobs on a
  shared computer. The queue keeps track of jobs
  to performed and their relative priorities.
• A min-priority queue is the mirror image of the
  max-priority queue. It supports the operations
  INSERT, MINIMUM,EXTRACT-MIN, and DECREASE-KEY.

36
Heapsort Applicationpriority queue

• The textbook discusses the idea of a handle. The
  exact meaning depends upon the application but it
  could be thought of a function pointer to the
  piece of code that needs to be executed at a
  certain priority.
• The procedure HEAP-MAXIMUM implements the MAXIMUM
  operation in T(1) time.
• HEAP-MAXIMUM(A)
• return A1

37
Heapsort Applicationpriority queue

• The procedure HEAP-EXTRACT-MAX implements the
  EXTRACT-MAX operation
• HEAP-EXTRACT-MAX(A)
• if heap-sizeA lt 1
• then error heap underflow
• max ? A1
• A1 ? Aheap-sizeA
• Heap-sizeA ? heap-sizeA 1
• MAX-HEAPIFY(A,1)
• Return max

38
Heapsort Applicationpriority queue

• HEAP-EXTRACT-MAX is O(lg n) since it performs a
  constant amount of work on top of the O(lg n)
  time for MAX-HEAPIFY.
• HEAP-INCREASE-KEY implements the INCREASE-KEY
  operation.

39
Heapsort Applicationpriority queue

• HEAP-INCREASE-KEY(A,i,key)
• If key lt Ai
• then error new key is lt current key
• Ai ? key
• while i gt 1 and and AParent(i) lt Ai
• do exchange Ai ? AParent(i)
• i ? Parent(i)

40
HEAP-INCREASE-KEY
16
16
3
2
3
2
14
10
(b)
14
10
(a)
5
4
6
5
4
6
7
3
8
9
7
3
8
9
10
9
10
9
1
2
15
1
2
4
i
i
Pri15
16
3
2
16
3
2
14
i
10
(c)
15
10
(d)
5
4
6
i
5
4
6
7
3
9
15
7
14
3
9
10
9
10
9
2
1
8
1
2
8
41
Sorting in Linear Time(chptr 8)

• All sorts introduced so far, namely quicksort,
  mergesort, and heapsort achieve the O(n lg n)
  bound quicksort on average and mergesort and
  heapsort in the worst case.
• All of these sorts are comparison sortsnamely
  they work by comparison of keys.

42
Lower Bounds for Sorting

• We look first at a decision tree model for
  insertion sort.
• We assume all input elements are distinct
• With the above assumption, comparisions like ai
  aj are useless, so all comparisons will be
  assumed to have the form ai ? aj since these are
  equivalent to all of the possible comparisons
  that can be made.

43
Decision Trees

• A decision tree is a full binary tree that
  represents comparisons between elements
• Control, data movement, and all other aspects of
  the algorithm are ignored
• Each internal node is annotated by ij where i
  and j are the ith and jth elements in the input
  sequence.
• Leaf nodes are denoted by ?(1), ?(2),
  ?(3),?(n)!. Since there are n! possible
  permutations of an input there must be n! leaves.

44
Decision Tree-Insertion Sort(3 elements)
12
gt
?
23
13
?
gt
gt
?
13
lt1,2,3gt
lt2,1,3gt
23
?
gt
?
gt
lt3.2.1gt
lt2,3,1gt
lt3,1,2gt
lt1,3,2gt
45
Lower Bounds (cont)

• The length of the longest path from the root of a
  decision tree to any of its reachable leaves
  represents the worst-case number of comparisons
  that the corresponding sorting algorithm
  performs.
• Therefore, the worst-case number of comparisons
  for a given comparison sort algorithm is the
  height of the decision tree
• A lower bound on the heights of all decision
  trees in which each permutation appears as a
  reachable leaf is a lower bound on the running
  time of any comparison sort algorithm.

46
Lower Bounds(cont)

• Theorem 8.1
• Any comparison algorithm requires ?(n lg n)
  comparisons in the worst case.
• Proof Consider a decision tree of height h with
  l reachable leaves exists corresponding to a
  comparison sort on n elements. We have n!
  possible permutations of the input each of which
  appears as some leaf. Therefore n! ? l.

47
Lower Bounds(cont)

• Since a binary tree of height h has no more than
  2h leaves, we have
• n! ? l ? 2h
• Thus n! ? 2h and if we take logarithms of both
  sides of the inequality
• lg (n!) ? h lg 2 ?h ? lg(n!)
• By 3.18 lg(n!) T(n lg n), ?
• h ?(n lg n)

48
Counting Sort

• This sort assumes that each of the n input
  elements is an integer in the range 0 to k for
  some integer k. When k O(n), the sort runs in
  T(n) time.
• The basic idea is to determine for each input
  element x, the number of elements which are less
  than x. Then we can place the element directly
  into its position in the output array.
• There is a slight problem if elements are not
  distinct, because they cant go into the same
  location.

49
Counting Sort(cont)

• In the following pseudo code, assume that the
  input is in array A1n, and thus the lengthA
  n. Two other arrays are required, namely
  B1n holds the sorted output and C0k
  provides temporary working storage.

50
Counting Sort pseudo code

• COUNTING-SORT(A,B,k)
• for i ? 0 to k
• do Ci ? 0
• for j ? 1 to lengthA
• do CAj ? CAj 1
• ? Ci now contains the number of elements equal
  to i
• for i ? 1 to k
• do Ci ? Ci Ci-1
• ? Ci now contains the number of elements ? i
• for j ? lengthA downto 1
• do BCAj ? Aj
• CAj ? CAj 1

51
Counting Sort Operation
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
3
0 1 2 3 4 5
2
2
5
3
3
3
0
0
A
7
7
2
2
4
8
C
0 1 2 3 4 5
0 1 2 3 4 5
6
4
7
8
2
2
C
C
2
3
0
2
0
1
(b)
(c)
(a)
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
B
0
3
3
3
B
0
1 2 3 4 5 6 7 8
0 1 2 3 4 5
0 1 2 3 4 5
B
2
2
3
0
5
3
3
0
2
1
8
C
5
4
7
7
1
4
6
8
C
2
(f)
(e)
(d)
52
Counting Sort Times

• Overall, the time is T(k n) because the first
  for loop takes T(k) while the next for loop takes
  T(n). The third for loop takes T(k) and the last
  for loop takes T(n).
• Therefore, the overall time is T(nk) .
• It beats ?(n lg n) because it does NO comparisons
  at all. Rather, the actual values of the
  elements are used to index into an array.
• It is also STABLE numbers with the same value
  appear in the output array in the same order as
  the input array. (This is only important with
  satellite data carried around with the elements
  being sorted).

53
Radix Sort

• In the old days of computers (ca 1970) there used
  to be card sorting machines which sorted punched
  cards.
• The cards were organized into 80 columns, and 12
  rows/column such that a hole could be punched
  into one of 12 places in a particular column.
• The sorters could place a card into one of 12
  output bins, depending upon which hole is punched.

54
Radix Sort(cont)

• An operator could then gather the cards bin by
  pin and place them such that the cards with the
  first hole punched are on top of the cards with
  the second hole punched, etc.
• For decimal digits, only 10 of the holes are
  used, representing digits 0-9
• A d-digit number would occupy d columns

55
Radix Sort(cont)

• The sorting machines could only sort on one
  column at a time, so some algorithm was necessary
  to sort n cards with d-digit numbers.
• What about sorting on the most significant digit
  first?
• This requires each of the 10 stacks generated to
  be sorted separately, which requires keeping
  track of each of these separate piles.

56
Radix Sort(Cont)

• The scheme is to sort on the least significant
  digit first (counter intuitively)
• The cards are then re-combined into a single
  deck, with the cards in the 0 bin preceding the
  cards in the 1 bin, etc.
• We then re-sort the deck in its entirety but
  based upon the next least significant digit
• After making our way to the most significant
  digit, the entire deck is sorted.

57
Radix Sort(cont)

• Only d passes are required through the deck of
  cards.
• The sort is stablebut the operator has to be
  careful about not changing the order of the
  cards.

58
Radix Sort Figure 8.3
720 355 436 457 657 329 839
329 355 436 457 657 720 839
329 457 657 839 436 720 355
720 329 436 839 355 457 657
ms digit
mid digit
ls digit
59
Radix Sort (typical computer)

• Our typical computer is a sequential
  random-access machine
• We can use radix sort to sort information keyed
  by multiple fields
• Dates have 3 integer fieldsmonth,day,year
• We could do a stable radix sort by sorting 3
  times on day, month, and then year.

60
Radix Sort PsuedoCode

• RADIX-SORT(A,d)
• For i ? 1 to d
• do use a stable sort to sort array A on
  digit I
• Lemma 8.3 Given n d-digit numbers in which each
  digit can take on up to k possible values,
  RADIX-SORT correctly sorts these numbers in
  T(d(nk)) time.
• When d is constant and k O(n), radix sort runs
  in linear time.

61
Radix-Sort

• Lemma 8.4 Given n b-bit numbers and any positive
  integer r ? b, RADIX-SORT correctly sorts these
  numbers in T((b/r)(n2r) time.
• Proof For a value r ? b, view each key as
  having d?b/r? digits of r bits each. Each digit
  is an integer in the range 0 to 2r-1, so
  counting sort can be used with k2r-1. (For
  example, view a 32 bit word as having 4 8 bit
  digits, so that b32,r8,k 2r-1255, and
  db/r4.) Each pass of counting sort takes
  T(nk) T(n2r) and there are d passes, for a
  total of T(d(n2r)) T((b/r)(n2r))

62
Radix Sort Comments

• Lots of comments in book
• The text makes the point that even if for given
  values of n and b and we choose r to minimize the
  expression to make the sort be close to T(n) it
  appears to be better than Quicksorts T(n lgn).
  However, there is the big caveat that the
  constant factors hidden in the T notation differ.
  Quicksort often uses hardware caches more
  effectively than radix sort, while the version of
  radix sort which uses counting sort as the
  intermediate stable sort does not sort in place,
  while others (like quicksort) may.

63
Review Mid-Term Results

• Nine Students took the exam
• Average Score 80.11
• Sorted Scores 66,67,71,78,85,85,86,90,93

64
Data Structures and sets

• Sets are fundamental to computer science
• Mathematical sets are unchanging
• Sets manipulated by algorithms can grow, shrink,
  or change over time.
• Such sets are called dynamic sets.
• Algorithms may need various operations on
  setssuch as
• insert
• delete
• test for membership

65
Dynamic Sets

• In a typical implementation, each element is
  represented by an object whose fields can be both
  examined and manipulated if we have a pointer to
  the object.
• Some dynamic sets assume that one of the objects
  fields is an identifying key field.
• If all the keys are distinct, think of the
  dynamic set as being a set of key values
• The object may also contain satellite data.

66
Operations on dynamic sets

• Search(S,k) A query that, given a set S and a
  key value k, returns a pointer x to an element in
  S such that keyx k, or NIL if no such element
  belongs to S.
• Insert(S,x) A modifying operation that augments
  the set S with the element pointed to by x. We
  usually assume that any fields in element x
  needed by the set implementation have already
  been initialized.

67
Operations on Dynamic Sets(cont)

• Delete(S,x) A modifying operation that, given a
  pointer x to an element in the set S, removes x
  form S. (Note that x is a pointer to an element,
  not a key value)
• Minimum(S) A query on a totally ordered set S
  that returns a pointer to the element of S with
  the smallest key
• Maximum(S) A query on a totally ordered set S
  that returns a pointer to the element of S with
  the largest key

68
Operations on Dynamic Sets(cont)

• Successor(S,x) A query that, given an element x
  whose key is from a totally ordered set S,
  returns a pointer to the next larger element in
  S, or NIL if x is the maximum element.
• Predecessor(S,x) A query that, given an element
  x whose key is from a totally ordered set S,
  returns a pointer to the next smaller element in
  S, or NIL if x I sthe minimum element.

69
Overview of Part III

• Chapter 10 stacks, queues, linked lists, and
  rooted trees
• Chapter 11 hash tables
• Chapter 12 binary search trees
• Chapter 13 red-black trees
• Chapter 14 augmenting data structures

70
Chapter 10 stacks queues

• Stacks and queues are dynamic sets in which the
  element removed from the set by the delete
  operation is pre-specified.
• In a stack, the element deleted from the set is
  the one most recently inserted, it has a last-in
  first-out or LIFO policy.
• In a queue, the element deleted is always the one
  that has been in the set for the longest time
  it implements a first-in first-out or FIFO policy.

71
Stacks

• The insert operation on a stack is often called a
  push and the delete operation is often called a
  pop.
• These names are allusions to physical stacks,
  such as the spring-loaded stacks of plates found
  in cafeterias.

72
Stack pseudo code

• STACK-EMPTY(S)
• if topS 0
• then return TRUE
• else return FALSE
• PUSH(S,x)
• topS ? topS 1
• StopS ? x

73
Stack pseudo code(cont)

• POP(s)
• if STACK-EMPTY(S)
• then error underflow
• else topS ? topS - 1
• return StopS 1
• Note The pseudo-code does nothing about stack
  overflowjust underflow.

74
StacksFigure 10.1
S
TopS 4
S
17
3
TopS 6
S
17
TopS 5
75
Queues

• The insert operation on a queue is called an
  ENQUEUE (a.k.a. an append or put)
• The delete operation on a queue is called a
  DEQUEUE (a.k.a. a serve or get)
• The FIFO property of a queue causes it to act
  like a line of students waiting in the registrars
  office.

76
Queue pseudo code

• ENQUEUE(Q,x)
• QtailQ ? x
• if tailQ lengthQ
• then tailQ ? 1
• else tailQ ? tailQ 1
• DEQUEUE(Q)
• x ? QheadQ
• if headQ lengthQ
• then headQ ? 1
• else headQ ? headQ 1
• return x

77
Queues Figure 10.2
(a)
Q
15
6
9
4
8
HeadQ7
TailQ12
(b)
Q
6
9
3
15
8
4
17
5
After ENQUEUE(Q,17) ENQUEUE(Q,3) ENQUEUE(Q,5)
HeadQ7
TailQ3
(c)
Q
15
8
6
9
4
3
17
5
After DEQUEUE(Q) returns 15
HeadQ8
TailQ3
78
Queues a practical example

• This next group of slides is taken from a
  practical example of a queue implementation which
  was used on multiple printers at Hewlett-Packard
  Company.
• The purpose of this set of slides is to
  illustrate some of the subtleties which are
  present when trying to implement a defect-free
  queue.
• This code had tens of thousands of hours of
  testing and all of the printer products were
  deemed shippable. Nevertheless, there were
  reports of rare problems

79
Queues a practical example

• The context for this queue code is that it was
  intended to be a fast, local queue implemented
  between some task code and an interrupt service
  routine (isr).
• The task code executed at a 5 hz rate, i.e., each
  200 ms. It essentially executed at a high
  priority compared to other tasks, then slept for
  200 ms and then was run again. Each time it
  executed, it placed either nothing in the queue
  or 3 commands in the queue.
• The isr code executed asynchronously to the task
  code. It was called at each zero crossing of the
  power line, or 120 hz here in the US or 100 in
  countries that use 50 hz power. Even though the
  isr ran at 120 hz, it really just returned 5 out
  of 6 interrupts and only pulled commands out of
  the queue each 6th interrupt, making it run
  effectively at 20 hz.

80
Queues a practical example

• Given that the isr emptying the queue executed at
  20 hz and the task filling the queue executed at
  5 hz, the queue was empty most of the time.
• The three commands placed in the queue were
  really two commands and a dummy framing command
  which indicated to the isr the end of a frame of
  commands, i.e., the end of the execution of the
  task.
• The isr would read the queue until either (1)
  empty or (2) encountering a framing command.

81
Queues some more detail

• Here are some declarations and the code itself to
  illustrate the details
• define MAXQUEUE 50
• typedef struct queue_tag
• int front
  / front of queue /
• int rear
  / rear of queue /
• int entryMAXQUEUE
• QUEUETYPE
• QUEUETYPE myQueue

82
Queues some more detail

• static void InitializeQueue(QUEUETYPE q)
• q-gtfront0 q-gtrear-1
• static boolean_t QueueEmpty(QUEUETYPE q)
• return(((q-gtrear1)MAXQUEUE)q-gtfront)
• static boolean_t QueueFull(QUEUETYPE q)
• return(((q-gtrear2)MAXQUEUE)q-gtfront)

83
Queues some more detail

• static void PutQueue(int item, QUEUETYPE q)
• boolean_t result
• result QueueFull(q)
• if(result FALSE)
• q-gtrear (q-gtrear 1) MAXQUEUE
• q-gtentryq-gtrear item

84
Queues some more detail

• void GetQueue(int itemPtr, QUEUETYPE q)
• boolean_t result
• result QueueEmpty(q) / details of what
  to do if /
• if(!result) / empty left
  off purposefully /
• itemPtr q-gtentryq-gtfront
• q-gtfront (q-gtfront 1) MAXQUEUE

85
Queues some more detail

• The context is that InitializeQueue() gets called
  once at startup. Thereafter, PutQueue() and by
  extension QueueFull() are called only by the
  task.
• GetQueue() and by extension, QueueEmpty() are
  called only by the isr
• These work over millions of calls but every
  once
• in a while (could be tens of thousands of
  printed pages) something happens in which the
  code thinks the queue is suddenly full

86
Queues a practical example

• Are there any ideas of what might be wrong
• Lets look at the next slide maestro

87
Queues a practical example
Assume interrupt in PutQueue() between rear ptr
move and store QueueFull() returns FALSE, we inc
rear ptr as shown GetQueue() is now executed
repeatedly until Queue empty or frame reached.
4
6
2
5
x
3
x
1
rear before store but after inc
front
rear
88
Queues a practical example
Eventually in the isr we get down to the
situation shown below which is a problem if the
rear pointer has been moved but the item has not
been stored because GetQueue() will remove an
incorrect itemand then when the isr returns, the
item will be stored but now the queue appears to
be full because the front pointer gets
incremented one more time
4
6
2
5
x
3
x
1
front
rear before store but after inc
rear
89
Queues a practical example

• This defect is currently in shipping products but
  happens so rarely that it is not deemed necessary
  to roll to a new release.
• This is a pragmatic, business based decision
  which balances the work (cost and risk as well)
  against fixing the known defect.
• What will probably happen is that the fix will be
  made in the code base but not rolled in until and
  unless the code needs to be rolled for some other
  reason.

90
Linked Lists

• A linked list is a data structure in which the
  objects are arranged in a linear order.
• Unlike an array, the order is not determined by
  the array indices, rather by the pointer in each
  object.
• A doubly linked list l L is an object with a key
  field and two pointer fields next and prev.
• Given an element x in the list, nextx points to
  its successor in the list while prevx points to
  the predecessor.

91
Linked Lists (cont)

• If prevx is nil, there is no predecessor so x
  is the head of the list.
• If nextx is nil, there is no successor so x is
  the tail of the list.
• An attribute headL points to the first element
  of the list. If this is nil, the list is empty
  or a null list.
• There are singly linked (only next pointers) and
  doubly linked lists.

92
Linked Lists (cont)

• A sorted linked list has keys increasing or
  decreasing in order.

93
Linked List search pseudo code

• LIST-SEARCH(L,k)
• x ? headL
• while x ? nil and keyx ? k
• do x ? nextx
• return x
• LIST-SEARCH searches a list of n objects in ?(n)
  in the worst case.

94
Linked List Insert pseudo code

• LIST-INSERT(L,x)
• nextx ? headL
• if headL ? nil
• then prevheadL ? x
• headL ? x
• prevx ? nil
• The running time is O(1) since this splices onto
  the head of the line.

95
Linked List Delete pseudo code

• LIST-DELETE(L,x)
• if prevx ? nil
• then nextprevx ? nextx
• else headL ? nextx
• if nextx ? nil
• then prevnextx ? prevx
• LIST-DELETE runs in O(1) time because the element
  to be deleted has already been found and no
  searching is included.

96
Linked List Sentinels

• The code for list-delete could be simpler if we
  ignore the boundary conditions at the head and
  tail of the table.
• LIST-DELETE
• nextprevx ? nextx
• prevnextx ? prevx (note symmetry!)
• A sentinel is a dummy object that allows us to
  simplify boundary conditions.

97
Linked List Sentinels (cont)

• The sentinel nilL appears between the head and
  the tail. The attributes headL and tailL are
  no longer needed.
• An empty list consists of just the sentinel.
• nextnilL refers to the head
• PrevnilL refers to the tail
• LIST-SEARCH and LIST-DELETE also become simpler.

98
List-Search pseudo code

• LIST-SEARCH(L,k)
• x ? nextnilL
• while x ? nilL and keyx ? k
• do x ? nextx
• return x

99
List-Insert pseudo code

• LIST-INSERT(L,x)
• nextx ? nextnilL
• prevnextnilL ? x
• nextnilL ? x
• prevx ? nilL
• Sentinels rarely reduce the asymptotic time
  bounds of data structure operations, but they can
  and do minimize constant time factors.
• However, if they can tighten code in a loop, they
  may reduce the coefficient of n or n2 in the
  running time.

100
Multiple-array representation of objects

• Some languages, such as Fortran, do not have
  pointers. There are still ways of implementing
  linked data structures without explicit pointer
  types.
• The idea is to use parallel arrays next, key, and
  prev as shown in the next slide.
• Generally, we tend to use languages that do have
  pointer capability!
