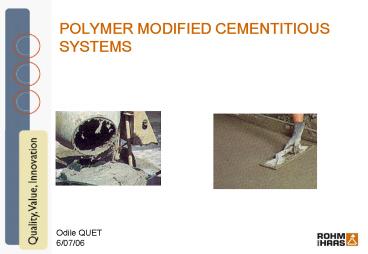

POLYMER MODIFIED CEMENTITIOUS SYSTEMS

1
POLYMER MODIFIED CEMENTITIOUS SYSTEMS
Odile QUET 6/07/06
2

• DEFINITIONS AND BASIC CHEMISTRY

• Unmodified concrete is a mixture of Portland
  cement water inert filler (sand, stone,
  etc.).
• Concrete curing is due to hydration, a chemical
  reaction between Portland cement and water.
• Stoichiometric weight ratio of water/cement
  required for complete hydration is 0.28.
• Additional water is always present to give
  fluidity, but later evaporates to leave voids
  (weak spots).

3
WHY TO USE A CEMENT MODIFIER ?
4
MECHANISM OF POLYMER MODIFICATION

• Theories of the mechanism of polymer modification
  of concrete
• - Equal workability at significantly
  lower water level.
• - Polymer coalesces to coat cement
  particles and hold in water for hydration
  rather than evaporation.
• - The polymer film also enhances
  toughness and restrains micro-crack propagation.

5
SEMs OF UNMODIFIED CONCRETE
6
SEMs OF POLYMER MODIFIED CONCRETE
7
MAIN PROPERTIES OF POLYMER MODIFIED SYSTEMS
8
RELEVANT RATIOS IN CEMENTITIOUS SYSTEMS
9
ADVANTAGES OF POLYMER MODIFIED SYSTEMS

• Good workability at lower water level
• Improved adhesion to a variety of substrates
• Increased flexural strength
• Improved toughness
• Resistance to ion permeability
• Outstanding durability.

10
IMPACT OF POLYMER LEVEL ON FINAL PROPERTIES
(polymer modification level 15)
11
IMPACT OF ACRYLIC POLYMERS ON CEMENT STRENGTH
PROPERTIES
12
IMPACT OF POLYMER MODIFICATION LEVEL
Polymer modification level
13
CEMENT MODIFIERS APPLICATION AREAS

• Repair mortars
• Self leveling flooring systems
• Cementitious flexible water proofing membranes
• Ceramic Tile Adhesives
• Cementitious paints
• Tile grouts
• Floor screeds
• Glass reinforced concrete
• EIFS (Exterior Insulation Finishing systems)

14
CEMENTITIOUS SYSTEMS FORMULATIONPRINCIPAL
ADDITIVES
15
SELF-LEVELLING AREA
Issues...

• Flow / reflow
• Set time
• Adhesion
• Abrasion Resistance
• Dimensional stability

16
CERAMIC TILE ADHESIVES (CTA)
Issues...

• Workability / Open Time
• Water Resistance
• Flexibility
• Adhesion

17
REPAIR MORTARS
Issues...

• Workability
• Flexural strength
• Adhesion
• Dimensional stability

18
FLEXIBLE CEMENTITIOUS MEMBRANES
Issues...

• Flexibility
• Waterproof ness
• Tensile strength
• tear resistance

19
PRODUCT RANGE BY APPLICATION
Highly recommended
Suitable
20
PRIMAL E-330 EF IN BASIC REPAIR MORTAR
21
PRIMAL SF-016 ER AS A CEMENT MODIFIER
22
SF-016ER VERSUS E-330 EF
ER
