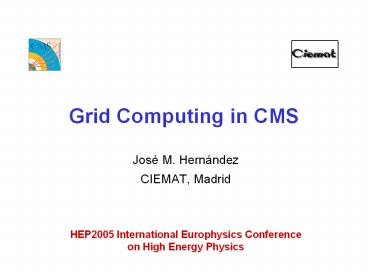

Grid Computing in CMS

• José M. Hernández
• CIEMAT, Madrid
• HEP2005 International Europhysics Conference
  on High Energy Physics

2
Outline

• Architecture of CMS Computing System
• Data and Workload Management Systems
• Baseline capabilities and functionalities
• Key CMS Grid Systems
• Data Transfer and Placement System (PhEDEx)
• Monte Carlo production on the Grid
• Data analysis on the Grid
• Stress Tests of CMS Computing System
• CMS computing challenges and LCG service
  challenges
• Develop computing system iteratively

3
CMS Computing Model

• Distributed model for computing in CMS
• Cope with computing requirements for storage,
  processing and analysis of data provided by LHC
• Computing resources are geographically
  distributed, interconnected via high throughput
  networks and operated by means of Grid software
• CMS computing TDR just released (June 2005)

4
Tiered Architecture

• Tier-0
• Accepts data from DAQ
• Prompt reconstruction
• Archives data and distributes them to Tier-1s

• Tier-1s
• Real data archiving
• Re-processing
• Calibration
• Skimming and other data-intensive analysis tasks
• MC data archiving

• Tier-2s
• Data Analysis
• MC simulation
• Import datasets from Tier-1 and export MC data

5
Workload and Data Management Systems

• Design philosophy
• Use Grid Services as much as possible and also
  CMS-specific services
• Baseline system with minimal functionality for
  first physics
• Keep it simple!
• Optimize for the common case
• Optimize for read access (most data is
  write-once, read-many)
• Optimize for organized bulk processing, but
  without limiting single user
• Decouple parts of the system
• Minimize job dependencies
• Site-local information stays site-local
• Use explicit data placement
• Data does not move around in response to job
  submission
• All data is placed at a site through explicit CMS
  policy
• Grid interoperability (LCG and OSG)

6
WMS DMS Services Overview

• No global file replica catalogue
• Track and replicate data with a granularity of
  file blocks
• Data Bookkeeping System
• What data exist?
• Data Location Service
• Where are data located?
• Local File catalogue
• Data Access and Storage
• SRM and posix-IO
• Data Transfer and placement system
• Rely on Grid Workload Management
• Reliability, performance, monitoring
• Hierarchical task queue in future
• Grid and CMS-specific job monitoring and
  bookkeeping

DMS
WMS
7
Data Transfer and Placement System

• PhEDEx (Physics Experiment Data Export)
• Large scale dataset replica management system
• Managed data flow following a transfer topology
  (Tier0 ? Tier1 ? Tier2)
• Routed multi-hop transfers. Routing agents
  determine the best route
• Reliable point-to-point transfers based on
  unreliable Grid transfer tools
• Set of quasi-independent, asynchronous software
  agents posting messages in a central blackboard
• Nodes subscribe for data allocated from other
  nodes
• Enables distribution management at dataset level
  rather than at file level
• Implements experiments policy on data placement
• Allows prioritization and scheduling
• In production since more than a year
• Managing transfers of several TB/day
• 100 TB known to PhEDEx, 200 TB total replicated
• Running at CERN, 7 Tier-1s, 10 Tier-2s

8
PhEDEx
9
MC Production on the Grid

• US Open Science Grid (OSG) and LHC Computing Grid
  (LCG)
• McRunjob tool for running CMS production jobs
  (preparation, submission, stage-in, execution,
  stage-out, cleanup)
• Developed by FNAL with contributions from other
  CMS people
• Highly configurable and flexible
• Interfaced to all Grids and local farm production
• Different production steps (generation,
  simulation, digitization and reconstruction)
  currently run separately
• Production in both Grids since 2003
• Production in LCG recently extended to run all
  steps. Now ramping up
• Local Farm production moving to the Grid

10
LCG Production Workflow

• Quasi-real-time job monitoring (BOSS)
• Normally experiment software pre-installed

11
MC Production on the Grid
LCG
OSG

• Several thousand CPUs available in both Grids
• Few million events per month
• Around 70-90 job efficiency ? The issue is
  reliability
• System issues (hardware failures, NFS access,
  disk full, site misconfiguration)
• Software installation problems
• Grid services, stage-in and stage-out files, LCG
  catalogue instability
• Run with site whitelist ? increase in manpower
  needed
• Instrument job wrapper to cope with known
  instabilities

12
Data Analysis on the Grid

• Data samples for the CMS Physics TDR distributed
  in Tier-1 sites (80 million events)
• End-to-end analysis via LCG Grid
• Simple analysis scenario where data is
  pre-located and jobs are sent to the data
• CMS remote Analysis Builder (CRAB) tool for job
  preparation, submission, execution and basic
  monitoring
• Several 10s of users and 100s of jobs per day
• 100K jobs submitted

13
Tests of CMS Computing System

• It is crucial to test prototypes of Grid
  resources and services of increasing scale and
  complexity so that they can become production
  services
• Problems and missing components are identified
  and addressed
• Iterative process in computing system development
• Scheduled CMS Computing Challenges and LCG
  Service Challenges
• CMS Data Challenge 2004
• Tier-0 reconstruction _at_ 25 Hz and distribution to
  Tier-1 for real-time analysis
• Put in place CMS data transfer and placement
  system (PhEDEx)
• First large scale test of Grid WMS (real-time
  analysis)
• Problems identified small file size (transfer,
  mass storage), slow central replica and metadata
  LCG catalogue, lack of reliable file transfer
  system in LCG
• CMS Computing, Software and Analysis challenge
  (summer 2006)
• Full test of CMS computing system
• LCG Service Challenges
• SC3 (Sept-Dec 2005) test all experiment services
  but analysis
• SC4 (from April 2006) test of all computing
  services

14
Experience in CMS Grid Computing

• Basic Grid Infrastructure and Services in place
• The Grid works but the issue is reliability
• A lot still to be done
• VO policy and priorities not yet quite
  implemented in Grid WMS and DMS
• Lack of dynamic behaviour in WMS and DMS
  (rescheduling)
• As a consequence custom-made data transfer and
  placement system implemented in CMS DMS and
  hierarchical task queue planned in CMS WMS
• Primitive and high-latency job monitoring
• Accounting only recently implemented
• Reduce Grid overheads in WMS and monitoring
• Putting effort in integration is crucial. Working
  with sites

15
Summary

• CMS has adopted a distributed computing model
  which makes use of Grid technologies
• Production CMS services on the Grid in place
• Data Management and Workload Management systems
• Data transfer and placement system
• Monte Carlo production
• Data Analysis
• Steadily increase in scale and complexity
• Basic Grid Infrastructure and Services in place
  but reliability and stability are the problems
• Lot of work ahead for Grid software providers and
  CMS computing team
