Deterministic Execution of Nondeterministic Shared-Memory Programs

1

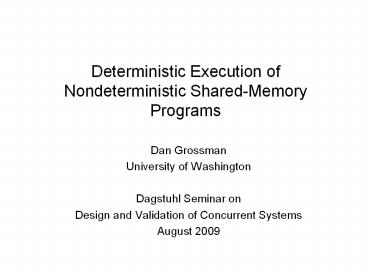

Deterministic Execution of Nondeterministic
Shared-Memory Programs

• Dan Grossman
• University of Washington
• Dagstuhl Seminar on
• Design and Validation of Concurrent Systems
• August 2009

2
What if

• What if you could run the same multithreaded
  program on the same inputs twice and know you
  would get the same results?
• What exactly does that mean?
• Why might you want that?
• How can we do that (semi-efficiently)?
• But first
• Some background on me and the talks Im not
  giving
• Key terminology and perspectives
• More important than technical details at this
  event

3
Biography / group names

• Me
• Programming-languages person
• Type systems, compilers for memory-safe C dialect
  200-2004
• 30 ? 80 focus on multithreading, 2005-
• Co-advising 3-4 students with computer architect
  Luis Ceze, 2007-
• Two groups for marketing purposes
• WASP, wasp.cs.washington.edu
• SAMPA, sampa.cs.washington.edu

4
The talk you wont see
void transferFrom(int amt, Acct other)
atomic other.withdraw(amt)
this.deposit(amt)

• Transactions are to shared-memory concurrency as
  garbage
• collection is to memory management OOPSLA 07
• Semantic problems with nontransactional accesses
  worse than locks!
• Fix with stronger guarantees and compiler opts
  PLDI07
• Or static type system, formal semantics, and
  proof POPL08
• Or more dynamic approach adapting to Haskell
  submitted
• Prototypes for OCaml, Java, Scheme, and Haskell

5
This talk

• Take an arbitrary C/C program with POSIX
  threads
• Locks, barriers, condition variables, data races,
  whatever
• Compile it funny
• Link it against a funny run-time system
• Get deterministic behavior
• Well, as deterministic as a sequential C program
• Joint work Luis Ceze, Tom Bergan, Joe Devietti,
  Owen Anderson

6
Terminology

• Essential perspectives, not just definitions
• Parallelism vs. concurrency
• Or different terms if you prefer
• Sequential semantics vs. determinism vs.
  nondeterminism
• What is an input?
• Level of abstraction
• Which one do you care about?

7
Concurrency

• Working definition
• Software is concurrent if a primary intellectual
  challenge is responding to external events from
  multiple sources in a timely manner.
• Examples operating system, shared hashtable,
  version control
• Key challenge is responsiveness
• often leads to threads or asynchrony
• Correctness usually requires synchronization
  (e.g., locks)

8
Parallelism

• Working definition
• Software is parallel if a primary intellectual
  challenge is using extra computational resources
  to do more useful work per unit time.
• Examples scientific computing, most graphics, a
  lot of servers
• Key challenge is Amdahls Law
• No sequential bottlenecks, no imbalanced load
• When pure fork-join isnt correct, need
  synchronization

9
The confusion

• First, this use of terms isnt standard
• Many systems are both
• And its really a matter of degree
• Similar lower-level mechanisms, such as threads
  and locks
• And similar errors (race conditions, deadlocks,
  etc.)
• Our work determinizes these lower-level
  mechanisms, so we determinize concurrent and
  parallel applications
• But purely parallel ones probably benefit less

10
Terminology

• Essential perspectives, not just definitions
• Parallelism vs. concurrency
• Or different terms if you prefer
• Sequential semantics vs. determinism vs.
  nondeterminism
• What is an input?
• Level of abstraction
• Which one do you care about?

11
Sequential semantics

• Some languages can have results defined purely
  sequentially, but are designed to have better
  parallel-performance guarantees (thanks to a cost
  model)
• Examples DPJ, Cilk, NESL,
• For correctness, reason sequentially
• For performance, reason in parallel
• Really designed for parallelism, not concurrency
• Not our work

12
Sequential isnt always deterministic

• Surprisingly easy to forget this

int f1() print(A) print(B) return 0 int
f2() print(C) print(D) return 0 int g()
return f1() f2()

• Must g() print ABCD?
• Java yes
• C/C no, CDAB allowed, but not ACBD, ACDB, etc.

13
Another example

• Dijkstras guarded-command conditionals

if x 2 1 -gt y x - 1 x lt 10 -gt y
7 x gt 10 -gt y 0 fi

• We might still expect a particular language
  implementation (compiler) to be deterministic
• May choose any deterministic result consistent
  with the nondeterministic semantics
• Presumably doesnt change choice across
  executions, but may across compiles (including
  butterfly effects)
• Our work does this

14
Why helpful?

• So programmer gets a deterministic executable,
  but doesnt know which one
• Key degree of freedom for automated performance
• Still helpful for
• Whole-program testing and debugging
• Automated replicas
• In general, repeatability and reducing possible
  executions

15
Define deterministic, part 1

• Deterministic outputs depend only on inputs
• Thats right, but means must clearly specify what
  is an input (and an output)
• Can define away anything you want
• Example All syscall results are inputs, so
  seeding the pseudorandom number generator with
  time-of-day is deterministic
• We mean what you think we mean
• Inputs command-line, I/O, syscalls
• Not inputs cache state, hardware timing, thread
  scheduler

16
Terminology

• Essential perspectives, not just definitions
• Parallelism vs. concurrency
• Or different terms if you prefer
• Sequential semantics vs. determinism vs.
  nondeterminism
• What is an input?
• Level of abstraction
• Which one do you care about?

17
Define deterministic, part 2

• Is it deterministic? depends crucially on your
  abstraction level
• Another obvious easy-to-forget thing
• Examples
• File systems
• Memory-allocation (Java vs. C)
• Set implemented as a list
• Quantum mechanics
• Our work
• The language level state of logical memory,
  program output
• Application may care only about a higher level
  (future work)

18
Okay how?

• Trade-off between complexity and performance

PERFORMANCE
COMPLEXITY

• Performance
• Overhead (single-thread slowdown)
• Scalability (minimize extra synchronization,
  waiting)

19
Starting serial

• Determinization is easy!
• Run one thread at a time in round-robin order
• Context-switch after N basic blocks for
  deterministic N
• Cannot use a timer use compiler and run-time
• Races in source program are irrelevant locks
  still respected
• Example with 3 threads running (time moves with
  arrows)

T1
T2
T3
1 quantum
1 round
20
Parallel quanta

• The quanta in a round can start to run in
  parallel provided they stop before any
  communication occurs (see how next)
• So each round has two stages, parallel then serial

T1
T2
T3
Parallel stage ends with global barrier
load A
load A
Serial stage ends next round starts
store B
store C


21
Is that legal?
T1
T2
T3
load A
load A
store B
store C

• Can produce different result than serial
  execution
• In fact, execution not necessarily equivalent
  with any serialization of quanta
• But it doesnt matter as long as we are
  deterministic! Just need
• Parallel stages do no communication
• Parallel stages end at deterministic points

22
Performance
T1
T2
T3
load A
load A
store B
store C

• Keys to scalability
• Run almost everything in the parallel stage
• Keep quanta balanced
• Assume (1), use rough instruction costs

23
Memory ownership

• To avoid communication during parallel stage
• Every memory location is shared or owned by 1
  thread T
• Dynamic table checked and updated during
  execution
• Can read only memory that is shared or
  owned-by-you
• Can write only memory owned-by-you
• Locks just like memory locations blocking ends
  quantum
• In our example, perhaps A is shared, B and C are
  owned by T2

T1
T2
T3
load A
load A
store B
store C
24
Changing ownership

• Policy
• For each location (any deterministic granularity
  is correct),
• First owner is first thread to allocate in the
  location
• On read in serial stage, if owned-by-other set to
  shared
• One write in serial stage, set to owned-by-self
• Correctness
• Ownership immutable in parallel stages (so no
  communication)
• Serial-stage changes are deterministic
• So many, many polices are correct
• Chose the obvious one for temporal locality
  read-sharing
• Must have good locality for scalability!

25
Overhead

• Significant overhead
• All reads/writes consult ownership information
• All basic blocks subtract from a thread-local
  quantum counter
• Reduce via
• Lots of run-time engineering and data structures
  (not too much magic, but most important)
• Obvious compiler optimizations like escape
  analysis and hoisting counter-subtractions
• Specialized compiler optimizations like
  Subsequent Access Optimization Dont recheck
  same ownership unless a quantum boundary might
  intervene.
• Correctness of this is a subtle argument and
  slightly affects the ownership-change policy
  (deterministically!)

26
Brittle

• Change any line of code, command-line argument,
  environment variable, etc. and you can get a
  different deterministic program ?
• We are mostly robust to memory-safety errors ?,
• except ?
• Bounds errors that corrupt ownership information
• Bounds errors that write to another threads
  allegedly-thread-local data

27
Results

• Overhead Varies a lot, but about 3x at 8 threads
• Scalability Varies a lot, but on average with
  parsec suite ()
• nondet 8 threads vs. nondet 2 threads 2.4
  (linear 4)
• det 8 threads vs. det 2 threads
  2.0
• det 8 threads vs. nondet 2 threads 0.91
  (range 0.41 - 2.75)
• How do you want to spend Moores Dividend?
• subset runnable no mpi, no C exceptions, no
  32-bit assumptions

28
Buffering

• Actually, ownership is only one approach
• Second approach relies on buffering and a commit
  stage
• Even higher overhead (to consult buffers)
• Even better scalability (block only for
  synchronization commits)
• And a third hybrid approach
• Hopefully more details soon

29
Conclusion

• The fundamental assumption that nondeterministic
  shared-memory programs must be run
  nondeterministically is false
• A fun problem to throw principled compiler and
  run-time optimizations at.
• Could dramatically change how we test and debug
  parallel and concurrent programs
• Most-related work
• Kendo from MIT done concurrently (in parallel?
  ?), requires knowing about data races statically,
  different approach
• Colleagues in ASPLOS09 hardware support for
  ownership
• Record replay systemswe can replay without the
  record
