(Or: What do Wombats and Grid have in common?)

1

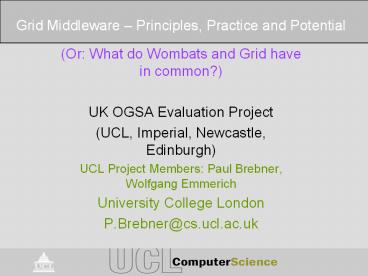

Grid Middleware Principles, Practice and
Potential

• (Or What do Wombats and Grid have in common?)
• UK OGSA Evaluation Project
• (UCL, Imperial, Newcastle, Edinburgh)
• UCL Project Members Paul Brebner, Wolfgang
  Emmerich
• University College London
• P.Brebner_at_cs.ucl.ac.uk

2
What do Wombats and Grid have in common?

• A They are secretive and misunderstood creatures?
• B They live in complex underground burrows?
• C You wouldnt want to meet one in a confined
  space in the dark?
• D All of the above?

?
3
Grid Abstract

• Principles
• What are the principles of Grid middleware?
• Practice (and pitfalls)
• How easy is it to use in practice? What are the
  pitfalls?
• Potential
• What potential does Grid middleware have to
• (1) provide insight into different ways of using
  Service Oriented Architectures, and
• (2) support automatic deployment and debugging?

4
Grid Principles

• Principles
• What are the principles of Grid middleware?
• Practice (and pitfalls)
• How easy is it to use in practice? What are the
  pitfalls?
• Potential
• What potential does Grid middleware have to
• (1) provide insight into different ways of using
  Service Oriented Architectures, and
• (2) support automatic deployment and debugging?

5
Grid Principles cluster, enterprise, internet
6
Grid Principles Grid vs Enterprise

• Whats the difference between Grid and
  Enterprise? (Typical generalisations)
• Grid
• Crosses firewalls and organisational boundaries
• Resource and code focussed
• scientist has some code, and wants to execute it
  on as many resources as possible, to solve ever
  bigger problems
• Developer, deployer and user may be the same
  person

7
Grid Principles Grid
User wants Infinite resources, scalability,
monitoring
Code
Organisations want Fair sharing, ease of
maintenance?
Data
New Data
Code
Data
8
Grid Principles Grid vs Enterprise

• Enterprise
• Code developed, deployed and maintained by
  enterprises behind firewall
• Exposed as web services for intra and inter
  organisational interoperability
• Users dont develop or deploy code

9
Grid Principles Enterprise
User wants Response time, availability
Enterprise wants Interoperability, scalability, s
ecurity
Query or Transaction
Service developer
Response
10
Grid Principles Grid vs Enterprise

• Grid (User view)
• I have some code, make it run fast for me.
• Concerns Finding resources, platform
  portability, deploying, running and monitoring
  jobs, security, data management.
• Enterprise (Enterprise owner view)
• I have some business logic exposed as Web service
  ensure internal and external users get required
  QoS.
• Concerns QoS, interoperability, transactional,
  performance/scalability, security, multiple
  applications sharing services.

11
Grid Principles Just another component model?

• Inspight of these differences, they have
  something in common
• OGSI has J2EE origins
• What does it mean to ship a J2EE-based Grid
  environment, something that can deliver
  OGSI-compliant services? It means that you
  provide a server programming environment that
  makes it very easy for service writers to
  implement services that conform to the set of
  standards that are OGSI.
• Containers, lifecycle management
• Goal Easy to write services and interoperability
  at interface level

12
Grid Principles OGSA vs OGSI
13
Grid Principles OGSA without OGSI
14
Grid Principles OGSA and ?
?
15
Grid Principles - Architecture

• J2EE n-tiered architecture

16
Grid Principles - Architecture
OGSA semi-layered, or sum of services
17
Grid Principles - Architecture
GT3 (core) server side components
18
Grid Principles OGSA Services

• Infrastructure services
• Execution Management services
• Data Services
• Resource Management Services
• Security Services
• Self-Management Services
• Information Services

19
Grid Principles J2EE cf OGSI
Feature J2EE OGSI
Containers Multiple (4) One
Components Multiple One (inheritance)
Roles Explicit Implicit
Implementations Many 1-2 (sort of)
Component purpose Presentation/Business logic/persistence High-level grid services
20
Grid Principles - State

• Treatment of stateful instances?
• J2EE has stateful session and entity beans
• CMP Entity beans lifecycle management
  (passivation/activation/pooling), caching, and
  automatic persistence support
• Typically accessed via Stateless Session Beans or
  MDBs
• GT3 has stateful instances (created by Factories)
• Accessed via SOAP and handles
• No automatic passivation/activation or
  persistence

21
Grid Principles - Roles

• J2EE
• Component developer
• Application assembler
• Deployer
• System Administrator
• Not to mention product and tool providers, system
  architect, and database designer and
  administrator, etc
• Many products provide distributed/remote tool
  support

22
Grid Principles - Roles

• Grid?
• Increasing number of roles in practice
• But, no explicit definition of Grid roles, and
• Poor tool support for cross-organisational
  support of roles

23
Grid Principles - Deployment

• Treatment of deployment?
• J2EE has explicit deployment role, and typically
  good tool support for remote deployment
• Support for product independent deployment
  (JSR-88 since J2EE 1.4)
• GT3 has built-in support for remote
  code/executable deployment (staging), but none
  for remote service deployment

24
Grid Principles Confusion/alternatives

• How is Globus intended to be used?
• 1 Science as first-order services
• Middleware for building and hosting Grid
  Applications, by exposing science code as Grid
  services.
• 2 High-level grid services
• Middleware for building a set of high level Grid
  services, composed to provide new Grid
  functionality. Science isnt first-order service,
  but executed and managed by Grid services.

25
Grid Principles Science services or Grid
services
Science services Directly callable, described
Client
1
Emc2
26
Grid Principles Science services or Grid
services
Science services Directly callable, described
Client
1
DA2BC2
Emc2
27
Grid Principles Science services or Grid
services
Science services Directly callable,
described discoverable
Client
Science Indirectly callable, not directly
described or discoverable
2
1
DA2BC2
Execution
DA2BC2
Data
Emc2
E mc2
28
Grid Practice

• Principles
• What are the principles of Grid middleware?
• Practice (and pitfalls)
• How easy is it to use in practice? What are the
  pitfalls?
• Potential
• What potential does Grid middleware have to
• (1) provide insight into different ways of using
  Service Oriented Architectures, and
• (2) support automatic deployment and debugging?

29
Grid Practice What to evaluate?

• OGSA gt OGSI gt GT3.2 Grid SOA exemplar
• Initially evaluate installation, configuration,
  and security
• Then performance and scalability, deployment,
  architectural choices, etc.
• Whats the point? What are we trying to learn?
• What are some of the s/w engineering and
  architectural issues surrounding Grid
  infrastructure? Across organisational boundaries?
• What improvements are required before it is
  suitable for production environments?

30
Grid Practice Realistic test-bed

• Heterogeneous platforms
• Linux, Solaris, Windows
• Cross-organisational
• Four nodes
• Independently administered
• Firewalls and access restrictions
• Security
• UK e-Science CA

31
Grid Practice Incremental

• Start with Core Package (Just container and basic
  services e.g. container registry service)
• Add Security
• Then try All Services
• Simple enough in theory
• Relationship between packages not well understood
• Java and non-Java components
• Poor integration between some parts

32
Grid Practice single node
GT3
Install
Install
OS/HW
33
Grid Practice single node
Configure
GT3
Install
Install
OS/HW
34
Grid Practice single node
Deploy
Configure
GT3
Install
Install
OS/HW
35
Grid Practice single node
Run
Deploy
Configure
GT3
Install
Install
OS/HW
36
Grid Practice Multiple sites
GT3
37
Grid Practice Multiple sites
GT3
GT3
GT3
GT3
38
Grid Practice Multiple sites
Interoperate
GT3
GT3
GT3
GT3
39
Grid Practice Multiple sites
Secure
Interoperate
GT3
GT3
GT3
GT3
GT3
GT3
40
Grid Practice Multiple sites
Manage
Secure
Interoperate
GT3
GT3
GT3
GT3
GT3
GT3
41
Grid Practice What we found

• Port number management (conflicts, discovery)
• Host access (requirements and site policies)
• Remote visibility of installation, container,
  services (what, configuration, version)
• Installation by System Administrators (role
  division, extra effort)
• Tomcat or Test container (different
  configuration)
• Linux is the only well supported platform
• Exponential increase in testing complexity as
  number of nodes increases.

42
Grid Practice Security

• Grid Security Infrastructure (GSI)
• X.509 certificates
• Mutual authentication (client/host)
• Proxy certificates (delegation and single
  sign-on)
• Authentication (Who are you?)
• Secure Message (Basic)
• Secure Conversation
• Signing or Encryption (prevent unauthorised
  altering/reading)
• Authorisation (Who is authorised to use
  container, factory, service, method)
• Gridmap file (Access Control List maps Grid to
  Local identifies)

43
Grid Practice Security

• In theory just have to
• obtain (and update) host, client, and CA
  certificates
• convert
• install
• configure (server, client side, container,
  services, etc)
• generate (and update) proxies.
• However, parts of All Services package also
  needed.

44
Grid Practice Security

• Interactions between security for multiple
  installations
• Essential to test non-secure interoperability
  first
• Windows client-side security
• Testing and viewing security configuration
• Debugging secure calls
• Client side security is programmatic
• Security management scalability
• Construction and maintenance of user accounts and
  grid-map file entries.

45
Grid Practice Security

• Interactions between security for multiple
  installations
• For testing may want
• multiple versions, or duplicates (with different
  configurations) of same versions.
• One container with no security, and another
  container with security
• May want test/production environments

46
Grid Practice Security

• Essential to test non-secure interoperability
  first
• Trying to test interoperability and security
  simultaneously wasnt fun

47
Grid Practice Security

• Windows client-side security
• Not obvious exactly what parts of Globus are
  needed for client side code with security (no
  client side security package).

48
Grid Practice Security

• Testing and viewing security configuration
• View/edit and check security configuration for
  containers and services
• Confusion about hierarchical security settings
• Virtual Organisations, clusters, servers,
  containers, factories, services, methods, and
  instances.
• Remotely
• Validate security deployment before run-time

49
Grid Practice Security

• Debugging secure calls (or any stateful service)
• Proxy interceptor approach (e.g. TCPMON) wont
  work with stateful services
• As grid handle returned to client contains the
  port number of the instance, not the proxy
• But proxies are an important design pattern for
  SOAs
• GT4/WS-RF may be different
• Handle resolvers, WS-Addressing and
  WS-RenewableReferences

50
Grid Practice Security

• Client side security is programmatic
• Client side code modifications required to call
  services/methods with required protocols
• Should be declarative
• Sensitive to server side security credentials

51
Grid Practice Security

• Security management scalability
• Construction and maintenance of user accounts and
  grid-map file entries.
• For each server, each user needs an account, and
  an entry in the container gridmap file (mapping
  client certificate to account)
• May also need service specific gridmap files
• Not scalable for large numbers of users, servers,
  services.
• Revocation of certificates, host certificate
  expiry problem
• Alternatives?
• Tool support
• Role based authentication
• Shared accounts or certificates (probably evil)

52
Grid Practice - Performance

• First approach (initial results)
• Scientific benchmark (SciMark2.0) modified to
  measure throughput, and invoked as a Stateful
  Grid Service
• Metric is Calls Per Minute (CPM) one unit of
  work.
• No large-scale data movement, just SOAP
  parameters and result, and computation/memory
  load.
• Good performance and scalability
• Minimal overhead cf standalone benchark
• Security has minimal overhead
• Sustained 4200 jobs an hour throughput
• Problem with client side timeouts as response
  times increase

53
Grid Practice - Performance
Tomcat Fastest 3.6s (Edinburgh) Slowest 25s
(UCL)
54
Grid Practice - Performance
95 of predicted maximum throughput
55
Grid Practice - Performance

• Tomcat vs Test container
• No difference on 3 out of 4 nodes
• But 67 faster on one node (Newcastle, slowest
  Intel box)
• Attachments will work with GT3 and Tomcat
• But not with security
• Limit of 1GB (DIME)
• Bug in Axis doesnt clean up temporary files.

56
Grid Practice - Performance

• Stateful instances visible externally can be
  problematic
• Intermittent unreliability
• On some runs, 1 exception in 300 calls
  (reliability of .9967)
• But non-repeatable, SOAP/network related?
• What is the safe response to exceptions? Cant
  just retry.
• Possible to kill container (relies on clients
  being well behaved)
• By invoking same instance/method more than once.
• By consuming container resources
• But instances can be passivated/activated in
  theory
• Could be used to enable fine-grain (per instance)
  control over resource usage.

57
Grid Practice - Pitfalls

• Production quality Grid middleware needs (What
  this bike needs is )
• Support for
• Remote
• location independent
• cross-organisational
• multiple role scenarios
• Such as

58
Grid Practice - Pitfalls (continued)

• Platform independent, automatic, installation.
• Tool support for configuration and deployment
  creation, validation, viewing and editing.
• Management console for grid, nodes, globus
  packages, containers and services.
• Remote deployment and management of services.
• Remote distributed debugging of grid
  installations, services, and applications.
• Tool support, and more scalable processes for
  security.

59
Grid Potential

• Principles
• What are the principles of Grid middleware?
• Practice (and pitfalls)
• How easy is it to use in practice? What are the
  pitfalls?
• Potential
• What potential does Grid middleware have to
• (1) provide insight into different ways of using
  Service Oriented Architectures, and
• (2) support automatic deployment and debugging?

60
Grid Potential Architectural alternatives

• Evaluate the two approaches in more detail
• Science exposed as services, vs science code
  managed by higher level grid services.
• Explore alternative mechanisms for
• Executing science code
• Load balancing and scheduling/resource management
• Directory services (service and resource
  discovery)
• Data movement (e.g. SOAP Attachments vs GridFTP)

61
Grid Potential Architectural evaluation

• Evaluation approach
• Loosely based on ATAM mechanisms
• Clarify the role of different GT3 mechanisms, and
  quantify pros/cons
• Two versions of application
• Evaluate with
• Architecture
• Roles
• Scenarios (to quantify quality attributes)

62
Grid Potential Architectural evaluation

• Pick a number of roles of interest
• Define attributes of interest, and scenarios to
  exercise and measure them
• Deployment
• Consistency of deployment, and time to deploy
• Debugging
• Ability to locate root cause of problem and
  rectify
• Security admin
• Cost/time to secure increasing number of
  clients/nodes
• Grid owner
• Scalability and ease of management

63
Grid Potential Architectural evaluation

• Hypothesis
• Both approaches to using Grid are identical
• But wont be surprised by some differences e.g.
  scalability, discovery, deployment
• Problems with
• MDS3 (Directory and resource discovery service)
  working with aggregated service data across sites
• GridFTP
• Wrapping Science code with MMJFS

64
Grid Potential - Deployment

• How to install and configure Grid infrastructure
  and services - scalably and securely?
• Install GT3 infrastructure and security manually
• MMJFS allows executable code to be staged
  automatically (But not services - could provide a
  deployment service).
• Install bootstrapping code, and then install and
  deploy all other code and security automatically.
• Using SmartFrog (HP) in the lab, and then
  test-bed.
• Firewalls, platform specific configurations, user
  sand-boxing, configuring GT3 security remotely,
  and trust with System Administrators are open
  issues.

65
Grid Potential Deployment Speculation

• Explicit deployment-flows?
• In Enterprise applications are increasingly
  represented as work-flows.
• Good for distributed execution, and
  comprehensibility.
• What if deployment plans are also represented
  explicitly as flows (deployment-flows)?
• Some work on work-flow aware resource management
  (for Grid).
• Deployment-flows could even be auto-magically
  generated from work-flows, and executed to ensure
  resources are deployed correctly JIT for
  work-flow execution.

66
Grid Potential Deployment Speculation

• For example
• Work-flow with two tasks
• 1st task requires 10 nodes, 2nd task 100 nodes.
• Produce deployment-flow which is interleaved with
  work-flow to
• Deploy 1st service for first task to 10, and
  start execution
• Deploy 2nd service to 100 nodes concurrent with
  execution of 1st task, and ready for execution of
  2nd.

67
Grid Potential Deployment Speculation
Execute T1
Execute T2
T1 x 10
T2 x 100
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
Could also include un-deployment
S1
S2
S2
S2
S2
S2
S2
Deploy S1 x 10
Deploy S2 x 100
68
Grid Potential - Deployment Debugging

• Debugging distributed systems is tricky
• Need better support for cross-cutting
  non-functional concerns such as deployment and
  debugging.
• (One) problem with debugging services is not
  knowing the context of errors (to aid diagnosis
  or cure) a service is just a black box with an
  interface.
• Deployment aware debugging
• Starting from functional work-flows, generate
  deployment-flows, which are executed prior to, or
  concurrent with, functional work-flows.
• This ensures that deployment is done consistently
  and automatically with respect to application
  execution.
• If failure in functional work-flow, then
  corresponding deployment-flow is examined to
  determine likely causes, and parts are
  re-executed.
• Failure in deployment-flow can also possibly be
  managed.

69
Grid Potential - Deployment Debugging

• Three phases of Debugging
• Debug deployment
• Relies on deployment infrastructure and
  deployment-flows
• What works locally or on one node may not work
  remotely, or identically on all nodes without
  modification, and deployment framework itself may
  be an extra cause of failure
• Debug/trace application infrastructure to get
  working initially
• Relies on visibility/transparency of deployed and
  running infrastructure and application
• Ideally want integrated (active), or at least
  proxy/sniffer (passive), debugging (profiling,
  tracing, stepping) support.
• Debug working application upon failure
• But multiple failure modes
• Has application infrastructure been analysed
  and/or tested for them all?
• Can diagnosis and rectification be done anyway?

70
Grid Potential - Deployment Debugging

• Backtrack through deployment steps (Like peeling
  an onion)
• Some steps will need to be reversed, and then
  redone correctly
• Manage dependent, redundant, and inconsistent
  operations
• This approach may fix an (interesting) sub-class
  of problems
• Those which can be fixed by simply redoing (or
  replicating) (part of) the installation, E.g.
• Intermittent failure of container or services
• Resource starvation or overload deploy services
  to more resources
• Security problems that can be fixed with
  reconfiguration or refresh of certificates/proxies
  .
• But not
• network, or all configuration and security/access
  problems.
• Or Enterprise Web services (from a user
  perspective, as users cant deploy)

71
Grid Potential - Deployment Debugging
Execute T1
Execute T2
T1 x 10
Failure!
S1
S1
S1
S1
S1
S1
?
S1
S1
S1
S1
S1
S1
S1
S2
S2
S2
S2
S2
S2
Deploy S1 x 10
Deploy S2 x 100
Redploy S2 on failed node
72
Grid Potential - Deployment Debugging

• Whats still needed?
• Connection between executing client code and
  deployment infrastructure
• Ability to reason about relationship between
  work-flow/client failures, deployment-flows and
  grid infrastructure, diagnose failure causes, and
  plan solutions
• Ideally want applications and deployment
  represented explicitly as flows work and
  deployment flows.
• Could possibly infer work-flow and therefore
  deployment-flow from running system in the
  absence of explicit information?
• Justification is the problem significant, and
  how far does this solution go?

73
UK OGSA Evaluation Project

• Thank you ?
• Email P.Brebner_at_cs.ucl.ac.uk
• After November Paul.Brebner_at_csiro.au

74
UK OGSA Evaluation Project

• Thank you ?
• Email P.Brebner_at_cs.ucl.ac.uk
• After November Paul.Brebner_at_csiro.au
• Not

75
UK OGSA Evaluation Project

• Thank you ?
• Email P.Brebner_at_cs.ucl.ac.uk
• After November Paul.Brebner_at_csiro.au
• Not (quite)

76
UK OGSA Evaluation Project

• Thank you ?
• Email P.Brebner_at_cs.ucl.ac.uk
• After November Paul.Brebner_at_csiro.au
• Not (quite) the

77
UK OGSA Evaluation Project

• Thank you ?
• Email P.Brebner_at_cs.ucl.ac.uk
• After November Paul.Brebner_at_csiro.au
• Not (quite) the End

78
UK OGSA Evaluation Project

• Thank you ?
• Email P.Brebner_at_cs.ucl.ac.uk
• After November Paul.Brebner_at_csiro.au
• Not (quite) the End

79
Postscript The Secret Life of Grid?

• Our experiences Evaluating Grid technology
  reminds me of an Australian book (The Secret
  Life of Wombats) about a school boy who used to
  sneak out of his dormitory after everyone was
  asleep to go wombatting. He spent his nights
  secretly crawling down Wombat burrows with a
  flashlight a potentially lethal activity (not
  just from cave-ins, as wombats are ferocious when
  cornered!) and wrote copious notes resulting in
  a substantial increase in knowledge of these
  mysterious and often misunderstood creatures.

80
Postscript The Secret Life of Grid?

• Our experiences Evaluating Grid technology
  reminds me of an Australian book (The Secret
  Life of Wombats) about a school boy who used to
  sneak out of his dormitory after everyone was
  asleep to go wombatting. He spent his nights
  secretly crawling down Wombat burrows with a
  flashlight a potentially lethal activity (not
  just from cave-ins, as wombats are ferocious when
  cornered!) and wrote copious notes resulting in
  a substantial increase in knowledge of these
  mysterious and often misunderstood creatures.

UK OGSA Evaluation Project Report 1.0 Evaluation
of Globus Toolkit 3.2 (GT3.2) Installation http//
sse.cs.ucl.ac.uk/UK-OGSA/Report1.doc
81
Postscript The Secret Life of Grid?

• Our experiences evaluating grid technology
  reminds me of an Australian book (The Secret
  Life of Wombats) about a school boy who used to
  sneak out of his dormitory after everyone was
  asleep to go wombatting. He spent his nights
  secretly crawling down Wombat burrows with a
  flashlight a potentially lethal activity (not
  just from cave-ins, as wombats are ferocious when
  cornered!) and wrote copious notes resulting in
  a substantial increase in knowledge of these
  mysterious and often misunderstood creatures.

The End
UK OGSA Evaluation Project Report 1.0 Evaluation
of Globus Toolkit 3.2 (GT3.2) Installation http//
sse.cs.ucl.ac.uk/UK-OGSA/Report1.doc
