Pain:%20Underlying%20Mechanisms,%20Rationale%20for%20Assessment

1

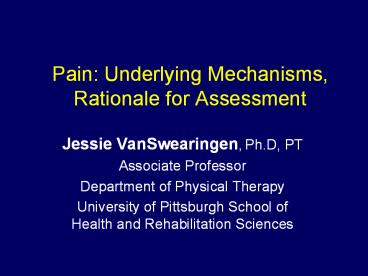

Pain Underlying Mechanisms, Rationale for
Assessment

• Jessie VanSwearingen, Ph.D, PT
• Associate Professor
• Department of Physical Therapy
• University of Pittsburgh School of Health and
  Rehabilitation Sciences

2
PAIN

• an unpleasant sensory and emotional
  experience.primarily associate with tissue
  damage or describe in terms of such damage or
  both.
• Intl. Assoc. for Study of Pain

3
The Report of Pain

• 3 components of the patients experience
• sensory discriminative (localize, quality)
• motivational / affective (emotional)
• cognitive / evaluative (meaning)

4
The Report of Pain

• Relation of pain and tissue damage
• not consistent or constant
• All pain is truly experienced
• (-- a helpful clinician belief)

5
Terminology of Pain

• Nocioception neural response related to
  potentially tissue damaging stimuli
• Pain conscious experience of nocioception

6
Terminology of Pain

• Experience of pain
• dysthesia - experience abnormal noxious sensation
• paraesthesia - abnormal nonpainful sensation
• hyperpathia- exaggerated pain response to noxious
  or nonoxious stimuli)
• allodynia - perception of nonoxious stimuli as
  painful

7
Terminology of Pain

• hyperalgesia increased pain response to painful
  stimuli
• hypoalgesia - decreased sensitivity to noxious
  stimuli
• hyperesthesia and hypoesthesia - increase or
  decrease, respectively, in sensitivity to
  nonnoxious stimuli

8
Characteristics of Pain

• Nocioceptive pain - directly related to the
  activation of peripheral nocioceptors
• somatic - aching , squeezing, stabbing
• visceral - cramping, knawing, rise and fall

9
Characteristics of Pain

• Neuropathic - pain assumed to be related to
  aberrant sensory processing (PNS or CNS)
• Deafferentation- sympathetic maintained
  alterations in peripheral transmission or central
  representation
• burning, lancinating, electrical

10
Characteristics of Pain

• Idiopathic - pain persisting without identifiable
  organic basis or excessive pain for organic
  processes
• (presumes some clinical correlation)
• (psychogenic - no clinical observations
  correlating with the pain)

11
Nocioceptive Pain

• Activation of nocioceptors by tissue-damaging
  stimuli. Mechanisms
• neurogenic inflammation - vasodilation
  inflammatory cells antidromic (polymodal)
  nocioceptor release of Substance P and others
  from nerve terminals
• endogenous substances - directly activate
  nocioceptors - histamine, Subs. P, bradykinin,
  ACH, serotonin, K
• prostoglandins - sensitize nocioceptors produce
  lower thresholds for noxious stimuli (also
  serotonin, ADP, NE, interleukin, NGF) role in
  development of chronic pain

12
Neuropathic Pain

• Peripheral tissue injury leading to aberrant
  somatosensory processing?pathophysiologic
  changes, which sustain a pain experience.
• Mechanisms
• peripheral generators
• sympathetic maintained
• central (mechanism) generators

13
Neuropathic Pain Example Axonal Injury

• 1) multiple axon sprouts ? neuroma
• 2) axon sprouts ?spontaneous activity (peripheral
  generator)
• pain
• 3) neuromas sensitive - tenderness mechanical
  and chemical sensitivity
• chronic pain
• 4) ephases - spread of impulses in juxtaposed
  nerve fibers incl sympathetic nerves
  (sympathetic maintained)
• 5) ectopic generation of impulses in DRG,
  ?transmitter release?dorsal horn neurons expand
  receptive fields (hyperalgesa)

14
Neuropathic PainCNS Activity

• Increased activity in spinal cord, thalamus,
  cortex following peripheral nerve injury
• central sensitization of neurons
• abnormal feedback (sympathetic outflow? stimulate
  peripheral nocioceptors)

15
Clinical Events of Pain

• Hyperalgesia
• 1º -site of injury peripheral nocioceptor
  sensitization
• 2 º -surrounding region peripheral and central
  mechanisms
• central - hyperexcitable neruon activated by
  nocioceptor

Pain episodes with the same phenomena may not
have the same mechanism
16
Referred Pain

• Phenomena
• stimulation of peripheral nerve fascicles, report
  of pain throughout the extremity
• pain from muscle or visceral injury accompanied
  by cutaneous hyperalgesia
• convergence-projection theory
• convergent input of nocioceptors from different
  sources on to the same projection neurons or
  central neurons

17
Basis for Joint and Bone Pain Joint Nocioceptors

• 1. nocioceptors - polymodal cutaneous receptor
  c-fiber, unmyelinated (capsule, type IV)
• 2. free- nerve endings - A -delta nocioceptors
  in intl and extl joint ligaments
• 3. Synovium - small diameter, neuropeptide
  containing fibers
• A-delta and C-fibers innervate joint
  nocioceptors
• ? Also sensitive mechanical and chemical stimuli

18
Basis for Joint and Bone Pain Joint
Mechanoreceptors

• 1. Large diameter, fast-conducting afferents,
  serving..
• 2. Corpuscular receptors - low-threshold,
  dynamic receptors capsule outer layer -type I,
  subsynovial layer - type II, dynamic receptors on
  surface of joint ligaments
• 3. Mechanically Insensitive Afferents (MIAs) -
  C-fiber afferents, become sensitive to mechanical
  stimuli only with inflamed joint

19
Basis for Joint and Bone Pain

• Sleeping Nocioceptors (MIAs)
• insensitive to pain or mechanical stimuli
• become spontaneously active
• active during non-noxious movement
• enlarged receptive fields
• (central targets unknown)

20
Basis for Joint and Bone Pain Spinal Cord
Mechanisms

• Dorsal horn neurons
• nocioceptive specific (NS)
• wide dynamic range (WDR)

articular inputs

• Basis for arthritic pain being
• poorly localized
• poorly discriminated
• Basis for referred pain and hyperalgesia

21
Basis for Joint and Bone Pain Spinal Cord
Mechanisms

• Noxious joint inputs reach cortical targets.
• inputs from inflamed joints appear to take paths
  to widespread supraspinal targets
• With persistent nocioceptive input, dorsal horn
  neurons ? in sensitivity
• enhanced responsiveness
• enlarged receptive fields

22
Basis for Joint and Bone Pain Spinal Cord
Mechanisms

• With acute joint inflammation,
• (sensitivity)
• 1) dorsal horn neurons with little response to
  movement show large response
• (enhanced receptive fields)
• 2) respond to stimuli remote from the site of
  inflammation
• 3) become spontaneously active

23
Basis for Joint and Bone Pain Somatosensory
Cortex

• Chronic inflammation
• receptive field changes
• increased background activity
• prolonged response to non-noxious stimuli
• (reduced inhibition of pain afferents in the
  dorsal horn - decreased descending inhibitory
  pain projections with inflammation)

24
Neurogenic Inflammation

• Example axon reflex
• - localized vasodilation and exudation in
  response to an irritant
• - intact sensory innervation
• - mediated by release of neuropeptides from
  C-fiber terminals ?
• change in vascular tone and permeability
  production of inflammatory cells immune response

25
Neurogenic Inflammation

• Partially attenuated by Substance P depleter (eg
  capsaicin)
• In Rheumatoid Arthritis, reduced neuropeptide Y
  (vasoconstrictor) in the sympathetic nerve
  terminals ?? no stop to the inflammatory
  response

26
Summary of Pathophysiology of Joint and Bone Pain

• Chemical Nocioception
• pain activation of nocioceptors
• primary hyperalgesia - sensitization of
  nocioceptors
• swelling, vascular response to neuropeptide
  release

27
Summary of Pathophysiology of Joint and Bone Pain

• Mechanical Nocioception
• (joint bomechanics) mechanical nocioceptors
  activated
• primary hyperalgesia, sensitized mechano -
  nocioceptors
• mechanoreceptors, incl remote musculotendinous
  site receptors, induce dorsal horn plasticity

28
Summary of Pathophysiology of Joint and Bone Pain

• Secondary Hyperalgesia / Neuropathic Model
• altered central pathways with chronic arthritis
  (both altered dorsal horn neurons responding and
  the pattern of the response)
• changes in threshold for response
• changes in projection targets
• changes in the responsiveness
• referred pain to other joints cutaneous areas
  and deeper tissues

29
Clinical Assessment of Joint and Bone Pain

• Looking for
• anatomic origin - define the tissue damage
• mechanisms of pain production
• associated disease

30
Clinical Assessment of Joint and Bone Pain

• Finding a hyperalgesic joint in the region of
  pain
• - likely to be the origin
• - other signs crepitus, swelling (implies
  nocioceptors activated)
• but in osteoarthritis mechanoreceptors could
  elicit mechanical nocioception and sensitize
  primary afferents..

Joints which dont move and joints that move
properly can be painful.
31
Clinical Assessment of Joint and Bone Pain

• Recognizing Bone pain
• (causes vascular, infection, neoplastic,
  metabolic)
• not influenced by posture or movement
• worse at night
• well localized, over the painful site (eg
  vertebra)
• (eg. Osteonecrosis osteoporotic fracture)
