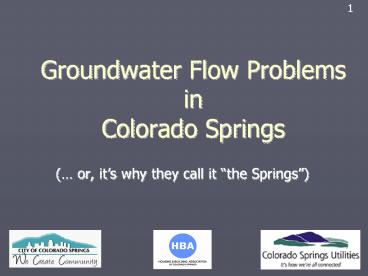

Groundwater Flow Problems in Colorado Springs

1
Groundwater Flow Problems in Colorado Springs
1

• ( or, its why they call it the Springs)

2
Presentation Outline

• Background on Groundwater Underdrains
• Problems Underdrain System Failures
• Proposed Solution
• Underdrains vs. Sump Pumps?
• Implications of Proposed Solution
• Conclusion Recommendations

3
Groundwater Underdrains Technical Team
3

• City Engr HBA CSU
• Cam McNair Bobby Ingels Brent Schubloom
• Steve Kuehster Bob Branson Charlie Morgan
• Brian Huth Marla Novak Mike Weber
• Tom Repp Marc Whorton Peter Bond

4
Groundwater Conveyance
4

• Groundwater can be conveyed through an
  underground pipe network called an Underdrain
  system.
• Protects foundations and basements from flooding.
• Used in Colorado Springs since the 1960s
  1970s.

5
5
6
Background What are Underdrains?
6
SANITARY SEWER
UNDERDRAIN
7
What are the issues?
7

• Underdrain failures can cause public health
  problems
• No claims to Ownership
• Liability to Fund Repairs
• Inadequate Standards for installation
• No Maintenance

8
Recent Underdrain Failures
8

• 6400 block, Summer Grace Street
• 1300 block, West Costilla Street
• Phil Long Expo Center
• 2500 block, Integrity Court
• 6800 block, Grand Prairie Drive
• etc.
• Costs to repair average 10K - 50K each

9
Underdrain Failures
9
STORMWATER OUTFALL INTO SAND CREEK
PLUGGED UNDERDRAIN MAIN
SUMP PIT OUTFALLS
SANITARY MAIN
CRAWL SPACE
BASEMENT
CRAWL SPACE
10
What are the Solutions?
10

• Proposal Partnership among HBA, CSU and City
  Engineering

11
Proposal
11

• City Takes Ownership of Underdrain Main lines
  serving single-family residential homes and
  nonresidential that opt in to connect to public
  UD mains
• HBA - As representatives of the building
  industry, has agreed that developers builders
  are willing to pay reasonable fees/costs for a
  long term solution to the UD problem.
• CSU - reviews designs, inspects installations,
  and makes repairs when necessary
• SWENT - manages funds, maps systems, coordinates
  CSU repairs, coordinates with State (CDPHE)

12
What would the City Own?
12
13
What would the City Own?
13
14
What will it cost?ALL ARE ONE TIME FEES
14

• Developer- CSU plan review and inspection fee
• 23 per SF Residential lot ( triplex).
• 92 per Non-Residential lot (with GU main).
• CCTV inspections on TM basis.
• Builder - City Underdrain maintenance fee
• 60 per SF building permit.
• Non-Residential plus the mandatory State permit
• (if connected) lt 2 acres 60
• 2-5 acres 120
• 5-10 acres 180
• gt 10 acres 300

15
What about basement/crawlspace Sump Pumps?
15
16
16
17
Sump Pumps
17

• Ground water volumes can be so over-whelming such
  that a pump cannot keep up with the groundwater
  infiltration
• Resulting in flooding

18
Sump Pumps
18

• Groundwater Underdrain fees are intended to be
  used to repair and maintain Underdrain systems
  only.
• Not for sump pumps or discharges from sump pumps.
• Groundwater Underdrains cannot be retrofitted in
  areas that were not originally built with them
  cost prohibitive.
• City Street Division uses French Drains
  (shallower collection systems) for sump pump
  discharge problems.

19
Implications with Implementing the Proposal
19

• Financial
• Liability/Risk
• Null Alternative

20
Conclusions Recommendations
20

• City/CSU/HBA PARTNERSHIP RECOMMENDS
• City Takes Ownership
• DEVELOPERS and BUILDERS agree to pay reasonable
  fees to CSU and City (SWENT)
• SWENT manages the money and the overall program
• CSU performs duties of plan reviewer, inspector,
  and repair contractor

21
For More Information
21

• Details available on web -
• Technical Standards
• City Code Changes
• Fees
• Rate Case
• www.SpringsGov.com/
• GroundwaterUnderdrains
