Multiple sequence alignment

1

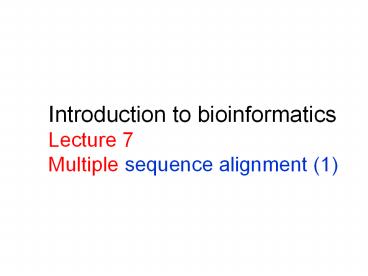

Introduction to bioinformaticsLecture 7 Multiple
sequence alignment (1)
2
Global or Local Pairwise alignment
B
B
C
A
A
B
A
A
C
A
B
C
A
Local
B
Local
A
B
C
A
B
C
B
A
Global
Global
A
B
C
A
3
Globin fold ? protein myoglobin PDB 1MBN
Helices are labelled A (blue) to H (red). D
helix can be missing in some globins what
happens with alignment?
4
? sandwich ? protein immunoglobulin PDB 7FAB
5
TIM barrel ? / ? protein Triose phosphate
IsoMerase PDB 1TIM
6
Pyruvate kinase Phosphotransferase
b barrel regulatory domain a/b barrel
catalytic substrate binding domain a/b
nucleotide binding domain
7
What does this mean for alignments?

• Alignments need to be able to skip secondary
  structural elements to complete domains (i.e.
  putting gaps opposite these motifs in the shorter
  sequence).
• Depending on gap penalties chosen, the algorithm
  might have difficulty with making such long gaps
  (for example when using high affine gap
  penalties), resulting in incorrect alignment.

8
There are three kinds of pairwise alignments

• Global alignment align all residues in both
  sequences all gaps are penalised
• Semi-global alignment align all residues in
  both sequences end gaps are not penalised (zero
  end gap penalties)
• Local alignment align part of each sequence
  end gaps are not applicable

9
Easy global DP recipe for using affine gap
penalties (after Gotoh)
j-1
Penalty Pi gap_lengthPe
MaxS0ltxlti-1, j-1 - Pi - (i-x-1)Px Si-1,j-1 MaxS
i-1, 0ltyltj-1 - Pi - (j-y-1)Px
Si,j si,j Max
i-1

• Mi,j is optimal alignment (highest scoring
  alignment until i, j)
• At each cell i, j in search matrix, check Max
  coming from
• any cell in preceding row until j-2 add score
  for celli, j minus appropriate gap penalties
• any cell in preceding column until i-2 add score
  for celli, j minus appropriate gap penalties
• or celli-1, j-1 add score for celli, j
• Select highest scoring cell in bottom row and
  rightmost column and do trace-back

10
Lets do an example global alignmentGotohs DP
algorithm with affine gap penalties (PAM250,
Pi10, Pe2)
D W V T A L K
0 -12 -14 -16 -18 -20 -22 -24
T -12 0 -17 -14 -13 -17 -19 -22 -22
D -14 -8 -7 -14 -14 -13 -42
W -16 -21 9 -13 -19 -18
V -18 -18 -20 13 -3 -16
L -20 -22 -18 -1 14 -1 -14
K -22 -20 -21 -12
-24 -42 -41 -18 -16 -14 -12 0
D W V T A L K
T 0 -5 0 3 1 1 0
D 4 -7 -2 0 0 -4 0
W -7 17 -6 -5 -6 -2 -3
V -2 -6 4 0 0 2 -2
L -4 -2 2 1 -2 6 -3
K 0 -3 -2 0 -1 -3 5
PAM250
Cell (D2, T4) can alternatively come from two
cells (same score) high-road or low-road
Row and column 0 are filled with 0, -12, -14,
-16, if global alignment is used (for
N-terminal end-gaps) also extra row and column
at the end to calculate the score including
C-terminal end-gap penalties.
11
Lets do another example semi-global
alignmentGotohs DP algorithm with affine gap
penalties (PAM250, Pi10, Pe2)
D W V T A L K
T 0 -5 0 3 1 1 0
D 4 -7 -2 0 0 -4 0
W -7 17 -6 -5 -6 -2 -3
V -2 -6 4 0 0 2 -2
L -4 -2 2 1 -2 6 -3
K 0 -3 -2 0 -1 -3 5
D W V T A L K
T 0 -5 0 3
D 4 -7 -7
W -7 21 -13
V -2 -13 25 9
L
K
PAM250
Starting row and column 0, and extra column at
right or extra row at bottom is not necessary
when using semi global alignment (zero end-gaps).
Rest works as under global alignment.
12
Easy local DP recipe for using affine gap
penalties (after Gotoh)
j-1
Penalty Pi gap_lengthPe
Si,j MaxS0ltxlti-1,j-1 - Pi - (i-x-1)Px Si,j
Si-1,j-1 Si,j Max Si-1,0ltyltj-1 - Pi -
(j-y-1)Px 0
Si,j Max
i-1

• Mi,j is optimal alignment (highest scoring
  alignment until i, j)
• At each cell i, j in search matrix, check Max
  coming from
• any cell in preceding row until j-2 add score
  for celli, j minus appropriate gap penalties
• any cell in preceding column until i-2 add score
  for celli, j minus appropriate gap penalties
• or celli-1, j-1 add score for celli, j
• Select highest scoring cell anywhere in matrix
  and do trace-back until zero-valued cell or start
  of sequence(s)

13
Lets do yet another example local
alignmentGotohs DP algorithm with affine gap
penalties (PAM250, Pi10, Pe2)
D W V T A L K
T 0 -5 0 3 1 1 0
D 4 -7 -2 0 0 -4 0
W -7 17 -6 -5 -6 -2 -3
V -2 -6 4 0 0 2 -2
L -4 -2 2 1 -2 6 -3
K 0 -3 -2 0 -1 -3 5
D W V T A L K
T 0 0 0 3
D 4 0 0 0
W 0 21 0 0
V 0 0 25 9
L 0 0 11
K 0 0
PAM250
Extra start/end columns/rows not necessary (no
end-gaps). Each negative scoring cell is set to
zero. Highest scoring cell may be found anywhere
in search matrix after calculating it. Trace
highest scoring cell back to first cell with zero
value (or the beginning of one or both sequences)
14
For your first exam D1Make sure you
understand and can carry out Gotohs algorithm
for global, semi-global and local
alignment!This is the most general Dynamic
Programming (DP) algorithm (and perhaps the
easiest to understand) Gotoh, O. An Improved
Algorithm for Matching Biological Sequences. J.
Mol. Biol., 162, pp. 705-708, 1982.
15
Pairwise alignment

• Now we know how to do it
• How do we get a multiple alignment (three or more
  sequences)?
• Multiple alignment much greater combinatorial
  explosion than with pairwise alignment..

16
Multiple sequence alignment (MSA) Why

• One of he most important means to find out about
• Conservation patterns leading to functional clues
• Possible protein structure
• Multiple sequence alignment contains far more
  information about conservation than pairwise
  alignment
• Many bioinformatics methods use MSA as input
  e.g. secondary structure prediction (later
  lecture)

17
Multiple sequence alignment Wanted

• Quality
• Quality
• Quality
• Programs need to be fully automatic for genomic
  pipelines
• With available genomes (data explosion), speed
  becomes crucial

18
(Murata et al. 1985)
Simultaneous Multiple alignmentMulti-dimensional
dynamic programming
19
Simultaneous Multiple alignmentMulti-dimensional
dynamic programming

• MSA (Lipman et al., 1989, PNAS 86, 4412)
• extremely slow and memory intensive
• up to 8-9 sequences of 250 residues
• DCA (Stoye et al., 1997, CABIOS 13, 625)
• still very slow

20
Alternative multiple alignment methods

• Biopat (first complete MSA method ever Hogeweg
  Hesper 1984)
• MULTAL (Taylor 1987)
• DIALIGN (Morgenstern 1996)
• PRRP (Gotoh 1996)
• Clustal (Thompson Higgins Gibson 1994)
• Praline (Heringa 1999)
• T-Coffee (Notredame et al. 2000)
• HMMER (Eddy 1998) Hidden Markov Models
• SAGA (Notredame 1996) Genetic algorithm
• POA (Lee et al. 2002)
• MUSCLE (Edgar 2004)

21
The following three slides are examples of
multiple alignments of 13 flavodoxin and 1 cheY
sequence (PDB code 3chy).The cheY sequence is a
very distant relative of the flavodoxin family,
but has the same basic fold
22

• CLUSTAL X (1.64b) multiple sequence alignment
  Flavodoxin-cheY
• 1fx1 -PKALIVYGSTTGNTEYTAETIARQLANAG-Y-E
  VDSRDAASVEAGGLFEGFDLVLLGCSTWGDDSIE------LQDDFIPLFD
  -SLEETGAQGRK
• FLAV_DESVH MPKALIVYGSTTGNTEYTAETIARELADAG-Y-E
  VDSRDAASVEAGGLFEGFDLVLLGCSTWGDDSIE------LQDDFIPLFD
  -SLEETGAQGRK
• FLAV_DESGI MPKALIVYGSTTGNTEGVAEAIAKTLNSEG-M-E
  TTVVNVADVTAPGLAEGYDVVLLGCSTWGDDEIE------LQEDFVPLYE
  -DLDRAGLKDKK
• FLAV_DESSA MSKSLIVYGSTTGNTETAAEYVAEAFENKE-I-D
  VELKNVTDVSVADLGNGYDIVLFGCSTWGEEEIE------LQDDFIPLYD
  -SLENADLKGKK
• FLAV_DESDE MSKVLIVFGSSTGNTESIAQKLEELIAAGG-H-E
  VTLLNAADASAENLADGYDAVLFGCSAWGMEDLE------MQDDFLSLFE
  -EFNRFGLAGRK
• FLAV_CLOAB -MKISILYSSKTGKTERVAKLIEEGVKRSGNI-E
  VKTMNLDAVDKKFLQE-SEGIIFGTPTYYAN---------ISWEMKKWID
  -ESSEFNLEGKL
• FLAV_MEGEL --MVEIVYWSGTGNTEAMANEIEAAVKAAG-A-D
  VESVRFEDTNVDDVAS-KDVILLGCPAMGSE--E------LEDSVVEPFF
  -TDLAPKLKGKK
• 4fxn ---MKIVYWSGTGNTEKMAELIAKGIIESG-K-D
  VNTINVSDVNIDELLN-EDILILGCSAMGDE--V------LEESEFEPFI
  -EEISTKISGKK
• FLAV_ANASP SKKIGLFYGTQTGKTESVAEIIRDEFGNDVVT--
  --LHDVSQAEVTDLND-YQYLIIGCPTWNIGELQ---SD-----WEGLYS
  -ELDDVDFNGKL
• FLAV_AZOVI -AKIGLFFGSNTGKTRKVAKSIKKRFDDETMSD-
  --ALNVNRVSAEDFAQ-YQFLILGTPTLGEGELPGLSSDCENESWEEFLP
  -KIEGLDFSGKT
• 2fcr --KIGIFFSTSTGNTTEVADFIGKTLGAKADAP-
  --IDVDDVTDPQALKD-YDLLFLGAPTWNTGADTERSGT----SWDEFLY
  DKLPEVDMKDLP
• FLAV_ENTAG MATIGIFFGSDTGQTRKVAKLIHQKLDGIADAP-
  --LDVRRATREQFLS--YPVLLLGTPTLGDGELPGVEAGSQYDSWQEFTN
  -TLSEADLTGKT
• FLAV_ECOLI -AITGIFFGSDTGNTENIAKMIQKQLGKDVAD--
  --VHDIAKSSKEDLEA-YDILLLGIPTWYYGEAQ-CD-------WDDFFP
  -TLEEIDFNGKL
• 3chy --ADKELKFLVVDDFSTMRRIVRNLLKELG----
  FNNVEEAEDGVDALN------KLQAGGYGFV--I------SDWNMPNMDG
  -LELLKTIR---
• . ... .
  .


23
Flavodoxin-cheY Global Pre-processing
(prepro?1500)

• 1fx1 -PKALIVYGSTTGNT-EYTAETIARQLANAG-YE
  VDSRDAASVEAGGLFEGFDLVLLGCSTWGDDSI------ELQDDFIPLF-
  DSLEETGAQGRKVACF
• FLAV_DESDE MSKVLIVFGSSTGNT-ESIaQKLEELIAAGG-HE
  VTLLNAADASAENLADGYDAVLFgCSAWGMEDL------EMQDDFLSLF-
  EEFNRFGLAGRKVAAf
• FLAV_DESVH MPKALIVYGSTTGNT-EYTaETIARELADAG-YE
  VDSRDAASVEAGGLFEGFDLVLLgCSTWGDDSI------ELQDDFIPLF-
  DSLEETGAQGRKVACf
• FLAV_DESSA MSKSLIVYGSTTGNT-ETAaEYVAEAFENKE-ID
  VELKNVTDVSVADLGNGYDIVLFgCSTWGEEEI------ELQDDFIPLY-
  DSLENADLKGKKVSVf
• FLAV_DESGI MPKALIVYGSTTGNT-EGVaEAIAKTLNSEG-ME
  TTVVNVADVTAPGLAEGYDVVLLgCSTWGDDEI------ELQEDFVPLY-
  EDLDRAGLKDKKVGVf
• 2fcr --KIGIFFSTSTGNT-TEVADFIGKTLGA---KA
  DAPIDVDDVTDPQALKDYDLLFLGAPTWNTG----ADTERSGTSWDEFLY
  DKLPEVDMKDLPVAIF
• FLAV_AZOVI -AKIGLFFGSNTGKT-RKVaKSIKKRFDDET-MS
  DA-LNVNRVS-AEDFAQYQFLILgTPTLGEGELPGLSSDCENESWEEFL-
  PKIEGLDFSGKTVALf
• FLAV_ENTAG MATIGIFFGSDTGQT-RKVaKLIHQKLDG---IA
  DAPLDVRRAT-REQFLSYPVLLLgTPTLGDGELPGVEAGSQYDSWQEFT-
  NTLSEADLTGKTVALf
• FLAV_ANASP SKKIGLFYGTQTGKT-ESVaEIIRDEFGN---DV
  VTLHDVSQAE-VTDLNDYQYLIIgCPTWNIGEL--------QSDWEGLY-
  SELDDVDFNGKLVAYf
• FLAV_ECOLI -AITGIFFGSDTGNT-ENIaKMIQKQLGK---DV
  ADVHDIAKSS-KEDLEAYDILLLgIPTWYYGE--------AQCDWDDFF-
  PTLEEIDFNGKLVALf
• 4fxn -MK--IVYWSGTGNT-EKMAELIAKGIIESG-KD
  VNTINVSDVNIDELL-NEDILILGCSAMGDEVL-------EESEFEPFI-
  EEIS-TKISGKKVALF
• FLAV_MEGEL MVE--IVYWSGTGNT-EAMaNEIEAAVKAAG-AD
  VESVRFEDTNVDDVA-SKDVILLgCPAMGSEEL-------EDSVVEPFF-
  TDLA-PKLKGKKVGLf
• FLAV_CLOAB -MKISILYSSKTGKT-ERVaKLIEEGVKRSGNIE
  VKTMNLDAVD-KKFLQESEGIIFgTPTYYAN---------ISWEMKKWI-
  DESSEFNLEGKLGAAf
• 3chy ADKELKFLVVDDFSTMRRIVRNLLKELGFN--NV
  EEAEDGVDALNKLQAGGYGFVI---SDWNMPNM----------DGLELL-
  KTIRADGAMSALPVLM
• T
• 1fx1 GCGDS-SY-EYFCGA-VDAIEEKLKNLGAEIVQD
  ---------------------GLRIDGD--PRAARDDIVGWAHDVRGAI-
  -------
• FLAV_DESDE ASGDQ-EY-EHFCGA-VPAIEERAKELgATIIAE
  ---------------------GLKMEGD--ASNDPEAVASfAEDVLKQL-
  -------
• FLAV_DESVH GCGDS-SY-EYFCGA-VDAIEEKLKNLgAEIVQD
  ---------------------GLRIDGD--PRAARDDIVGwAHDVRGAI-
  -------

24
Flavodoxin-cheY Local Pre-processing(locprepro?3
00)

• 1fx1 --PKALIVYGSTTGNTEYTAETIARQLANAGYEV
  DSRDAASVEAGGLFEGFDLVLLGCSTWGDDSI------ELQDDFIPL--F
  DSLEETGAQGRKVACF
• FLAV_DESVH -MPKALIVYGSTTGNTEYTaETIARELADAGYEV
  DSRDAASVEAGGLFEGFDLVLLgCSTWGDDSI------ELQDDFIPL--F
  DSLEETGAQGRKVACf
• FLAV_DESSA -MSKSLIVYGSTTGNTETAaEYVAEAFENKEIDV
  ELKNVTDVSVADLGNGYDIVLFgCSTWGEEEI------ELQDDFIPL--Y
  DSLENADLKGKKVSVf
• FLAV_DESGI -MPKALIVYGSTTGNTEGVaEAIAKTLNSEGMET
  TVVNVADVTAPGLAEGYDVVLLgCSTWGDDEI------ELQEDFVPL--Y
  EDLDRAGLKDKKVGVf
• FLAV_DESDE -MSKVLIVFGSSTGNTESIaQKLEELIAAGGHEV
  TLLNAADASAENLADGYDAVLFgCSAWGMEDL------EMQDDFLSL--F
  EEFNRFGLAGRKVAAf
• 4fxn --MK--IVYWSGTGNTEKMAELIAKGIIESGKDV
  NTINVSDVNIDELLN-EDILILGCSAMGDEVL------E-ESEFEPF--I
  EEIS-TKISGKKVALF
• FLAV_MEGEL -MVE--IVYWSGTGNTEAMaNEIEAAVKAAGADV
  ESVRFEDTNVDDVAS-KDVILLgCPAMGSEEL------E-DSVVEPF--F
  TDLA-PKLKGKKVGLf
• 2fcr ---KIGIFFSTSTGNTTEVADFIGKTLGAKADAP
  I--DVDDVTDPQALKDYDLLFLGAPTWNTGAD----TERSGTSWDEFL-Y
  DKLPEVDMKDLPVAIF
• FLAV_ANASP -SKKIGLFYGTQTGKTESVaEIIRDEFGNDVVTL
  H--DVSQAEV-TDLNDYQYLIIgCPTWNIGEL--------QSDWEGL--Y
  SELDDVDFNGKLVAYf
• FLAV_AZOVI --AKIGLFFGSNTGKTRKVaKSIKKRFDDETMSD
  A-LNVNRVSA-EDFAQYQFLILgTPTLGEGELPGLSSDCENESWEEF--L
  PKIEGLDFSGKTVALf
• FLAV_ENTAG -MATIGIFFGSDTGQTRKVaKLIHQKLDG--IAD
  APLDVRRATR-EQFLSYPVLLLgTPTLGDGELPGVEAGSQYDSWQEF--T
  NTLSEADLTGKTVALf
• FLAV_ECOLI --AITGIFFGSDTGNTENIaKMIQKQLGKDVADV
  H--DIAKSSK-EDLEAYDILLLgIPTWYYGEA--------QCDWDDF--F
  PTLEEIDFNGKLVALf
• FLAV_CLOAB --MKISILYSSKTGKTERVaKLIEEGVKRSGNIE
  VKTMNLDAVDKKFLQESEGIIFgTPTYYA-----------NISWEMKKWI
  DESSEFNLEGKLGAAf
• 3chy ADKELKFLVVDDFSTMRRIVRNLLKELGFNNVEE
  AEDGVDALNKLQ-AGGYGFVI---SDWNMPNM----------DGLEL--L
  KTIRADGAMSALPVLM
• 1fx1 GCGDS--SY-EYFCGA-VD--AIEEKLKNLGAEI
  VQD---------------------GLRID--GDPRAARDDIVGWAHDVRG
  AI--------
• FLAV_DESVH GCGDS--SY-EYFCGA-VD--AIEEKLKNLgAEI
  VQD---------------------GLRID--GDPRAARDDIVGwAHDVRG
  AI--------
• FLAV_DESSA GCGDS--DY-TYFCGA-VD--AIEEKLEKMgAVV
  IGD---------------------SLKID--GDPE--RDEIVSwGSGIAD
  KI--------
• FLAV_DESGI GCGDS--SY-TYFCGA-VD--VIEKKAEELgATL
  VAS---------------------SLKID--GEPD--SAEVLDwAREVLA
  RV--------

25
Flavodoxin-cheY Pre-processing (prepro?1500)
