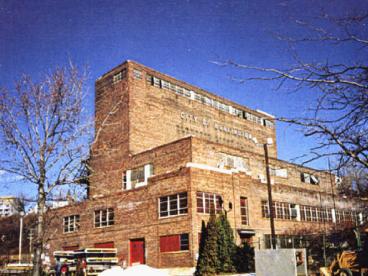

The Moran Building Ecological Design For
Community Good

• Goal refurbish the Moran building, to provide
• meeting, teaching, workshop, and conference space
• community development and connection
• examples of working ecological technologies

University Of Vermont Ecological Design Studio
Mark Keffer, John Todd, Ph.D, and the NR 285
students
3
Presentation Outline

• Methods and Ideas
• ecological technologies
• greenhouse
• photovoltaic glass
• passive solar heating
• solar hot water
• aquaponics
• restorer
• constructed wetlands
• business and people
• rooftop patio
• conference space
• community connection
• solar kitchen
• recycle cycles
• concert stage
• Next Steps

• Problems and Goals
• Unique Features of Moran Building
• strong structure
• tower height
• orientation and location
• LCCSS already established
• basement flooded sluices pillars
• north face external steel structure
• stormwater outflow nearby

4
Whats the Problem?

• 1. the building is deteriorating
• 2. some consider the building an eyesore
• 3. soil nearby likely contaminated
• 4. stormwater pollution is an increasing concern
  for the city

5
The Overall Idea

• The Moran building has a unique combination of
  design features and location that make it an
  ideal candidate for renovation.
• It provides a link between Burlingtons
  industrial past and its progressive future.
• It could set an example of innovative ways to
  recreate the urban landscape.

6
The Overall Idea

• We would like to see the building
• showcase of successful ecological technologies
• showcase of renewable energy methods in action
• conference center for Burlington and Vermont
• teaching, meeting, and community space
• community kitchens, gardens, and collaboration
  space
• center for pedestrian and bicycle transportation

7
Integration and Synergy

• community development
• recycle cycles
• community gardens
• community kitchen

• practical uses
• conference space
• rooftop patio

• green technologies
• greenhouse
• photovoltaics
• aquaponics
• mycoremediation

• historical preservation
• link to Burlingtons industrial past
• renewable energy instead of fossil

making the most of existing features
8
Moran Unique Features

• work with existing features....

9

• designed to withstand earthquakes
• still structurally sound and in good shape
• therefore quite expensive to deconstruct
• (est. 1 000 000 just for deconstruction)

10

• Unblocked southern and western exposure for
  maximum sunlight
• tower 90 high
• tower brickwork provides huge thermal mass
• terraces and tower provide good structural
  support

11

• excellent views from the rooftop
• potential for restaurant or patio
• draw in people and leave a lasting impression

12
significant work has already been done inside by
Marcel Beaudin and the Lake Champlain Community
Sailing Center
13
sluices brought lakewater into and out of the
basement
14

• basement was designed to be flooded
• very strong pillars supported turbines
• these could support partitions for aquaculture
  tanks

15
(No Transcript)
16

• electrical substation already present
• facilitates delivery of electricity to the grid

17
northwest steel photo

• external steel structures used to support
  boilers
• still structurally intact
• could still support considerable weight

18
central location, bike path proximity

• well-situated to bring together Burlingtons
  neighbourhoods
• encourage the use of the bike path as a viable
  alternative to driving
• could have lockers, changerooms, and showers to
  increase its use as a midway point

19
stormwater drains

• close to stormwater pipes
• potential for easy transmission to treatment
  wetland

20
Methods, Techniques, and Ideas

• making Moran an Ecological Building

21
Methods and Ideas

• ecological technologies
• 1. greenhouse
• 2. photovoltaic glass
• 3. passive solar heating
• 4. solar hot water
• 5. aquaponics
• 6. restorer
• 7. constructed wetlands

• business and people
• 8. rooftop patio
• 9. conference space
• community connection
• 10. solar kitchen
• 11. recycle cycles
• 12. concert stage

22
key painting
23
(No Transcript)
24

• the greenhouse envelope allows us to do a number
  of things
• grow space
• aquaponics
• electricity generation
• heating and ventilation

25
Energy production

• The Moran building used to be Burlingtons
  electricity production center.
• Why not have it go back to energy production
  but this time as an entirely clean and green
  facility?

26
Digital Equipment Corporation, Switzerland photoel
ectric glass arranged in louvres Colt Group Inc.
27

• summer
• heat causes air to rise
• this pulls air up from basement
• basement will stay cool due to lakewater
• vent hot air out the top

28
(No Transcript)
29
Methods and Ideas

• ecological technologies
• 1. greenhouse
• 2. photovoltaic glass
• 3. passive solar heating
• 4. solar hot water
• 5. aquaponics
• 6. restorer
• 7. constructed wetlands

• business and people
• 8. rooftop patio
• 9. conference space
• community connection
• 10. solar kitchen
• 11. recycle cycles
• 12. concert stage

30
Solar Hot Water

• Evacuated Heat Tubes heat up in sun
• tubes set inside insulated glass box
• (function in winter also)
• Heat exchanger transfers energy to water storage
  tank

31
hot oil storage

• use wall and some roof space for hot water
  heating
• provide hot water
• showers
• solar kitchen

32

• Aquaponics
• (Aquaculture Hydroponics)
• pump lakewater into basement tanks
• fish add nutrients to water
• pump nutrient-laden water up to greenhouse
• nutrients act as fertilizer
• plants clean the water by absorbing nutrients
• allow cleaner water to return to fishtanks

33
constructed wetlands
mycoremediation
community gardens
34
Mushroom Pasture

• Mix soil with mushroom- inoculated wood chips
• Fungus will feed on residual hydrocarbons in soil
• periodically re-mix more inoculated wood chips
  and/or compost

35
Wetlands

• Constructed Wetland Location
• 1. North side of Moran Plant
• Size varying depending on purpose
• Purpose
• 1. Treatment of gray and black water
• 2. Treatment of storm runoff and rain water
• Uses
• 1. Purify prescribed water for release into Lake
  Champlain or holding tanks
• 2. Holding tank water will be used for toilets
  and greenhouse water needs

36
Methods and Ideas

• ecological technologies
• 1. greenhouse
• 2. photovoltaic glass
• 3. passive solar heating
• 4. solar hot water
• 5. aquaponics
• 6. restorer
• 7. constructed wetlands

• business and people
• 8. rooftop patio
• 9. conference space
• community connection
• 10. solar kitchen
• 11. recycle cycles
• 12. concert stage

37
Restorer water movement
38
Concert Stage
39
Grand Hall -- Conference Space
40
Rooftop Patio/Restaurant
41
(No Transcript)
42
(No Transcript)
43
Methods and Ideas

• ecological technologies
• 1. greenhouse
• 2. photovoltaic glass
• 3. passive solar heating
• 4. solar hot water
• 5. aquaponics
• 6. restorer
• 7. constructed wetlands

• business and people
• 8. rooftop patio
• 9. conference space
• community connection
• 10. solar kitchen
• 11. recycle cycles
• 12. concert stage

44
recycle cycles initiative

• gather old bicycles currently gathering dust in
  basements etc
• community members refurbish bikes
• make them available for
• borrowing/renting for bikepath rides
• sell at low cost for those in need
• about-town borrow and drop-off (as in the
  previous polka-dot bike program)

45
recycle cycles cont.

• increase community use of Moran Building as
• workshop/skill-sharing space
• community gathering/meeting place
• way to increase bicycling in Burlington
• connect with other bike/pedestrian community
  groups (Local Motion, which is just down the
  path)
• successful implementation in other places
  (Kitchener, Ontario)

46
solar kitchen

• raise oil temp to 180 C (350 F)
• provide cooking space for community events
• canning of in-house produce
• value-adding of in-house produce (pesto,
  mushrooms, etc)

47
Next Steps

• moving forward...

48
Next Steps

• continue to gather interested people
• look for funding to hire someone to organize
  research on best use of available technologies
• further investigation of zoning, regulatory
  structures, community acceptance and interest
• hire engineer to look into structural aspects

49
end

• further ideas, pictures, and considerations...

50
bicycle rickshaws

• bike workshop could include production of
  rickshaws
• carry pedestrians
• along path
• up the hill
• campus lt--gt downtown lt--gtMoran
• deliveries and pickups
• community garden goods
• vegetable oil (see biodiesel)
• increase community presence and advertisement of
  Moran
• provide useful and healthy activity for drivers
  from the community
• Moran Emissaries encouraging people to visit
  the building and learn about ecological
  technologies

51
rickshaws
52

• summary slides

53

• Moran as part of a network of buildings
• linking along waterfront
• Rubenstein, ECHO, South End and the barge canal
• conceptual link between UVM campus and the lake

54
the project could provide...

• a way to deal with unsightly buildingproblem
• the best way to defeat your enemiesis to make
  friends of them.
• education opportunities
• research opportunities at UVM (ecol.econ, CDAE,
  Eco-D)
• high school and elementary research project
  opportunities
• community capacity development
• collaboration example
• derelict building renovation template
• VGBN potential
• waterfront development
• remediation potential
• energy production

55
Ecological Technologies

• greenhouse growing space
• passive solar space heating
• photovoltiacs
• solar hot water
• phytoremediation
• restorersfor lake water (P and N reduction)
• constructed wetlands for stormwater
• aquaponics
• mycoremediation

56
conservationist concepts

• water catchment and reuse
• composting toilets
• use of existing structure

57
Community-building initiatives

• sailing center
• gardens and greenhouse
• kitchens
• recycle cycles
• concert space
• cycling/bike path facilitation
• education initiatives
• internshipsfor electricity generation,
  aquaponics, etc.

58
second-floor holes
59
hoppers photo
60
aquaponics

• combination of aquaculture and hydroponics
• use the waste fish water as the hydroponic
  nutrient source

61
salad greens rows
62
(No Transcript)
63
Moran Building Community CenterPresentation
Overview

• 1. Location and overview
• 2. Unique Features
• 3. Remediation
• Soil
• Water
• Stormwater
• Constructed wetlands
• Living Machines
• 4. Renewable Energy
• photovoltaics
• Passive solar (HVAC)
• wind
• docks
• 5. Water Conservation
• green roof
• hopper cisterns

• 6. Food Production
• greenhouse
• community gardens
• recycling agriculture
• 7. Transportation
• 8. Community Development
• recycle cycles/rickshaws
• sailing club
• community solar kitchen
• theater
• bike path connections
• restaurant/patio
• meeting rooms

64
future steps

• The Moran building as example

65
specifics to include
renewable energy production
community kitchen
outdoor stage
community gardens
closed-loop water use
green roof
rooftop patio/restaurant
recycle cycles
solar heating
emphasize bike path
extensive teaching greenhouse
conference space
66
(No Transcript)
67
Moran Unique Features

• Tower
• Sluices
• Transformer holes
• north face steel structure
• Wherever possible, we would like to capitalize on
  the unique and interesting features already
  present in the building rather than trying to
  cover them up

68
Potential Site Plan
yellow stuff
grey stuff
69
bicycle rickshaws

• bike workshop could include production of
  rickshaws
• carry pedestrians
• along path
• up the hill
• campus lt--gt downtown lt--gtMoran
• deliveries and pickups
• community garden goods
• vegetable oil (see biodiesel)
• increase community presence and advertisement of
  Moran
• provide useful and healthy activity for drivers
  from the community
• Moran Emissaries encouraging people to visit
  the building and learn about ecological
  technologies

70
Community Initiatives

• Bringing people together, sharing skills and
  experience

71
(No Transcript)
72
view north photo
73
sculpture garden photo
74
basement intake windmill
75
(No Transcript)
76
Water Treatment Plans

• Living Machines
• Locations
• 1. Basement Floor
• 2. Proposed Roof Greenhouse
• Purpose
• 1. Treatment of gray and black water
• 2. Treatment of storm runoff and rain water
• Uses
• 1. Toliets
• 2. Greenhouse water needs

77
Cost Analysis
Storm and Wastewater Treatment Living Machine
(w/o green roof) 3,088 gal./day _at_ a 3 day cycle
in 6 tanks75,000 Living Machine (with
green roof)- 2,285 gal./day _at_ a 3 day cycle in
4 tanks.30,000 Wetland- 2 acres _at_
50,000/acre100,000 Green
Roof- 20/sq. ft. _at_ 15,380sq. ft.
307,600 Water Efficient
Appliances Composting Toilets- 6 centralized
toilets _at_ 1,396/toilet.8,376 Waterless
Urinals- 15 urinals _at_ 329/urinal
4,935 Total with green
roof..450,911 w/o green
roof495,911 x2 roughly
1,000,000
78
PV cells on building
79
System Size at the Moran

• 846 modules on building (max)
• 508 kWh/day (185 MW/year)
• 100 modules on dock (max)
• 60 kWh/day (22 MW/year)
• 568 kWh/day total
• Approx. 9500 60W lightbulbs!

80
Cost of PV System

• 946 modules _at_ 699 each 661,000
• 45 inverters _at_ 2,097 each 94,000
• 118 mounting racks _at_ 260 each 31,000
• Wiring and other system components approx.
  10,000
• Total 800,000

81
Whats been done?

• Green roofs in Iceland, 1800s
• Technology in Germany 1970s
• American Hydrotech Inc, American Wick Drain
  Corporation, etc.
• Toronto City Hall, 2000
• Chicago City Hall

82
Note Cost estimate with design costs, project
administration, or maintenance
83
Water Sources

• Rain Water
• Average annual precipitation 36
• Storm Water Runoff
• Parking lot and impervious surfaces
• Gray and Black Water
• Moran Plant

84
What Is Edible Landscaping?

• The use of edible/native plant species in
  landscape design around buildings.
• It also includes integrating garden plots into
  urban settings.
• Here the term edible is used loosely and also
  applies to the integration of flower gardens to
  attract bird, bee and butterfly species.

85
(No Transcript)
86
(No Transcript)
87
south-facing greenhouses
south
