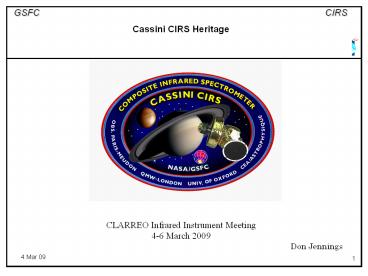

Cassini CIRS Heritage
CLARREO Infrared Instrument Meeting4-6 March 2009
Don Jennings
2
Nimbus 4 IRIS
3
Voyager IRIS
4
(No Transcript)
5
It Takes a Village
6
(No Transcript)
7
CIRS Instrument Description
Telescope Diameter(cm) 50.8 Interferometers FAR
-IR MID-IR Type Polarizing Michelson Spectral
range(cm-1) 10 - 650 600 -1450 Spectral
range(microns) 15.4 - 1000 6.9 -16.6 Spectral
resolution(cm-1) 0.5 to 20 0.5 to
20 Integration time(sec) 2 to 50 2 to
50 FOCAL PLANES FP1 FP3 FP4 Spectral
range(cm-1) 10 - 650 600 - 1125 1100 -
1450 Detectors Thermopile PC HgCdTe PV
HgCdTe Pixels 2 1 x 10 1 X 10 Pixel
FOV(mrad) 3.9 0.273 0.273 Peak D(cm hz1/2
W-1) 4 x 109 2 x 1010 5 x 1011 Data Telemetry
Rate(kbs) 2, 4 Instrument Temperature(K) 170 Foc
al Planes 3 4 Temperature(K) 75 - 90
8
Optical Layout
9
CIRS Mechanical Layout with Raytrace
10
CIRS Conceptual Layout
11
CIRS Fields of Views

•
•

12
CIRS FP1 spectrum at 0.5 cm-1 resolution
C4H2
C2N2
C4H2 C3H4
CH4
HC3N
C3H4
?
CO HCN
13
(No Transcript)
14
Titan in the Mid-Infrared (FP4)
15
CIRS Engineering Model

•
•

16
CIRS Telescope
17
CIRS Reference Interferometer

•
•

18
CIRS Scan Mechanism

•
•

19
SPIRE Flexure Carriage
20
CIRS Retroreflectors

•
•

21
CIRS Mid-IR and Far-IRInterferometers

•
•

22
Far-IR Beamsplitter Cold Adjustment on EM

•
•

23
CIRS Mid-IR Far-IR Focal Planes

•
•

24
CIRS Mid-IR Focal Plane

•
•

25
CIRS Electronics

•
•

26
DLaTGS pyroelectric detectors

•
•

Data from Selex, Southhampton UK.
27
Nimbus, Mariner, Voyager, Cassini
Spectral ?? Scan FOV Range
(apod) Time ______________________________
_________________________________ Nimbus 3
IRIS 400-2000 cm-1 5 cm-1 10 sec 8
deg Nimbus 4 IRIS 400-1600 2.8 16
5 Mariner 9 IRIS 200-2000 2.4 18.2
4.4 Voyager IRIS 200-4000 4.3 45.6
0.25 Cassini CIRS 10-600-1500 0.5 50
0.02, 0.2
