Title: FAN - 39 blades
1

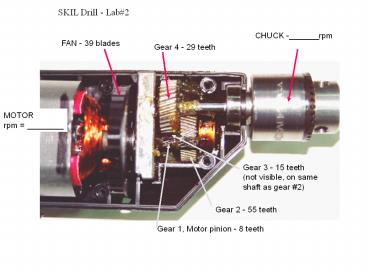

SKIL Drill - Lab2
CHUCK - rpm
FAN - 39 blades
Gear 4 - 29 teeth
MOTOR rpm ________
Gear 3 - 15 teeth (not visible, on same shaft
as gear 2)
Gear 2 - 55 teeth
Gear 1, Motor pinion - 8 teeth
