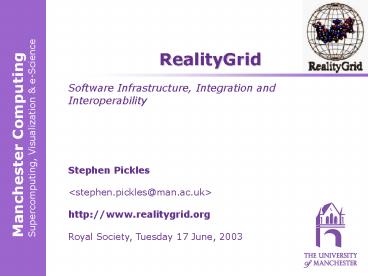

RealityGrid

1
RealityGrid

• Software Infrastructure, Integration and
  Interoperability

Stephen Pickles ltstephen.pickles_at_man.ac.ukgt http
//www.realitygrid.org Royal Society, Tuesday 17
June, 2003
2
Middleware landscape

• Shifting sands

3
A tour of the Middleware Landscape

• Traditional Grid computing, roots in
  Supercomputing
• Globus Toolkit
• US led, de-facto standard, adopted by UK
  e-Science programme
• UNICORE
• German and European
• Business-business integration, roots in
  e-Commerce
• Web services
• The great white hope
• Open Grid Services Architecture (OGSA)

4
Globus Toolkit

• A software toolkit addressing key technical
  problems in the development of Grid enabled
  tools, services, and applications
• Offer a modular bag of technologies
• Enable incremental development of grid-enabled
  tools and applications
• Implement standard Grid protocols and APIs
• Make available under liberal open source license
• The Globus Toolkit centers around four key
  protocols
• Connectivity layer
• Security Grid Security Infrastructure (GSI)
• Resource layer
• Resource Management Grid Resource Allocation
  Management (GRAM)
• Information Services Grid Resource Information
  Protocol (GRIP)
• Data Transfer Grid File Transfer Protocol
  (GridFTP)

5
Globus features

• "Single sign-on" through Grid Security
  Infrastructure (GSI)
• Remote execution of jobs
• GRAM, job-managers, Resource Specification
  Language (RSL)
• Grid-FTP
• Efficient file transfer third-party file
  transfers
• MDS (Metacomputing Directory Service)
• Resource discovery
• GRIS and GIIS
• Today, built on LDAP
• Co-allocation (DUROC)
• Limited by support from scheduling infrastructure
• Other GSI-enabled utilities
• gsi-ssh, grid-cvs, etc.
• Commodity Grid Kits (CoG-kits), Java, Python,
  Perl
• Widespread deployment, lots of projects, UK
  e-Science Grid

6
UNICOREUNIform access to COmputing REsources

• Started 1997
• German projects
• UNICORE
• UNICORE PLUS
• EU projects with UK partners
• EUROGRID
• GRIP
• www.unicore.org

7
UNICORE features

• High-level abstractions
• Abstract Job Object (AJO) represents a user's job
• Task dependencies represented in a DAG
• A task may be script, a compilation or run of an
  executable, a file transfer,
• SubAJOs can be run on different computational
  resource
• Software resources (we miss this!)
• High-level services or capabilities
• Built in workflow
• Support for conditional execution and loops (tail
  recursive execution of a DAG)
• Graphical user interfaces for job definition and
  submission
• Extensible through plug-ins
• Resource broker

8
Growing awareness of UNICORE

• Early UNICORE-based prototype OGSI implementation
  by Dave Snelling May 2002
• Later used in first RealityGrid computational
  steering demonstrations at UK e-Science All Hands
  Meeting, September 2002
• Dave Snelling, senior architect of UNICORE and
  RealityGrid partner is now co-chair of the OGSI
  working group at Global Grid Forum
• UNICORE selected as middleware for Japanese
  NAREGI project (National Research Grid
  Initiative)
• 5 year project 2003-2007
• 17M budget in FY2003

9
Recent UNICORE developments

• GridFTP already supported as alternative file
  transfer mechanism
• Multiple streams help even when there is only one
  network link - pipelining!
• Support for multiple streams and re-startable
  transfers will go into UNICORE Protocol Layer
  (UPL) mid-summer 2003
• UNICORE servers now support streaming (FIFOs)
• Ideal for simulation-visualization connections
  RealityGrid style
• Translators between UNICORE resource descriptions
  and MDS exist
• Looking closely at XML based representation of
  UNICORE resource descriptions
• Ontological model to be informed by GLUE schema
  and NAREGI experiences
• UNICORE programmer's guide (draft)
• OGSI implementation in progress
• With XML serialization over UPL (faster than SOAP
  encapsulation, even with MIME types)
• OGSI portType for Abstract Job Object (AJO)
  consignment
• NB. OGSI compliance alone does not imply
  interoperability with GRAM!
• Job Management and Monitoring portTypes to follow

10
UNICORE and Globus

• UNICORE
• Java and Perl
• Packaged Software with GUI
• Top down, vertical integration
• Not originally open source
• Designed with firewalls in mind
• Easy to customise
• No delegation
• Abstract Job Object (AJO) Framework
• Workflow
• Resource Broker
• Easy to deploy

• Globus
• ANSI C, Perl, shell scripts
• Toolkit approach
• Bottom up, horizontal integration
• Open Source
• Firewalls are a problem
• Easy to build on
• Supports Delegation
• Weak, if any, higher level abstractions

11
Web Services

• Loosely Coupled Distributed Computing
• Think Java RMI or C remote procedure call
• Service Oriented Architecture
• Text Based Serialization
• XML Human Readable serialization of objects
• Three Parts
• Messages (SOAP)
• Definition (WSDL)
• Discovery (UDDI)

12
Web Services in Action
13
Enter Grid Services

• Experiences of Grid computing (and business
  process integration) suggest extending Web
  Services to provide
• State
• Service Data Model
• Persistence and Naming
• Two Level Naming (GSH, GSR)
• Allows dynamic migration and QoS adaptation
• Lifetime Management
• Explicit Semantics
• Grid Services specify semantics on top of Web
  Service syntax.
• Infrastructure support for common patterns
• Factories, registries (service groups),
  notification
• By integrating Grid and Web Services we gain
• Tools, investment, protocols, languages,
  implementations, paths to exploitation
• Political weight behind standards and solutions

14
OGSA - outlook

• The Open Grid Services Infrastructure (OGSI) is
  the foundation layer for the Open Grid Services
  Architecture (OGSA)
• OGSA has a lot of industrial and academic weight
  behind it
• IBM is committed, Microsoft is engaged, Sun and
  others are coming on board
• Globus, UNICORE and others are re-factoring for
  OGSA
• Goal is to push all OGSI extensions into core
  WSDL
• Some early successes
• OGSI specification is now in RFC after 12 months
  concerted effort by many organisations and
  individuals
• OGSI promises "a better kind of string" to hold
  the Grid together. But its not a "silver
  bullet".
• Lacking higher-level semantics
• Much standardisation effort still required in
  Global Grid Forum and elsewhere

15
OGSI implementations

• Complete
• Globus Toolkit version 3 (Apache/Axis)
• Fast and furious pre-releases trying to keep pace
  with evolving standard
• General release Q3 2003
• .NET implementation from Marty Humphrey,
  University of Virginia
• Partial
• Java/UNICORE Snelling and van den Berghe, FLE
• production-quality implementation informed by May
  '02 prototype
• Python Keith Jackson, LBNL
• Perl Mark Mc Keown, University of Manchester
• GGF panel will report next week.

16
The pieces of RealityGrid

• Integration, Independence and Interoperability
• Or
• Putting it all together

17
The pieces

• Steering library and tools
• Visualization
• See also talk by Steven Kenny, Loughborough
  University
• Web portal
• More on this and other topics from
  Jean-Christophe Desplat, EPCC
• ICENI
• More later from Steven Newhouse, LeSC, Imperial
  College
• Performance Control
• More later from John Gurd, CNC, University of
  Manchester
• Instruments LUSI, XMT (not this talk)
• Human-Computer Interfaces (HCI)
• Should not be last in the list!
• More later from Roy Kalawsky, Loughborough
  University
• Not to mention application codes and the
  middleware landscape itself.

18
Design philosophies and tensions

• Grid-enabled
• Component-based and service-oriented
• plug in and compose new components and services,
  from partners and third parties
• Independence and modularity
• to minimize dependencies on third-party software
• Should be able to steer locally without and Grid
  middleware
• to facilitate parallel development within project
• Integration and/or interoperability
• Things should work together
• Respect autonomy of application owners
• Prefer light-weight instrumentation of
  application codes to wholesale re-factoring
• Same source (or binary) should work with or
  without steering
• Dynamism and adaptibility
• Attach/detach steering client from running
  application
• Adapt to prevailing conditions
• Intuitive and appropriate user interfaces

19
First Fast Track Demonstration
Jens Harting at UK e-Science All Hands Meeting,
September 2002
20
Fast Track Steering DemoUK e-Science AHM 2002
Bezier SGI Onyx _at_ Manchester Vtk VizServer
Firewall
SGI OpenGL VizServer
UNICORE Gateway and NJS Manchester
Laptop SHU Conference Centre
Simulation Data
UNICORE Gateway and NJS QMUL

• VizServer client
• Steering GUI
• The Mind Electric GLUE web service hosting
  environment with OGSA extensions
• Single sign-on using UK e-Science digital
  certificates

Dirac SGI Onyx _at_ QMUL LB3D with
RealityGrid Steering API
Steering (XML)
21
Steering architecture today

• Communication modes
• Shared file system
• Files moved by UNICORE daemon
• GLOBUS-IO

Simulation
Client
data transfer
Data mostly flows from simulation to
visualization. Reverse direction is being
exploited to integrate NAMDVMD into RealityGrid
framework.
Visualization
Visualization
22
Computational steering how?

• We instrument (add "knobs" and "dials" to)
  simulation codes through a steering library,
  written in C
• Can be called from Fortran90, C and C
• Library distribution includes Fortran90 and C
  examples
• Library features
• Pause/resume
• Checkpoint and restart new in today's
  demonstration
• Set values of steerable parameters (parameter
  steer)
• Report values of monitored (read-only) parameters
  (parameter watch)
• Emit "samples" to remote systems for e.g. on-line
  visualization
• Consume "samples" from remote systems for e.g.
  resetting boundary conditions
• Automatic emit/consume with steerable frequency
• No restrictions on parallelisation paradigm
• Images can be displayed at sites remote from
  visualization system, using e.g. SGI OpenGL
  VizServer
• Interactivity (rotate, pan, zoom) and shared
  controls are important

23
Steering client

• Built using C and Qt library currently have
  execs. for Linux and IRIX
• Attaches to any steerable RealityGrid application
• Discovers what commands are supported
• Discovers steerable monitored parameters
• Constructs appropriate widgets on the fly

24
Implementing steering

• Steps required to instrument a code for steering
• Register supported commands (eg. pause/resume,
  checkpoint)
• steering_initialize()
• Register samples
• register_io_types()
• Register steerable and monitored parameters
• register_params()
• Inside main loop
• steering_control()
• Reverse communication model
• User code actions, in sequence, each command in
  list returned
• Support routines provided (eg. emit_sample_slice)
• When you write a checkpoint, register it
• When finished,
• steering_finalize()

25
Steering in an OGSA framework
Simulation
bind
Steering library
publish
Client
connect
data transfer
Steering client
Registry
find
publish
bind
Visualization
Visualization
26
Steering in OGSA continued

• Each application has an associated OGSI-compliant
  Steering Grid Service (SGS)
• SGS provides public interface to application
• Use standard grid service technology to do
  steering
• Easy to publish our protocol
• Good for interoperability with other steering
  clients/portals
• Future-proofed next step to move away from
  file-based steering
• Application still need only make calls to the
  steering library
• SGSs used to bootstrap direct inter-component
  connections for large data transfers
• Early working prototype of OGSA Steering Grid
  Service exists
• Based on light-weight Perl hosting environment

27
Steering wishlist

• Logging of all steering activity
• Not just checkpoints
• As record of investigative process
• As basis for scripted steering
• Scripted steering
• Breakpoints ( IF (temperature gt TOO_HOT) THEN )
• Replay of previous steering actions
• Advanced checkpoint management to support
  exploration of parameter space (and code
  development)
• Imagine a tree where nodes are checkpoints and
  branches are choices made through steering
  interface (cf. GRASPARC)

28
On-line visualisation

• Fast track demonstrators use open source VTK for
  on-line visualisation
• Simple GUI built with Tk/Tcl, polls for new data
  to refresh image
• Some in-built parallelism
• VTK extended to use the steering library
• AVS-format data supported
• XDR-format data for sample transfer between
  platforms
• Volume-data focus so far but this will change as
  more steerable applications bring new
  visualization requirements
• Volume render (parallel)
• Isosurface
• Hedgehog
• Cut-plane

29
Visualization experiences

• Positive experiences of SGI VizServer
• Delivers pixels to remote displays, transparently
• Reasonable interactivity, even over long
  distances
• Will test further over QoS-enabled networks in
  collaboration with MB-NG
• Also experimenting with Chromium
• VizServer Integration
• Put GSI authentication into VizServer PAM when
  released
• Use VizServer API for Advance Reservation of
  graphics pipes, and
• Exploit new collaborative capabilities in latest
  release.
• Access Grid Integration trying two approaches
• VizServer clients in Access Grid nodes (lose
  benefits of multicast)
• Using software from ANL (developers of Chromium)
  to write from VTK to video interface of Access
  Grid

30
Visualization Integration issues

• Traditional Modular Visualization Environments
  tend to be monolithic
• Incorporating the simulation in an extended
  visualization pipeline makes steering possible,
  but often implies lock-in to a single framework
• When remote execution is supported, rarely "Grid
  compatible"
• But the UK e-Science project gViz is changing
  this for Iris Explorer
• Can't easily compose components from different
  MVEs
• No single visualization package meets all
  requirements for features and performance

31
Portal

• Portal "web client"
• Includes job launching and monitoring
• EPCC Work package 3 portal integration
• Initial design document released, work about to
  start
• Integration issues
• Portal must provide steering capability
• Through Steering Grid Service
• On-line visualization is harder for a web client
• Do only what's practical
• gt 40 UK e-Science projects have a portal work
  package!

32
ICENI (deep track)

• ICENI provides
• Metadata-rich component framework
• Exposure of components as OGSA services
• Steering and visualization capabilities of its
  own
• Rich set of higher level services
• Potentially a layer between RealityGrid and
  middleware landscape
• Recent developments
• First controlled release of ICENI within project
  to CNC
• Integration of "binary components" (executables)
• Dynamic composition in progress (important for
  attach/detach)
• More in talk by Steven Newhouse
• ICENI integration challenges
• Describe and compose the components of a "fast
  track" computational steering application in
  ICENI language
• Reconcile "fast track" and ICENI steering
  entities and concepts

33
Performance Control

• More in John Gurd's talk

34
Performance Control (deep track)

• Component loader supports parallel job migration
• Relies on checkpoint/restart software
• Proven in LB3D
• Plan to generalise, co-ordinating with Grid-CPR
  working group of GGF
• Malleable from N processors on platform X to M
  processors on platform Y
• Integration issues
• Must work with ICENI components
• Groundwork laid
• Application codes must be instrumented for
  Performance Control
• Steering Library
• Both trigger taking of checkpoints
• Steering system needs to know when a component
  migrates
• Embedding Performance Control in Steering Library
  may be feasible

35
Human Computer Interfaces

• Recommendations from HCI Audit beginning to
  inform a wide range of RealityGrid developments
• Steering
• Visualization
• Web portal
• Workflow
• Management of scientific process
• Sometimes architecturally separate concepts
  should be presented in single interface to the
  end-user
• More in Roy Kalawsky's talk

36
Middleware, again

• All this has to build on, and interface with, the
  shifting sands of the middleware landscape
• We seem to be spoiled for choice
• Globus, UNICORE, Web Services, ICENI are all on
  an OGSA convergence track
• with the promise of interoperability
• but at a very low level.
• Higher level services will emerge
• But will they be timely?
• Will they be backed by standards?
• Will we be able to use them?

37
Widespread deployment

• Short term, GT 2 is indicated
• To gain leverage from common infrastructure of UK
  e-Science programme
• Grid Support Centre, Level 2 Grid, Training,
  Engineering Task Force, etc.
• Hence our recent work on RealityGrid-L2
• Demonstrated on Level 2 Grid at LeSC open day in
  April
• But it's hard
• Deployment and maintenance overhead of Globus is
  high
• We need "high quality" cycles for capability
  computing
• Gaining access to L2G resources is still painful,
  but slow progress is being made
• Much work required to adapt applications and
  scripts to available L2G resources
• Discovering useful information like queue names
  and policies location of compilers, libraries,
  tools, scratch space retention policies, etc. is
  still problematic

38
External dependencies

• Robustness of middleware
• Maturity of OGSA and availability of services
• Tooling support for web services in languages
  other than Java and C
• Support for advanced reservation and
  co-allocation
• Need to co-allocate (or co-schedule)
• (a) multiple processors to run a parallel
  simulation code,
• (b) multiple graphics pipes and processors on the
  visualization system
• More complex scenarios involve multi-component
  applications.

39
Conclusions

• We've achieved a lot
• But there's tough challenges ahead

40
Partners

• Academic
• University College London
• Queen Mary, University of London
• Imperial College
• University of Manchester
• University of Edinburgh
• University of Oxford
• University of Loughborough

• Industrial
• Schlumberger
• Edward Jenner Institute for Vaccine Research
• Silicon Graphics Inc
• Computation for Science Consortium
• Advanced Visual Systems
• Fujitsu

41
SVE _at_ Manchester Computing
Bringing Science and Supercomputers
Together http//www.man.ac.uk/sve sve_at_man.ac.uk
