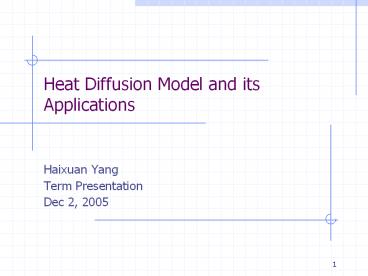

Heat Diffusion Model and its Applications

• Haixuan Yang
• Term Presentation
• Dec 2, 2005

2
Outline

• Introduction
• Heat Diffusion Model
• Heat Diffusion Classifiers
• Heat Diffusion Ranking
• Predictive Random Graph Ranking
• Experiments
• Conclusions and Future Work

3
Introduction - heat diffusion

• Heat diffusion is a physical phenomena.
• In a medium, heat always flow from position with
  high temperature to position with low
  temperature.
• Heat kernel is used to describe the amount of
  heat that one point receives from another point.
• The way that heat diffuse varies when the
  underlying geometry varies.

4
Introduction - related work

• Kondor Lafferty (NIPS2002)
• Construct a diffusion kernel on a graph
• Handle discrete attributes
• Apply to a large margin classifier
• Achieve goof performance in accuracy on 5 data
  sets from UCI
• Lafferty Kondor (JMLR2005)
• Construct a diffusion kernel on a special
  manifold
• Handle continuous attributes
• Restrict to text classification
• Apply to SVM
• Achieve good performance in accuracy on WEbKB and
  Reuters
• Belkin Niyogi (Neural Computation 2003)
• Reduce dimension by heat kernel and local
  distance
• Tenenbaum et al (Science 2000)
• Reduce dimension by local distance

5
Introduction the ideas adopted

• Similarity between heat diffusion and density.
• Heat diffuses in the same way as Gaussian density
  in the ideal case when the manifold is the
  Euclidean space.
• The way heat diffuses on a manifold can be
  understood as a generalization of the Gaussian
  density from Euclidean space to manifold.
• Local information is relatively accurate in a
  nonlinear manifold.
• Learn local information by k nearest neighbors.

Direct distance may not be accurate
The curve may better measure the distance
6
Introduction different ideas

• Unknown manifold in most cases.
• Unknown solution for the known manifold.
• The explicit form of the approximation to the
  heat kernel in (Lafferty Lebanon JMLR2005) is
  a rare case.
• Establish the heat diffusion equation directly on
  a graph that is either the K nearest neighbor
  graph or the link graph.
• The K nearest neighbor graph or the link graph is
  considered as an approximation to the unknown
  manifold.
• Always have an explicit form in any case.
• Form a classifier by the solution directlyin the
  application of classification.
• Apply the heat kernel for ranking onthe Web
  pages.

7
Heat Diffusion Model - Notations

• G(V,E), a given directed graph, where
• V1,2,,n,
• E(i,j) if there is an edge from i to j,
• fi(t) the heat at node i at time t.
• RH(i,j,t,?t) amount of heat that at time t, i
  receives from its antecedent j during a period of
  ?t.
• DH(i,t,?t) amount of heat that at time t, i
  diffuses to its subsequent nodes.

8
Heat Diffusion Model - assumptions

• RH(i,j,t, ?t) is proportional to the time period
  ?t.
• RH(i,j,t, ?t) is proportional to the heat at node
  j.
• RH(i,j,t, ?t) is zero if there is no link from j
  to i.
• DH(i,j,t, ?t) is proportional to the time period
  ?t.
• DH(i,j,t, ?t) is proportional to the heat at node
  i.
• RH(i,j,t, ?t) is proportional to its outdegree
  .

9
Heat Diffusion Model - solution

• The heat difference fi(t?t) and fi(t) can be
  expressed as
• It can be expressed as a matrix form
• where we let
  for simplicity.
• Let ?t tends to zero, the above equation becomes
• Especially, we have

10
Heat Diffusion Model weighted graph

• For weighted graphs, the heat difference fi(t?t)
  and fi(t) can be expressed as
• The solution is expressed as

11
Heat Diffusion Classifiers - Illustration
NHDC Non-propagating Heat Diffusion
Classifier PHDC Propagating Heat Diffusion
Classifier
The first heat diffusion
The second heat diffusion
12
Heat Diffusion Classifiers - Illustration
13
Heat Diffusion Classifiers - Illustration
14
Heat Diffusion Classifiers - Illustration
Heat received from A class 0.018 Heat received
from B class 0.016
Heat received from A class 0.002 Heat received
from B class 0.08
15
Heat Diffusion Classifiers - algorithm - Step 1

• Construct neighborhood graph
• Define graph G over all data points both in the
  training data set and in the test data set.
• Add edge from j to i if j is one of the K
  nearest neighbors of i.
• Set edge weight w(i,j)d(i, j) if j is one of the
  K nearest neighbors of i, where d(i, j) be the
  Euclidean distance between point i and point j.

16
Heat Diffusion Classifiers - algorithm - Step 2

• Compute the Heat Kernel
• Computing H for NHDC using
• Computing for PHDC using the equation

17
Heat Diffusion Classifiers - algorithm - Step 3

• Compute the Heat Distribution
• For each class c,
• Set f(0)
• nodes labeled by class c, has an initial unit
  heat at time 0, all other nodes have no heat at
  time 0.
• Compute the heat distribution
• In PHDC, use equation
• to compute the heat distribution.
• In NHDC, use equation

18
Heat Diffusion Classifiers - algorithm - Step 4

• Classify the nodes
• By last step, we get the heat distribution
• for each class k, then, for each node in the
• test data set, classify it to the class from
• which it receives most heat.

19
Heat Diffusion Classifiers - Connections with
other models

• The Parzen window approach (when the window
  function takes the normal form) is a special case
  of the NHDC.
• It is a non-parametric method for probability
  density estimation

For each class k
The class-conditional density for class k
Using Bayes rule
Assign x to a class whose value is maximal.
20
Heat Diffusion Classifiers - Connections with
other models

• The Parzen window approach (when the window
  function takes the normal form) is a special case
  of the NHDC.
• In our model, let Kn-1, then the graph
  constructed in Step 1 will be a complete graph.
  The matrix H will be

Using the heat equation f(t)Hf(0)
Heat that xp receives from the data points in
class k
21
Heat Diffusion Classifiers - Connections with
other models

• KNN is a special case of the NHDC.
• KNN
• For each test data, assign it to the class that
  has the maximal number in its K nearest neighbors.

22
Heat Diffusion Classifiers - Connections with
other models

• KNN is a special case of the NHDC.
• In our model, let ß tend to infinity, then the
  matrix H becomes

Using the heat equation f(t)Hf(0)
The number of the cases in class q in its K
nearest neighbor.
Heat that xp receives from the data points in
class k
23
Heat Diffusion Classifiers - Connections with
other models

• PHDC can approximate NHDC.
• If ?is small, then
• Since the identity matrix has no effect on the
  heat
• distribution, PHDC and NHDC has similar
  classification accuracy when ? is small.

24
Heat Diffusion Classifiers - Connections with
other models
PHDC
When ? is small
NHDC
When ß is infinity
When kn-1
KNN
PWA
25
Heat Diffusion Ranking - motivation

• The Web pages are considered to be drawn from an
  unknown manifold.
• The link structure forms a directed graph, which
  is considered as an approximation to the unknown
  manifold.
• The heat kernel established on the Web graph is
  considered as the representation of relationship
  between Web pages.
• When there are more paths from page j to page i,
  i will receive more heat from j
• When the path length from j to i is shorter, i
  will receive more heat form j.

26
Heat Diffusion Ranking - algorithm

• Let V be the set of the Web pages. If there is a
  link from j to i, we
• say there is edge (j,i). The graph is a static
  graph.
• Compute the Matrix H
• Compute or
• The i-row j-column element means the amount of
  heat that i can receive from j from time 0 to 1,
  and is used to measure the similarity from j to
  i.
• If the graph is a random graph, which is
  generated by the first stage of the Predictive
  Random graph Ranking, then
• Compute the Matrix R
• Compute or

The algorithm is called DiffusionRank
27
Heat Diffusion Ranking - advantages

• Its solution has two forms, both of which are
  closed form.
• Its solution is not symmetric, which better
  models the nature of relativity of similarity.
• It can be naturally employed to detect
  group-group relation.
• It can be used to anti-manipulation.

28
Predictive Random Graph Ranking - motivation

• To improve the accuracy of DiffusionRank, we need
  to model the Web graph accuratelyrandom graph.
• The web is dynamic
• The observer is partial
• Links are different
• The random graph model can also improve other
  ranking algorithms, and hence is called
  predictive random graph ranking framework .

29
Predictive Random Graph Ranking - framework

• Random Graph Generation Stage
• Engages the temporal, spatial and local link
  information to construct a random graph.
• Random Graph Ranking Stage
• Takes the random graph output and then calculates
  the ranking result based on a candidate ranking
  algorithm.

30
Predictive Random Graph Ranking first stage

• The web is dynamic
• Predict the early Web structure as a random
  graph Temporal Web Prediction Model
• The observer is partial
• Different Web graph Gi (Vi ,Ei ) are obtained
  by N different observers (or crawlers).
• A random graph RG(V,P) is constructed by
• n(i,j) is the number of the graphs
  where the link (i,j) appears.
• Links are different
• As an example, a random graph RG(V,P) can be
  constructed by
• where j is the k(i, j)-th out-link from i

31
Predictive Random Graph Ranking Temporal Web
Prediction Model

• From the viewpoint of a crawler, the web is
  dynamic, and there are many dangling nodes (pages
  that either have no out-link or have no known
  out-link)
• Classify dangling nodes
• Dangling nodes of class 1 (DNC1) those that
  have been found but have not been visited.
• Dangling nodes of class 2 (DNC2) those that
  have been tried but not visited successfully.
• Dangling nodes of class 3 (DNC3) those that
  have been visited successfully but from which no
  out-link is found.

32
Predictive Random Graph Ranking Temporal Web
Prediction Model

• Suppose that all the nodes V can be partitioned
  into three subsets .
• denotes the set of all non-dangling nodes
  (that have been crawled successfully and have at
  least one out-link)
• denotes the set of all dangling nodes of class
  3
• denotes the set of all dangling nodes of class
  1
• For each node v in V, the real in-degree of v is
  not known.

33
Predictive Random Graph Ranking Temporal Web
Prediction Model

• We predict the real in-degree of v by the number
  of found links from C to v.
• Assumption the number of found links from C to v
  is proportional to the real number of links from
  V to v.
• The difference between real in-degree and the
  predicted in-degree is distributed uniformly to
  the nodes in .

34
Predictive Random Graph Ranking Temporal Web
Prediction Model
Models the missing information from unvisited
nodes to nodes in V from D2 to V.
Model the known link information as Page (1998)
from C to V.
Model the users behavior as Kamvar (2003) when
facing dangling nodes of class 3 from D1 to V.
n the number of nodes in V m the number of
nodes in C m1 the number of nodes in D1.
35
Predictive Random Graph Ranking second stage

• On a random graph RG(V,P)
• DiffusionRank

36
Predictive Random Graph Ranking second stage

• On a random graph RG(V,P)
• PageRank
• Common Neighbor
• Jaccards Coeffient
• SimRank

37
Experiments Heat Diffusion Classifiers

• 2 artificial Data sets and 6 datasets from UCI
• Spiral-100
  Spiral-1000
• Compare with Parzen window (The window function
  takes the normal form), KNN.
• The result is the average of the ten-fold cross
  validation.

38
Experiments - Heat Diffusion Classifiers

• Experimental Setup
• Experimental Environments
• Hardware Nix Dual Intel Xeon 2.2GHz
• OS Linux Kernel 2.4.18-27smp (RedHat 7.3)
• Developing tool C
• Data Description
• In Credit-g, the 13 discrete variables are
• ignored since we only consider the
• continuous variables.

Dataset Cases Classes Variable
Spiral-100 100 2 3
Spiral-1000 1000 2 3
Credit-g 1000 2 7
Diabetes 768 2 8
Glass 214 6 9
Iris 150 3 4
Sonar 208 2 60
Vehicle 846 4 18
39
Experiments - Heat Diffusion Classifiers

• Parameters Setting

Algorithm NHDC NHDC PHDC PHDC PHDC KNN PWA
K 1/ß K 1/ß ? K 1/ß
Spiral-100 8 150 8 150 0.01 7 100
Spiral-1000 5 100 5 150 0.10 7 250
Credit-g 13 0 11 0 0.02 31 50
Diabetes 33 50 34 150 0.05 34 300
Glass 40 1750 38 1500 0.27 3 7500
Iris 15 0 13 50 0.47 7 350
Sonar 24 1650 24 1200 0.41 3 1150
Vehicle 8 350 10 600 0.11 10 650
40
Experiments - Heat Diffusion Classifiers

• Results

Algorithm NHDC PHDC KNN PWA
Spiral-100 84 84 67 83
Spiral-1000 99.6 99.8 99.3 99.7
Credit-g 76.1 76.06 75.59 72.35
Diabetes 76.3 76.22 75.78 74.96
Glass 72.99 73.12 70.64 71.56
Iris 97.36 97.79 97.36 97.07
Sonar 88.75 89.07 82.86 88.28
Vehicle 72.90 72.93 71.41 72.45
41
Experiments Predictive Random Graph Ranking

• Data
• Synthetic Web Graph
• Follow a power law
• Real Web Graph
• Within cuhk.edu.hk

t 1 2 3 4 5 6 7 8 9 10 11
V(t) 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
T(t) 1764 1778 1837 1920 1927 1936 1952 1954 1964 1994 2000
t 1 2 3 4 5 6 7 8 9 10 11
V(t) 7712 78662 109383 160019 252522 301707 373579 411724 444974 471684 502610
T(t) 18542 120970 157196 234701 355720 404728 476961 515534 549162 576139 607170
42
Experiments Predictive Random Graph Ranking

• Methodology
• For each algorithm A, we have two versions
  denoted by A and PreA.
• A the original version
• PreA -- the version with the Temporal Web
  Prediction Model
• For each data series and for each algorithm A,
  we obtain 22 ranking results
• A1 , A2 , , A11
• PreA1 , PreA2 , , PreA11
• Compare the early results with the final result
  A11 .
• Value Difference
• Order Difference

43
Experiments Predictive Random Graph Ranking

• Set Up
• For PageRank and PrePageRank,
• a0.85,
• g is the uniform distribution
• For DiffusionRank and PreDiffusionRank
• Use the discrete diffuse kernel
• s1, N20

44
Experiments PageRank synthetic data
45
Experiments PageRank real data
46
Experiments DiffusionRank synthetic data
47
Experiments DiffusionRank real data
48
Conclusions

• Both NHDC and PHDC outperform KNN and Parzen
  Window Approach in accuracy on these 8 datasets.
• PHDC outperforms NHDC in accuracy on these 8
  datasets.
• DiffusionRank is another candidate of ranking
  algorithm.
• Temporal Web Prediction Model in effective in
  PageRank and DiffusionRank.
• The Predictive Random Graph Ranking framework
  extends the scope of some original ranking
  techniques.

49
Future Work

• Approximate the manifold more accurately.
• Apply the non-symmetric heat kernel to SVM.
• Further investigate on partial observers and
  weighted links.

50
Q A
