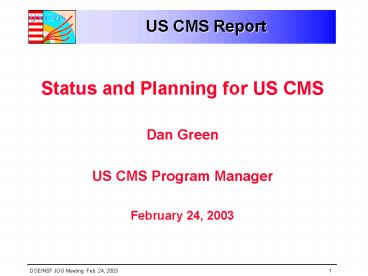

US CMS Report

1
US CMS Report

• Status and Planning for US CMS
• Dan Green
• US CMS Program Manager
• February 24, 2003

2
Outline

• Detector - Technical Status
• Detector - Financial Summary
• Research Program Startup
• MO Plans
• SWC Plans
• Issues

3
LHC - SM Higgs
The LHC detectors are designed to find the SM
Higgs. Low mass is covered by ??, ttH(bb),
qqH(WW,??). A low mass Higgs has many
accessible decay modes ? couplings measured.
4
LHC - SUSY
Energy matters! One month at 1/10 design
luminosity extends mass reach by a lot. LHC
experiments must be ready on week one for new
Physics.
5
CMS
6
Civil Engineering at USC
Limited first access to USC55 in February 2004
full access on 16 Oct. 2004
7
COIL Winding of External Layer of CB-2 Completed
The winding of the coil is critical. Last coil
module (n0 5) to be delivered at CERN in Feb
04. The Completion of the coil at CERN in 2004
and the test of the Magnet on the surface in
early 2005 are on the critical path.
8
CMS Tracker
9
Pixel Wafer Sensors
Second Submission SINTEF. Purdue
Wafer p-side
Wafer n-side

• 15 wafers delivered 06-12-02
• Tested at Purdue
• Irradiated at ?1015neq/cm2
• Testing of irrad. sensors has started

D/cms\project\base request\2003\sent dg.ppt
10
FPix TBM Test Setup
DMill Dual TBM
Stacks
Controls
86 wire bond pads
TBM Test Fixture. Rutgers
Hub
Event Number
Status Info
TBM
Header ID
Trailer ID
D/cms\project\base request\2003\sent dg.ppt
11
TOB - Prototype
First small sub-system (outer barrel rod)
equipped with modules
12
Robotic Assembly at FNAL UCSB

• FNAL pick and place gantry
• Fully qualified for production
• Presently building modules as part of CMS M200
  program
• These were used in the May test beam study. CMS
  was very happy with the SiDet quality. Ready to
  go into production.

13
ECAL H4 Test Beam
14
ECAL Electronics

• Status of VFE Components
• FPPA Wafers Expected from Intersil on 20 December
  02
• ADC ADI 9042 Agreed Qualification for Rad
  Tolerance
• Minnesota 18 day test cycle, neutrons ?s
• CMS must decide to procure ADC before Summer 2003
  if FPPA fabrication is successful.

Yield for first 100 parts is 30. Not
affordable
15
ECAL Electronics -II

• Status of 0.25µ Back-up VFE Electronics
• ADC Design progresses well at Chipidea
• Specification has been reviewed and agreed
  (Power lt 500mW)
• Intermediate Design Review December 6 in Lisbon
• Final Design review beginning January 03
• Fabrication early February 03
• MGPA Design progressing well at Imperial College
• Same time scale

US is contributing EDIA from the Yarema group for
evaluation and testing.
16
HB Assembly
The assembly of absorber and scintillator tiles
for HB is now complete in SX5 1000 T of
precision detector. There are 2 years before
the next V33 ML1 for HB. On to the commissioning.
17
HE-1 Assembly
HE calorimeter
Assembly finished No major problems or
delays Value added to US CMS brass procurement
18
HF Fiber Stuffing
HF Assembly in Building 186. Moving ahead of
schedule. HF has caught up.
19
HB ECAL Test Beam Layout
Calibrate 4 wedges 02. In May 03 use PPP to
study 40 MHz beam and HE/HB transition region. ME
will also need 40 MHz operation to verify all the
electronics chain. Then into SX5.
20
300 GeV Pion H2
Bunch crossing number
The shape of the pulse in time is as expected
due to scint flours and HPD drift. NIM paper in
draft from TB 2002.
21
HF in H2 Test beam
All mechanics of HB, HO, HE, HF is complete.
Future is with electronics at test beam and SX5.
22
CSC Arrival at CERN
The Final Assembly and Test Sites are operational.
23
CSC Installation
Demonstration at FNAL
Installing at CERN
24
EMU Integration

• EDR for YE1 on 9,10 Dec
• Gas
• Gas racks in production
• Polish company (Mitek) will begin installing
  piping in Jan 03
• Endcap drawings complete sent to Mitek
• Cooling
• YE2 manifold will be delivered in Dec 02
• Cable trays
• Recd bid from French company, will purchase
  install in early 03

EMU installation waits on service in SX5. We will
need to push because we are first in the hall.
25
Trigger - Receiver

• Full featured final prototype board is in test -
  initial results are good. Continue to test
  on-board ASICs copper link mezzanine cards.
• Phase ASIC and BSCAN ASIC validated
• Moving towards full validation checking all data
  paths, BX0 and error handling

Adder
PHASE ASICs
mezz link cards
MLUs
BSCAN ASICs
DC-DC
Top side with 1 of 8 mezzanine cards 2 of 3
Adder ASICs
Bottom side with all Phase Boundary Scan ASICs
26
CSC Trigger Slice Test

• Requirements for 3-station 20 degree slice test
  (9 chambers)
• Need 3 MPC, 1 SP/SR, 1 CCB module, 1 backplane
• Integrate w/3 partially populated peripheral
  crates 1 DDU
• Schedule
• Apr-02 Prototype 2 designs done
• Nov-02 Prototype 2 construction done
• Apr-03 Prototype 2 testing done
• Sep-03 Final designs done
• CSC Sorter module only 1, design by Jan-04
• Not needed for Slice Test Itrigger out from CCB
• Oct-04 Production done
• Mar-05 Installation begins in USC55
• Slice Test Phase I
• Oct-03 to Oct-04
• Use Prototype 2 modules
• Slice Test Phase II
• Oct-04 to Mar-05
• Use Production Modules ( Proto. Sorter)

Trigger will participate in Slice Tests in 2004.
27
DAQ TDR

• TDR submitted December 15, 2002
• 522 pages
• Describes baseline design for Data Acquisition
  from Front End Readout through software
  (High-Level) trigger

28
Trigger Tables

• Level-1 Trigger at low luminosity (2?1033cm-2s-1)
• Total Rate 50 kHz. Factor 3 safety, allocate
  16kHz

Tables exist for 1/5 and design L. Discovery
modes covered well. We think we know how to
trigger CMS and acquire the Physics.
29
US-CMS Data Acquisition

• Next major milestone - Dec. 2003
• Event Builder Preseries and DAQ slice ready

• Work focussing on
• front end drivers and links
• integration and event building software
• event manager

This system will be used for the detector slice
tests (test beam?)
30
Project Financial Summary
55 months of reporting. Note BA in FY06 (4.2 M)
and FY07 (1.3 M). CD4-a, CD4-b
31
US CMS Detector Project
Contingency will be applied to scope if it is
earned. We hope next to apply scope to ECAL (1.7
M) and perhaps then increase scope to cover some
of CMS LV (lt1.5 M). Yarema, Beverly and Huffman
(FNAL EDIA) are estimating costs for the latter.
32
Tracking Closely
We retain 49 contingency, or 19.12 M on our
ETC. The Project is 74 complete. It is crucial
not to be fooled. To that end, we brought NSF
tracking up to date (MRE end). We have also seen
other late charges items we announced were
closed and complete. A soft landing will be
hard to accomplish. It is getting harder as time
goes on.
33
Lehman Review Dec. 2002
34
HCAL - Electronics
35
Project Complete -gt MO
MO begins with commissioning and preops in SX5
in FY03. Aim to end Project in FY05, with
completion in FY08 UX5 installation.
36
Endgame and CD4
The US CMS deliverables will be 96 complete in
FY05 and finally installed in UX5 by FY07. The BA
has evolved to reflect this fact. Thanks to DOE
for adjusting CD4.
37
Scrubbed MO
Added Tier-2 support (NSF) in Physics Analysis
centers. We would like to do more to support US
physicists doing analysis at their home
institutes or at a local PAC. There will be an
external review on April 8-10 of MO.
38
US CMS MO Resources
Note the rolloff of construction to MO by FY05.
The major category for MO is physicists -gt base
program.
BaBar Reality check
39
ML for RP V33
Tie points from Computing Systems DC Physics
TDR VCRs and PACs. The RP is a unitary plan to
do Physics in the U.S.
40
CMS and the PRS Groups
The PRS groups are part of the detector groups
and part of the Physics Subsystem. The plan is to
tie Physics analysis to the detector builders and
to the analysis teams.
41
Jet, MET Group and Physics TDR
Need to decide on a few Physics processes to
explore in depth for the Physics TDR qqH(WW),
SUSY ?? Then seed the Data Challenge data with
events from these reactions.
42
G4 and Test Beam
The Jet/Met group is involved in analysis and
simulation of the test beam data
43
LHC Physics in the US
In US CMS, planning is in place for a
collaboratory or virtual laboratory. Elements
are Virtual Control Room (commissioning, shifts)
and Physics Analysis Centers ( teleconf, analysis
groups). This support will go directly and solely
to US HEP physicists.
44
Main US CMS SWC Activities

• Develop the US CMS T1/T2 system into a working
  Data Grid
• high throughput data transfers
• Grid-wide job scheduling
• monitoring
• Middleware is VDT Condor, Globus et al
• US CMS-developed DPE toolkit and procedures,
  underlying the
• standard CMS production environment (Impala,
  RefDB etc)
• Integration Grid Testbed (IGT) was very
  successful first large-scale Grid
• Next steps preparing the US CMS Production Grid
• Major coming milestones
• participation in the CMS 5 data challenge DC04

• be operational as part of LCG Production Grid
  in June 2003
• Major development efforts are still needed for
  those milestones
• Providing a viable storage management solution
  for multi-Terabytes data sets
• building on dCache, SRM, etc
• End-to-end throughput with the goal of TBs/day
  sustained rates from mass storage to mass
  storage
• Interfacing the Grid VO system to the local user
  registration/security requirements
• Consolidating the production system, data bases,
  production configuration and meta-data systems
  (MC_Runjob, catalogs, scheduling)

45
FY02 Actual Costs of Work Performed

• FY02 BA and ACWP for US CMS SC
• (Numbers in italics are BCWS, as no invoices were
  received for NSF-funded efforts)

46
Accomplishments

• Prototyped Tier-1 and Tier-2 centers and deployed
  a Grid System
• Participated in a world-wide 20TB data production
  for HLT studies
• US CMS delivered key components IMPALA, DAR
• Made available large data samples (Objectivity
  and nTuples) to the physics community
• ? successful submission of the CMS DAQ TDR
• Worked with Grid Projects and VDT to harden
  middleware products
• Integrated the VDT middleware in CMS production
  system
• Deployed Integration Grid Testbed and used for
  real productions
• Decoupled CMS framework from Objectivity
• allows to write data persistently as ROOT/IO
  Files
• Released a fully functional Detector Description
  Database
• Released Software Quality and Assessment Plan

47
USCMS Contributions to CMS Software

• Contributions to CMS Manpower in Computing and
  Core Software (CCS)
• CERN Members State contributions mainly coming in
  through LCG AA
• The U.S. is providing a fair share contribution

48
US Contribution to CMS Production

• Contribution in events produced
• This is not a complete metric, but gives a good
  indication
• US CMS is providing a fair share of the CMS
  resources forsimulations to support trigger and
  physics studies

events high lumi pile-up
events simulated
49
Grid Testbeds And Production Grids

• Grid Testbeds Research, Development and
  Dissemination!
• LHC Grid Testbeds first real-life large Grid
  installations, becoming production quality
• Strong Partnership between Universities, Labs,
  with Grid (iVDGL, GriPhyN, PPDG) and Middleware
  Projects (Condor, Globus)
• Strong dissemination component, together with
  Grid Projects
• E.g. U.S. CMS Testbed
• Caltech, UCSD, U.Florida, UW Madison, Fermilab,
  CERN

50
High Level Milestones FY03

• Integration Grid Testbed deployed, running PRS
  production
• October 2002, Done
• SC2002 demonstration of Grid distributed
  production and WorldGrid
• November 2002, Done
• review of SC2002 demo, promotion and termination
• December 2002, Done
• Farm Configuration Definition and Deployment
• February 2003., being release now
• Fully Functional Production Grid on a National
  Scale
• February 2003, delayed by 1 Months due to lack of
  available effort (but on track)
• Migration of TestBed functionality to Production
  Facilities
• March 2003, in progress
• Start of LCG 24x7 Production Grid,
• June 2003 -- definition from the LCG/GDB has been
  received during this month
• Start of CMS DC04 production preparation, PCP04
• July 2003
• Running of DC04
• Feb 2004

51
Resource Expectations for Data Challenge 04
52
Bare Bones Plan Top-Down

• As a response to the revised funding guidance
  defined a Bare Bones project plan
• Continue to deliver SC engineering support to
  CCSkeep this effort constant over the next 2
  years, instead of ramping further
• However, CMS Software is about 12 months behind
  due to past severe understaffing
• CMS needs the US (and CERN etc) man power to work
  with the LCG Applications Area,
• Contingencies if any will possibly develop in
  course of joining forces with ATLAS et al
• Ensure the US CMS system of Regional Centers is
  ready for the Data Challenges(finally!) ramp the
  Tier-1 effort to the required level of 13 FTE in
  FY2003
• Starting at 6 FTE now, need to ramp to 13 FTE to
  fully participate in the Data Challenges
• The Bare Bones plan should enable US CMSto
  become part in the LCG Production Grid
  milestone during 2003
• Can participate in DC04 and 10 Data Challenges,
  will try to pull in as much as we can from Grid
  projects
• Modest hardware procurements for Tier-1 and
  Tier-2 centers
• Typically 500k/year in FY2003, FY2004
• Need more (700k) in 2005 (latest) for
  participation in 10 challenge, RC TDR
• Start the deployment phase late in 2005
• Then need to start hiring or re-assigning
  facility support people at the Tier-1
• Start pilot implementation of US Tier-2

53
Conclusions on US CMS SWC

• US CMS SC Project is delivering a working Grid
  environment, with a strong participation of
  Fermilab and U.S. Universities
• We need to do a lot more RD to build the system
  for physics
• Our customers (CCS, PRS and US CMS Users) are
  happy (last time we were asking), but need and
  want more support
• US CMS is driving the US Grid integration and
  deployment work
• We have a unique opportunity to bring in our
  ideas of doing science in a global and open
  international and collaborative environment
• Proposal to the NSF ITR solicitation to Globally
  Enable Analysis Communities
• That goes beyond the LHC and even HEP
• US CMS has shown that the US Tier-1/Tier-2 User
  Facility system can indeed work to deliver
  effort and resources to US CMS!
• We definitely are on the map for LHC computing
  and the LCG
• With the funding advised by the funding agencies
  and project oversightwe will have the manpower
  and equipment at the lab and universities to
  participate in strongly in the CMS data
  challenges,
• bringing the opportunity for U.S. leadership into
  the emerging LHC physics program

54
US LHC and the RP
US CMS has made a survey of intent. It appears US
CMS will grow by a factor 2 by FY07. In
addition, new groups will join before first
beam. We would like to have the flexibility to
plan for these additional physicists.
55
Cost Estimates for the RP
The US CMS community has carefully estimated and
scrubbed the costs for the Research Program. The
US CMS community estimates that more support is
needed in FY07 and beyond. Present planning
within the guidance provided in the Budget
Authority delays RD for upgrades, slows the SWC
ramp up (bare bones), and reduces the contingency
fund to a level which limits management agility.
56
Research Program - BA
NSF has given new guidance. Starting in FY03, the
NSF plan is to ramp to 12.5 M for US CMS in 5
steps of 2.5 M each. New DOE guidance helps 04
and 05. The scrubbed MO and bare bones SWC is
still tight in FY03. In FY04 we might be able to
increase SWC, add Tier 2 PAC support, etc.
57
NSF MRE -gt Ops !
This is a great accomplishment and the investment
of NSF in the future shows confidence.
58
P5 and the LHC Upgrades
Construction Projects
Research Program
P5
RD in support of Upgrades
e.g. Advanced Detector Research - Trigger
proposal for high L
Prepare TDR for major Upgrade of LHC and/or
detectors
59
Issues

• The ramp up of the RP is crucial. FY03 and FY04
  will either get us a good start on preparation
  for Physics or we will drop the ball on Data
  Challenges and the Physics TDR.
• A firm commitment by NSF and DOE is absolutely
  necessary if we are to plan rationally. The MO
  Evaluation Group and SWC Reviews is a start.

60
Summary

• US CMS is on schedule and on budget for the
  Detector Construction.
• CERN and CMS appear to be holding schedule. Beam
  in 2007 with luminosity 1/10 design is quite
  thinkable.
• For the RP, CD4 is altered, BA is known up to
  increments. The ML use the CMS schedule. Start
  FY02 tracking of the RP under SOW agreements for
  MO and SWC. The RP has been (over)scrubbed.
• A cornucopia of Physics awaits us and we need to
  be ready for the harvest.

61
LHC Physics - Priority
HEPAP Subpanel on Long Range Planning Report puts
a high priority on the Physics of the LHC (all
quotes in this talk are from the Subpanel Report).
62
LHC Computing Grids
The IT tools developed for LHC physics analysis
are and will be vital to the advancement of
global science. Grid computing will make a major
impact in many areas of business and commerce.
The leading role of LHC was recognized in the
HEPAP Subpanel Report.
63
Results Silicon Pixel Sensors
New submission has improved average pixel
breakdown voltage by 200 V (before irradiation).
Purdue
Daniela Bortoletto Purdue University
NEW SUBMISSION
OLD SUBMISSION
D/cms\project\base request\2003\sent dg.ppt
64
Brugge Winding Machine
Repaired and CMS cable completed
65
US Tasks
20 cm
6,000 Tracker Outer Barrel (TOB)
modules constructed at FNALUCSB FNAL and UCSB
will have equal capabilities and capacity
66
Test Setup CMS Pixel Readout
Computer Control Clock/Trigger
Generation. Early FEC Prototype
Readout Chip
VHDI
FPGA TBM
Power Distribution
Rutgers
D/cms\project\base request\2003\sent dg.ppt
67
EB Bare Modules at CERN
68
ECAL Transducers - APDs
65,000 APDs delivered from by Hamamatsu half-way
there. Testing, qualification and selection in
steady state. Rejection rate after delivery now
down to 3 from 7 for first 20,000.
69
DA Q -EVB Demonstrator
EVB demonstrator in Lab 32 323211 PCs
(RUBUEVMRCS) Myrinet 2000 128 port Clos
switch GB Ethernet 64 port FastIron 8000
70
US CMS387 Members from 38 Institutions
New groups - due to SiTrkr and ECAL scope
increases and other natural growth. FIT added.
FIU and Yale (Zeller) applying.
71
NSF Summary for FY99-FY02
We have a plan of BCWS which, as yet, does not
saturate the NSF total BAC. We must work hard to
spend out the MRE in FY03.
HPD
ADC
Align
72
Research Program - Upgrades
HEPAP Subpanel Report gives strong support to LHC
Upgrades. The present Budget Authority makes
strong Upgrade RD impossible in a timely
fashion. Note that an upgrade is a very cost
effective way to maximize the Physics output of
the pre-existing LHC complex
73
LHC Physics and Upgrade
In general mass reach is increased by 1.5 TeV
(25 ) for Z, heavy SUSY squarks or gluinos or
extra dimension mass scales. A 20 measurement
of the HHH coupling is possible for Higgs masses
from 150 to 200 GeV. However, to realize these
improvements we need to launch the necessary
accelerator RD and maintain the capabilities of
the LHC detectors by upgrading them in a modest
fashion.
74
NSF Tracking
NSF Tracking has been brought up to date. Since
the MRE ends in FY03, this is crucial progress.
This resulted in an EAC increase.
75
Extended Surface Phase
Additional costs part of C I
Objectives channel test of HV/LV burn-in of
electronics flushing gas readout test of ?10
of sub-detector (HB, HE, HO, HF,MB,ME, RB etc)
vertical slice tests with test-beam DAQ
prototype final DAQ
CMS supports the slice concept. CMS is taking
responsibility for the SX5 infrastructure. US CMS
will be doing MO in SX5 in 03
76
Topics for Physics TDR?
