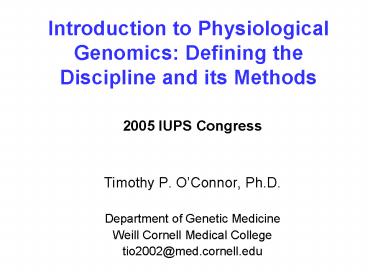

Introduction to Physiological Genomics: Defining the Discipline and its Methods

1
Introduction to Physiological Genomics Defining
the Discipline and its Methods

• 2005 IUPS Congress
• Timothy P. OConnor, Ph.D.
• Department of Genetic Medicine
• Weill Cornell Medical College
• tio2002_at_med.cornell.edu

2
Topics to be Covered

• Terminology jargon
• Potential applications of genomics
• Tools and methods
• Microarrays
• Online resources
• (SNP chips)
• Examples of studies
• Thoughts on incorporating genomics into a
  curriculum

3
What is Physiological Genomics?

• Physiological genomics is the study of the
  functioning of gene products in the context of
  the whole organism and its environment.

4
Multi-dimensional Integrative Physiology
See Figure 2 from Liang et al. Journal of
Physiology 554 22-30, 2003 http//jp.physoc.org/c
gi/content/full/554/1/22 Free access
5
Large Scale Approaches

• Genomics
• Functional genomics
• Proteomics The identification, characterization
  and quantification of all proteins involved in a
  particular pathway that can be studied in concert
  to provide accurate and comprehensive data about
  that system.
• Metabolomics characterization of the
  physiological state of a sample by determining
  the concentration of all the small molecules that
  contribute to metabolism
• Genotyping (SNP) chips

6
Large Scale Approaches Genomics and Functional
Genomics

• Genomics
• Determining the sequences of the genome of an
  organism and ordering these sequences into
  individual genes, gene families, and chromosomes
• Identification of coding sequences as well as
  regulatory elements
• Determining the patterns of gene expression (gene
  expression profiles or signatures)
• Functional genomics
• Understanding the biological role of each gene
• Mechanism underlying the regulation of gene
  expression
• Regulatory interactions among genes
• Identifying the functional transcriptome

7
Challenge of Functional Genomics

• Capacity for collecting data has surpassed the
  data analysis techniques, and it is only getting
  worse
• Converting data (information) into knowledge is a
  bottleneck
• Currently requires expertise and a
  labor-intensive hands-on approach
• Ultimate goal is to provide more automation to
  the process of knowledge discovery

8
Lag Between Functional and Genomics
Source UC Davis Genomics Initiative, Technical
Report, 2001
9
Bioinformatics

• Bioinformatics helps bridge the gap between
  functional and genomics
• Field at the interface of computer science,
  statistics, and biology
• Goal of the field is to refine and organize
  biological information into biological knowledge
  using computers

10
Gene Expression Patterns

• Genes are expressed when they are copied into
  mRNA or RNA (transcription)
• Differential gene expression which genes are
  expressed in which cells or tissues at a given
  point in time or in the life of the organism.
• Total RNA can be isolated from cells or tissues
  under different experimental conditions and the
  relative amounts of transcribed RNA can be
  measured
• The change in expression pattern in response to
  an experimental condition, environmental change,
  drug treatment, etc. sheds light into the dynamic
  functioning of a cell

11
What is a microarray?

• A tool for analyzing gene expression that
  consists of a small membrane or glass slide
  containing samples of thousands of genes arranged
  in a regular pattern.

12
The Boom of Microarray Technology Number of
Publications with Affymetrix Chips
1200
1000
800
Number of publications
600
400
200
0
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
2002
2003
Year
13
Whats the Point?

• Large scale (genome-wide) screening
• Eliminate bias of pre-selecting candidate genes
• Test multiple hypotheses simultaneously
• Generate new hypotheses by identifying novel
  genes associated with experiment
• Identify novel relationships/patterns among genes

14
Applications of Microarray Technology

• Gene expression profiling
• In different cells/tissues
• During the course of development
• Under different environmental or chemical stimuli
• In disease state versus healthy
• Molecular diagnosis
• Molecular classification of diseases
• Drug development
• Identification of new targets
• Pharmacogenomics
• Individualized medicine

15
Types of Microarrays

• Spotted DNA arrays (cDNA arrays)
• Developed by Pat Brown (Stanford)
• PCR products (or long oligos) from known genes
  (100 nt) spotted on glass, plastic, or nylon
  support
• Customizable and off the shelf
• Oligonucleotide arrays Affymetrix Gene Chips
• Large number of 20-25mers/gene
• Enabled by photolithography from the computer
  industry
• Off the shelf
• Ink-jet microarrays (Agilent)
• 25-60mers printed directly on glass
• Four cartridges A, C, G, and T

16
Challenges in Microarray Studies

• What are the difficulties?
• Many potential sources of random and systematic
  measurement error in the microarray process

• Examples
• Experimental design
• Hypothesis testing vs. exploratory fishing
  expedition
• Statistical Analysis
• Small number of samples compared to large number
  of variables (genes) leads to problems with false
  positives
• Data mining
• Annotated lists
• What is the function of the differentially
  expressed genes?
• Extensive use of online resources

17
How to Add Functional to Genomics?

• Some automated annotations
• NetAffx www.affymetrix.com
• Batch query with list of gene IDs
• Lots of hands-on annotating, one gene at a time,
  using online databases
• Entrez www.ncbi.nlm.nih.gov
• GeneCards http//bip.weizmann.ac.il/g.html
• Can try this out with public databases
• GEO gene expression omnibus via NCBI

18
GEO Public Database Example
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Clinical Relevance
32
Gene Expression Signature as a Predictor of
Survival
See figures from van de Vijver et al. New England
Journal of Medicine 347 1999-2009,
2002 http//content.nejm.org/content/vol347/issue2
5/index.shtml Subscription access
33
Summary Present and Future Use of Physiological
Genomics

• Molecular diagnosis
• Redefining disease
• Discovery of new targets for therapeutic
  intervention
• Pharmacogenomics
• Variable drug effects depending on individual
  profiles
• Multi-dimensional integrative physiology for
  applications in any subdiscipline
• Comparative physiology
• Ecological physiology
• Evolutionary physiology

34
Multi-dimensional Integrative Physiology
See Figure 2 from Liang et al. Journal of
Physiology 554 22-30, 2003 http//jp.physoc.org/c
gi/content/full/554/1/22 Free access
35
Thoughts on incorporation of genomics into
curriculum

• Advantages
• availability of public databases containing real
  data
• basic analyses can be done with Excel
• outstanding online databases for annotating gene
  lists
• Challenges
• not effective if boiled down to a lab exercise or
  2
• how to effectively convey the integrative
  potential when you might be working at only 1
  level

36
Useful References

• King, H.C. and A.A. Sinha, 2001. Gene expression
  profile analysis by DNA microarrays. JAMA,
  2862280-2288
• Duggan, D.J. et al., 1999. Expression profiling
  using cDNA microarrays. Nature Genetics Supp.
  2110-14.
• Lipshutz, R.J. et al. 1999. High density
  synthetic oligonucleotide arrays. Nature Genetics
  Supp. 2120-24.
• Hackett, N.R. et al., 2003. Variability of
  antioxidant-related gene expression in the airway
  epithelium of cigarette smokers. Am. J. Respir.
  Cell Molec. Biol. 29331-343.
• Cowley Jr., A.W. 2003 Physiological genomics
  tools and concepts. J. Physiol. 5543.
• Liang et al. 2003. High throughput gene
  expression profiling a molecular approach to
  integrative physiology. J Physiol. 554 22-30.

37
Useful Websites

• www.ncbi.nih.gov/About/primer/
• NCBIs primer on arrays, SNPs, molecular
  genetics, pharmacogenetics, etc.
• www.affymetrix.com
• Useful information about new microarrays and
  publications using Affy chips
• NetAffx tools for automated annotations
