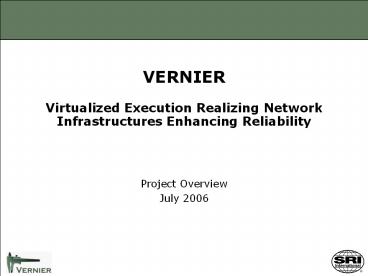

VERNIERVirtualized Execution Realizing Network
Infrastructures Enhancing Reliability

• Project Overview
• July 2006

2
Background

• Commercial-off-the-shelf (COTS) software
• Large organizations, including DoD, have become
  dependent on it
• Yet, most COTS software is not dependable enough
  for critical applications
• Security breaches
• Misconfiguration
• Bugs
• Large, homogeneous COTS deployments, such as
  those in DoD, accentuate the risk, since many
  users
• Experience the same failures caused by the same
  vulnerabilities, configuration errors, and bugs
• Suffer the same costly, adverse consequences
• Alternatives, such as government-funded
  development of high-assurance systems present
  significant barriers in
• Cost
• Functionality
• Performance

3
VERNIER Project Objectives

• Develop new technologies to deliver the benefits
  of scaling techniques to large application
  communities
• Provide enhanced survivability to the DoD
  computing infrastructure
• Enhance the cost, functionality, and performance
  advantages of COTS computing environments
• Investigate and develop new technologies aimed at
  enabling communities of systems running similar,
  widely available COTS software to perform more
  robustly in the face of attacks and software
  faults
• Deliver a demonstrated, functioning,
  transition-ready system that implements these new
  AC survivability technologies
• Technical approach Augmented virtual machine
  monitor
• Commercial transition partner VMware, Inc.

4
Project Scope

• Collaborative detection and diagnosis of failures
• Collaborative response to failures
• Advanced situational awareness capabilities
• Collective understanding of community state
• Predictive capability Early warning of potential
  future problems
• Key goal turn the size and homogeneity of the
  user community into an advantage by converting
  scattered deployments of vulnerable COTS systems
  into cohesive, survivable application communities
  that detect, diagnose, and recover from their own
  failures
• What COTS?
• Microsoft Windows, IE, Office suite, and the like

5
Research Challenges

• Extracting behavioral models from binary programs
• Breakthrough novel techniques required
• Quasi-static state analysis for black-box
  binaries
• Scaled information sharing
• Networked application communities sharing
  knowledge about the software they run
• Intelligent, comprehensive recovery
• Predictive situational awareness
• Automatic, easy-to-understand gauges

6
Breakthrough Capabilities
7
Expected Results and Impact

• COTS Product (VMware) with breakthrough
  capabilities for application communities
• Scalability to 100K nodes running augmented
  VMware and custom Vernier software
• Automatic collaborative failure diagnosis and
  recovery
• Survivable robust system
• Community-aware solution

8
VERNIER Team

• SRI International, Menlo Park, CA
• Patrick Lincoln, Principal Investigator
• Steve Dawson, Project manager integration
• Linda Briesemeister, Knowledge sharing
  collaborative response
• Hassen Saidi, Learning-based diagnosis code
  analysis situation awareness
• Stanford University
• John Mitchell, Stanford PI code analysis
  host-based detection and response
• Dan Boneh, Knowledge sharing protocols
• Mendel Rosenblum, VMM infrastructure
  collaborative response transition liaison
• Alex Aiken, Quasi-static binary analysis
• Liz Stinson, Botswat system security
• Palo Alto Research Center (PARC)
• Jim Thornton, PARC PI configuration monitoring
  and response situation awareness
• Dirk Balfanz, Community response management
• Glenn Durfee, Configuration monitoring and
  response situation awareness
• Technology transition partner VMWare, Inc.

9
VERNIER Technical Approach
10
Notional Host System Architecture
11
An Abstraction-Based Diagnosis Capability for
VERNIER
12
Objectives

• Based on the general principle much of security
  amounts to making sure
• that an application does what it is suppose to
  do.. and nothing else!
• Build models of applications behaviors (what the
  application is suppose to do).
• Monitor applications behavior and report
  malfunctions and unintended behaviors (deviations
  from behavior).
• Use the recorded execution traces as raw data to
  a set of abstraction-based diagnosis engines (why
  did the deviation from good intended behavior
  occurredto the extent to which we can do a good
  job answering such question).
• Share the state of alerts and diagnosis among the
  nodes of the community (sharing the bad news.but
  also the good ones!).
• Aggregate the diagnosis outputs and the alerts
  into a situation awareness gauge.

13
Approach

• We combine a set of well known and well
  established techniques
• building increasingly accurate models of
  applications behaviors
• Static analysis combined with predicate
  abstraction to build Dyck and CFG models used for
  static analysis-based intrusion detection
• Implement mechanisms for monitoring sequences of
  states and actions of an application for the
  following purposes
• Check if a known bad sequence is executed
  (signature-based!)
• Check for previously unknown variations of known
  bad sequences (correlation!)
• Find root-causes for unexpected malfunction and
  malicious exploits (Diagnosis)
• Diagnosis is performed using techniques borrowed
  from
• Delta-debugging (root-cause diagnosis)
• Anomaly detection (correlation)
• The situation awareness gauge is implemented as a
  platform independent web interface

14
Monitoring-Based Diagnosis

• We combine these techniques into two phases
• Monitoring Applications are monitored and
  sequences of executions along with configurations
  are stored.
• Diagnosis Differences between good runs and bad
  runs are the first clues used for diagnosis
• Traces of executions are sequences of
• System calls
• Method calls
• Changes in configurations
• The more information is stored, the better chance
  that malfunctions and malicious behaviors are
  properly diagnosed.

15
Quasi-static binary analysis and predicate
abstraction-based intrusion detection

• Use static analysis for recovering the control
  flow graph the application.
• CFG generated by compliers for source code.
• Recover class hierarchy for object code of OO
  applications.
• Build a pushdown system which is a model that
  represents an over approximation of the sequences
  of methods and system calls of the application.
• Deal with context sensitivity to match exit calls
  to return locations.
• Use predicate abstraction and data flow analysis
  to refine the pushdown system and obtain a more
  accurate model.
• Improving the knowledge about arguments to
  monitored calls.

16
Better Models and Better Monitoring

• We are not just interested in detection
  intrusions, but by
• also generating high-level explanations of why an

• application deviates from its intended behavior.
• CFG and Dyck models are all over-approximations
  of the applications behavior (potential attacks
  are only discovered when the application behavior
  deviates from the model).
• We will use the runs of the application to
  generate under-approximations of the applications
  behavior!
• Alternatively, ever model representing an
  over-approximation has a dual that represents an
  under-approximation (over and under-approximations
  dont have to be the same type of models!).
• We will combine over and under approximation to
  reduce the risk of missing possible attacks.
• We will refine the over and under approximations
  to improve the application model.

17
Combining over and under approximations
Over approximation (constructed by static
analysis)
Under approximation (constructed from runs)
18
What if we dont have a model of the application?

• We can monitor the application as a blackbox and
  intercept system calls
• Learn a model of good behaviors
• Learn a model of bad behaviors
• Anomalies are difference between good and bad
  behaviors
• Borrow from delta-debugging techniques to find
  root-causes of misbehaviors

19
Configuration-based Detection, Diagnosis,
Recovery, and Situational Awareness
20
Importance of Configuration

• Static configuration state highly correlated with
  system behavior
• Many attacks/bugs/errors introduced by way of a
  substantive change to configuration
• A central problem in system administration is
  the construction of a secure and scalable scheme
  for maintaining configuration integrity of a
  computer system over the short term, while
  allowing configuration to evolve gradually over
  the long term Mark Burgess, author of cfengine

21
AC Opportunity

• Leverage scale of population to learn what are
  bad states in configuration space

Today Every configurationchange is an
uncontrolledexperiment
AC Future Configurationchanges managed as
controlledreversible trials
22
Live Monitoring of Configuration State

• State analysis
• Comparative diagnosis
• Vulnerability assessment
• Clustering similar nodes and contextualizing
  observations
• Detect change events
• Cluster low-level changes into transactions
• Log events for problem detection, mitigation and
  user interaction
• Share events in real-time for situational
  awareness
• Active learning
• Automated experiments to isolate root causes
• Managed testing of official changes like patch
  installation

23
Live Control of Configuration State

• Modification for Reversibility and
  Experimentation
• Coarse-grained VM rollback
• Medium-grained Installer/Uninstaller activation
• Fine-grained Direct manipulation of low-level
  state elements
• Prevention
• In-progress detection of changes
• Interruption of change sequence
• Reversal of partial effects

24
Identifying Badness

• Objective Deterministic Criteria
• Rootkit detection from structural features
• Published attack signatures
• Objective Heuristic Criteria
• Performance outside of normal parameters
• Subjective End-User Report
• Dialog with user to gather info, e.g. temporal
  data for failure appearance
• Administrative Policy
• Rules specified by administrators within community

25
Local Components
Community
3
App VM
VERNIER VM
Experimental VM
COTS
Console(UI)
Comm
Diag
App 1
App 2
App 1
App 2
Agent
Agent
VERNIER Monitor/Control
1
1
App OS
App OS
VERNIER OS Base
2
VMM (VM Kernel)
26
Key Interfaces
VERNIER-Agent (TCP/IP, XML?) Registry change
events Filesystem change events Install
events Manipulate registry Manipulate
filesystem Control System Restore
VERNIER-VMM (?) Suspend Resume Checkpoint Revert C
lone Reset Lock memory Process events Read
memory Read/write disk
1
2
3

• VERNIER-Community
• (?)
• Cluster management
• Experience reports
• Unknown
• Prevalent
• Known Bad
• Presumed Good
• State exchange
• Experiment request/response

27
Local Functions
NetworkTap
Communication Manager
Console
ResponseController
Analysis Diagnosis
Configuration Analysis
AgentInside
Event Stream
BehaviorAnalysis
TrafficAnalysis
Local DB Local condition detail Event
logs Labeled condition signatures State
snapshots Experimental data
VMM
Firewall
28
Adapting and Extending Host-based, Run-time Win32
Bot Detection for VERNIER
29
Exploit botnet characteristic ongoing command
and control

• Network-based approaches
• Filtering (protocol, port, host, content-based)
• Look for traffic patterns (e.g. DynDNS Dagon)
• Hard (encrypt traffic, permute to look like
  normal traffic, ) botwriters control the
  arena.
• Host-based approaches
• Ours Have more info at host level.
• Since the bot is controlled externally, use this
  meta-level behavioral signature as basis of
  detection

30
Our approach

• Look at the syscalls made by a program
• In particular at certain of their args our
  sinks
• Possible sources for these sinks
• local mouse, keyboard, file I/O,
• remote network I/O
• An instance of external control occurs when data
  from a remote source reaches a sink
• Surprisingly works really well for all bots
  tested (ago, dsnx, evil, g-sys, sd, spy), every
  command that exhibited external control was
  detected

31
Big picture
32
Design
33
Two modes

• Cause-and-effect semantics
• Tight relationship between receipt of some data
  over network and subsequent use of some portion
  of that data in a sink
• Correlative semantics looser relationship
• Use of some data that is the same as some data
  received over the network
• Why necessary?

34
Behaviors ideally disjoint_at_ lowest level in
call stack
35
Correlative semantics

• Why necessary
• Why bots with C library functions statically
  linked in unconstrained OOB copies
• In general almost as good as cause-and-effect
  semantics (stat vs. dyn link)
• Exceptions cmds that format recvd params (e.g.
  via sprintf)

36
Benign program testing

• Tested against some benign programs that interact
  with the network
• Firefox, mIRC, Unreal IRCd
• 3 contextual false positives
• IRCd sent on X heard on Y
• Firefox dereferencing embedded links
• Artificial false positives quite a few
• mIRC DCC capabilities
• Firefox saving contents to a file,

37
False positives

• contextual false positives not present in bots
• external control heuristic correctly detected but
  these actions under these circumstances widely
  accepted as non-malicious
• artificial false positives not present in bots
• def of external control implies no user input
  agreeing to particular behavior
• but we dont track explicitly clean data (that
  received via kb, mouse)
• spurious false positives
• any other incorrect flagging of external control

38
Our mechanism review

• Single behavioral meta-signature detects wide
  variety of behaviors on majority of Win32 bots
• Resilient to differences in implementation
• Resilient in face of unconstrained OOB copies
• Resilient to encryption w/some constraints
• Resilient to changes in command-and-control
  protocol (e.g. from IRC to HTTP) and parameters
  (e.g. for rendezvous point)

39
Knowledge Sharing in VERNIER
40
Knowledge Sharing

• Need Communication is the core concept of a
  community
• Application communities rely on ability to share
  knowledge Reliable, Efficient, Authentic, Secure
• Approach two-tier peer-to-peer platform
• Tuple space (ala Linda)
• Considering JavaSpaces implementation of tuple
  spaces
• Two-tier for better scalability
• If needed, hypercube hashtable index (ala
  Obreiter and Graf)
• Benefits Reliable, efficient (local) knowledge
  sharing
• Competition Other possible methods for knowledge
  sharing include explicit messaging, centralized
  database, and statically indexed knowledge
  structures.
• Other approaches lack scalability, are
  unreliable, and can bedifficult to secure

41
Knowledge Sharing Levels

• Lower level (within a cluster)
• Tuple space (ala Linda (Gelernter))
• Simple queries
• (, name, ) returns records regarding name
• Concurrent access and update
• Higher level (supernodes)
• Nodes aggregate knowledge of an entire cluster
• Use abstraction to summarize current situation
• Application-level multicast to push out summaries
• Supernode pushes all summary updates into local
  tuple space

42
Group Communication

• Group communication is key
• For higher level, certain usual assumptions
• Reliable delivery
• Ordered message delivery
• Spread (www.spread.org) as a basis for
  implementation of group communication
• Building on secure spread and progress software
  (progress.com)s more secure, reliable, scalable
  variants of spread

43
Group Communication Security and Privacy
Secrecy and Authenticity

• Security and privacy are critical aspects of
  VERNIER
• Must authenticate reports and ensure correctness
• Confidentiality of reports
• Protecting user privacy (my files, my keystrokes)
• Protect aspects of applications
• Protect configuration information
• Protect vulnerability detection information
• Community members send status reports to local
  supernode
• Reports propagated throughout network

44
Group Communication Security

• Defense against
• network attacks sending forged messages to
  supernodes
• PKI
• Compromised community member sending false
  reports
• statistical anomaly detection (eg EMERALD)
• Virtualization
• Any report generated within compromised virtual
  machine must be consistent with what is observed
  outside the virtualization layer

45
Group Communication Security

• Secure audit logs
• Secure log of all P2P status reports
• Enable post-mortem analysis on detected attacks
• Cryptographic protection of log (Boneh, Waters)
• Sanitizing stats reports
• Status reports reveal private information
• Special encryption enabling read only by
  credentialed membersand search (as in search
  over encrpyted database) by community
• Mitigating denial of service attacks on
  supernodes
• Re-election of supernodes when under attack
• Securing configuration update messages
• PKI authenticating legitimate reports from
  community members

46
Schedule, Experimentation, and Evaluation
47
Schedule and Milestones
48
Experimentation and Evaluation

• Project testbed
• Network of 300 virtual hosts
• 30 server-class physical hosts
• 10 virtual nodes per server
• Three clusters, one at each participant site
• Software
• Host OS Linux
• Guest (community) OS Microsoft Windows
• Applications IE browser (possibly others) MS
  Office
• Simulations and scalability
• Financially infeasible to scale to thousands of
  nodes
• Plan is to use hybrid simulation to test
  scalability
• Real (live) nodes provide actual data
• Simulated nodes use synthesized data generated by
  perturbing data collected from real clusters
  supernodes

49
Proposed Success Criteria

• Metrics and targets (team-defined)
• False positives (FP) / False negatives (FN)
• Phase 1 FP lt 10, FN lt 20
• Phase 2 FP lt 1, FN lt 2 (order of magnitude
  improvement)
• Percent loss of network availability
• Phase 1 At most 20 per node, with at most 80
  over any 500ms interval
• Phase 2 At most 5 per node, with at most 20
  over any 500ms interval
• Average time to recovery
• Phase 1 Assuming a fix exists (not a FN), at
  most 30 minutes to recover the entire community
• Phase 2 At most 10 minutes
• Average network and computational overhead
• No more than 30 slowdown for applications
• No more than 100 KB/s average VERNIER-induced
  network traffic per node
• Percent accuracy of prediction
• Phase 1 Effects of problems predicted within 15
  minutes of onset set of nodes wrongly predicted
  (either way) differs by no more than 40 of
  actual
• Phase 2 Prediction within 5 minutes predicted
  set differs by no more than 20
