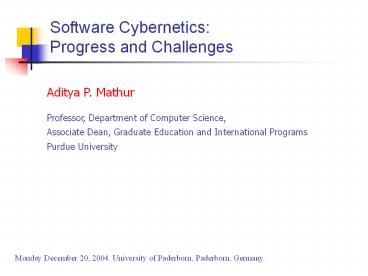

Software Cybernetics: Progress and Challenges

1
Software CyberneticsProgress and Challenges
Aditya P. Mathur Professor, Department of
Computer Science, Associate Dean, Graduate
Education and International Programs Purdue
University
Monday December 20, 2004. University of
Paderborn, Paderborn, Germany.
2
Cybernetics

• n the field of science concerned with
  processes of communication and control
  (especially the comparison of these processes in
  biological and artificial systems)

3
Software Cybernetics

• n the field of science concerned with
  processes of communication and control in
  software systems.

4
Sample Problems

• Control of the software test process
• How much and what additional effort is to be
  applied to achieve the desired quality objective
  under time/cost constraints?

Optimal selection of tests What is an optimal
set of tests for achieving the desired quality
objective given time constraints?
5
Sample Problems (continued)

• Software performance control
• How best to adjust software parameters so that
  an optimal level of performance is maintained?

Control of the software development
process What is an optimal set of process
variables required to achieve delivery objectives
within cost/time constraints?
6
Approaches

• 1. Use instinct and experience.

2. Use (1) supported by quantitative tools.
(a) Use simulation forward approach.
(b) Use simulation forward approach.
(c) Use (a) plus feedback control inverse
approach.
7
Closed Loop (feedback) Control
Specifications
Program
8
Sample Problem Scenario
cpi check point i
9
Our Approach

Initial Settings (wf,?)
rerror(t)
Controller
Test Manager

rexpected(t)
wf workforce ? quality of the test process
10
Decision Support via Feedback
Actual Process
11
Challenges (Sources of difficulty)
Physical Logical (software)
Laws of physics Yes No
Object controlled Physical Logical (and Humans)
Time dependence Stationary and non-stationary Non-stationary
Rate of change Very slow to very fast Slow
Parameter variability Relatively low High

12
Overcoming the challenge Understanding the
problem

• Partnership amongst researchers and
  practitioners.
• Is the problem real?
• Are the existing solutions adequate?

13
Overcoming the challenge Solving the problem

• Parternership amongst researchers and
  practitioners.
• Develop realistic models
• Develop parameter estimation methods.
• Develop ways to incorporate parameter estimation
  into the development process.

14
Details and Case Studies

• Razorfish
• Guidant Corporation
• Sun Microsystems

15
Physical and Software Systems An Analogy
Dashpot
External force
To err is Human
Rigid surface
Spring
Xequilibrium
16
Physical Systems Laws of Motion 1
First Law Every object in a state of uniform
motion tends to remain in that state of motion
unless an external force is applied to it.
Does not (seem to) apply to testing because the
number of errors does not change when no external
effort is applied to the application.
17
Physical Systems Laws of Motion 2
Newtons Second Law The relationship between
an object's mass m, its acceleration a, and the
applied force F is F ma.
18
Physical Systems Laws of Motion 3
Third Law For every action force, there is an
equal and opposite reaction force.
When an effort is applied to test software, it
leads to (mental) fatigue on the tester.
Unable to quantify this relationship.
19
CDM First Postulate
The magnitude of the rate of decrease of the
remaining errors is directly proportional to the
net applied effort and inversely proportional to
the complexity of the program under test.
This is analogous to Newtons Second Law of
motion.
20
CDM Second Postulate
Analogy with the spring
The magnitude of the effective test effort is
proportional to the product of the applied work
force and the number of remaining errors.
Note While keeping the effective test effort
constant, a reduction in r requires an increase
in workforce.
for an appropriate ?.
21
CDM Third Postulate
Analogy with the dashpot
The error reduction resistance is proportional to
the error reduction velocity and inversely
proportional to the overall quality of the test
phase.
for an appropriate ?.
Note For a given quality of the test phase, a
larger error reduction velocity leads to larger
resistance.
22
State Model
23
Computing the feedback Question
24
Computing the feedback Answer
From basic matrix theory The largest
eigenvalue of a linear system dominates the
rate of convergence.
Hence we need to adjust the largest eigenvalue of
the system so that the response converges to the
desired value within the remaining weeks (?T).
This can be achieved by maintaining
25
Computing the feedback-Calculations (?max)
Compute the desired ?max
We know that the eigenvalues of our model are the
roots of its characteristic polynomial of the A
matrix.
26
Computing the feedback-Calculations (?max)
27
A Flow Model of Incremental Software
Development/Test
Test Specs
28
Workforce Allocation

• Workforce allocated to particular tasks
• Effort is split across all active tasks

29
State-Model Example Equations

• System State
• Progress
• Feature Coding (fc)
• Code Debugging (dr)
• Test Authoring (ta)
• Test Debugging (td)
• Regression Testing (rr)
• Defect Model
• Development
• Testing

30
Variable Productivity Equation

• Human Productivity
• Workload Dependent (Csikszentmihalyi,88)

• rb Base Work rate
• c Fractional size-dependent increase

• wc Current workload size
• wn Nominal workload size

31
The Productivity Eqns.

• Process Productivity (E.g. Feature Coding)
• Defect Introduction
• Defect Detection (Cangussu et al., 02)

32
Control Strategy

• Model Predictive Control

33
Model Predictive Control

• Select Cost Functional
• E.g.
• Q1,Q2 positive definite
• Calculate
• where Sxk, uk,kP ? xpk,kP
