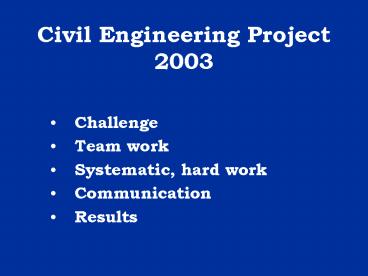

Civil Engineering Project 2003

1
Civil Engineering Project 2003

• Challenge
• Team work
• Systematic, hard work
• Communication
• Results

2
Welcome

• Glenn Dixon Project Manager VicUrban
• Owen Cavanough Engineering Consultant
• Dr Ian Jones Head SES
• A/P Dr Kerry McManus Deputy Head SES
• Cathy Pocknee LTS
• Fiona ODonnell
• Robert Evans
• Dr Rayya Hassan
• Julia Lamborn
• Dr Anne Ng
• Dr Emad Gad
• Phil Watson

3
Presentation - schedule

• Adam Krezel subject overview
• Owen Covenough project overview
• Ashley Cooper TEAM 1 Design 1
• Kisina Sofele TEAM 2 Design 2
• Glenn Dixon presentations conclusions
• The Bistro

4
Civil Engineering Project 2003

• Challenge - different, big, integrated, result
  oriented, time, knowledge
• different - Teacher acts as a project manager
• Students are treated as employees
• big - design team, project
• integrated - earthwork, aggressive soil,
  storm-water, subsoil drain, concrete elements,
  retention basin, pump pit wet-well, bike path,
  bridge
• Hard work
• Communication
• Results

5
Design Brief

• As recognition of exceptional qualities of Civil
  Engineering students from Swinburne University of
  Technology we have been invited to submit a
  tender for the development of stage-1 of the
  Docklands Park at Melbourne Docklands.
•
• The Docklands Authority intends to develop the
  Docklands Park with a wetland and associated
  facilities to collect storm-water for irrigation
  purposes.
•
• The scope of the project comprises of wetlands,
  rising main, stormwater drainage, subsoil
  drainage, pump pits, retention basin and bicycle
  path.
•
• Current proposal plans attached provides for
  80 of required irrigation water demands and cost
  4 M to build.
•
• The Docklands Authority is seeking
  environmentally friendlier, cost effective and
  technically sound alternative to existing design.

6
The Outcomes

• Prepare necessary drawings specifications for
  construction purposes
• Propose / develop construction methods
• Prepare a model of designed system
• Report to the client on 12 November 2003

7
Support Provided

• Existing design
• Site visit construction surveying session
• Design briefings sessions
• Experts consultations
• Schedule for weekly submissions

8
2 design teams

• 6
• groups

6 groups
9
Team - 1
Team - 2
Storm water rising main
Storm water rising main
Sub-soil drainage
Sub-soil drainage
Wetlands
Wetlands
Retention basin
Retention basin
Pump pit pump well
Pump pit pump well
Bike-path
Bike-path
10
Thank YouGood Luck
