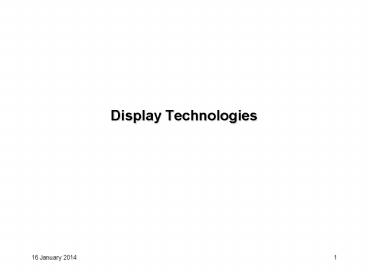

Display Technologies

1
Display Technologies
2
Types of video display

• Cathode Ray Tubes (CRTs)
• TVs, RGB monitors, o-scopes
• Flat-Panel Displays
• PDAs, laptops, calculators, digital watches

3
CRTs
Electrons are fired from a filament, focused,
accelerated, then deflected to a point on the
phosphor coating on the inside of the display
screen
4
Random-scan CRTs
Electron beam is scanned along each line
segment Capable of displaying continuous lines
and very high resolution curves High-end
displays capable of 100k lines per refresh -
also referred as vector display
5
Random-scan CRTs

• Pros
• Excellent for line drawings
• Generally high resolution
• Cons
• Can not display realistic shaded images
• Not capable of color
• Common Example
• Oscilloscopes

6
Raster-scan CRTs
Electron beam is scanned left-to-right,
top-to-bottom Beam retraces to top-left after
reaching bottom-right (vertical retrace) Capable
of displaying continuous range of intensities at
discrete positions High-end displays capable of
4k x 4k _at_ 120 Hz -also referred as scan line
display
7
Raster-scan CRTs
Three electron guns are used, one for each
color The guns are aimed through a mask and onto
colored phosphors Colored phosphors are arranged
in RGB triples dots (delta) RGB
monitors stripes (inline) TVs, Sony Trinitron
8
Raster-scan CRTs

• Pros
• Excellent for varying intensity
• Can display shaded images
• Color
• Cons
• Jaggies
• Common Example
• Televisions

9
Color Models
10
Human Visual System

• The human retina is covered in 2 kinds of
  photoreceptor, rods and cones
• The fovea, densely packed with cones, is
  responsible for detailed color vision

11
RGB color cube

• Coordinate system with R, G, B as axes
• Grayscale axis runs from (0,0,0) to (1,1,1)
• - additive process

12
CMY color model
Coordinate system with C, M, Y as axes useful
for describing color output to hard-copy
devices. Grayscale axis runs from (0,0,0) to
(1,1,1). Color - substractive process.
13

• Jika 1 senapang elektron diwakili oleh 1 bit 0
  atau 1
• bilangan warna 2
• Jika 1 senapang elektron diwakili oleh 2 bit
  00, 01, 10, 11
• bilangan warna 4
• Bilangan warna 2 n (n bilangan bit)
• Jika terdapat 3 senapang elektron, setiap satu
  senapang diwakili 2 bit
• Berapakah bilangan bit?
• Berapa bilangan warna?
• 1 senapang 2 bit? 3 senapang 2x3 6 bit
• Bilangan warna 2 6 64 warna
• Kebiasaannya, kita sebut bilangan bit tanpa
  mengambilkira senapang elektron cth 16 bit warna

• Jika satu sistem mempunyai 16 bit warna.Berapakah
  bilangan warna yang ada ?

14
The Framebuffer
15
Raster-scan review

• Display composed of discrete, addressable points
• picture elements or pixels
• Can control intensity of each pixel
• Pixels can be composed of RGB triples

16
s

• Frame buffer contains all of the pixel values
  (monochrome, gray or color) that describe the
  picture to be displayed on the computer screen.
• It supplies this information to the electron beam
• When the picture changes, the frame buffer is
  updated

0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
0
1
1
1
1
0
1
1
0
0
1
0
0
0
0
0
0
0
0
0
0
Screen monitor
Frame buffer
17
True-color

• 3 channels, 8 bits per channel 24 bits per
  pixel
• Often includes a 4th, non-display, channel
  (alpha) used for image composition 32 bpp
• 256 intensity levels per channel
• 224 total colors
• Sometimes combined with a LUT per channel (gamma
  correction)

18
Indexed-color

• 8 bpp ( typically lt 24bpp)
• Each byte is an index to a LUT (colormap)-
  selection of colors for the particular
  application.
• All 224 colors are available to the colormap, but
  only 28 colors are available to the framebuffer
• Can do animation by swapping colormap entries
• Multiple apps can cause flashing if they try to
  use different colormaps at the same time

19
Color map
Frame buffer
R
B
index
G
0
1
2
10
175
80
00000010

8 bit
255
8bit
8bit
8bit
Color map
20
High-color

• 16 bpp, 5 bits per primary color
• Sometimes the extra bit is given to green
• Limited number of bits per color can lead to
  noticeable quantization effects (color banding
  artifacts) and can be worse than index color in
  certain circumstances

21
Color quantization
Indexed-Color

• True-Color

High-Color
22

• Bilangan warna bagi monitor bergantung kepada
  keupayaan sistem paparan
• Cth
• 1.    Sistem hitam-putih
• 1 bit/piksel -gt 1 atau 0 -gt 2 keamatan warna
•
• 2.    Sistem yang lebih berkualiti
• -         2 bit/piksel -gt 00, 01, 10 dan 11 -gt22
  -gt 4 keamatan warna
• -         8 bit/piksel -gt 28-gt 256 keamatan/
  warna.
• -         24 bit/piksel -gt -gt ?
  keamatan/ warna.
• 256 nilai voltan berbeza bagi setiap senapang
  elektron (28

23
Single-buffered

• Single-buffered mode writes pixels directly into
  active framebuffer memory
• Partial results are therefore visible
• This is especially noticeable when trying to do
  animation

24
Double-buffered

• Double-buffered mode writes pixels into a
  secondary buffer (back buffer), different from
  the buffer currently on display (front buffer)
• When all pixels are written to the secondary
  buffer, an explicit call is made to swap the
  front and back buffers
• The swap is typically done during the displays
  vertical retrace period
• This technique is preferred for interactive
  graphics

0
0
0
0
0
0
0
0
0
0
A
0
0
0
0
A
1
1
1
0
0
0
0
0
0
0
0
1
1
1
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
B
0
1
0
B
1
1
0
0
0
1
0
1
1
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
Contents of Buffer A are displayed Buffer B is
hidden (pixel values are being loaded)
Contents of Buffer B are displayed Buffer A is
hidden (pixel values are being loaded)
25
resolution

• The number of pixels in the horizontal and
  vertical dimension of the screen
• If resolution screen 800 x 600, how many pixel in
  the screen?
• Contoh
• Jika saiz skrin paparan 15 x 10 inci dan
  resolusinya ialah 50 piksel per inci. Berapakah
  bilangan piksel pada skrin tersebut.

26

• Katakan sistem mempunyai/ menggunakan 24
  bit/piksel (true color) dan resolusi monitor
  1024 x 1024 piksel. Saiz penimbal yang diperlukan
  ialah -
•
• 24 x 1024 x 1024 bit
• 24 x 1024 x 1024 bait
• 8
• 24 x 1024 x 1024 KB
• 8 x 1024
• 3 MB.

27
Framebuffer math

• How much memory is needed for a 1024 x 768
  true-color (32 bit) framebuffer
• Single-buffered?

1024 x 768 x 32 bit 3 MB
28
Framebuffer math

• How much memory is needed for a 800 x 600
  index-color (8 bit) framebuffer
• Single-buffered?
• Please calculate yourself

29
Coordinate systems

• Most windowing systems
• OpenGL framebuffer

x
(0,0)
y
y
x
(0,0)
30
Coordinate systems

• Does it matter? No, we just need to be aware of
  the difference
• Where a pixel in the framebuffer will show up on
  screen?
• How do we get the pixel address under the mouse
  pointer?
• Could some other display library have its
  framebuffer lay-out match your windowing system?
  Absolutely. Many do.
• What if all we never directly displayed our
  framebuffer, but wrote it out as an image for
  later display?
• Virtually all image formats use screen-space
  coordinates.
• What if we want to support both?
• Then we have to know when to invert the y-axis.
  When would you do it?

31
Framebuffer coordinates

• Well pick OpenGLs coordinate system.
• Where will these points appear on the screen?
• (0, 0)
• (5, 7)
• (8, 3)

2
