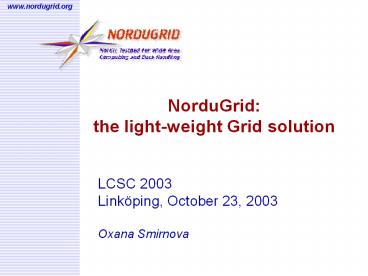

NorduGrid the light-weight Grid solution

• LCSC 2003Linköping, October 23, 2003Oxana
  Smirnova

2
Some facts

• NorduGrid is
• A Globus-based Grid middleware solution for Linux
  clusters
• A large international 24/7 production quality
  Grid facility
• A resource routinely used by researchers since
  summer 2002
• A freely available software
• A project in development
• NorduGrid is NOT
• Derived from other Grid solutions (e.g. EU
  DataGrid)
• An application-specific tool
• A testbed anymore
• A finalized solution

3
Some history

• Initiated by several Nordic universities
• Copenhagen, Lund, Stockholm, Oslo, Bergen,
  Helsinki
• Started in January 2001
• Initial budget 2 years, 3 new positions
• Initial goal to deploy EU DataGrid middleware to
  run ATLAS Data Challenge
• Cooperation with EU DataGrid
• Common Certification Authority and Virtual
  Organization tools, Globus2 configuration
• Common applications (high-energy physics
  research)
• Switched from deployment to RD in February 2002
• Forced by the necessity to execute ATLAS Data
  Challenges
• Deployed a light-weight and yet reliable and
  robust Grid solution in time for the ATLAS DC
  tests in May 2002
• Will continue for 4-5 years more (and more?..)
• Form the North European Grid Federation
  together with the Dutch Grid, Belgium and Estonia
• Will provide middleware for the Nordic Data Grid
  Facility
• as well as for the Swedish Grid facility
  SWEGRID, Danish Center for Grid Computing,
  Finnish Grid projects etc

4
The resources

• Almost everything the Nordic academics can
  provide (ca 1000 CPUs in total)
• 4 dedicated test clusters (3-4 CPUs)
• Some junkyard-class second-hand clusters (4 to 80
  CPUs)
• Few university production-class facilities (20 to
  60 CPUs)
• Two world-class clusters in Sweden, listed in
  Top500 (238 and 398 CPUs)
• Other resources come and go
• Canada, Japan test set-ups
• CERN, Dubna clients
• Its open so far, anybody can join or part
• Number of other installations unknown
• People
• the core team keeps growing
• local sysadmins are only called up when users
  need an upgrade

5
A snapshot
6
NorduGrid specifics

• It is stable by design
• The nervous system distributed yet stable
  Information System (Globus MDS 2.2patches)
• The heart(s) Grid Manager, the service to be
  installed at master nodes (based on Globus,
  replaces GRAM)
• The brain(s) User Interface, the client/broker
  that can be installed anywhere as a standalone
  module (makes use of Globus)
• It is light-weight, portable and non-invasive
• Resource owners retain full control Grid Manager
  is effectively a yet another user (with many
  faces though)
• Nothing has to be installed on worker nodes
• No requirements w.r.t. OS, resource
  configuration, etc.
• Clusters need not be dedicated
• Runs on top of existing Globus installation (e.g.
  VDT)
• Works with any Linux flavor, Solaris, Tru64
• Strategy start with something simple that works
  for users and add functionality gradually

7
How does it work

• Information system knows everything
• Substantially re-worked and patched Globus MDS
• Distributed and multi-rooted
• Allows for a pseudo-mesh topology
• No need for a centralized broker
• The server (Grid manager) on each gatekeeper
  does most of the job
• Pre- and post- stages files
• Interacts with LRMS
• Keeps track of job status
• Cleans up the mess
• Sends mails to users
• The client (User Interface) does the brokering,
  Grid job submission, monitoring, termination,
  retrieval, cleaning etc
• Interprets users job task
• Gets the testbed status from the information
  system
• Forwards the task to the best Grid Manager
• Does some file uploading, if requested

8
Information System

• Uses Globus MDS 2.2
• Soft-state registration allows creation of any
  dynamic structure
• Multi-rooted tree
• GIIS caching is not used by the clients
• Several patches and bug fixes are applied
• A new schema is developed, to serve clusters
• Clusters are expected to be fairly homogeneous

9
Front-end and the Grid Manager

• Grid Manager replaces Globus GRAM, still using
  Globus ToolkitTM 2 libraries
• All transfers are made via GridFTP
• Added a possibility to pre- and post-stage files,
  optionally using Replica Catalog information
• Caching of pre-staged files is enabled
• Runtime environment support

10
Summary of Grid services on the front-end machine

• GridFTP server
• Plugin for job submission via a virtual directory

• Conventional file access with Grid access control
• LDAP server for information services
• Grid Manager

11
The User Interface

• Provides a set of utilities to be invoked from
  the command line
• Contains a broker that polls MDS and decides to
  which queue at which cluster a job should be
  submitted
• The user must be authorized to use the cluster
  and the queue
• The clusters and queues characteristics must
  match the requirements specified in the xRSL
  string (max CPU time, required free disk space,
  installed software etc)
• If the job requires a file that is registered in
  a Replica Catalog, the brokering gives priority
  to clusters where a copy of the file is already
  present
• From all queues that fulfills the criteria one is
  chosen randomly, with a weight proportional to
  the number of free CPUs available for the user in
  each queue
• If there are no available CPUs in any of the
  queues, the job is submitted to the queue with
  the lowest number of queued job per processor

ngsub to submit a task
ngstat to obtain the status of jobs and clusters
ngcat to display the stdout or stderr of a running job
ngget to retrieve the result from a finished job
ngkill to cancel a job request
ngclean to delete a job from a remote cluster
ngrenew to renew users proxy
ngsync to synchronize the local job info with the MDS
ngcopy to transfer files to, from and between clusters
ngremove to remove files
12
Job Description extended Globus RSL

• ((executable"recon.gen.v5.NG")
• (arguments"dc1.002000.lumi02.01101.hlt.pythia_jet
  _17.zebra" "dc1.002000.lumi02.recon.007.01101.hlt.
  pythia_jet_17.eg7.602.ntuple" "eg7.602.job"
  999")
• (stdout"dc1.002000.lumi02.recon.007.01101.hlt.pyt
  hia_jet_17.eg7.602.log")
• (stdlog"gridlog.txt")(join"yes")
• (
• (((cluster"farm.hep.lu.se")(cluster"lscf.nbi.
  dk")(cluster"seth.hpc2n.umu.se")(cluster"login
  -3.monolith.nsc.liu.se"))
• (inputfiles ("dc1.002000.lumi02.01101.hlt.pythi
  a_jet_17.zebra" "rc//grid.uio.no/lcdc1.lumi02.00
  2000,rcNorduGrid,dcnordugrid,dcorg/zebra/dc1.00
  2000.lumi02.01101.hlt.pythia_jet_17.zebra")
  ("recon.gen.v5.NG" "http//www.nordugrid.org/appl
  ications/dc1/recon/recon.gen.v5.NG.db")
  ("eg7.602.job" "http//www.nordugrid.org/applicat
  ions/dc1/recon/eg7.602.job.db") ("noisedb.tgz"
  "http//www.nordugrid.org/applications/dc1/recon/n
  oisedb.tgz"))
• )
• (inputfiles ("dc1.002000.lumi02.01101.hlt.pythi
  a_jet_17.zebra" "rc//grid.uio.no/lcdc1.lumi02.00
  2000,rcNorduGrid,dcnordugrid,dcorg/zebra/dc1.00
  2000.lumi02.01101.hlt.pythia_jet_17.zebra")
  ("recon.gen.v5.NG" "http//www.nordugrid.org/appli
  cations/dc1/recon/recon.gen.v5.NG")
  ("eg7.602.job" "http//www.nordugrid.org/applicat
  ions/dc1/recon/eg7.602.job"))
• )
• (outputFiles ("dc1.002000.lumi02.recon.007.0110
  1.hlt.pythia_jet_17.eg7.602.log"
  "rc//grid.uio.no/lcdc1.lumi02.recon.002000,rcNo
  rduGrid,dcnordugrid,dcorg/log/dc1.002000.lumi02.
  recon.007.01101.hlt.pythia_jet_17.eg7.602.log")
  ("histo.hbook" "rc//grid.uio.no/lcdc1.lumi02.r
  econ.002000,rcNorduGrid,dcnordugrid,dcorg/histo
  /dc1.002000.lumi02.recon.007.01101.hlt.pythia_jet_
  17.eg7.602.histo") ("dc1.002000.lumi02.recon.00
  7.01101.hlt.pythia_jet_17.eg7.602.ntuple"
  "rc//grid.uio.no/lcdc1.lumi02.recon.002000,rcNo
  rduGrid,dcnordugrid,dcorg/ntuple/dc1.002000.lumi
  02.recon.007.01101.hlt.pythia_jet_17.eg7.602.ntupl
  e"))
• (jobname"dc1.002000.lumi02.recon.007.01101.hlt.py
  thia_jet_17.eg7.602")
• (runTimeEnvironment"ATLAS-6.0.2")
• (CpuTime1440)(Disk3000)(ftpThreads10))

13
Task flow
Cluster A
RC
SE
Gatekeeper GridFTP
SE
Front-end
UIRB
Grid Manager
Cluster B
MDS
14
Performance

• The main load ATLAS Data Challenge 1 (DC1)
• April 5th 2002 first job submitted
• May 10th 2002 first pre-DC1-validation-job
• End-May 2002 now clear that the system is mature
  enough to do and manage real production.
• DC1, phase1 (detector simulation)
• Total number of jobs 1300, ca. 24 hours of
  processing 2 GB of input each
• Total output size 762 GB
• All files uploaded to Storage Elements and
  registered in the Replica Catalog.
• DC1, phase2 (pile-up of data)
• Piling up the events above with a background
  signal
• 1300 jobs, ca. 4 hours each
• DC1, phase3 (reconstruction of signal)
• 2150 jobs, 5-6 hours of processing 1 GB of input
  each
• Other applications
• Calculations for string fragmentation models
  (Quantum Chromodynamics)
• Quantum lattice models calculations (sustained
  load of 150 long jobs at any given moment for
  several days)
• Particle physics analysis and modeling
• At peak production, up to 500 jobs were managed
  by the NorduGrid at the same time

15
What is needed for installation

• A cluster or even a single machine
• For a server
• Any Linux flavor (binary RPMs exist for RedHat
  and Mandrake, ev. for Debian)
• A local resource management system, e.g., PBS
• Globus installation (NorduGrid has an own
  distribution in a single RPM)
• Host certificate (and user certificates)
• Some open ports (depends on the cluster size)
• One day to go through all the configuration
  details
• The owner always retains a full control
• Installing NorduGrid does not give automatic
  access to the resources
• And other way around
• But with a bit of negotiations, one can get
  access to very considerable resources on a very
  good network
• Current stable release is 0.3.28 daily CVS
  snapshots are available

16
Summary

• NorduGrid pre-release (currently 0.3.28) works
  reliably
• Release 1.0 is slowly but surely on its way many
  fixes are still needed
• We welcome developers much functionality is
  still missing, such as
• Bookkeeping, accounting
• Group- and role-based authorization
• Scalable resource discovery and monitoring
  service
• Interactive tasks
• Integrated, scalable and reliable data management
• Interfaces to other resource management systems
• We welcome new users and resources
• Nordic Data Grid Facility will provide support
