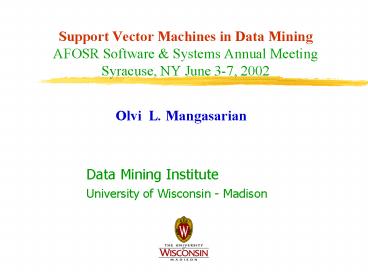

Support Vector Machines in Data Mining AFOSR Software

1
Support Vector Machines in Data MiningAFOSR
Software Systems Annual Meeting Syracuse, NY
June 3-7, 2002

• Olvi L. Mangasarian

Data Mining Institute University of Wisconsin -
Madison
2
What is a Support Vector Machine?

• An optimally defined surface
• Linear or nonlinear in the input space
• Linear in a higher dimensional feature space
• Implicitly defined by a kernel function

3
What are Support Vector Machines Used For?

• Classification
• Regression Data Fitting
• Supervised Unsupervised Learning

4
Principal Contributions

• Lagrangian support vector machine classification
• Fast, simple, unconstrained iterative method
• Reduced support vector machine classification
• Accurate nonlinear classifier using random
  sampling
• Proximal support vector machine classification
• Classify by proximity to planes instead of
  halfspaces
• Massive incremental classification
• Classify by retiring old data adding new data
• Knowledge-based classification
• Incorporate expert knowledge into classifier
• Fast Newton method classifier
• Finitely terminating fast algorithm for
  classification
• Breast cancer prognosis chemotherapy
• Classify patients on basis of distinct survival
  curves

5
Principal Contributions

• Proximal support vector machine classification

6
Support Vector MachinesMaximize the Margin
between Bounding Planes
A
A-
7
Proximal Support Vector Machines Maximize the
Margin between Proximal Planes
A
A-
8
Standard Support Vector MachineAlgebra of
2-Category Linearly Separable Case
9
Standard Support Vector Machine Formulation
10
PSVM Formulation
Standard SVM formulation
This simple, but critical modification, changes
the nature of the optimization problem
tremendously!!
11
Advantages of New Formulation

• Objective function remains strongly convex.
• An explicit exact solution can be written in
  terms of the problem data.
• PSVM classifier is obtained by solving a single
  system of linear equations in the usually small
  dimensional input space.
• Exact leave-one-out-correctness can be obtained
  in terms of problem data.

12
Linear PSVM

• Setting the gradient equal to zero, gives a
  nonsingular system of linear equations.
• Solution of the system gives the desired PSVM
  classifier.

13
Linear PSVM Solution
14
Linear Nonlinear PSVM MATLAB Code
function w, gamma psvm(A,d,nu) PSVM linear
and nonlinear classification INPUT A,
ddiag(D), nu. OUTPUT w, gamma w, gamma
psvm(A,d,nu) m,nsize(A)eones(m,1)HA
-e v(dH) vHDe
r(speye(n1)/nuHH)\v solve (I/nuHH)rv
wr(1n)gammar(n1) getting w,gamma from
r
15
Numerical experimentsOne-Billion Two-Class
Dataset

• Synthetic dataset consisting of 1 billion points
  in 10- dimensional input space
• Generated by NDC (Normally Distributed
  Clustered) dataset generator
• Dataset divided into 500 blocks of 2 million
  points each.
• Solution obtained in less than 2 hours and 26
  minutes
• About 30 of the time was spent reading data
  from disk.
• Testing set Correctness 90.79

16
Principal Contributions

• Knowledge-based classification

17
Conventional Data-Based SVM
18
Knowledge-Based SVM via Polyhedral Knowledge
Sets
19
Incoporating Knowledge Sets Into an SVM
Classifier

• This implication is equivalent to a set of
  constraints that can be imposed on the
  classification problem.

20
Numerical TestingThe Promoter Recognition Dataset

• Promoter Short DNA sequence that precedes a
  gene sequence.
• A promoter consists of 57 consecutive DNA
  nucleotides belonging to A,G,C,T .
• Important to distinguish between promoters and
  nonpromoters
• This distinction identifies starting locations
  of genes in long uncharacterized DNA sequences.

21
The Promoter Recognition DatasetComparative Test
Results
22
Wisconsin Breast Cancer Prognosis Dataset
Description of the data

• 110 instances corresponding to 41 patients
  whose cancer had recurred and 69 patients whose
  cancer had not recurred
• 32 numerical features
• The domain theory two simple rules used by
  doctors

23
Wisconsin Breast Cancer Prognosis Dataset
Numerical Testing Results

• Doctors rules applicable to only 32 out of 110
  patients.
• Only 22 of 32 patients are classified correctly
  by this rule (20 Correctness).
• KSVM linear classifier applicable to all
  patients with correctness of 66.4.
• Correctness comparable to best available
  results using conventional SVMs.
• KSVM can get classifiers based on knowledge
  without using any data.

24
Principal Contributions

• Fast Newton method classifier

25
Fast Newton Algorithm for Classification
Standard quadratic programming (QP) formulation
of SVM
26
Newton Algorithm

• Newton algorithm terminates in a finite number of
  steps

• Termination at global minimum

• Error rate decreases linearly

• Can generate complex nonlinear classifiers

• By using nonlinear kernels K(x,y)

27
Nonlinear Spiral Dataset94 Red Dots 94 White
Dots
28
Principal Contributions

• Breast cancer prognosis chemotherapy

29
Kaplan-Meier Curves for Overall PatientsWith
Without Chemotherapy
30
Breast Cancer Prognosis ChemotherapyGood,
Intermediate Poor Patient Clustering
31
Kaplan-Meier Survival Curvesfor Good,
Intermediate Poor Patients
32
Kaplan-Meier Survival Curves for Intermediate
Group With Without Chemotherapy
33
Conclusion

• New methods for classification proposed
• All based on rigorous mathematical foundation
• Fast computational algorithms capable of
  classifying massive datasets
• Classifiers based on both abstract prior
  knowledge as well as conventional datasets
• Identification of breast cancer patients that can
  benefit from chemotherapy

34
Future Work

• Extend proposed methods to standard optimization
  problems
• Linear quadratic programming
• Preleminary results beat state-of-the-art
  software
• Incorporate abstract concepts into optimization
  problems as constraints
• Develop fast online algorithms for intrusion and
  fraud detection
• Classify the effectiveness of new drug cocktails
  in combating various forms of cancer
• Encouraging preliminary results
