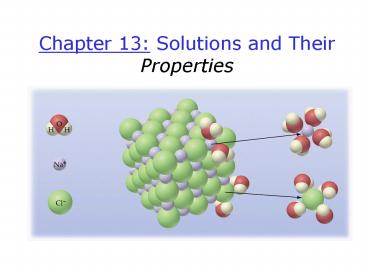

Chapter 13: Solutions and Their Properties

1
Chapter 13 Solutions and Their Properties
2
Chapter 13 Outline

• The Solution Process
• Energy changes
• Saturated Solutions and Solubility
• Factors Affecting Solubility
• Ways of Expressing Concentration
• Colligative Properties
• Vapor Pressure Lowering, BP Elevation, FP
  Depression, Osmosis
• Fractional Distillation of Liquid Mixtures

3
Solutions

• Solution
• mixture of two or more substances
• components are the solute and the solvent
• Solvent
• component of the mixture present in greater
  quantity
• often retains its physical characteristics
• Solute
• component of the mixture present in smaller
  quantity

4
Solution Process

• Intermolecular Forces
• must be overcome in both the solvent solute
  before the mixture can be formed
• forces between the solute solvent must be
  similar in nature and strength
• hydration
• interaction between water (the solvent) solute
  is termed hydration
• solvation
• interaction between any solvent the solute

5
Ion-Dipole
6
Hydration of NaCl
7
A
8
Energy Changes And Solution Formation
NaCl dissolves in water because water has
sufficient attraction for the Na and Cl- ions to
overcome the attraction for one another in the
crystal
9
Energy Relationships

• DHsolution DH1 DH2 DH3
• DH1 energy required to separate solute
  particles
• DH2 energy required to separate solvent
  particles
• DH3 energy produced by interaction of
  solute/solvent
• DHsolution is exothermic only if
• DH3 is larger than DH1 DH2

10
(No Transcript)
11
Solubility

• General Rule -- like dissolves like
• polar substances will dissolve other polar
  substances
• non-polar substances will dissolve other
  non-polar substances
• polar substances will not dissolve non-polar
  substances

12
Solubility
Processes in which the order of the system
increases tend to occur spontaneously
13
Solubility

• Polar/Polar solutions
• driven by energy relationships -- DH3 is larger
  than DH1 DH2
• Non-polar/Non-polar solutions
• driven by disorder -- DH3 is about the same as
  DH1 DH2

I2 in hexane
14
(No Transcript)
15
Cell Membrane
16
Conceptual Question

• The dissolution of water in octane (C8H18) is
  prevented by__________?
• London dispersion forces between octane molecules
• Hydrogen bonding between water molecules
• Dipole-dipole attraction between octane molecules
• Ion-dipole attraction between water and octane
  molecules
• Repulsion between like-charged water and octane
  molecules

17
Conceptual Question

• When two nonpolar organic liquids are mixed, a
  solution forms and the enthalpy of solution is
  quite small. Label the two organic liquids as A
  (solvent) and B (solute). The formation of
  solution is favored by__________
• Hydration of the solute, B
• The equal enthalpy of the solvent and solute
• The highly negative enthalpy of the solution
  process
• Solvation of the solvent, A
• An increase in disorder, since A-A, B-B, and A-B
  interactions are similar

18
Saturated Solutions Solubility

• Process
• solute solvent solution
• Solubility
• quantity of solute necessary to produce a
  saturated solution
• generally in grams of solute per 100 grams or mL
  of water

Solution formation
crystallization
19

Saturated Solutions Solubility

• Saturated Solution
• solution is in equilibrium with undissolved
  solute
• solution contains the maximum amount of solute
  possible
• Unsaturated Solution
• solution contains less than the maximum amount of
  solute
• there is no undissolved solute present
• Supersaturated Solution
• solution contains more than the maximum amount of
  solute
• there is no undissolved solute present
• solution is unstable

A
20
35.7 g/100 ml At 0 C
21
Factors Affecting Solubility

• Solute-Solvent Interactions
• types of solute/solvent -- polar or non-polar
• like dissolves like
• pairs of liquids which are soluble in all
  proportions are miscible
• pairs which are not soluble are immiscible
• The stronger the attractions between solute and
  solvent the, greater the solubility

22
Conceptual Question

• Which of the following is the most soluble in
  water?
• a. CH3CH2OH
• b. CH3CH2CH2OH
• c. CH3CH2CH2CH2OH
• d. CH3OH

23
Factors Affecting Solubility
24
Solubilities of some Alcohols in Water
25
Factors Affecting Solubility
The number of -OH groups within a molecule
increases solubility in water.
Glucose
26
Factors Affecting Solubility

• Pressure
• solubility of gases increase with
• increasing pressure
• increasing mass

27
Factors Affecting Solubility

• Henrys Law relationship between pressure and
  solubility of a gas Å
• Sg kPg
• Sg is solubility of the gas
• Pg is partial pressure of gas
• k is a constant
• Carbonated beverages are bottled under gt 1
  atm. As the bottle is opened,
  decreases and the solubility of CO2 decreases.
  Therefore, bubbles of CO2 escape from solution.

28
Calculation

• Calculate the concentration of CO2 in a soft
  drink after the bottle is opened and equilibrates
  at 25 C under a CO2 partial pressure of 3.0 x
  10-4 atm. (Henrys Law constant 3.1 x 10-2
  mol/L-atm)

29
Factors Affecting Solubility

• Temperature
• generally, solubility of solids increases with
  increasing temperature

30
Factors Affecting Solubility

• solubility of gases
• decreases with
• increasing
• temperature

31
Conceptual Question

• The lowest value of the Henrys Law constant for
  methane (CH4) will be obtained with _________ as
  the solvent and a temperature of ___________ K?
• a. C5H12, 301
• b. C6H6, 322
• c. H20, 301
• d. H2O, 301

32
Concentration

• Dilute - not a lot of solute
• Concentrated - a large amount of solute.
• strong solution - as in a strong cup of tea
• Concentration can be expressed quantitatively is
  many ways
• Molarity, Molality, percentage, mole fraction,
  etc

33
Molarity

• The molarity is the number of moles of solute in
  1 litre of solution
• M moles of solute
• liters of solution
• 1M solution is fairly concentrated
• Millimolar 0.001M 1?10-3moles/L
• 1 millimole/L
• 1mM

34
Mole fraction

• If a solution consists of mA moles of A, mB moles
  of B, mC moles of C, etc.
• Mole fraction of A
• XA mA / (mA mB mC)
• XA XB XC 1

35
Mass percentage

• A solution that is 36 HCl by mass, contains 36 g
  HCl in 100 g of solution.
• Milk is not a true solution, but 2 milk refers
  to 2 g of milk fat in 100 g of milk.
• You may see figures on packing such as
• 3 w/w where w is short for weight (mass)

36
Calculation

• Calculate the mass percentage of NaCl in a
  solution containing 1.50 g of NaCl in 50.0 g of
  water.

37
You Try

• A Commercial bleaching solution contains 3.62
  mass sodium hypochlorite, NaOCl. What is the
  mass of NaOCl in a bottle containing 2500 g of
  bleaching solution?

38
Parts per million

• Percentage refers to parts in 100. Thus 3 means
  3 parts solute in 100 parts of solution.
• Parts per million 1 ppm contains 1 gram of
  solute per 1 million grams solution.

39
Parts per million

• A solution has a Ag ion concentration of 3 ppm
• 3 g Ag in 1,000,000 g of solution
• 3 mg Ag in 1,000 g of solution
• 1,000 g of water solution has a volume of
  approximately 1 litre
• So, our solution has 3 mg Ag / litre
• ppm is approximately the same as mg/L

40
Calculation

• A 2.5 g sample of groundwater was found to
  contain 5.4 ?g of Zn2. What is the concentration
  of Zn2 in ppm?

41
Molality

• Molality (m) moles of solute per kilogram of
  solvent

42
Molality
43
Molarity
44
Calculation

• A solution is made containing 7.5 g CH3OH in 245
  g H2O.
• Calculate the mole fraction
• Calculate the molality
• Calculate the mass

45
Calculation

• Ascorbic Acid, (vitamin C, C6H8O6) is a
  water-soluble vitamin. A solution containing 80.5
  g of ascorbic acid dissolved in 210 g of water
  has a density of 1.22 g/ml at 55 C. Calculate a)
  mass percentage
• b) mole fraction
• c) molality
• d) molarity

46
Calculation

• The density of toluene (C7H8) is 0.867 g/ml, and
  the density of thiophene (C4H4S) is 1.065 g/ml. A
  solution is made by dissolving 10.0 g of
  thiophene in 250.0 ml of toluene.
• a) Calculate the mole fraction of thiophene
• b) calculate the molality of thiophene

47
Calculation

• Caffeine (C8H10N4O2) is a stimulant found in
  coffee and tea. If a solution of caffeine in
  chloroform (CHCl3) as a solvent has a
  concentration of 0.0750 m calculate
• a) caffeine by mass
• b) mole fraction of caffeine

48
Colligative Properties

• Properties that depend on solute concentration
  (quantity) not the kind of solute
• Lowering the vapor pressure
• Freezing Point Depression
• Boiling-Point Elevation
• Osmosis

49
Lowering the Vapor Pressure
Why do you think the liquid levels in the two
beakers change over time?
Seawater
Distilled Water
Seawater
50
Lowering the Vapor Pressure

• Addition of a nonvolatile solute lowers the vapor
  pressure of the solvent
• Extent of lowering depends on concentration of
  solute, described by Raoults Law
• Raoults Law The equilibrium vapor pressure of
  the solvent over the solution is directly
  proportional to the mole fraction of the solvent
  in the solution
• Psolvent XsolventPsolvent

51
Lowering the Vapor Pressure

• Glycerin (C3H8O3) is a nonvolatile
  non-electrolyte with a density of 1.26 g/ml at 25
  C. Calculate the vapor pressure at 25 C of a
  solution made by adding 50.0 ml of glycerin to
  500.0 ml of water. (The vapor pressure of pure
  water at 25 C is 23.8 torr.)

52
Conceptual Question

• A 0.100 m solution of which one of the following
  solutes in water will have the lowest vapor
  pressure?
• KClO4
• Ca(ClO4)2
• Al(ClO4)3
• Sucrose
• NaCl

53
What does this say about the boiling point of the
soltuion?
At the Normal Boiling Point of a pure liquid,
vapor pressure of solution is lt 1 atm.
54
Boiling-Point Elevation
The boiling point of a solution is higher than
that of a pure liquid
Animation
55
Freezing Point Depression

• The freezing point of a solution is lower than
  that of a pure solvent

56
Boiling-Point Elevation and Freezing Point
Depression

• Boiling Point Elevation
• dircetly proportional to the molality of the
  solute
• DTb Kb msolute
• Kb is a constant, m is molality
• Freezing Point Depression
• DTf Kf msolute
• Kf is a constant, m is molality

57
Calculations

• The concentration of table sugar in a sucrose
  solution is 0.50 m. Calculate the freezing-point
  for this solution. (Kf of water is 1.86 C/m)

58
More Calculations

• An environmentally concerned graduate student
  adds the more earth-friendly coolant, propylene
  glycol (C3H3O2, density 1.038) to her cars
  radiator, resulting in a final composition of her
  radiator fluid equaling 30 (v/v) ethylene glycol
  (C2H6O2, d1.114 g/ml) and 20 (v/v) propylene
  glycol in water. At what temperature will her
  engine boil over? (Kb 0.50 C/m)

59
Conceptual Question

• Which of the following will have the lowest
  freezing point?
• Pure H2O
• Aqueous glucose (0.60 m)
• Aqueous sucrose (0.60 m)
• Aqueous FeI3 (0.24 m)
• Aqueous KF (0.50 m)

60
Osmosis

• Why do red blood cells sometimes either shrivel
  or rupture?

61
Osmosis

• The net movement of solvent through a
  semi-permeable membrane from a dilute to a more
  concentrated solution.

62
Osmosis

• Eventually the pressure difference between the
  arms stops osmosis.

Animation
63
Osmosis

• Osmotic pressure(?) - The pressure required to
  stop osmosis
• M - molarity of the solution
• R - gas constant (0.08206 L(atm)/mol(K))
• T - temperature in Kelvin

64
Osmosis through the semi-permeable membrane of a
red blood cell
having the same osmotic pressure
65
Osmosis through the semi-permeable membrane of a
red blood cell
having a higher osmotic pressure
66
Osmosis through the semi-permeable membrane of a
red blood cell
having a lower osmotic pressure
67
Osmosis

• The average osmotic pressure of blood is 7.7 atm
  at 25 C. What concentration of glucose (C6H12O6)
  will be isotonic with blood?

68
Fractional Distillation of Benzene and Toluene
69
Fractional Distillation of Benzene and Toluene
70
Fractional Distillation of Benzene and Toluene
71
(No Transcript)
