Title: Dark fiber networks in the Nordic countries


1

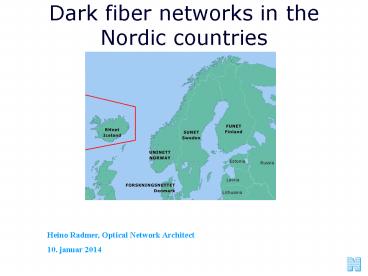

Dark fiber networks in the Nordic countries
Heino Radmer, Optical Network Architect 10.
januar 2014
2
NorthernLight background and objectives
  • Move from a leased line to a dark fiber
    infrastructure
  • Accommodate the future demands for capacity
  • High-speed Internet
  • Lambda circuits
  • Private light path services
  • Deployment of an Optical Exchange
  • Equipment - Cutting edge technology
  • LH/ULH DWDM
  • Channel count above 64 x 10G
  • 40G ready
  • Multi Service Transport Platform Optical
    Exchange (NOX)
  • Handel circuit and packet based traffic
  • Targeting User Controlled Provisioning (UCLP)
  • Fulfill these requirements without a substantial
    budget increase.

3
NORDIC fibre projects
  • Fibre distances
  • NORDUnet 4200 Km (Completed)
  • SUNET 7300 Km (Completed, Operated by NORDUnet)
  • FUNET 4300 KM (Tendering)
  • Forskningsnettet 1500 KM (Tendering)
  • UNINETT 7000 KM (In Progress)
  • Rhnet Planned 2,5 Gbit/s Lambda connection
  • Sites
  • NORDUnet 60 (9 main sites)
  • SUNET 80
  • FUNET 60
  • Forskningsnettet 20
  • UNINETT 80
  • Rhnet Planned 2,5 Gbit/s Lambda connection

4
The old NORDUnet
  • So what did NORDUnet look like before?

5
Old leased line network
6
NORDUnet - Suppliers
  • The dark fiber network is provided by
  • Telenor
  • Scandinavian Ring
  • Finland Link
  • Global Crossing
  • Southern Cross
  • The equipment is provided by
  • Alcatel-Lucent
  • 1626 Light Manager
  • ULH DWDM
  • 1850 Transport Service Switch
  • SDH/Sonet
  • Ethernet
  • CWDM and SH DWDM
  • Juniper
  • T640

7
NORDUnet OPN
  • Base network
  • Ring structure
  • Base equipment
  • ULH ROADM
  • Q1 2008 WSS
  • 96x 10G Ch.
  • Add/drop 96 Ch.
  • 40G Ready
  • Transponders
  • C-band Tuneable
  • XFP

8
NorthernLight
9
NORDUnet IP Based on NorthernLight
10
Network Operation
Mgmt Network
Stockholm NU-NOC
Global Secure Access
Copenhagen NORDUnet Office
11
Alcatel-Lucent 135x Suite Used in NORDUfiber
  • 1354 RM Network Manger
  • 1354 BM-Eth Ethernet Manager
  • 1353 NM Element Manager
  • 1359 IOO North Bound Interface
  • 1359 HA High Availability

12
NOX NothernLight Optical eXchange
  • New Name!
  • NorthernLight is now the optical network
  • NOX is the GOLE
  • Distributed
  • Connection points Oslo, Stockholm, Helsinki,
    Copenhagen
  • Links
  • n x 10 G to NetherLight (Amsterdam)
  • 1 x 10 G to MLight (Moscow) (October 1st 2007)
  • n x 10 G to GEANT
  • (2 x 2.5 G to RUNnet (St. Petersburg))

13
NorthernLight Optical Exchange NOX
  • Interfaces type
  • STM-1 to STM-256
  • GE and 10 GE
  • OTU1, OTU2 and OTU3
  • Services
  • Protected Unprotected
  • Over subscribed
  • VLAN
  • P2P
  • P2M
  • Applications e.g.
  • NGDF
  • GLORIAD
  • Radio Telescope
  • Score
  • Acreo

14
Optical Exchange High level Features
  • SDH/Sonet
  • STM-1, 4, 16 64
  • Cross-Connection
  • Termination
  • ETH Mapping over SDH
  • Complete Scope of SDH/Sonet Features
  • Ethernet
  • 10GE LAN/WAN - Optical
  • GE - Optical
  • 10/100/1000 - Electrical
  • ETH Traffic Classification
  • Complete Scope of Ethernet Features
  • CWDM
  • Terminal, Hub, OADM Ring
  • Stacked C-WDM Rings
  • MSPP
  • CLI, SNMP and TL1
  • 2007 GMPLS feature set

1850 TSS-320
15
Optical Exchange/Northeren Light 1850 TSS
Single platform addressing any transport need now
and in a near future
Carrier Ethernettransport model
MSPP model
SONET/SDH model
Universal Switch
Universal Switch
Universal Switch
WDM module
TDM processing card
Packet processing card
Accommodates any traffix mix of circuits, packets
and lambdas
16
1626 Light Manager Day one Release
  • Multi-reach Platform
  • LH/ULH up to 88 channels
  • Add/drop 88 channels
  • 50 GHz filter grid
  • Long Haul
  • Fully Reconfigurable OADM
  • Automatic system alignment
  • All interfaces are tuneable over the complete
    C-band
  • 10G transponder
  • STM-64
  • 10GbE WAN LAN
  • 4x 2.5G transparent concentrator
  • 40G transponder
  • 4x 10G concentrator
  • Embedded Optical Protection
  • Raman Amplification

Unified System
  • UNIQUE System
  • Same modules for OADM and ILA
  • Shelf
  • Amplifier

17
NorthernLight
NorthernLight Optical Backbone Current Connection
to Iceland Cross Boarder Fibre Future Connection
to Iceland Global Connectivity Future Cross
Boarder Fibre
18
1626 Light Manager Tuneable-OADM 2008
  • Wavelength Selective Switches
  • LH/ULH up to 88 channels
  • Add/Drop 64 channels
  • Enhanced functionality
  • Tuneable filters
  • Any mix of 50 and 100 GHz filters
  • Long Haul
  • Fully Tuneable OADM
  • Fully C band tunable interfaces over any
    interface
  • 10 G Universal Transponder
  • STM-64
  • 10GE WAN LAN
  • 40G transponder
  • PSBT (50 GHz - SH)
  • DPSK (100 GHz LH/ULH)

GMPLS
WSS 19
19
Multi Domain Cross Layer Provisioning
  • It is about controlling the Control plane just
    like PNNI for ATM
  • Hello protocol
  • Database Exchange protocol
  • Flooding protocol
  • Calculation of a logical channel connections
  • Hierarchical routing
  • Todays General Control Plane
  • GMPLS
  • UCLP
  • NDL
  • Others

20
GMPLS for Photonic NetworksProvisioning Soft
Permanent Connection
  • The support of new photonic network architectures
    requires the introduction of a new management
    functionality within the photonic layer
  • GMPLS control plane, will introduce features
    based on UNI control plane signalling and
    centralized provisioning for
  • Link, Network and Service resources discovery
  • Soft Permanent Connection Set Up

21
Multi Domain Cross Layer Provisioning- Case Study
22
FUNET
  • A short presentation to the Finnish progress
  • Slides provided by
  • Juha Oinonen,
  • Development manager
  • Funet network

23
Funet - Finnish University and research NETwork
  • High quality academic Internet services for
    Finland
  • Advanced services like IPv6 and IP multicast
  • Connectivity via NORDUnet to Geant2 and global
    academic network community
  • Up to 10Gbps connection speeds
  • About 80 member organizations
  • All Finnish universities (ca. 20) and
    polytechnics (ca. 30)
  • Public research institutions and other
    organizations close to higher education (ca. 30)
  • 350 000 end users

24
Lambda Applications in Finland
  • Currently ongoing or identified
  • DEISA project (CSC)
  • Physics Cern LHC OPN
  • Radioastronomy Metsähovi observatory
  • Sodankylä satellite etc. facilities
  • Initiatives and plans
  • Network RD activities (national/international)
  • New data intensive science projects/areas
  • Distributed ICT infrastructure
  • Mostly sub-lambda capacity needs

25
Plans Funet fiber topology (tentative)
  • 4000 km fiber
  • 20 PoPs
  • Option for 20 more
  • Mesh/ring combination
  • multiple 3-way PoPs
  • To optimize cost, some leased lines needed for
    resiliency (not shown in the picture)
  • Cross-border options
  • Russia
  • Estonia
  • Sweden
  • NORDUnet presence in Helsinki
  • Roll-out in multiple phases
  • Details to be defined

26
Status Dark Fiber Procurement
  • 4 candidates
  • Open procedure
  • Fairly good availability
  • All university/polytechnic towns covered
  • Some last mile construction needed (for
    resiliency)
  • Mostly new (2000-) fiber
  • G.652, mostly underground
  • Price/quality ratio varies

27
Status Hardware procurement
  • Three vendors remaining
  • Negotiated procedure initially 9 proposals
  • Open questions/work in progress
  • Final pricing
  • Technology roadmaps
  • Topology fine-tuning
  • Roll-out phasing
  • Support service details and preparation
  • Decision before end of 2007
  • First phase implementation in 1H2008

28
Questions and information
Please forward all remaining questions to
  • Juha.Oinonen_at_csc.fi
  • http//www.csc.fi/english/funet/

29
Forskningsnettet - FSKNET
  • Progress and status will be presented by Jan
    Ferré after the break.

30
Fiber - requirements
  • Provider contractual bindings
  • Use of penalty system
  • Procedures towards provider
  • Provider education needed?
  • Building structure and limitations
  • Resilient structure
  • Education of staff
  • Handling of fiber
  • Basic knowledge
  • Measurements and materials

31
Fiber - requirements
  • Fiber specifications
  • The Dark Fibre shall be specified according to
    ITU-T G.652 or ITU-T G.655.
  • For ITU-T G.655 the True Wave Classic shall not
    be accepted.
  • The attenuation at 1550 nm should not exceed 23
    dB and shall not exceed 35 dB.
  • Seacable specs 23 dB and 26 dB
  • The dark fibre parameters of the installed cable
    shall during the whole contract period comply
    with the values in 1-7 below. The values include
    effects of possible future splicing, repair,
    aging, etc.
  • Attenuation at 1550 nm shall be less than 0.25
    dB/km and should be less than 0.22 dB/km.
  • Bend losses shall not be accepted.
  • Seasonal variations in the fibre parameter shall
    not be accepted.
  • Connector losses shall be less than 0.5 dB.
  • Reflection shall at any point be below -40 dB.
  • Chromatic Dispersion at 1550nm (CMD1550nm) shall
    be less than18.5 ps/nm/km.
  • Polarisation Mode Dispersion (PMDQ) shall be less
    than 0.50 ps/?km and should be less than 0.20
    ps/?km.
  • Fiber span shall not exceed 80 km

32
Fiber - provider problems
  • Only here to make money
  • Documentation

33
Fiber - solutions
  • Measuring setup
  • Understanding

34
Fiber solutions continued
  • Procedures
  • Plenty of talking
  • Understanding
  • More talking.

35
Status
  • Scandinavian Ring (fiber) Live
  • Finland Link (fiber) Live
  • Amsterdam Link (fiber) Live
  • Moscow Link (OC192) early October
  • London Link (OC192) in planning
  • (new) Iceland Link (OC48) in planning
  • (new) WIDE and CSCNORDUnet possibilities for
    pan-continental connectivity

36
Worth considering
37
End Of PresentationQuestions?
  • Heino Radmer
  • Optical Network Architect
  • heino_at_nordu.net
