Tools for Engineering Analysis of High Performance Parallel Programs

1

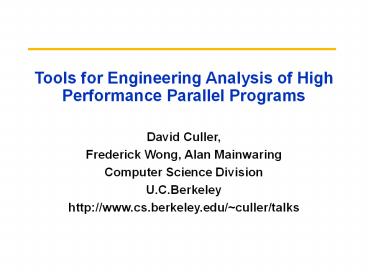

Tools for Engineering Analysis of High
Performance Parallel Programs

• David Culler,
• Frederick Wong, Alan Mainwaring
• Computer Science Division
• U.C.Berkeley
• http//www.cs.berkeley.edu/culler/talks

2
Traditional Parallel Programming Tools

• Focus on showing what program did and when it
  did it
• microscopic analysis of deterministic events
• oriented towards initial development of small
  programs on small data sets and small machines
• Instrumentation
• traces, counters, profiles
• Visualization
• Examples
• AIMS, PTOOLS, PPP
• pablo paradyn ... gt delphi
• ACTS TAU - tuning and analysis util.

3
Example Pablo
4
Beyond Zeroth-order Analysis

• Basic level to get to a system design that is
  reasonable and behaves properly under ideal
  condition
• Subject the system to various stresses to
  understand its operating regime and gain deeper
  insight into its dynamic behavior
• Combine empirical data with analytical models
• Iterate
• from What? to What if?

max displacement
Wind Speed
5
Approach Framework for Parameterized Sensitivity
Analsys

• framework performs analysis over numerous runs
• statistical filtering
• vary parameter of interest
• provides means of combining data to isolate
  effects of interest
• gt ROBUSTNESS

Problem Data Set Generator
Well-developed Parallel Program
Instrumentation Tools
Study Parameter
Machine Characterizers

• Procs
• Comm. perf.
• Cache
• Scheduling
• ...

visualization, modeling
6
Simplest Example Performance( P )

• NPB2.2 on NOW and Origin 2000 (250)

7
Where Time is Spent ( P )

• Reveal basic Processor and network loading (vs P)
• Basis for model derivation - comm(P)

8
Where Time is Spent ( P ) - cont

• Reveal basic Processor and network loading (vs P)

9
Communication Volume ( P )
10
Communication Structure ( P )
11
Understanding Efficiency ( P, M )

• Want to understand both what load the program is
  placing on the system
• and how well the system is handling that load
• gt characterize the capability of the system via
  simple benchmarks (rather than advertised peaks)
• gt combine with measured load for predictive
  model, compare

12
Communication Efficiency
13
Tools gt Improvements in Run Time

• Efficiency analysis (vs parameters) gives insight
  into where to improve the system or the program
• use traditional profiling to see where is program
  the bad stuff happens
• or go back and tune the system to do better

14
Cache Behavior (P, )

• Combining trace generation with simulation
  provides new structural insight
• Here clear knees in program working set
  () these shift with machine size (P)

15
Cache Behavior (P, )

• Clear knees in program working set () not
  affected by P

16
Sensitivity to Multiprogramming

• Parallel machines are increasingly general
  purpose
• multiprogramming, at least interrupts and daemons
• Many ideal programs very sensitive to
  perturbations
• Msg Passing is loosely coupled, but
  implementation may not be!

17
Tools gt Improvements in Run Time

• MPI implementation spin-waits on send till
  network available (or queue not full) or on
  recv-complete
• Should use two-phase spin-block

18
Sensitivity to Seemingly Unrelated Activity

• The mechanism for doing parameter studies is
  naturally extended to get statistically valid
  data through multiple samples at each point
• tend to get crisp, fast results in the wee hours
• Extend study outside the app
• Example two programs on big Origin
• alone together on 64 P
• 8 processor IS run 4.71 sec 6.18
• 36 processor SP run 26.36 sec 65.28

19
Repeatability

• The variance for the repeated runs is a key
  result for production codes - the real world is
  not ideal

20
Plans

• Integrate our instrumentation and analysis tools
  with ACTS TAU
• port to UCB Millennium environment
• experiment with ASCI platforms
• Refine and complete the automated sensitivity
  analysis framework
• Backend performance data storage
• Pablo SPPF?
• Next Year
• integrate performance model development,
  prediction
