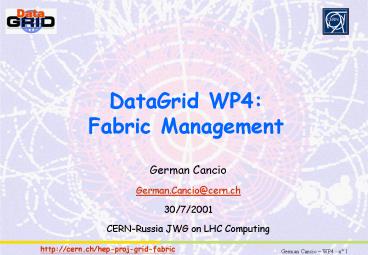

DataGrid WP4Fabric Management

• German Cancio
• German.Cancio_at_cern.ch
• 30/7/2001
• CERN-Russia JWG on LHC Computing

2
Outline

• Background information
• Functionality and Architecture
• M9 prototype deliverables

3
Background information

• WP4s objective deliver the necessary tools to
  manage a computing fabric providing grid services
  on clusters scaling up to thousands of nodes.
• Main scope
• User job management (Grid and local)
• Fabric (system administration) management
• Official participants CERN (leading partner),
  INFN, NIKHEF, University of Heidelberg, ZIB
  (Berlin) and University of Edinburgh/PPARC

4
Functionality

• Provision for running Grid jobs
• Authorization according to local policies
• Mapping Grid credential to local ones
• Publication of fabric resources and job
  information
• Provision for running local jobs
• Sharing of resources according to local policies
• Enterprise system administration - scalable to
  O(10K) nodes
• Automated installation and maintenance of nodes
• Resource management (batch, interactive)
• Monitoring of events and performance
• Fault tolerance recovery actions
• Fabric Configuration Management

5
(No Transcript)
6
Grid
Fabric services
Fabric
Node Installation Management
Monitoring and Fault Tolerance
Fabric Storage Management SE- WP5
Configuration Management
Resource Management
WP4 tasks
7
Architecture (1/3)

• Subsystems in WP4
• 1 - (Grid) job submission, control and
  management subsystems
• Grid interface subsystem
• receives job submission/control requests from the
  Grid, provides mechanisms for policy based
  authentication and authorization.
• Globus/GRAM layer.
• Publication of static and dynamic resource
  information to the Grid.
• Globus/GRIS layer.
• Resource Management subsystem
• manage execution, workload distribution and
  resource sharing of user jobs on the fabrics
  batch and interactive services.

8
Architecture (2/3)

• 2 - Subsystems for fabric management
• Configuration management
• Store fabric configuration information (node
  config, farm profiles, fabric policies)
• Node installation and management
• Installing, configuring, updating system
  components and application on all fabric nodes
  (eg. Farm CPU nodes, file servers,)
• Monitoring and fault tolerance
• job, node and service based monitoring and alarm
  generation. Fault tolerance components will
  correlate monitoring with configuration
  information and initiate automated recovery
  actions if appropriate, both at individual node
  and at fabric scale.

9
Architecture (3/3)

• All the subsystems are glued together by a common
  fabric administration scripting layer.
• Automate complex and inter-dependent fabric wide
  management operations
• APIs to the subsystems
• Base libraries for common operations
• Scripts are written by experienced fabric
  administrators
• Scripts are executed either manually (eg. using
  web forms)
• or automatically (periodic actions, recovery
  procedures)

10
Grid Info Services (WP3)
Grid User
Replica Mgr
Farm A (LSF)
Farm B (PBS)
Mass storage, Disk pools
11
Month 9 deliverables (1/2)

• Main WP4 deliverables in Release 1 (end
  September)
• 1) Interim Installation System (IIS) for the
  installation and maintenance of the M9 testbeds
• Linux clusters are prime target, but implemented
  in portable way.
• Components
• Initial installation tool using system image
  cloning
• LCFG (Edinburgh University) for software updates
  and maintenance

12
Month 9 deliverables (2/2)

• 2) First configuration management prototype
• Low level language and API for fabric components
  to reliably retrieve their configuration
  information.
• Design
• Node profiles stored in XML format
• central HTTP(S) servers host configurations
• Node access API for tree-like navigation
• Used by the PM9 Interim Installation System (IIS)
  to get all configuration information.
• Configuration information is entered per node
• High-level definition language allowing for
  inheritance configuration trees (for whole
  services, clusters) to be added in later releases

13
Contacts and more information

• DataGRID WP4
• http//cern.ch/hep-proj-grid-fabric
• Documentation and meeting minutes
• Members
• Mailing list archives
• Overall project architecture group DataGRID ATF
• http//cern.ch/grid-atf
