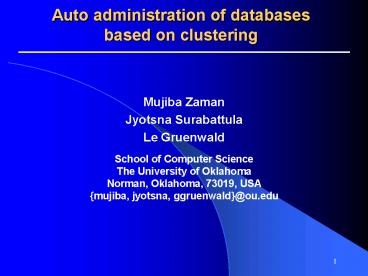

Auto administration of databases based on clustering

1
Auto administration of databases based on
clustering

• Mujiba Zaman
• Jyotsna Surabattula
• Le Gruenwald
• School of Computer Science
• The University of Oklahoma
• Norman, Oklahoma, 73019, USA
• mujiba, jyotsna, ggruenwald_at_ou.edu

2
Overview of the Presentation

• Motivation for auto-indexing
• Existing techniques
• Proposed Index Selection Technique
• Algorithm for Proposed Index Selection Technique
• Proposed Re-Indexing Technique
• Experiments
• Results
• Conclusions
• Future Work

3
Motivation of Auto-indexing

• Index selection is an important part of physical
  database design
• For large databases it is difficult for DBAs to
  analyze data and find an optimal set of indices
• The goal of auto-indexing includes
• Analyze workload automatically to identify a good
  set of indexes.
• Create those indexes.
• Automatically evaluate current indexes and
  re-index if necessary

4
Existing Techniques

• The index selection problem (ISP) has been
  approached in two different
• ways to build index selection tools
• External Tools
• Some basic assumptions are made
• Cost functions are formulated based on the
  assumptions
• Attempt to minimize the cost function using
  combinatorial optimization technique or by some
  heuristic method
• Optimizer Based Tools
• Utilize the query optimizer to give cost
  estimates for various index configurations and
  suggest a configuration with the least cost
  estimation.

5
Advantages and Disadvantages of existing
techniques

• External Tools
• Advantages
• Applications using the DBMS will not suffer
  processing delays
• Disadvantages
• Disconnected from the optimizer Index
  suggested may not be used by the optimizer
• Becomes obsolete if optimizer changes

6
Advantages and Disadvantages of existing
techniques

• Optimizer Based Tools
• Advantages
• Suggested indexes will be used by the
  optimizer
• Disadvantages
• Performs expensive operation of optimizer
  invocation
• Longer processing time for other applications
  using the DBMS when indexes are being
  suggested.

7
Proposed Index Selection Technique

• Combines both the approaches.
• Based on the intuition that the attributes
  that occur more commonly and frequently in a
  group of similar queries are likely to be useful
  for indexing.
• Use a Data Mining Clustering technique to
  group queries which are similar in terms of their
  use of attributes.
• Extract Indexable attributes in all the
  queries in each group as indexes.
• These indexes can be single-column or
  multi-column

8
Proposed Index Selection Technique

• For multi-column indexes, the order of the
  columns is determined by assigning weights to
  attributes based on where they are used in the
  queries.
• A clustered index is also chosen by assigning
  weights to the attributes depending on where they
  occur in the queries.
• Extracted indexes are then submitted to the query
  optimizer for final selection for the given
  workload.
• The indexes not selected by the optimizer are
  eliminated. The remaining indexes are the final
  indexes suggested by our tool.
• Re-index if total table scan time using current
  indexes is higher than that using new indexes.

9
Algorithm for proposed technique

• 1. Input is a workload of queries
• 2. Parse the workload to find out all the
  indexable attributes
• and build two matrix
• - Query-Attribute matrix (1 presence of an
  attribute 0 otherwise)
• Attribute-frequency matrix (frequency of the
  attribute indicated by the number)
• Consider the following queries
• Q1. Select T1.A, T1.B, Sum(T1.C) from T1, T4,
  where T1.AT4.K and T1.CT3.H and T1.Blt30 group
  by T1.C
• Q2. Select Ave(G) from T3 where F like this
  and G between 10 and 20 order by G

10
Algorithm for proposed technique

• A corresponding query attribute matrix with
  several other queries could be as follows
• Table 1 Query Attribute Matrix

Query T1.A T1.B T1.C T2.D T2.E T3.F T3.G T3.H T4.K
Q1 1 1 1 0 0 0 0 1 1
Q2 0 0 0 0 0 1 1 0 0
Q3 0 0 0 0 1 1 1 0 0
Q4 1 1 1 1 0 0 0 1 1
Q5 0 0 1 0 0 1 1 0 0
11
Algorithm for proposed technique

• A corresponding attribute frequency matrix could
  be as follows
• Table 2 Attribute Frequency Matrix

Query T1.A T1.B T1.C T2.D T2.E T3.F T3.G T3.H T4.K
Q1 1 1 3 0 0 0 0 1 1
Q2 0 0 0 0 0 1 3 0 0
Q3 0 0 0 0 2 3 1 0 0
Q4 2 5 1 3 0 0 0 4 4
Q5 0 0 3 0 0 5 2 0 0
Freq 3 6 7 3 2 9 6 5 5
12
Candidate Index Selection
Table size of T1 5000 Table size of T2
2000 Table size of T3 100 Table size of T4
20 T table size/100 Let threshold1 5,
threshold2 30
3. Choose candidate index set Freq gt
threshold1 OR Freq T gt threshold2
T table size/constant
Query T1.A T1.B T1.C T2.D T2.E T3.F T3.G T3.H T4.K
Q1 1 1 3 0 0 0 0 1 1
Q2 0 0 0 0 0 1 3 0 0
Q3 0 0 0 0 2 3 1 0 0
Q4 2 5 1 3 0 0 0 4 4
Q5 0 0 3 0 0 5 2 0 0
Freq 3 6 7 3 2 9 6 5 5
FreqT 150 300 350 60 40 9 6 5 1
Table 3. Attribute-frequency matrix
13
Non-Clustered Index Selection

• 4 a. Assign weights to the candidate attribute
  set as follows
• Where Clause 3
• Group by/Order by 2
• Aggregate functions 1

Query T1.A T1.B T1.C T2.D T2.E T3.F T3.G
Q1 3 3 321 0 0 0 0
Q2 0 0 0 0 0 3 321
Q3 0 0 0 0 6 5 4
Q4 2 5 1 3 0 0 0
Q5 0 0 3 0 0 5 2
Total Weight 5 8 10 3 6 13 12
Table 4. Candidate Attribute Set
14
Non-Clustered Index Selection

• 4 b. Order the columns in the candidate attribute
  set in each table in descending order of their
  weights for determining non-clustered indexes.

Query T1.C T1.B T1.A T2.E T2.D T3.F T3.G
Q1 6 3 3 0 0 0 0
Q2 0 0 0 0 0 3 6
Q3 0 0 0 6 0 5 4
Q4 1 5 2 0 3 0 0
Q5 3 0 0 0 0 5 2
Total Weight 10 8 5 6 3 13 12
Table 5. Ordered Candidate Attribute Set
15
Non-Clustered Index Selection

• 4 c. Build a Query-Attribute Matrix with the
  ordered columns

Query T1.C T1.B T1.A T2.E T2.D T3.F T3.G
Q1 1 1 1 0 0 0 0
Q2 0 0 0 0 0 1 1
Q3 0 0 0 1 0 1 1
Q4 1 1 1 0 1 0 0
Q5 1 0 0 0 0 1 1
Total Weight 10 8 5 6 3 13 12
Table 6. Query Attribute Matrix with ordered
candidate index set
16
Non-Clustered Index Selection

• 5. Use a data mining clustering technique on the
  Query-Attribute matrix to group similar queries.
  A possible clustering result is
• Q1 Q4 Q2 Q3 Q5 (Table 6)
• 6. Extract the index sets for each table from the
  clusters obtained.
• These are all the common attributes from all
  the queries
• clustered together.
• For the cluster Q1, Q4 Indexes are (T1.C,
  T1.B, T1.A) in that order
• For the cluster Q2 Q3 Q5 Indexes are (T3.F,
  T3.G) in that order

17
Clustered Index Selection

• 6. Choose single column clustered index as
  follows
• a. During parsing assign the following weight to
  the attributes
• Range queries 2 Join 1 Group
  by/Order by 1
• b. Rank the attributes according to their weight

Query T1.A T1.B T1.C T2.D T2.E T3.F T3.G
Q1 1 2 1 0 0 0 0
Q2 0 0 0 0 0 0 21
Q3 0 0 0 0 1 1 1
Q4 1 3 0 2 0 0 0
Q5 0 0 1 0 0 1 1
Total Weight 2 5 2 2 1 2 5
Rank 1 2 1 2 1 1 2
Table 7. Ranking according to weight for
clustered index
18
Clustered Index Selection

• c. Determine the selectivity of columns and rank
  them according to the selectivity for each table.


T1.A T1.B T1.C T2.D T2.E T3.F T3.G
Selectivity 1 0.85 0.9 0.88 0.55 0.65 0.82
Rank N/A 1 2 2 1 1 2
Table 8. Ranking according to selectivity for
clustered index
19
Clustered Index Selection

• d. Find the sum of rank with selectivity and
  rank with weight for each
• column.The indexable attribute with the
  largest sum is suggested as
• clustered index for the table.
• If more than one indexable attributes have
  the highest sum then
• select the attribute with higher rank in
  weight.

Column name Rank with selectivity Rank with weight Sum
T1.A N/A 1 N/A
T1.B 1 2 3
T1.C 2 1 3
T2.D 2 2 4
T2.E 1 1 2
T3.F 1 1 2
T3.G 2 2 4
Table 9. Sum of Ranks with Weight and
Selectivity for Clustered Index
20
Algorithm for proposed technique

• 7. Provide both clustered and non-
• clustered indexes to the query optimizer
• 8. Let the optimizer display the estimated
• execution plan to execute the workload
• in the database.
• 9. Select the indexes used by the
• optimizer as the final suggested index.

21
Proposed Re-indexing Technique

• An auto-indexing tool should be capable of
  re-indexing whenever the current indexes are no
  longer good
• The DBMS can periodically monitor the cost of
  total table scan for a particular size of
  workload
• When this value exceeds a limit the DBMS triggers
  the index selection tool to suggest new set of
  indexes.
• The limit to trigger the tool can be determined
  from the relationship between increase in table
  scan cost and performance gain due to
  re-indexing. This can be set by the DBA.

22
Proposed Re-indexing Technique

• Produce a Chart showing Re-indexing performance
  gain vs. Table scan cost gt Guildelines for DBA
  by doing the following
• Assume the current workload is Wc, current index
  set is INc, compute total current table scan cost
  TSc.
• Obtain a set of different workload samples over a
  long history W2, W3,.. Wn.
• Compute total table scan cost for each of
  workload sample using the current index set
  TS2c, TS3c,, TSnc.

23
Proposed Re-Indexing Technique (Cont.)

• Run our index selection tool on W2, W3, , Wn to
  get the corresponding recommended sets of
  indexes IN2r, IN3r,, INnr.
• Compute total table scan cost for each workload
  using its new recommended set of indexes TS2r,
  TS3r,, TSnr.
• Compute the percentage of performance
  improvement due to reindexing for each workload
  Wj (TSc TSjr)/TSc) 100 for j 2,.., n.

24
Proposed Re-indexing Technique

25
Proposed Re-indexing Technique

• If the DBA has the chart in advance, the DBA can
  set up the limit where he/she wants the DBMS to
  trigger index selection tool.
• The existing index set is then compared with the
  new index set
• Indexes which are part of new but not part of
  existing set are created, those which are part of
  existing set and not in new set are dropped and
  those which intersect remain
• The process of dropping and creating indexes in
  the system follows similar methodology as
  Oracles Automated Index-Rebuild System which can
  be done either online or offline.

26
Experiments

• Performance Metric
• average query response time
• time taken to execute the workload in minutes
  divided by the total number of queries in the
  workload
• All experiments are conducted on the system Intel
  Pentium 4-M, CPU 2.0GHz, 512 MB RAM.
• Experiments conducted on TPC-R benchmark with its
  22 read-only queries
• Experiments conducted on Microsoft SQL Server 2000

27
Experiments

• Clustering algorithms used in experiment
• 1. MACQueens k means clustering algorithm
• Used hamming distance as the distance function
• 2. KEROUAC (knowledge explicit, rapid, off beat
  and user-centered algorithm for clustering)
• K-means is a well-established data clustering
  algorithm
• KEROUAC is a clustering algorithm for practical
  advantage it doesnt require the final clusters
  number setting
• Both algorithms have low computational cost

28
Results With K-means
Chart 1
29
Results with KEROUAC
Chart 2
30
Results with Index Suggestion Time
31
Conclusions

• Performance of the tool critically depends on the
  choice of ? (for KEROUAC) and k (for k-means) and
  the threshold value.
• Increasing ? (k) will group queries with higher
  similarity to each other in a cluster.
• Increasing ? (k) beyond some point has no effect
  (all identical queries are already in the same
  cluster).
• We can therefore achieve desired results by
  choosing ? (k) workload size.
• Increasing threshold means more attributes
  eliminated from consideration
• Experiments show that a threshold value about
  workloadsize/4 works good.
• Our tool chooses these parameters to operate on
  the best performance range.

32
Conclusions

• We compared our results with Microsoft SQL
  Servers Index Selection Tool (An optimizer Based
  Tool) and also with Frequent Itemsets Mining (An
  External Tool)
• Best performance improvement using k Means
  clustering compared with Frequent Itemsets Mining
  is 71.43
• Best performance improvement using k Means
  clustering compared with Microsoft Index
  Selection Tool is 16.2
• Best performance improvement using KEROUAC
  clustering compared with Frequent Itemsets Mining
  is 73.26
• Best performance improvement using KEROUAC
  clustering compared with Microsoft Index
  Selection Tool is 21.5
• The index suggestion time for Microsoft Index
  Selection Tool was 4 times higher than our tool
  for a workload size of 240

33
Future Work

• Test the dependence of the technique on different
  clustering algorithms
• Test with different sizes of workload
• Test with update queries in the workload
• Test with index elimination technique

34

• Thanks!
• Questions?

35
Indexable Attributes

• Indexable Attributes/Columns
• Columns which belong to WHERE, GROUP BY, ORDER BY
  clauses
• Operators , lt, gt, lt, gt, BETWEEN, IN
• Example
• SELECT
• FROM table1,table2
• WHERE table1.column1 table2.column1
• AND (table2.column2 BETWEEN 0 AND 1000)
• the indexable attributes are
• table1.column1, table2.column1, table2.column2

36
Selectivity of a column

• Selectivity
• Selectivity ratio of a column/index
• number of unique values in a column/index of
  the table divided by total number of rows in that
  table
• SELECT COUNT (DISTINCT (column name))
• FROM table name
• If a column/index has high selectivity then it is
  more useful to the optimizer and has more chances
  to be picked up by the optimizer while executing
  a query.

37
Multicolumn Indexes

• Multicolumn indexes
• Column involved in multicolumn index should be
  joined with AND clause and not with OR clause
• Order of the columns in a multicolumn index is
  important. Order should be based on selectivity
  and also the first ordered column should be the
  most used column in queries.
• An index (a, b, c) is used by queries involving
  a, b, c both a and b or a but not in any other
  combinations
• Example
• An index (major, minor) is suitable for the
  following query
• SELECT name
• FROM test
• WHERE major constant
• AND minor constant

38
Frequent Itemset Mining Technique

• Input is a workload of queries
• Extract indexable attributes.
• Create a query attribute matrix.

Attributes Attributes Attributes Attributes Attributes Attributes
Queries A B C D E
Q1 1 0 1 1 0
Q2 0 1 1 0 1
Q3 1 1 1 0 1
Q4 0 1 0 0 1
Q5 1 1 1 0 1
Q6 0 1 1 0 1
Q1 SELECT FROM T1, T2 WHERE A BETWEEN 1 AND
10 AND C D Q2 SELECT FROM T1, T2 WHERE B
LIKE this AND C5 AND Elt100 Q3
SELECT FROM T1, T2 WHERE A30 AND Bgt3
GROUP BY C HAVING SUM(E)gt2
Table 1
Q4 SELECT FROM T1 WHERE Bgt2 AND E IN
(3,2,5) Q5 SELECT FROM T1, T2 WHERE A30 AND
Bgt3 GROUP BY C HAVING SUM(E)gt2 Q6 SELECT
FROM T1, T2 WHERE Bgt3 GROUP BY C HAVING
SUM(E)gt2
39
Frequent Itemset Mining Technique

• A closed itemset is a maximal set of items
  (attributes) that are common to a set of
  transactions (queries)
• The candidate indexes selected for minimal
  support greater than or equal to 2/6 in the
  example are as follows1
• (AC,3/6), (BE, 5/6), (ABCE, 2/6), (BCE, 4/6)

Attributes Attributes Attributes Attributes Attributes Attributes
Queries A B C D E
Q1 1 0 1 1 0
Q2 0 1 1 0 1
Q3 1 1 1 0 1
Q4 0 1 0 0 1
Q5 1 1 1 0 1
Q6 0 1 1 0 1
Table 2
40
SQL-Server Index Selection Tool
Figure 1
41
SQL-Server Index Selection Tool

• Candidate index selection
• For a given workload W that consists of n
  queries, n workloads Wi..Wn, each consisting of
  one query are generated.
• For each workload Wi, the set of indexable
  columns of the query Ii is the starting candidate
  indexes.
• Let Ci be the configuration picked by the index
  selection tool for Wi
• The candidate index set for W is the union of all
  Ci

42
SQL-Server Index Selection Tool

• Configuration enumeration
• Problem
• Pick k indexes from a set of n candidate indexes.
• Algorithm
• 1 Let Sthe best m index configuration using the
  naïve enumeration algorithm. If mk then exit
• 2 Pick a new index I such that Cost (S U I) lt
  Cost (S U I) for any choice of I ! I
• 3 If Cost (S U I )gt Cost (S) then exit
• else SS U I
• 4 If S k then exit
• 5 Go to 2

43
SQL-Server Index Selection Tool

• Cost Evaluation
• Reduce the number of invocations of the optimizer
  by deriving costs from already evaluated costs.
• A cost of a non atomic configuration can be
  derived from atomic configuration
• A configuration C is atomic for a workload if
  for some query in the workload there is a
  possible execution of a query in the workload by
  the query engine that uses all indexes in C.
• Not every atomic configuration needs to be
  evaluated for every single query in the workload

44
SQL-Server Index Selection Tool

• Multicolumn index generation
• For given K columns K! multicolumn indexes are
  possible
• Iterative approach
• First iteration single column indexes are
  considered
• Only the selected single column indexes are input
  to the two column indexes in the first iteration
• This set of two-column indexes along with single
  column ones are input to the third iteration and
  so on.

45
Clustered Index

• Clustered indexes
• A page allocated to an index is called a data
  page.
• For tables having clustered index the data rows
  of each data page are stored in order and the
  data pages are linked together by doubly-linked
  list.
• For table having no clustered index the data rows
  are not stored in any particular order.

Figure 2
46
Clustered Index
Accessing data with a clustered index
Figure 3
47
Criteria to choose clustered index

• Queries that return large result sets
• Columns with a number of duplicate values that
  are searched frequently
• Columns other than primary key that are
  frequently used in join clauses
• Columns searched within a range of values
• Columns used in ORDER BY or GROUP BY queries

48
MACQueens k Means Clustering algorithm

• 1) First k data units are chosen as clusters of
  one member each.
• 2) Remaining m k data units are assigned to
  the clusters whose centroid is nearest to the
  data unit under consideration. Centroid is
  recomputed after every gain in the cluster
• 3) Iterate through the data set assigning each
  data unit to its nearest cluster taking the
  existing cluster centroids as fixed seed points
  until a certain criteria is reached

49
MACQueens k Means Clustering algorithm

• Hamming distance is the number of positions in
  which two binary words differ
• For k 3 Q1, Q2, Q3 are initial clusters
• Hamming distance of
• Q1 and Q4 is 5
• Q2 and Q4 is 1
• Q3 and Q4 is 2
• Clusters at step 2 are
• cluster1 Q1
• cluster2 Q2, Q4, Q6
• cluster3 Q3,Q5

Attributes Attributes Attributes Attributes Attributes Attributes
Queries A B C D E
Q1 1 0 1 1 0
Q2 0 1 1 0 1
Q3 1 1 1 0 1
Q4 0 1 0 0 1
Q5 1 1 1 0 1
Q6 0 1 1 0 1
Table 3
50
KEROUAC Clustering algorithm
KEROUAC Knowledge Explicit, Rapid, OFF beat and
User-centered Algorithm for Clustering New
Condorcet Criterion (NCC) NCC(Pz) ?
Sim(Ei,Ej) a x ? Dissim(Ei) NCC represents
the degree of dissimilarity of objects
belonging to the same cluster and the degree of
similarity between clusters. It is desired
to be minimum. a is called the granularity factor
51
KEROUAC Clustering algorithm
Attributes Attributes Attributes Attributes Attributes Attributes
Queries A B C D E
Q1 1 1 0 0 0
Q2 1 0 1 0 0
Q3 0 1 1 0 0
Q4 1 1 1 0 0
Q5 0 0 1 1 1
Q6 0 0 0 1 1
Table 4

• Calculate NCC for all the neighbors and pick the
  neighbor with least NCC
• Repeat until a reduction in NCC is not possible

Figure 4
52
Proposed index selection algorithm

• Step 1 Input workload
• Step 2 Parse the workload to find indexable
  attributes gt Query-attribute matrix
• Step 3 Identify candidate indexable attributes
  based on frequency of attributes in the workload
  and threshold1 and threshold2
• Step 4 Compute the total weight of each
  attribute using the clause weight assignment
  policy and order the attributes in each table in
  decreasing order of weights in order to identify
  non-clustered indexes in Step 6 gt Ordered
  query-attribute matrix.
• Step 5 Perform a data mining clustering
  technique on the ordered query-attribute matrix
  to group similar queries based on their use of
  attributes.

53
Proposed Index Selection Algorithm (Cont.)

• Step 6 Extract index sets for each table from
  the clustering results in Step5.
• Step 7 Select a single attribute clustered index
  for each table by computing the sum of range
  querys weight and selectivity ranking for each
  attribute and selecting the attribute with the
  highest sum.
• Step 8 Provide the query optimizer with the
  virtual set of indexes chosen in
• steps 5 and 7 (including both non-clustered and
  clustered indexes).
• Step 9 Let the optimizer display the estimated
  execution plan to execute the workload.
• Step 10 Select the indexes used by the optimizer
  as the final suggested index.
