A Constraint Generation Approach to Learning Stable Linear Dynamical Systems

1

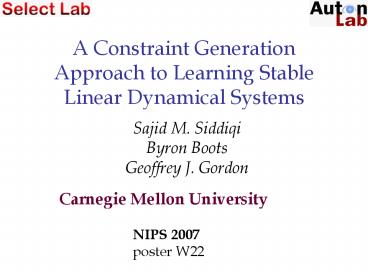

A Constraint Generation Approach to Learning
Stable Linear Dynamical Systems

• Sajid M. SiddiqiByron BootsGeoffrey J. Gordon

Carnegie Mellon University
NIPS 2007poster W22
2
steam
3
Application Dynamic Textures1
steam
river
fountain

• Videos of moving scenes that exhibit stationarity
  properties
• Dynamics can be captured by a low-dimensional
  model
• Learned models can efficiently simulate realistic
  sequences
• Applications compression, recognition, synthesis
  of videos

1 S. Soatto, D. Doretto and Y. Wu. Dynamic
Textures. Proceedings of the ICCV, 2001
4
Linear Dynamical Systems

• Input data sequence

5
Linear Dynamical Systems

• Input data sequence

6
Linear Dynamical Systems

• Input data sequence
• Assume a latent variable that explains the data

7
Linear Dynamical Systems

• Input data sequence
• Assume a latent variable that explains the data

8
Linear Dynamical Systems

• Input data sequence
• Assume a latent variable that explains the data
• Assume a Markov model on the latent variable

9
Linear Dynamical Systems

• Input data sequence
• Assume a latent variable that explains the data
• Assume a Markov model on the latent variable

10
Linear Dynamical Systems2

• State and observation models
• Dynamics matrix
• Observation matrix

2 Kalman, R. E. (1960). A new approach to linear
filtering and prediction problems. Trans.ASME-JBE
11
Linear Dynamical Systems2

• This talk
• Learning LDS parameters from data while ensuring
  a stable dynamics matrix A more efficiently and
  accurately than previous methods

• State and observation models
• Dynamics matrix
• Observation matrix

2 Kalman, R. E. (1960). A new approach to linear
filtering and prediction problems. Trans.ASME-JBE
12
Learning Linear Dynamical Systems

• Suppose we have an estimated state sequence

13
Learning Linear Dynamical Systems

• Suppose we have an estimated state sequence
• Define state reconstruction error as the
  objective

14
Learning Linear Dynamical Systems

• Suppose we have an estimated state sequence
• Define state reconstruction error as the
  objective
• We would like to learn such that

i.e.
15
Subspace Identification3

• Subspace ID uses matrix decomposition to estimate
  the state sequence

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
16
Subspace Identification3

• Subspace ID uses matrix decomposition to
  estimate the state sequence
• Build a Hankel matrix D of stacked observations

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
17
Subspace Identification3

• Subspace ID uses matrix decomposition to
  estimate the state sequence
• Build a Hankel matrix D of stacked observations

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
18
Subspace Identification3

• In expectation, the Hankel matrix is inherently
  low-rank!

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
19
Subspace Identification3

• In expectation, the Hankel matrix is inherently
  low-rank!

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
20
Subspace Identification3

• In expectation, the Hankel matrix is inherently
  low-rank!

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
21
Subspace Identification3

• In expectation, the Hankel matrix is inherently
  low-rank!
• Can use SVD to obtain the low-dimensional state
  sequence

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
22
Subspace Identification3

• In expectation, the Hankel matrix is inherently
  low-rank!
• Can use SVD to obtain the low-dimensional state
  sequence

For D with k observations per column,

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
23
Subspace Identification3

• In expectation, the Hankel matrix is inherently
  low-rank!
• Can use SVD to obtain the low-dimensional state
  sequence

For D with k observations per column,

3 P. Van Overschee and B. De Moor Subspace
Identification for Linear Systems. Kluwer, 1996
24

• Lets train an LDS for steam textures using this
  algorithm, and simulate a video from it!

xt 2 R40
25
Simulating from a learned model
The model is unstable
26
Notation

• ?1 , , ?n eigenvalues of A (?1 gt gt ?n
  )
• ?1,,?n unit-length eigenvectors of A
• ?1,,?n singular values of A (?1 gt ?2 gt
  ?n)
• S? matrices with ?1 1
• S? matrices with ?1 1

27
Stability

• a matrix A is stable if ?1 1, i.e. if

28
Stability

• a matrix A is stable if ?1 1, i.e. if

29
Stability

• a matrix A is stable if ?1 1, i.e. if

?1 0.3
?1 1.295
30
Stability

• a matrix A is stable if ?1 1, i.e. if

xt(1), xt(2)
?1 0.3
xt(1), xt(2)
?1 1.295
31
Stability

• a matrix A is stable if ?1 1, i.e. if
• We would like to solve

xt(1), xt(2)
?1 0.3
xt(1), xt(2)
?1 1.295
s.t.
32
Stability and Convexity

• But S? is non-convex!

33
Stability and Convexity

• But S? is non-convex!

A1
A2
34
Stability and Convexity

• But S? is non-convex!
• Lets look at S? instead
• S? is convex
• S? µ S?

A1
A2
35
Stability and Convexity

• But S? is non-convex!
• Lets look at S? instead
• S? is convex
• S? µ S?

A1
A2
36
Stability and Convexity

• But S? is non-convex!
• Lets look at S? instead
• S? is convex
• S? µ S?
• Previous work4 exploits these properties to
  learn a stable A by solving the semi-definite
  program

A1
A2
s.t.
4 S. L. Lacy and D. S. Bernstein. Subspace
identification with guaranteed stability using
constrained optimization. In Proc. of the ACC
(2002), IEEE Trans. Automatic Control (2003)
37

• Lets train an LDS for steam again, this time
  constraining A to be in S?

38
Simulating from a Lacy-Bernstein stable texture
model
Model is over-constrained. Can we do better?
39
Our Approach

• Formulate the S? approximation of the problem as
  a semi-definite program (SDP)
• Start with a quadratic program (QP) relaxation of
  this SDP, and incrementally add constraints
• Because the SDP is an inner approximation of the
  problem, we reach stability early, before
  reaching the feasible set of the SDP
• We interpolate the solution to return the best
  stable matrix possible

40
The Algorithm
41
The Algorithm
objective function contours
42
The Algorithm
objective function contours

• A1 unconstrained QP solution (least squares
  estimate)

43
The Algorithm
objective function contours

• A1 unconstrained QP solution (least squares
  estimate)

44
The Algorithm
objective function contours

• A1 unconstrained QP solution (least squares
  estimate)
• A2 QP solution after 1 constraint (happens to be
  stable)

45
The Algorithm
objective function contours

• A1 unconstrained QP solution (least squares
  estimate)
• A2 QP solution after 1 constraint (happens to be
  stable)
• Afinal Interpolation of stable solution with the
  last one

46
The Algorithm
objective function contours

• A1 unconstrained QP solution (least squares
  estimate)
• A2 QP solution after 1 constraint (happens to be
  stable)
• Afinal Interpolation of stable solution with the
  last one
• Aprevious method Lacy Bernstein (2002)

47

• Lets train an LDS for steam using constraint
  generation, and simulate

48
Simulating from a Constraint Generation stable
texture model
Model captures more dynamics and is still stable
49

• Least Squares

• Constraint Generation

50
Empirical Evaluation

• Algorithms
• Constraint Generation CG (our method)
• Lacy and Bernstein (2002) LB-1
• finds a ?1 1 solution
• Lacy and Bernstein (2003)LB-2
• solves a similar problem in a transformed space
• Data sets
• Dynamic textures
• Biosurveillance baseline models (see paper)

51
(No Transcript)
52
Reconstruction error

• Steam video

decrease in objective (lower is better)
number of latent dimensions
53
Running time

• Steam video

Running time (s)
number of latent dimensions
54
Conclusion

• A novel constraint generation algorithm for
  learning stable linear dynamical systems
• SDP relaxation enables us to optimize over a
  larger set of matrices while being more efficient

55
Conclusion

• A novel constraint generation algorithm for
  learning stable linear dynamical systems
• SDP relaxation enables us to optimize over a
  larger set of matrices while being more efficient
• Future work
• Adding stability constraints to EM
• Stable models for more structured dynamic textures

56

• Thank you!

57
(No Transcript)
58
Subspace ID with Hankel matrices

• Stacking multiple observations in D forces
  latent states to model the future
• e.g. annual sunspots data with 12-year cycles

k 12
k 1
t
t
First 2 columns of U
59
Stability and Convexity

• The state space of a stable LDS lies inside some
  ellipse

60
Stability and Convexity

• The state space of a stable LDS lies inside some
  ellipse
• The set of matrices that map a particular ellipse
  into itself (and hence are stable) is convex

61
Stability and Convexity

• The state space of a stable LDS lies inside some
  ellipse
• The set of matrices that map a particular ellipse
  into itself (and hence are stable) is convex
• If we knew in advance which ellipse contains our
  state space, finding A would be a convex problem.
  But we dont

?
?
?
62
Stability and Convexity

• The state space of a stable LDS lies inside some
  ellipse
• The set of matrices that map a particular ellipse
  into itself (and hence are stable) is convex
• If we knew in advance which ellipse contains our
  state space, finding A would be a convex problem.
  But we dont
• and the set of all stable matrices is non-convex

?
?
?
63
