Stanford University, SLAC, NIIT, the Digital Divide

1

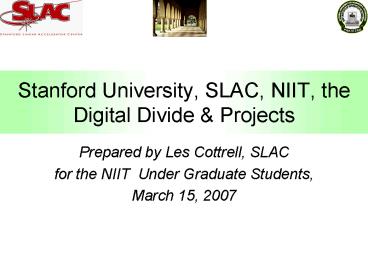

Stanford University, SLAC, NIIT, the Digital
Divide Projects

• Prepared by Les Cottrell, SLAC
• for the NIIT Under Graduate Students,
• March 15, 2007

2
Stanford University

• Location

3
Some facts

• Founded in 1890s by Governor Leland Stanford
  wife Jane
• in memory of son Leland Stanford Jr.
• Apocryphal story of foundation
• Movies invented at Stanford
• 1600 freshman entrants/year (12 acceptance), 71
  studentfaculty, students from 53 countries
• 169K living Stanford alumni

4
Some alumni

• Sports Tiger Woods, John McEnroe
• Sally Ride Astronaut
• Vint Cerf father of Internet
• Industry
• Hewlett Packard, Steve Ballmer CEO Microsoft,
  Scott McNealy Sun
• Ex-presidents Ehud Barak Israel, Alejandro
  Toledo Peru
• US Politics Condoleeza Rice, George Schultz,
  President Hoover

5
Some Startups

• Founded Silicon Valley (turned orchards into
  companies)
• Start by providing land and encouragement
  (investment) for companies started by Stanford
  alumni, such as HP Varian
• More recently Sun (Stanford University Network),
  Cisco, Yahoo, Google

6
Excellence

• 17 Nobel prizewinners
• Stanford Hospital
• Stanford Linear Accelerator Center (SLAC) my
  home
• National Lab operated by Stanford University
  funded by US Department of Energy
• Roughly 1400 staff, contractors outside users
  gt 3000, 2000 on site at a given time
• Fundamental research in
• Experimental particle physics
• Theoretical physics
• Accelerator research
• Astro-physics
• Synchrotron Light research
• Has faculty to pursue above research and awards
  degrees, 3 Nobel prizewinners

7
Work with NIIT

• Start 2004, MoU, funding from Pak MoST US State
  Dept.
• Development of students, build research capacity,
  develop publicly available tools, publish etc.,
  e.g.
• Quantify the Digital Divide
• Develop a robust measurement infrastructure to
  provide information on the extent of the Digital
  Divide
• Develop innovative visualization tools
• Improve understanding, provide planning
  information, expectations, identify needs (e.g.
  last mile problems, fragility, congestion ),
  report to politicians, funding agencies, net
  operators, end users, is it good enough for
  Grids, telemedicine (e.g. consulting expertise
  for poor communities)
• Case studies for S. Asia, Pakistan, Africa
• Provide and deploy tools in Pakistan (NIIT, QAU,
  PERN)
• Geo-location of hosts
• Network Weather Forecasting Anomaly detection,
  diagnosis and alerting

8
Students

• About a dozen students at NIIT co-supervision
  SLAC/NIIT
• Plus 6 chosen students with internships at SLAC
  for one year each
• Exposure to National Lab and world class network
  experts, work on state of the art projects,
  exposure to high speed networks such as will be
  available in Pakistan with PERN2,
• Take courses at Stanford
• 3 currently at SLAC
• 3 students completed their year, will return to
  NIIT as research assistants to share experiences
• One returned to NIIT to pursue PhD
• One to startup company in Silicon Valley
• One to U of New South Wales

9
Experiences

• Extremely successful on-going collaboration
• Developed and refined effective ways of
  communicating at a distance
• Useful tool kits developed and made publicly
  available
• Many publications and public presentations
• Students hard-working, dedicated, enthusiastic
  and innovative
• Have performed well in course work at Stanford,
  compare well with Stanford students
• Next step proposal to join the International
  perfSONAR project (currently Europe, US
  Brazilian NRENs)
• provide open set of protocols ref.
  implementation for cross-domain sharing of
  network measurements

10
PingER Project

• Arguably the worlds most extensive active
  end-to-end Internet Performance Project
• Digital Divide emphasis
• Partially funded by MoST, US State Department
• Last three years a joint development effort of
  SLAC NIIT
• Many NIIT students cut their teeth on it, many
  papers, presentations
• Results
• Highly successful
• Identified quantified rates of improvement for
  regions/countries
• How far behind, catching up, falling behind
• Many presentations to funding agencies,
  politicians, NRENs, recommendations
• Case studies identified fragility of e2e
  connections, last mile congestion problems,
  inefficient routing

11
PingER Methodology
gtping remhost
Uses ubiquitous ping
Remote Host (typically a server)
Internet
Monitoring host
10 ping request packets each 30 mins
Once a Day
Ping response packets
Data Repository _at_ SLAC
Measure Round Trip Time Loss
12
Architecture

• Monitor hosts send 21 pings each 30 mins to
  Remote Hosts and cache results
• Archive hosts gather data daily, save, analyze
  make results available publicly via web

13
PingER Deployment

• PingER project originally (1995) to measure
  network performance for US, Europe and Japanese
  HEP community
• Extended this century to measure Digital Divide
• Collaboration with ICTP Science Dissemination
  Unit http//sdu.ictp.it
• ICFA/SCIC http//icfa-scic.web.cern.ch/ICFA-SCIC/


• gt120 countries (99 worlds connected population)
• gt30 monitor sites in 14 countries

• Monitor 44 sites in S. Asia

14
Time Series results

• Divides into 2
• India, Maldives, Pakistan, Sri Lanka
• Bangladesh, Nepal, Bhutan, Afghanistan
• Weekend vs. weekday indicates heavy congestion

15
World Measurements Min RTT from US

• Maps show increased coverage
• Min RTT indicates best possible, i.e. no queuing
• gt600ms probably geo-stationary satellite
• Between developed regions min-RTT dominated by
  distance
• Little improvement possible
• Only a few places still using satellite for
  international access, mainly Africa Central
  Asia

2000
2006
16
Losses from SLAC to world

• hosts monitored increased seven-fold
• Increase in fraction with good loss
• Despite adding more hosts in developing world

• gt12
• gt5 lt12
• gt2.5 lt 5
• gt1 lt 2.5
• lt 1

17
Unreachability

• All pings of a set fail unreachable
• Shows fragility, distance independent
• Developed regions US, Canada, Europe, Oceania, E
  Asia lead
• Factor of 10 improvement in 8 years

• Africa, S. Asia followed by M East L. America
  worst off
• Africa NOT improving

SE Asia
L America
M East
C Asia
Oceania
S Asia
SE Europe
Russia
Developing Regions
Africa
E Asia
Developed Regions
US Canada
Europe
18
World thruput seen from US
Throughput 1460Bytes / (RTTsqrt(loss)) (Mathis
et al)
Behind Europe 6 Yrs Russia, Latin America
7 Yrs Mid-East, SE Asia 10 Yrs South
Asia 11 Yrs Cent. Asia 12 Yrs Africa
South Asia, Central Asia, and Africa are in
Danger of Falling Even Farther Behind
19
Normalized for Details

• Note step changes
• Africa v. poor
• S. Asia improving
• N. America, Europe, E Asia, Oceania lead

20
Conclusions

• Last mile problems, network fragility, poor
  routing
• Decreasing use of satellites, expensive, but
  still needed for many remote countries in Africa
  and C. Asia
• Africa 10 years behind and falling further
  behind, leads to information famine
• Africa big target of opportunity
• Growth in users 2000-2005 200, Africa 625
• Need more competitive pricing
• Fibre competition, government divest for access,
  low cost VSAT licenses
• Consortiums to aggregate get better pricing
  (/BW reduces with BW)
• Need better routing - IXPs
• Need training skills for optimal bandwidth
  management
• Internet performance correlates strongly with
  UNDP ITU development indices
• Increase coverage of monitoring to understand
  Internet performance

21
Application to PERN

• Place PingER monitoring node(s) inside PERN
• V. modest host, trivial install
• Add traceroute/landmark server for geolocation
• PERN configures to monitor to border routers /or
  to end hosts at sites (e.g. site web servers)
• Currently gathers data daily, analyze, present
  via SLAC/FNAL
• NIIT/SLAC plans to develop front end to
  analyze/visualize results on real time basis
  using cached data RRD/smokeping

22
perfSONAR Next Generation Network Monitoring

• Partnership of Internet2 (US), GEANT (EU), ESnet
  (US), RNP (Brazil)
• Plus in the US SLAC, U Delaware, GATech
• 13 EU related NREN deployments of perfSONAR

23
Needs

• Advancements in networks improve scientific
  collaborations, help accelerate discoveries
• E.g. High Energy Physics (HEP), seismology,
  tele-medicine, astro-physics, global weather,
  education
• Modern science relies on global Internet
• Data exchange, interaction teleconferencing,
  Grids
• Network problems have increased significance for
  science
• Thus dependent on cyber infrastructure to support
  efficient network problem diagnosis along paths
  traversing multiple network domains
• This is an unresolved issue today
• Hard to overstate amount of effort today to
  resolve problems
• Often duplicated
• Scientists forced to become part-time network
  engineers

24
Why is this hard?

• Internet very diverse, hard to find invariants,
  phone models do not work
• Constantly changing both short and long-term
• Changes are not smooth but usually in steps,
  findings may be out of date
• No central organization
• Scientific communities span multiple
  organizations in many countries
• Typical path requires crossing at least 5
  administrative domains (campus, regional,
  backbone, regional and campus)
• Domains are autonomous
• Measurement not high on vendors priorities
• ISPs concerned about privacy, competitive
  advantage, public embarrassment
• Diagnosis hard
• Convince ADs there is a problem and that they
  could/should help
• Need multiple pieces of information from multiple
  sources (ends, multiple middles), with no
  coordinating body
• Gets even harder for layer 2 networks

25
New Proposal to Address

• Widespread demand for net info by
• Researchers to know how network is performing
• Advanced net apps such as Grids (e.g. place data)
• Net Ops staffs to diagnose problems
• Education
• Flexibility in extracting net performance data,
  needed since
• Network changes quickly, diagnostic data is
  moving target
• New tools, metrics and types of analysis are
  constantly developed
• Lack of effective ways to share performance data
  across domains

26
perfSONAR Infrastructure

• Provide/Enable Measurement Points and Archives
• Provide Authentication/Authorization
• Provide registration, discovery distributed
  lookup services
• Provide open set of protocols reference
  implementation for cross-domain sharing of
  network measurements
• Common performance middleware
• Open Grid Forum NMWG extensible XML data
  representation
• All development is open source to encourage
  widespread development, deployment, ownership
  involvement
• Early framework prototypes deployed in Europe, N
  and S America (Brazil), also adopted by LHC

27
Next Steps

• Develop scalable, distributed, redundant
  Federated Lookup Service (like DNS)
• Integrate common, existing authentication
  management into perfSONAR
• Design and build the Resource Protector to
  implement policy
• Provide specific, useful example diagnostic
  services as high quality examples (e.g. for
  traceroute, ping, one-way delay, SNMP, Layer-2
  link services etc.)
• Provide a Topology service to provide layer-2 3
  interconnection information
• Promote perfSONAR to research community
• Students get reliable data from perfSONAR,
  request on demand measurements, provide new
  analyses
• Turn into hardened/production quality
  distributable code

28
Impact NRENs Customers

• RE relies on reliable networking.
• Debugging problems across domains extraordinarily
  difficult today, increased switched networks will
  make harder.
• PerfSONAR enables divide and conquer between end
  intermediate points
• provides easy access to relevant data enables on
  demand measurements
• reduces need to coordinate multi-domain admins
  (scientist gt local net admin gt Regional net admin
  Backbone admin gt ), telephone tag, explaining
• Reduces participants, hours, days, frustration
  etc

29
Some Projects
30
One Big Challenge

• Elegant graphics are great to understand problems
  BUT
• Can be thousands of graphs to look at (many site
  pairs, many devices, many metrics)
• Need automated problem recognition AND diagnosis
• So developing tools to reliably detect
  significant, persistent changes in performance
• Initially using simple plateau algorithm to
  detect step changes
• Provide reliable alerts
• Automatically partially diagnose events
• Gather info from routers, monitors etc and
  eliminate less likely causes

31
Challenges Finding Hosts

• Best via contacts
• Also use Google to provide hosts for country (eg
  .ly)
• Found 844 hosts gt 702 unique names gt 600 ping
• 88 unique IP addresses
• 6 in Libya according to Geo IP Tool
  www.geoiptool.com/
• Automated by Akbar Mehdi of NIIT at SLAC (see
  https//confluence.slac.stanford.edu/display/IEPM/
  PingERHostSearcher )
• Verified with TULIP geolocator
• Locates hosts using RTT from multiple landmarks
  to target
• Also see Octant for US www.cs.cornell.edu/bwong/o
  ctant/

32
TULIP geolocator (Faran)

• www.slac.stanford.edu/comp/net/wan-mon/tulip/
• Java applet (needs Java Webstart)
• Friendly client, easy vizualization
• Need landmarks around world

Enter target
Pings min/avg/max from landmarks to targets
Landmarks
Target
Traceroutes from landmarks to targets
33
Real Time Display of PingER data

• Only gather once a day so old
• On monitor host, copy data into RRD data base
• Use Smokeping or something similar to select
  look at data
• Important for PERN

34
Case Studies of PingER data

• For example we have Sub-Sahara S. Asia
• Need Latin America, Middle-East
• How is region doing relative to the world,
  catching up, falling behind, how far behind?
• How are countries doing, RTT, losses,
  reliability, throughput
• How do they compare to development indices
• What is routing like

35
Build a Make/Install package for IEPM-BW

• We have a new version of our integrated
  monitoring, archive, analysis, vizualization
  package
• Called Internet End-to-end Monitoring for
  BandWidth
• Hard to install, done twice, once at QAU
• Need to make easier and more robust

36
Visualization of IEPM-BW data

• Display in real time on a map the connections
• Mouse over for information on hosts
• Click for performance graphs
• Color line by test,
• Thickness by performance
• Up to you to think about what is available and
  how to use this to drill down to it

37
Only a Sample

• Lots of work on perfSONAR
• Data access via web services
• Data registration, discovery lookup
• Topology
• Event detection
• Etc.
