Title: Forming memories in the brain : Process of consolidation

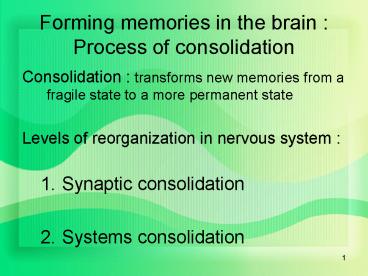

1Forming memories in the brain Process of
consolidation
- Consolidation transforms new memories from a
fragile state to a more permanent state - Levels of reorganization in nervous system
- Synaptic consolidation
- Systems consolidation
2Synaptic consolidation
- Occurs at synapses
- Happens rapidly
- Over a period of minutes
- Discovered molecular processes involved in
synthesizing the proteins that result in
structural change at the synapse
3Systems consolidation
- Many brain regions
- Gradual reorganization of cortical circuits
- Takes place on a longer time scale, lasting
weeks, months, or even years - Importance of hippocampus in consolidation
- H.M. lost his ability to form new memories after
his hippocampus was removed
4Chapter summery 17
- Consolidation transforms new memories into a
state in which they are more resistant to
disruption. - Synaptic consolidation occurs at synapses and is
rapid. - Systems consolidation involves the reorganization
of cortical circuits and is slower
5H.M.
- Anterograde amnesia
- Removal of H.M.s hippocampus made it impossible
for him to form new memories - Retrograde amnesia (partially)
- Amnesia extended back for about 10-15 years prior
to his operation - He could remember events that occurred before then
6Graded amnesia
- H.M. could remember events from his childhood,
but apparently not with as much clarity and
detail as a person without brain damage - Graded amnesia amnesia is most severe for
events that occurred just prior to the injury and
becomes less severe for earlier, more remote
events
7Forming memories in the brain Fragility of new
memories
- Graded amnesia (retrograde amnesia)
- Memory for recent events is more fragile than
memory for remote events
8Forming memories in the brain Fragility of new
memories
- Consolidation
- Transforms new memories from a fragile state, in
which they can be disrupted, to a more permanent
state, in which they are resistant to disruption - A consolidation process must occur before
memories become resistant to being disrupted
9Hippocampus consolidation
- Memory retrieval depends on the hippocampus
during consolidation - Once consolidation is complete
- Retrieval no longer depends on the hippocampus
- Example Graded amnesia after hippocampectomy
10- Your memory for last new years Eve could include
sights, sounds, smells, emotions you were feeling
and thoughts you were thinking at the stroke of
midnight - Experience results in activity of the different
cortical areas - No connection in the cortex
11Standard model of consolidation
- Incoming information activates a number of areas
in the cortex. - Activation is distributed across the cortex
because memories typically involve many sensory
and cognitive areas. - Cortex communicates with hippocampus
12Reactivation
- Hippocampus replays the neural activity
associated with a memory - Results in the formation of connections between
the cortical areas
13Standard model of consolidation
- Reactivation process occurs during sleep or
during periods of relaxed wakefulness - Reactivation process can be enhanced if a
consciously rehearses a memory
14Standard model of consolidation
- Consolidation occurs during sleep
- Peigneux et al.,2004
- Walker Stickgold, 2004
- Finding that memory for learning is enhanced when
the learning is immediately followed by a period
of sleep
15Standard model of consolidation
- cortical connections become strong enough
- the different sites in the cortex become directly
linked - hippocampus is no longer necessary
16Standard model of consolidation
17Chapter summery 18.1
- The standard model of consolidation proposes that
- during consolidation
- Memory retrieval depends on the hippocampus
- after consolidation is complete
- Memory retrieval involves the cortex
- Hippocampus is no longer involved
18Standard model of consolidation
- Retrieval of recent memories depends on the
hippocampus, and cortical connections have not
yet formed - (a) For retrieval of recent memories, hippocampal
activation is high and cortical activation is low
19Standard model of consolidation
- Once consolidation has occurred, cortical
connections have formed, and the hippocampus is
no longer needed. - (b) For retrieval of remote memories, cortical
activation is high, and there is no hippocampal
activation.
20Standard model of consolidation
- Recent memory hippocampus cortex
- Remote memory cortex only
21Medial temporal lobe semantic M
Recently learned memories cause activity in the
MTL
MTL do not activated for remote (semantic)
memories.
Haist 2001 , Wiltgen 2004
22Mental time travel (episodic M) MTL
episodic memory
- Ryan et al.,2001
- Participants engage in mental time travel
- fMRI study activity in hippocampus
- MTL is activated both when recent episodic
memories and remote episodic memories are
retrieved
23Hippocampus is activated during retrieval of both
recent and remote memories
24Asaf Gilboa and coworkers 2004
- Showing photographs of themselves engaging in
various activities that were taken at times
ranging from very recently, to when they were 5
years old - Results hippocampus was activated during
retrieval of both recent and remote memories.
25Moscovitch Nadel 1997
- Experiments that demonstrate MTL and HC
activation when retrieving remote episodic
memories - Support the idea that the hippocampus and MTL are
always important when accessing the details of
episodic memories
26Peter Bayley and coworkers 2005
- Describe patients with damage to the MTL who were
still able to remember the details of remote
episodic memories - Results fits the standard model
27Standard model of consolidation
- Support evidence
- Haist et al.,2001
- Wiltgen et al.,2004
- Peter Bayley and coworkers 2005
- Conflict evidence
- Ryan et al.,2004
- Asaf Gilboa and coworkers,2004
- Moscovitch et al.,2005
- Nadel Moscovitch, 1997
Recent memory hippocampus cortex Remote
memory cortex only
28Chapter summery 18.2
- There is evidence supporting the standard model
of consolidation, -
- and also evidence supporting the idea that
retrieval of episodic memories always involves
the hippocampus.
29Emotional memory
- More emotionally events seem to be remembered
more easily and vividly than less emotionally
events - Beginning or ending relationships
- Arousing words / Neutral words
- Events experienced by many people simultaneously
tsunami , 9/11 terrorist attack
30Memory for emotional stimuli
- Kevin Lavin and Elizabeth Phelps 1998
- Emotionally charged events are easier to remember
- Tested participants ability to recall
- Arousing words profanity sexually explicit
words - Neutral words street , store
- They can recall immediately after they were
presented - Results better memory for arousing words
31Memory for emotional stimuli
- Florin Dolcos and coworkers 2005
- Tested participants ability to recognize
emotional and neutral pictures - Memory test 1 year after they were initially
presented - Results better memory for the emotional pictures
32Memory for emotional stimuli
(a) Immediately after reading a word (b) 1 years
after viewing the pictures
33Memory for emotional stimuli
- Emotional memory / Amydala
- Brain imaging fMRI measured by Dolcos
- Amygdala activity was higher for the emotional
words
34Memory for emotional stimuli
- Emotional memory / Amygdala
- Neuropsychological study
- Viewed a slide show about a boy and his mother in
which a boy is injured halfway through the show - Participants without brain damage
- Enhanced memory for emotional part of story
- B.P. damaged to amygdala
- Not enhanced
35Memory for emotional stimuli
- Amygdala
- Emotion improves memory
- Emotion enhance the process of consolidation
36(No Transcript)
37Chapter summery 19
- Memory for emotional stimuli is generally
enhanced compared to memory for neutral stimuli. - The results of brain scanning and
neuropsychological experiments indicate that the
amygdala is involved in emotional memory.
38How do we retrieve information from LTM ?
- Retrieval failure occur when the information is
in there , but we cant get it out. - Most of our failures of memory are failures of
retrieval - Example youve studied hard for an exam but
cant come up with the answer when youre taking
the exam, only to remember it later when the exam
is over.
39Retrieval cues
- Cues that help us remember information stored in
our memory - Returning to a particular place stimulated
memories associated with that place - Location can serve as a retrieval cue
40Retrieval cues location
- While I was in my office at home ,I had made a
mental note to be sure to take the DVD on amnesia
to school for my cognitive psychology class - A short while later, as I was leaving the house,
I had a nagging feeling that I was forgetting
something, but I couldnt remember what it was. - As soon as I got home, I remembered
41Retrieval cues location
- Angelas experience
- When I was 8 years old, both of my grandparents
passed away. Their house was sold, and that
chapter of my life was closed. Since then I can
remember general things about being there as a
child, but not the details. - One day I decided to go for a drive. I went to my
grandparents old house and I pulled around to
the alley and parked. As I sat there and stared
at the house, the most amazing thing happened. I
experienced a vivid recollection. - All of a sudden, I was 8 years old again. I could
see myself in the backyard, learning to ride a
bike for the first time. I could see the inside
of the house. I remembered exactly what every
detail looked like. I could even remember the
distinct smell. So many times I tried to remember
these things, but never so vividly did I remember
such detail.
42Retrieval cues
- That are provided by returning to the location
where memories were initially formed. - Hearing the particular song can bring back
memories for events you might not thought about
for years - A musty smell like the stairwell of my
grandparents house that used to climb
43Cued recall
- Endel Tulving and Zena Pearlstone 1966
- Presented participants with a list of words to
remember - Free-recall group
- Pigeon, sparrow, chair, dresser, engineer, lawyer
- Cued-recall group
- Birds Pigeon, sparrow
- Furniture chair, dresser
- Professions engineer, lawyer
44Cued recall
- Endel Tulving and Zena Pearlstone 1966
- For the memory test,
- Participants in the free-recall group were asked
to write down as many as possible. - Participants in the cued-recall group were also
asked to recall the words, but were provided with
the names of the categories birds , furniture,
professions
45Endel Tulving and Zena Pearlstone 1966
46Cued recall
- Endel Tulving and Zena Pearlstone 1966
- Conclusion the retrieval cues aid memory
- Free-recall gr. Recall 40
- Cued-recall gr. Recall 75
47Power of retrieval cues
- Timo Mantyla 1986
- He presented his participants with a list of 600
nouns, - such as banana , freedom , tree
- During learning, the participants were told to
write down three words they associated with each
noun - Banana yellow , bunches , edible
48Power of retrieval cues
- Timo Mantyla 1986
- When the participants took a surprise memory
test, - They were presented with the three words they had
created and were asked to produce the original
word, - They were able to remember 90 of the 600 words
49Power of retrieval cues
- Timo Mantyla 1986
- Compared to another groups
- During learning created cues for banana ? own
cues provided in test - During learning saw banana and cues created
by someone else ? other persons cues provided in
test - Didnt participate in learning ? other persons
cues provided in test
50Power of retrieval cues
51Power of retrieval cues
- Timo Mantyla 1986
- Conclusions
- Retrieval cues ( the 3 words ) provide extremely
effective information for retrieving memories, - but that the retrieval cues were more effective
when they were created by the person whose memory
was being tested
52Chapter summery 20
- Retrieving LTM is aided by retrieval cues.
- This has been determined by cues- recall
experiments and experiments and experiments in
which participants created retrieval cues that
later helped them retrieve memories.
53Encoding specificity
- Memory is better when a cue that was associated
with an event is reinstated when the event is
to be remembered - Encoding
- Retrieval
54Encoding specificity
- D.R. Godden and Alan Baddeleys 1975
- diving experiment
- On land studying a list of words group
- Underwater studying a list of words group
- Each ½ of both groups were tested for recall on
land - Each ½ of both groups were tested for recall
underwater
55diving experiment
The best recall occurred when encoding and
retrieval occurred in the same environment
56Encoding specificity
- Harry Grant and coworkers 1998
- Studying experiment
- Participants read an article on psycho immunology
while wearing headphones. - Silent condition group
- Noisy condition group
- Half of each short-answer test on the article
under silent condition - Half of each short-answer test on the article
under noisy condition
57Studying experiment
Participants did better when the testing
condition matched the study condition
58Chapter summery 21
- The principle of encoding specificity states that
we learn information along with its context. - Godden and Baddeleys diving experiment and
Grants studying experiment illustrate the
effectiveness of encoding and retrieving
information under the same conditions
59State-Dependent learning
- Internal state mood or state of awareness
- Learning is associated with a particular internal
state - Principle memory will be better when a persons
state during retrieval matches his or her
internal state during encoding
60State-Dependent learning
- Eric Eich and Janet Metcalfe 1989
- Memory is better when a persons mood during
retrieval matches his or her mood during
encoding. - Asking participants to think positive thoughts
while listening to merry music or depressing
thoughts while listening to melancholic music - Participants rated their mood while listening
61State-Dependent learning
- Eric Eich and Janet Metcalfe 1989
- When mood rating reach very pleasant or very
unpleasant - Encoding part of the experiment began
- Participants studied lists of words while in
their positive or negative mood
62State-Dependent learning
- Eric Eich and Janet Metcalfe 1989
- After the study session ended
- Participants were told to return in 2 days
- The sad group stayed in the lab a little longer
- Snacking on cookies and chatting with the
experimenter while happy music played in the
background - So they wouldnt leave the laboratory in a bad
mood
63State-Dependent learning
- Eric Eich and Janet Metcalfe 1989
- 2 days later
- Participants returned
- The same procedure was used to put them in a
positive or negative mood. - When they reach the mood
- They were given a memory test for the words they
had studied 2 days earlier
64State-Dependent learning
The best recall occurred when encoding and
retrieval matched in same mood
65Chapter summery 22
- According to the principle of state-dependent
learning, a persons memory will be better when
his or her internal state during retrieval
matches the state during encoding. - Eich s mood experiment supports this idea.
66What memory research tells us about studying ?
- Ways of improving learning and memory
- Elaborate and generate
- Organize
- Associate
- Take breaks
- Match learning and testing conditions
67Elaborate and Generate
- Elaboration
- The step that transfer the material you are
reading into LTM - Maintenance rehearsal read and reread
- Elaborative rehearsal better transfer to LTM
68Elaborate and Generate
- Research has shown that
- students who read a text with the idea of making
up questions did as well on an exam as students
who read a text with the idea of answering
questions later , - and both groups did better than a group who did
not create or answer questions
69Elaborate and Generate
- Study technique method of talking out loud
- Mahya Tavakkoli s method
- My study technique is to talk out loud and
explain everything that I know. Sometimes when
you read the material, you think Yeah! I know
this! and move on. - But when you get to the exam, you get struck!
This is because the material is not in front of
you. - So by explaining everything out loud, it makes
much more sense. Its a good method to pretend
that youre the professor trying to teach a class
of 500 students.
70Elaborate and Generate
- S.W. Peterson 1992
- 82 of students highlight
- Most of them do so while they are reading the
material for the first time - Compared comprehension of both groups ? no
difference between the performance of both groups
when they were tested on the material
71Elaborate and Generate
- Elaborative processing generation effect
- Making up question
- Answering question
- Recheck correction of the answer to get feedback
- Mahya s method of pretending you are the
professor - Beware of highlighting (automatic behaviour)
72Organize
- Memory is better when the material is organized.
- Organization
- creates a framework that helps relate some
information to other information - Making trees
- Image
- Chunking
- makes the material more meaningful
- Reduce the load on your memory
73Associate
- Elaborative processing is associating what you
are learning to what you already know - Prior learning creates a structure on which to
hang new information - Creating imaging that link two things
74Take breaks
- Study in a number of shorter sessions rather than
trying to learn everything at once - Memory is better
- when studying the material is broken into a
number of short sessions with breaks in between - than when studying occurs in one long session
75Take breaks
- The advantage for short study sessions is called
Distributed versus massed practice effect - It is difficult to maintain close attention to
material throughout a long study session - Studying after a break gives better feedback
about what you actually know. - Consolidation is enhanced during sleep
76Sleep effect
- Helps consolidation
- Restorative effect
- Improves ability to concentrate and pay attention
77Match learning and testing conditions
- Memory should be better when study (encoding) and
testing (retrieval) conditions match as closely
as possible. - Encoding specificity
- State-dependence learning
78Smiths result
- Research has shown that people remember material
better - when they have learned it in a number of
different locations, -
- compared to spending the same amount of time
studying in one location
79Match learning and testing conditions
Making up questions about the material helps
encoding Answering the questions, which involves
retrieval, not only provides feedback about how
well you know the material but helps achieve
better encoding as well
This strengthened encoding then increases the
likelihood that retrieval will be successful
80Chapter summery 23
- Five memory principles that can be applied to
studying are - Elaborate and generate
- Organize
- Associate
- Take breaks
- Match learning and test conditions
81Are memories ever Permanent ?
- Memory is initially fragile, so a disrupting
event that occurs shortly after a memory is
formed can disrupt formation of memory - Once consolidation has occurred, then the same
disrupting event cannot affect the memory
82Conditioning
- Conditioning
- procedure in which pairing a neutral stimulus
with a stimulus that elicits a response - causes the neutral stimulus to elicit that
response
83Conditioning
- Pavlovs experiment 1927
- He presented a ringing bell ( the neutral
stimulus ) to a dog - Followed by presentation of food ( which causes
the dog to salivate ) - This pairing eventually caused the dog to
salivate when it heard the bell
84Conditioning
- Stimulus (food) ? response (saliva)
- Stimulus neutral stimulus (ringing bell) ?
response - Neutral stimulus ? response
85Fear conditioning
- Stimulus (unpleasant) ? response (avoid)
- Shock ? freeze
- Stimulus (shock) neutral stimuli (tone) ?
response (freeze) - Neutral stimulus (tone) ? response (freeze)
86Fear conditioning
- The rat hears a tone
- The rat receives a shock to its foot
- The shock causes the rat to freeze in place
- Pairing tone shock
- The rat tested later
- Neutral tone causes the fear response of freezing
87Fear conditioning
88Fear conditioning
- Karim Nader s experiments
- How injection of the chemical anisomycin would
affect fear conditioning - Anisomycin
- ATB that inhibits protein synthesis,
- which causes the structural changes at the
synapse that are responsible for the formation of
new memories
89Effect on fear conditioning of injecting
anisomycin
- Condition 1 inject before consolidation
- Condition 2 inject after consolidation
- Condition 3 inject during reactivation
90 911 Immediate presentation of anisomycin
- Day1 inject anisomycin Initial condition
(tone shock) ? fear response in rat (freeze) - Anisomycin disrupts protein synthesis before
consolidation occur - Day3 tone condition ? no rats memory for
shock-tone pairing ? rat does not freeze
922 Later presentation of anisomycin alone
- Day1 shock-tone pairing condition ? fear
response (freeze) ? consolidation rat learn to
fear tone - Day2 inject anisomycin 24 hours after that
- No disruption of rats memory
- Consolidation has occurred
- Day3 tone ? rat freeze
933 Later presentation of anisomycin with the tone
- Day1 shock-tone pairing condition ? fear
response (freeze) ? consolidation rat learn to
fear tone - Day2 tone ? rat freeze ? reactivation inject
anisomycin ? eliminates the rats memory - Day3 tone ? rat has no memory ? rat does not
freeze
94Karim Nader s experiments
- Karim Nader injected the anisomycin under 3
different conditions - Immediate presentation of anisomycin ? prevents
conditioning - Later presentation of anisomycin alone ? has no
effect (consolidation occurred) - Later presentation of anisomycin with the tone ?
eliminates conditioning
95Reconsolidation
- Learning ? consolidation ? learning ?
reactivation reconsolidation ? memory - 1 learning // no consolidation
- 2 learning ? consolidation ? memory
- 3 learning ? consolidation ? learning ?
reactivation // no reconsolidation ? eliminates
memory
96Updating memory
- Animal returns to the location of a food source
- Reactivates the original memory
- Animal finds that the food has been moved to a
new nearby location - New information updates the memory
- Updated memory is then reconsolidation
97Updating memory
- Reconsolidation reactivation occur when
retrieved , provide an opportunity for
reinforcing or updating memories - Memory becomes to being changed or disrupted
every time it is retrieved - Memory becomes a more dynamic and adaptable
process
98Chapter summery 24
- Recent research on memory, based largely on fear
conditioning in rats, indicates that memories can
become susceptible to disruption when they are
reactivated by retrieval. - After reactivation these memories must be
reconsolidated. - This process may be a mechanism for refining and
updating memories.
