Testing Effectiveness and Reliability Modeling for Diverse Software Systems

1

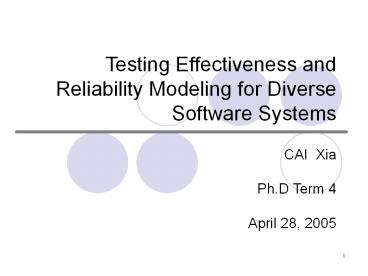

Testing Effectiveness and Reliability Modeling
for Diverse Software Systems

• CAI Xia
• Ph.D Term 4
• April 28, 2005

2
Outline

• Introduction
• Background study
• Reliability modeling
• Testing effectiveness
• Future work
• Conclusion

3
Introduction

• Software reliability engineering techniques
• Fault avoidance
• structure programming, software reuse, and
  formal methods
• Fault removal
• testing, verification, and validation
• Fault tolerance
• single-version technique
• multi-version technique (design diversity)
• Fault prediction
• reliability modeling

4
Software Fault Tolerance

• Layers of Software fault tolerance

5
SFT techniques

• Single-version techniques
• Checkpointing and recovery
• Exception handling
• Data diversity
• Multi-version techniques (Design diversity)
• Recovery block
• N-version programming
• N self-checking programming

6
Design diversity

• To deploy multiple-version programs to tolerate
  software faults during operation
• Principle redundancy
• Applications
• Airplane control systems, e.g., Boeing 777
  AIRBUS A320/A330/A340
• aerospace applications
• nuclear reactors
• telecommunications products

7
Design diversity (cont)

• Controversial issues
• Failures of diverse versions may correlate with
  each other
• Reliability modeling on the basis of failure
  data collected in testing
• Testing is a critical issue to ensure the
  reliability
• Testing completeness and effectiveness ? Test
  case selection and evaluation ? code coverage?
• Real-world empirical data are needed to perform
  the above analysis

8
Research questions

1. How to predict the reliability of design
   diversity on the basis of the failure data of
   each individual version?
2. How to evaluate the effectiveness of a test set?
   Is code coverage a good indicator?

9
Experimental description

• Motivated by the lack of empirical data, we
  conducted the Redundant Strapped-Down Inertial
  Measurement Unit (RSDIMU) project
• It took more than 100 students 12 weeks to
  develop 34 program versions
• 1200 test cases were executed on these program
  versions
• 426 mutants were generated by injecting a single
  fault identified in the testing phase
• A number of analyses and evaluations were
  conducted in our previous work

10
Outline

• Introduction
• Background study
• Reliability modeling
• Testing effectiveness
• Future work
• Conclusion

11
Reliability models for design diversity

• Eckhardt and Lee (1985)
• Variation of difficulty on demand space
• Positive correlations between version failures
• Littlewood and Miller (1989)
• Forced design diversity
• Possibility of negative correlations
• Dugan and Lyu (1995)
• Markov reward model
• Tomek and Trivedi (1995)
• Stochastic reward net
• Popov, Strigini et al (2003)
• Subdomains on demand space
• Upper/lower bounds for failure probability

Conceptual models
Structural models
In between
12
PS Model

• Alternative estimates for probability of failures
  on demand (pfd) of a 1-out-of-2 system

13
PS Model (cont)

• Upper bound of system pfd

• Likely lower bound of system pfd
• - under the assumption of conditional independence

14
DL Model

• Example Reliability model of DRB

15
DL Model (cont)

• Fault tree models for 2-, 3-, and 4-version
  systems

16
Comparison of PS DL Model
PS Model DL Model
Assumptions The whole demand space can be partitioned into disjoint subdomains knowledge on subdomains should be given The faults among program versions can be classified into unrelated faults and related faults
Prerequisite 1.Probability of subdomains 2.Failure probabilities of programs on subdomains 1.Number of faults unrelated and related among versions 2. Probability of hardware and decider failure
Target system Specific 1-out-of-2 system configurations All multi-version system combinations
Measurement objective Upper and lower bounds for failure probability Average failure probability
Experimental results Give tighter bounds under most circumstances, yet whether tighter enough needs further investigation The prediction results agree well with observation, yet may have deviations to a specific system
17
Outline

• Introduction
• Background study
• Reliability modeling
• Testing effectiveness
• Future work
• Conclusion

18
Testing effectiveness

• The key issue in software testing is test case
  selection and evaluation
• What is a good test case?
• testing effectiveness and completeness
• fault coverage
• To allocate testing resources, how to predict the
  effectiveness of a given test case in advance?

19
Testing effectiveness

• Code coverage an indicator of fault detection
  capability?
• Positive evidence
• high code coverage brings high software
  reliability and low fault rate
• both code coverage and fault detected in programs
  grow over time, as testing progresses.
• Negative evidence
• Can this be attributed to causal dependency
  between code coverage and defect coverage?

20
Testing effectiveness (cont)

• Is code coverage a good indicator for fault
  detection capability?
• ( That is, what is the effectiveness of code
  coverage in testing? )
• Does such effect vary under different testing
  profiles?
• Do different code coverage metrics have various
  effects?

21
Basic concepts code coverage

• Code coverage - measured as the fraction of
  program codes that are executed at least once
  during the test.
• Block coverage - the portion of basic blocks
  executed.
• Decision coverage - the portion of decisions
  executed
• C-Use - computational uses of a variable.
• P-Use - predicate uses of a variable

22
Basic concepts testing profiles

• Functional testing based on specified
  functional requirements
• Random testing - the structure of input domain
  based on a predefined distribution function
• Normal operational testing based on normal
  operational system status
• Exceptional testing - based on exceptional
  system status

23
Experimental requirement

• Complicated and real-world application
• Large population of program versions
• Controlled development process
• Bug history recorded
• Real faults studied
• Our RSDIMU project satisfies above requirements

24
Test cases description
I
II
III
IV
V
VI
25
The correlation between code coverage and fault
detection

• Is code coverage a good indicator of fault
  detection capability?
• In different test case regions
• Functional testing vs. random testing
• Normal operational testing vs. exceptional
  testing
• In different combinations of coverage metrics

26
The correlation various test regions

• Test case coverage contribution on block coverage

• Test case coverage contribution on mutant coverage

27
The correlation various test regions

• Linear modeling fitness in test case regions

• Linear regression relationship between block
  coverage and defect coverage in whole test set

28
The correlation various test regions

• Linear regression relationship between block
  coverage and defect coverage in region VI

• Linear regression relationship between block
  coverage and defect coverage in region IV

29
The correlation various test regions

• Observations
• Code coverage a moderate indicator
• Reasons behind the big variance between region IV
  and VI

Region IV Region VI
Design principle Functional testing Random testing
Coverage range 32 50 48 52
Number of exceptional test cases 277 (Total 373) 0
30
The correlation functional testing vs. random
testing

• Code coverage
• - a moderate indicator
• Random testing
• a necessary complement to functional testing
• Similar code coverage
• High fault detection capability

Testing profile (size) R-square
Whole test set (1200) 0.781
Functional test cases (800) 0.837
Random test cases (400) 0.558
31
The correlation functional testing vs. random
testing

• Failure details of mutants failed at less than
• 20 test cases
• detected by 169
• functional test cases
• (800 in total)
• 94 random test cases
• (400 in total)

32
The correlation functional testing vs. random
testing

• Failure number of mutants that detected only by
  functional testing or random testing

Test case type Mutants detected exclusively (total mutants killed) Average number of test cases that detect these mutants Std. deviation
Functional testing 20 (382) 4.50 3.606
Random testing 9 (371) 3.67 2.236
33
The correlation normal operational testing vs.
exceptional testing

• The definition of operational status and
  exceptional status
• Defined by specification
• application-dependent
• For RSDIMU application
• Operational status at most two sensors failed
  as the input and at most one more sensor failed
  during the test
• Exceptional status all other situations
• The 1200 test cases are classified to operational
  and exceptional test cases according to their
  inputs and outputs

34
The correlation normal operational testing vs.
exceptional testing

• Normal operational testing
• very weak correlation
• Exceptional testing
• strong correlation

Testing profile (size) R-square
Whole test case (1200) 0.781
Normal testing (827) 0.045
Exceptional testing (373) 0.944
35
The correlation normal operational testing vs.
exceptional testing

• Normal testing small coverage range (48-52)
• Exceptional testing two main clusters

36
The correlation normal operational testing vs.
exceptional testing

• Failure number of mutants that detected only by
  normal operational testing or exceptional testing

Test case type Mutants detected exclusively (total mutants detected) Average number of test cases that detect these mutants Std. deviation
Normal testing 36/371 120.00 221.309
Exceptional testing 20/355 55.05 99.518
37
The difference between two pairs of testing
profiles

• The whole testing demand space can be classified
  into seven subsets according to system status
  Si,j
• S0,0 S0,1 S1,0 S1,1 S2,0 S2,1
  Sothers
• i number of sensors failed in the input
• j number of sensors failed during the test
• Functional testing vs. random testing
• big overlap on seven system status
• Normal testing vs. exceptional testing
• no overlap on seven system status
• This may explain the different performance of
  code coverage on testing effectiveness under two
  pairs of testing profiles

38
The correlation under different combinations

• Combinations of testing profiles
• Observations
• Combinations containing exceptional testing
  indicate strong correlations
• Combinations containing normal testing inherit
  weak correlations

39
The correlation under different coverage metrics

• Similar patterns as block coverage
• Insignificant difference under normal testing
• Decision/P-use control flow change related
• Larger variation in code coverage brings more
  faults detected

40
Discussions

• Does the effect of code coverage on fault
  detection vary under different testing profiles?
• A significant correlation exists in exceptional
  test cases, while no correlation in normal
  operational test cases.
• Higher correlation is revealed in functional
  testing than in random testing, but the
  difference is insignificant.
• Do different coverage metrics have various
  effects on such relationship?
• Not obvious with our experimental data

41
Discussions (cont)

• This is the first time that the effect of code
  coverage on fault detection are examined under
  different testing profiles
• Overall, code coverage is a moderate indicator
  for testing effectiveness
• The correlation in small code coverage range is
  insignificant
• Our findings of the positive correlation can
  give guidelines for the selection and evaluation
  of exceptional test cases

42
Future work

• Generate 1 million test cases and exercise them
  on current 34 versions to collect statistical
  failure data
• Conduct cross-comparison with previous project to
  investigate the variant and invariant
  features in design diversity
• Quantify the relationship between code coverage
  and testing effectiveness

43
Conclusion

• Survey on software fault tolerance evolution,
  techniques, applications and modeling
• Evaluate the performance of current reliability
  models on design diversity
• Investigate the effect of code coverage under
  different testing profiles and find it is a clear
  indicator for fault detection capability,
  especially for exceptional test cases

44
Q A

• Thank you!
