This slideshow is a shortened version of the slideshow in:

1

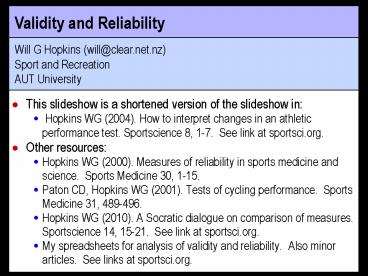

Validity and Reliability
Will G Hopkins (will_at_clear.net.nz)Sport and
RecreationAUT University

• This slideshow is a shortened version of the
  slideshow in
• Hopkins WG (2004). How to interpret changes in
  an athletic performance test. Sportscience 8,
  1-7. See link at sportsci.org.
• Other resources
• Hopkins WG (2000). Measures of reliability in
  sports medicine and science. Sports Medicine 30,
  1-15.
• Paton CD, Hopkins WG (2001). Tests of cycling
  performance. Sports Medicine 31, 489-496.
• Hopkins WG (2010). A Socratic dialogue on
  comparison of measures. Sportscience 14, 15-21.
  See link at sportsci.org.
• My spreadsheets for analysis of validity and
  reliability. Also minor articles. See links at
  sportsci.org.

2
Definitions

• Validity of a (practical) measure is some measure
  of its one-off association with another measure.
• "How well does the measure measure what it's
  supposed to?"
• Concurrent vs convergent validity the other
  measure is a criterion (gold-standard) vs
  something that ought to be related.
• Important for distinguishing between individuals.
• Reliability of a measure is some measure of its
  association with itself in repeated trials.
• "How reproducible is the practical measure?"
• Important for tracking changes within
  individuals.
• High reliability is necessary but not sufficient
  for high validity.
• That is, you can measure something wrong
  reliably!
• And if you measure it right, it must be reliable.

3
Validity

• We can often assume a measure is valid in itself
• especially when there is no obvious criterion
  measure.
• Examples from sport tests of agility, repeated
  sprints, flexibility.
• If relationship with a criterion is an issue,
  usual approach is to assay practical and
  criterion measures in 100 or so subjects.
• Fitting a line or curve provides a calibration
  equation, the error of theestimate, and a
  correlation coefficient.
• These apply only to subjects similarto those in
  the validity study.
• Preferable to Bland-Altman analysis.
• Limits of agreement ( 1.96? SDof difference
  scores) do not allow proper assessment of error.
• B-A plot of difference vs mean scores usually
  indicates a systematic offset error
  (proportional bias) when in reality there is
  none.

r 0.80
4

• Beware of units of measurement that lead to
  spurious high correlations.
• Example a practical measure of body fat in kg
  might have a high correlation with the criterion,
  but
• Express fat as of body mass and correlation
  0!
• So the measure provides no useful information.
• For many measures, use log transformation to get
  uniformity of error of the estimate over the
  range of subjects.
• Check for non-uniformity in a plot of residuals
  vs predicteds.
• Use the appropriate back-transformation to
  express the error as a coefficient of variation
  (percent of predicted value).
• The error of the estimate is the "noise" in the
  prediction.
• Ideally, noise lt signal.
• The signal is the smallest important difference
  between subjects.
• Default 0.20 of between-subject standard
  deviation (Cohen).
• But r2 "variance explained" (SD2-error2)/SD2.
• So if noise lt signal, error lt 0.20SD.
• It follows that ideally r gt 0.98! Much higher
  than people realize.

5

• Uses of validity
• Calibration of a practical measure.
• The regression line between the criterion and the
  practical measure converts the practical into an
  unbiased estimate of the criterion.
• The standard error of the estimate is the random
  error in the calibrated value.
• Adjustment of effects in studies involving the
  practical measure (correction for attenuation).
• If the effect is a correlation, it is attenuated
  by a factor equal to the validity correlation.
• If the effect is slope or a difference or change
  in the mean, it is attenuated by a factor equal
  to the square of the validity correlation.
• BEWARE the calibration and adjustments apply
  only to subjects drawn from the population used
  for the validity study.
• Otherwise the validity statistics themselves need
  adjustment.
• I have developed as yet unpublished spreadsheets
  for this purpose.

6
Reliability

• Reliability is reproducibility of a measurement
  if or when you repeat the measurement.
• It's important for practitioners
• because you need good reproducibility to monitor
  small but practically important changes in an
  individual subject.
• It's crucial for researchers
• because you need good reproducibility to quantify
  such changes in controlled trials with samples of
  reasonable size.

7

• How do we quantify reliability?Easy to
  understand for one subject tested many times

• The 2.8 is the standard error of measurement.
• I call it the typical error, because it's the
  typical difference between the subject's true
  value and the observed values.
• It's the random error or noise in our
  assessment of clients and in our experimental
  studies.
• Strictly, this standard deviation of a subject's
  values is the total error of measurement rather
  than the standard or typical error.
• Its inflated by any "systematic" changes, for
  example a learning effect between Trial 1 and
  Trial 2.
• Avoid this way of calculating the typical error.

8

• We usually measure reliability with many subjects
  tested a few times

5

• The 3.4 divided by ?2 is the typical error.
• The 3.4 multiplied by 1.96 are the limits of
  agreement.
• The 2.6 is the change in the mean.
• This way of calculating the typical error keeps
  it separate from the change in the mean between
  trials.

9

• And we can define retest correlationsPearson
  (for two trials) and intraclass (two or more
  trials).
• These are calculated differently but have
  practically the samevalues.
• The typical error is moreuseful than the
  correlationcoefficient for assessingchanges in
  a subject.

10

• Uses of reliability monitoring change in an
  individual
• Think about the typical error as the noise or
  uncertainty in the change you have just measured.
• You want to be confident about measuring the
  signal (smallest worthwhile change), say 0.5.
• Example you observe a change of 1, and the
  typical error is 2.
• So your uncertainty in the change is 1 2, or
  -1 to 3.
• So the change could be harmful through quite
  beneficial.
• So you cant be confident about the observed
  beneficial change.
• But if you observe a change of 1, and the
  typical error is only 0.5, your uncertainty in
  the change is 1 0.5, or 0.5 to 1.5.
• So you can be reasonably confident you have a
  small but worthwhile change.
• Conclusion ideally, you want typical error lt
  smallest change.
• If typical error gt smallest change, try to find a
  better test.
• Or repeat the test several times and average the
  scores to reduce the noise. (Four tests halves
  the noise.)

11

• Importance of time between trials
• When testing individuals, you need to know the
  noise of the test determined in a reliability
  study with a time between trials short enough for
  the subjects not to have changed substantially.
• Exception to assess change due specifically to,
  say, a 4-week intervention, you will need to know
  the 4-week noise.
• For estimating sample sizes for research, you
  need to know the noise of the test with the same
  time between trials as in your intended study.
• Beware noise may be even higher in the study
  (and therefore sample size will need to be
  larger) because of individual responses to the
  intervention.
• Individual responses can be estimated from the
  difference in noise between the intervention and
  control groups.

12

• More on noise
• As with validity, use log transformation to get
  uniformity of error over the range of subjects
  for some measures.
• Check for non-uniformity in a plot of residuals
  vs predicteds or change scores vs means.
• Use the appropriate back-transformation to
  express the error as a coefficient of variation
  (percent of subject's mean value).
• Ideally, noise lt signal, and if signal 0.20?SD,
  we can work out the reliability correlation
• Intraclass r (SD2-error2)/SD2
• Validity equation is r2 (SD2-error2)/SD2.
• But want noise lt signal that is, error lt
  0.20?SD.
• So ideally r gt 0.96! Again, much higher than
  people realize.

13

• Uses of reliability estimating sample size for
  studies with repeated measurement
• In particular, changes in the mean in a crossover
  and differences in the changes in a
  parallel-groups controlled trial.
• My sample-size spreadsheet is set up for using
  the typical error, but you can convert a
  correlation to a typical error via a formula
  shown in the spreadsheet.
• For typical error smallest important effect,
  sample size 10 for a crossover and 24 (1212)
  for a parallel-groups trial, using my method of
  acceptable uncertainty in the outcome. For the
  traditional approach, sample size is 3x larger.
• For each doubling of the typical error, sample
  size increases by 4x.

14
Relationships Between Validity and Reliability

• An unreliable measure can't be valid, so
  short-term reliability sets an upper limit on
  validity. Examples
• If reliability error 1, validity error ? 1.
• If reliability correlation 0.90, validity
  correlation ? v0.90 ( 0.95).
• Reliability of Likert-scale items in
  questionnaires
• Psychologists average similar items in
  questionnaires to get a factor a dimension of
  attitude or behavior.
• The items making up a factor can be analyzed like
  a reliability study.
• But psychologists also report alpha reliability
  (Cronbach's ?).
• The alpha is the reliability correlation you
  would expect to see for the mean of the items, if
  you could somehow sample another set of similar
  items.
• As such, alpha is a measure of consistency of the
  mean of the items, not the test-retest
  reliability of the factor.
• But v(alpha) is still the upper limit for the
  validity of the factor.
