Monte Carlo simulation for radiotherapy in a distributed computing environment

1

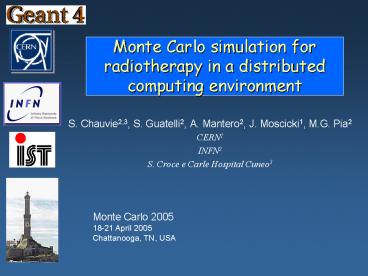

Monte Carlo simulation for radiotherapy in a
distributed computing environment

• S. Chauvie2,3, S. Guatelli2, A. Mantero2, J.
  Moscicki1, M.G. Pia2
• CERN1
• INFN2
• S. Croce e Carle Hospital Cuneo3

Monte Carlo 2005 18-21 April 2005 Chattanooga,
TN, USA
2
Monte Carlo methods in radiotherapy

• Monte Carlo methods have been explored for years
  as a tool for precise dosimetry, in alternative
  to analytical methods

de facto, Monte Carlo simulation is not used in
clinical practice (only side studies)
The major limiting factor is the speed
3
The reality

• Treatment planning is performed by means of
  commercial software
• The software calculates the dose distribution
  delivered to the patient

Open issues
Disadvantages
Advantages
Commercial systems are based on analytical
methods Fails in calculate dose in
heterogeneities and for small or complex field
Quick response Each treatment planning software
is specific to one radiotherapic technique
4
Project Develop a dosimetric system for
radiotherapy treatments based on Monte Carlo
methods
Calculation precision
Geant4 as Simulation Toolkit
Quick response
Parallelisation Access to distributed computing
resources
5
Pilot project distributed simulation for
brachytherapy

• Explore Geant4-based Monte Carlo simulations in a
  distributed computing environment
• Parallel execution in a local PC farm
• Geographically distributed execution on the GRID
• Pilot project based on an existing simulation for
  brachytherapy
• Focus on architectural design
• Transparent execution on a single machine, in
  parallel on a local farm or on the GRID
• Preliminary evaluation of performance
• Application to other radiotherapy simulations
  currently in progress

6
Brachytherapy

• Simulation of the energy deposited by a
  radioactive source in a phantom
• Requirement from clinical practice real time
  response

Bebig Isoseed I-125 source
Talk A general purpose dosimetric system for
brachytherapy, 20th April, MC 2005, Room 5
7
Performance in sequential mode
Endocavitary brachytherapy
1M events 61 minutes
Superficial brachytherapy
1M events 65 minutes
Interstitial brachytherapy
1M events 67 minutes
on an average PIII machine
Monte Carlo simulation is not practically
conceivable for clinical application, even if
more precise
8
Speed adequate for clinic use
Parallelisation
Transparent configuration in sequential or
parallel mode
Access to distributed computing resources
Transparent access to the GRID through an
intermediate software layer
9
Access to distributed computing
Geant4 Simulation and Anaphe analysis on a
dedicated Beowulf Cluster S. Chauvie et al., IRCC
Torino, Siena 2002

• speed OK
• but expensive hardware investment maintenance

IMRT
10
Access to distributed computing
Alternative strategy
DIANE
Transparent access to a distributed computing
environment
Parallelisation
Access to the GRID
11
Active Workflow Framework for Parallel Jobs

• Applications run inside an Active Workflow
  Framework
• For applications
• underlying environment is transparent
• code changes to use the framework are minimal
• The Framework provides
• Automatic Communication and Synchronization of
  tasks
• Error recovery
• Optimization

12
DIANE DIstributed ANalysis Environment
Hide complex details of underlying technology

• Parallel cluster processing
• make fine tuning and customisation easy
• transparently using GRID technology
• application independent

Developed by J. Moscicki, CERN
http//cern.ch/DIANE
13
DIANE architecture
Master-Worker model Parallel execution of
independent tasks Very typical in many scientific
applications Usually applied in local clusters
RD in progress for Large Scale Master-Worker
Computing
14
Master - Worker Computing

• Workers are started up and register to Master
• Client connects to Master and starts up the job
• Master controls the execution, dispatches tasks
  to Workers and combines the result
• Client receives notifications about the current
  status of the job and collects the final result

15
Running in a distributed environment
The application developer is shielded from the
complexity of underlying technology via DIANE

• Not affecting the original code of application
• standalone and distributed case is the same code
• Good separation of the subsystems
• the application does not need to know that it
  runs in distributed environment
• the distributed framework (DIANE) does not need
  to care about what actions an application
  performs internally

16
Distributed environments
Different distributed environments local
computing farm
GRID
17
Parallel mode local cluster / GRID

• Both applications have the same computing model
• a job consists of a number of independent tasks
  which may be executed in parallel
• result of each task is a small data packet (few
  kilobytes), which is merged as the job runs
• In a cluster
• computing resources are used for parallel
  execution
• user connects to a possibly remote cluster
• input data for the job must be available on the
  site
• typically there is a shared file system and a
  queuing system
• network is fast
• GRID computing uses resources from multiple
  computing centres
• typically there is no shared file system
• (parts of) input data must be replicated in
  remote sites
• network connection is slower than within a cluster

18
Development costs

• Strategy to minimise the cost of migrating a
  Geant4 simulation to a distributed environment
  for users
• DIANE Active Workflow framework
• provides automatic communication/synchronization
  mechanisms
• application is glued to the framework using a
  small Python module in most cases no code
  changes to the original application are required
• load balancing and error recovery policies may be
  plugged in form of simple python functions
• Transparent adaptation for Clusters/GRIDs,
  shared/local file systems, shared/private queues
• Cost in the runtime phase
• near zero (except for loading networking
  libraries for the first time)
• Development/modification of application code
• original source code unmodified
• addition of an interface class which binds
  together application and M-W framework

19
Interfacing a Geant4 simulation to DIANE
UML Deployment Diagram for Geant4 applications
20
Practical example G4 simulation with analysis

• Each task produces a file with histograms
• The job result is the sum of histograms produced
  by tasks
• Master-worker model
• client starts a job
• workers perform tasks and produce histograms
• master integrates the results
• Distributed Processing for Geant4 Applications
• task N events
• job M tasks
• tasks may be executed in parallel
• tasks produce histograms/ntuples
• task output is automatically combined (add
  histograms, append ntuples)
• Master-Worker Model
• Master steers the execution of job, automatically
  splits the job and merges the results
• Worker initializes the Geant4 application and
  executes macros

21
DIANE Prototype and Testing

• Scalability tests
• 70 worker nodes
• 140 milion Geant 4 events

22
Performance parallel mode
preliminary further optimisation in progress
1M events 4 minutes 34
Endocavitary brachytherapy
1M events 4 minutes 25
Superficial brachytherapy
5M events 4 minutes 36
Interstitial brachytherapy
on up to 50 workers, LSF at CERN, PIII machine,
500-1000 MHz
Performance adequate for clinical application,
but
it is not realistic to expect any hospital to own
and maintain a PC farm
23
Parallel mode distributed resources
Distributed Geant 4 Simulation DIANE framework
and generic GRID middleware
24
Grid
Wave of interest in grid technology as a basis
for revolution in e-Science and e-Commerce
Ian Foster and Carl Kesselman's book A
computational Grid is a hardware and software
infrastructure that provides dependable,
consistent , pervasive and inexpensive access to
high-end computational capabilities".
An infrastructure and standard interfaces capable
of providing transparent access to geographically
distributed computing power and storage space in
a uniform way
Many GRID RD projects, many related to HEP
US projects
European projects
25
Large distributed computing resource
26
Running on the GRID

• Via DIANE
• Same application code as running on a sequential
  machine or on a dedicated cluster
• completely transparent to the user

A hospital is not required to own and maintain
extensive computing resources to exploit the
scientific advantages of Monte Carlo simulation
for radiotherapy
Any hospital even small ones, or in less
wealthy countries, that cannot afford expensive
commercial software systems may have access to
advanced software technologies and tools for
radiotherapy
27
Traceback from a run on CrossGrid testbed
Resource broker running in Portugal
matchmaking CrossGrid computing elements
28
Study in progress

• Capability of transparent execution of the
  radiotherapy simulation on the GRID has been
  demonstrated
• Quantitative evaluation of performance speed and
  stability currently in progress
• A comprehensive study will be submitted for
  publication in the coming weeks
• Optimisation of load balancing, error handling
  and other issues concerning access to distributed
  resources currently under study

29
Application to IMRT simulations

• Determine the dose distribution in a phantom
  generated by the head of a linear accelerator
• Requirement from clinical practice fast response

Without parallelisation ? 1010 events ? 100 CPU
days on Pentium IV 3 GHz
Talk Geant4 Simulation of an Accelerator Head
for Intensity Modulated RadioTherapy, 19th
April, MC 2005, Room 6
30
Conclusions

• Fast performance
• parallel processing
• Access to geographically distributed computing
  resources
• GRID
• Demonstrated with Geant4 simulation applications
  DIANE
• More information
• cern.ch/diane
• http//www.ge.infn.it/geant4
• www.ge.infn.it/geant4/techtransf
• aida.freehep.org
