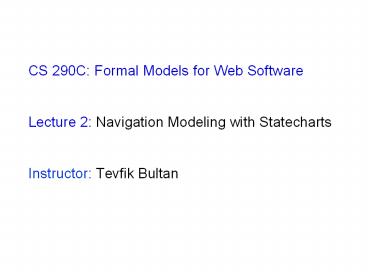

CS 290C: Formal Models for Web Software Lecture 2: Navigation Modeling with Statecharts Instructor: Tevfik Bultan

1
CS 290C Formal Models for Web Software
Lecture 2 Navigation Modeling with
StatechartsInstructor Tevfik Bultan
2
Statecharts

• A visual formalism for specifying hierarchical
  state machines
• A Visual Formalism for Complex Systems, David
  Harel, Science of Computer Programming, 1987
• Especially useful for modeling reactive systems
• systems which continuously react to internal or
  external events without terminating
• State machines in UML are based on Statecharts
• Statecharts is a formal language, it has formal
  semantics

3
Statecharts

• Statecharts characteristics
• Hierarchical grouping of states
• superstates are formed by grouping other states
• Superstates can be formed using AND composition
  or OR composition
• When the system is in an AND-state it is in all
  of its substates
• When the system is in an OR-state it is in only
  one of its substates
• If a state has no substates it is an atomic state

• Synchronization and communication between
  different parts of the system is achieved using
  events

4
Statecharts

• Initial (default) state is A
• If event x occurs while in state A, the
• next state will be B
• If event y occurs while in state A, the
• next state will be C

x
B
A
y
t
C
D
A basic state machine
Given the event sequence y, x, t Behavior of the
state machine is A ? C ? D The x event is
ignored since it does not enable any transition
when the system is in state C Note that we are
interested in the behavior of the machine the
paths it takes (including the states it visits.
This is different then using the state machines
as language recognizers (as in automata theory or
compilers)
y
t
5
Statecharts OR-states

• D is an OR-state, its substates are A and C
• When the system is in state D it is either in A
• or C (but not both)
• The default state of D is A. When the system
• transitions to state D it will go to state A
  unless
• it is explicitly specified otherwise
• While the system is in state A or C (meaning
• it is in state D) if event t occurs it
  transitions
• to B
• While the system is in state B if event x
• occurs the system transitions to state D, since
• the default state in D is A, it transitions to A

D
x
A
t
B
y
C
z
A hierarchical state machine
6
Statecharts OR-states

D
x
A
Given the event sequence x, y, t, z Behavior of
the hierarchical state machine B ? D(A) ?
D(C) ? B ? D(C) Behavior of the equivalent
basic state machine B ? A ? C ? B ? C
t
B
y
x
z
t
y
C
z
A hierarchical state machine
x
A
t
B
y
x
y
t
z
t
C
z
Equivalent basic state machine
7
Statecharts Transitions

• Statechart transitions have a source state and a
  target state and are labeled as
• trigger-event guard-condition /
  generated-events

source state
target state
trigger-eventguard-condition/action
8
Statecharts Transitions

• The transition is enabled if
• the trigger-event occurs, and
• the guard-condition is true while the system is
  in the source state of the transition
• A transition can be taken if it is enabled
• The events can be generated
• by the state machine itself (internal events), or

• can be generated by the environment (external
  events)

9
Statecharts Transitions

• When a transition is taken
• it generates the generated-events (a set of
  events)
• which may enable other transitions
• and, it transitions to its destination state
• Guard condition is a boolean expression that
  combines predicates in the form In(state)
• In(state) evaluates to true when the system is in
  the specified state

10
Statecharts Transitions

• Two transitions are conflicting if they cannot be
  taken at the same time
• If two conflicting transitions are enabled at the
  same time, one of them is taken
  non-deterministically

• Two outgoing transitions from state A are
• conflicting (they cannot be taken at the
• same time).
• When event t occurs if the system is in state
• A both transitions are enabled.
• Since they are conflicting one of them is
• taken nondeterministically

A
t
t
C
B
11
Statecharts AND-states (concurrency)

• R is and AND-state
• When the system is in the AND-state
• R, it is both in state A and state D
• A and D are OR-states
• When the system is in state A it is
• either in state B or in state C (but not
• in both)
• When the system is in state D it is in
• Only one of E or F or G

R
A
D
t
B
E
z
F
v
x
yin G
G
x
C
A hierarchical state machine
12
Statecharts AND-states (concurrency)
R

• Note that event x causes
• a synchronization between
• states A and D when A
• is in B and D is in F.
• They make a concurrent
• transition
• A goes from B to C
• D goes from F to G

A
D
t
B
E
z
F
v
x
yin G
G
x
C
A hierarchical state machine
t
z
B-F
B-E
Equivalent basic state machine
B-G
x
v
x
x
y
v
C-G
C-E
x
C-F
z
t
13
Statecharts State hierarchy
We can think of the state hierarchy as a tree
R
R(AND)
A
D
t
B
E
z
F
v
x
yin G
A(OR)
D(OR)
G
x
C
B
C
E
F
G
A hierarchical state machine

• R is the root state
• B,C, E, F, G are the leaf (atomic) states
• Other than the atomic (leaf) states each
• state is marked as an OR or an AND state

14
Statecharts State hierarchy
R
A
D
t
B
E
A hierarchical state machine
z
F
v
x
yin G
G
x
C
Given the event sequence x, z, y, t, v The
behavior of the statechart is R(A(B))-R(D(F))
? R(A(C))-R(D(G)) ? R(A(C))-R(D(F)) ?
R(A(C))-R(D(E)) ? R(A(C))-R(D(G)) It is hard to
read the above representation. We can show the
behavior using only the atomic states (assuming
they have unique names)
B-F ? C-G ? C-F ? C-E ? C-G
x
z
v
t
x
z
t
v
15
Statecharts Internal vs. External events

• Internal events have higher priority
• when an internal event is generated, first the
  transitions enabled by the internal event is
  taken before the next external event is considered

Given the input event sequence x,y The behavior
of the statechart is A ? C ? B ? C
A
x/t
y
x
t
y
t
C
B
y
16
Statecharts History Entrances
R
z
A
D
H
K
t
B
E
z
F
w
v
x
yin G
Given the input event sequence x,w,z The
behavior of the statechart is B-F ? C-G ? K
?B-G
G
x
C
x
w
z

• Entering the history state (marked with H in a
  circle) in state D means that enter the most
  recently visited substate of D
• What if substates of D have their own substates?
• H (deep history state) means enter all the most
  recently visited descendants

17
StateCharts Conditional Entrances

• The statechart on the top can be equivalently
  represented using the statechart at the bottom
• The conditional entrance combines multiple
  transitions that are triggered by the same event
  but have different guards
• The outgoing edge of the conditional is taken
  based on which of the guards hold

R
eP
K
A
eQ
eR
B
C
e
R
C
P
K
A
Q
R
B
C
18
StateCharts Selection Entrances

• The statechart on the top can be equivalently
  represented using the statechart at the bottom
• The selection entrance combines multiple
  entrances that have different events
• The outgoing edge of the selection is taken based
  on the event that is observed

R
e1
K
A
e2
e3
B
C
R
S
e1
K
A
e2
e3
B
C
19
Statecharts Parameterized States

• If there are set of substates that share common
  characteristics, they can be combined as a
  parameterized state
• There is a substate for each value of the
  parameter

R
i in 1 .. 10
S-i
20
Statecharts An Example
Alarm
Shut
Given the input event sequence start, t_on,
inc, dec, stop The behavior of the statechart
is Shut ? Off-1 ? On-1 ? On-2 ?
On-1 ? Shut
t_on
start
stop
Op
Mode
Vol
start
t_on
On
1
t_off
t_on
inc
dec
inc
dec
stop
Off
2
21
Modeling Navigation with Statecharts

• Many errors in web applications are due to
  incorrect handling of navigation
• In this lecture we will argue that it is possible
  to model basic navigation structure of a web
  application using hierarchical state machines
  (i.e., statecharts)
• In a web application implementation, the
  navigation structure is buried in the code and is
  not easy to extract or understand
• A formal model of the navigation structure can
  help in design, development, testing and
  verification of the navigation structure

22
Modeling web navigation with statecharts

• I will discuss this topic based on the following
  paper
• Modeling Web Navigation by Statechart Karl
  R.P.H. Leung, Lucas C. K. Hui, S. M. Yiu, Ricky
  W. M. Tang. 24th International Computer Software
  and Applications Confenrence (COMPSAC 2000)

23
Navigation Modeling

• A navigation model should show how the web pages
  are linked to each other
• Web page (or page) An html document returned by
  a web server in response to a URL request through
  HTTP
• Hyperlink (or link) A directional link between a
  source and target webpage that is used for
  navigation.
• Can be activated explicitly by the users, using a
  mouse click or can be invoked automatically by
  the browser on some predefined events (timeout,
  mouse movements, etc.)
• The question is can we generate a graph (or
  equivalently a state machine) from web pages and
  hyperlinks
• There are some complications

24
Complications

• Web pages can be both static and dynamic
• Static web page A web page that retains the same
  HTML for all the client requests of the same URL.
  It contains no reactive or executable components
• Dynamic web page A web page that returns
  different HTML for the URL (server side dynamic
  behavior) and can contain reactive or executable
  components (client side dynamic behavior)
• Browser navigation capabilities
• In addition to hyperlinks provided in web pages,
  browsers provide extra navigation capabilities
  based on back, forward buttons, history list, or
  the address bar (aka location bar or URL bar)

25
Complications

• Intra vs. inter-page navigation
• Inter-page navigation This is the most common
  type of navigation where by activating a link in
  the source page we jump to the target page
• Intra-page navigationThere may be links to
  different sections of the same page

26
Complications

• Frame-based navigation
• Frames in browser window makes concurrent viewing
  of web pages possible
• The browser window is divided into frames, each
  containing a separate page for viewing
• Navigation within frames can happen independently
• Web pages in different frames can affect each
  other by using client side scripts
• Navigation with multiple windows
• Multiple browser windows can be used to support
  concurrent viewing of web pages in another way
• Multiple window viewing differs from frames since
  windows can be created or destroyed independently

27
Complications

• Dynamic content
• Server side
• A server can return different results for the
  requests to the same URL by creating the returned
  pages dynamically using server side scripts
• For example a search engine will return different
  results for different search strings entered
• Client Side
• Client side programs (written in JavaScript,
  Flash etc.) can dynamically define, enable or
  disable links without contacting the web server

28
Modeling navigation with statecharts

• Modeling scope
• Identify the pages that you want to have in the
  navigation model
• Add all the pages that are the target of a link
  in the above pages also to the set (these will be
  used to model exit)
• Events are modeled as tuples (target, position)
• Target is the webpage denoting the target of a
  link
• Position is the position in the target webpage

29
Modeling navigation with statecharts

• If it is not possible to jump in different
  sections of a webpage (i.e. no intra-page
  navigation), then that webpage is modeled as a
  basic (atomic) state
• If intra-page navigation is possible than we use
  an OR-state where each sub-state corresponds to a
  possible browsing position as identified by the
  position
• A select connective is used to denote that one of
  the sub-states is selected for each incoming
  transition

30
Inter-page navigation

• Links among pages are represented as transition
  arrows where the hyperlink activation is the
  event that triggers the transition
• If multiple hyperlinks from one source page point
  to the same target page they are considered
  equivalent and represented with one arrow
• The links can be available from all sub-states of
  a super-state (in which case the source of the
  arrow is the super-state) or from some sub-states
  of a super-state (in which case multiple arrows
  are used each originating in a different
  sub-state)

31
Grouping states

• States which have a common set of links can be
  grouped as OR-states
• This typically happens with tree-like menu
  structures which can be represented using
  OR-states
• Again select connective can be used to combine
  transitions to sub-states of an OR-state

32
Modeling Frames

• Frames can be modeled using AND-states where each
  frame corresponds to a sub-state
• This allows independent navigation for each frame
• If there are dependencies among frames (i.e.,
  clicking on a link in one frame triggers a change
  also in another frame), this type of behavior can
  be modeled by synchronization on evetns
• All the events are broadcast to all parts of the
  statechart, so multiple transitions can be
  triggered by the same event
• If the broadcast behavior is not wanted, then you
  can add the receivers identifier to the event to
  make sure that only the receiver reacts
• Guard conditions can be used for synchronization

33
Modeling dynamic content

• Server-side Dynamic pages generated by server
  side scripts can be modeled as parameterized-OR
  states
• Where the sub-state that is transitioned is
  identify by the input parameter where the events
  are modeled as tuples (target, parameter)
• Client-side Client side dynamic behavior can be
  modeled using AND-states where the states
  modeling the client side dynamic behavior is one
  of the sub-states and the rest of the navigation
  model is another sub-state
• Using the guard conditions, the client side
  dynamic behavior can enable or disable transitions

34
What can we do after generating navigation models?

• After we obtain a formal model of the navigation
  behavior we can analyze it.
• For example we can use verification tools to
  check its properties.
• I will discuss a verification tool next week
• However this brings up another problem, how are
  we going to characterize properties of navigation
  models?
• I will discuss this also next week
