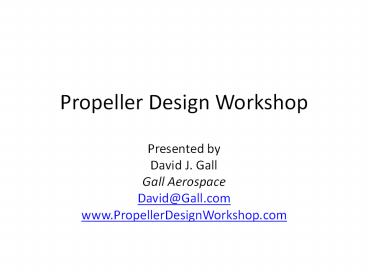

Propeller Design Workshop

1
Propeller Design Workshop

• Presented by
• David J. Gall
• Gall Aerospace
• David_at_Gall.com
• www.PropellerDesignWorkshop.com

2
Propeller Design Workshop

• Theory and design of practical propellers, Part
  3. Practical Prop Design

Practical Propeller Design
3
Introduction

• H. Dietsius, N.A.C.A. TN-127 (1923)
• The Air Propeller, Its Strength and Correct
  Shape, (Translated)
• F. Weick, N.A.C.A. TN-238 (1926)
• A Simple Method for Determining the Strength of
  Propellers, fourth in a series TN-235 thru
  TN-238
• ANC-9 (1956)
• Available Where???

Practical Propeller Design
4
Introduction

• These are the ONLY References Ive Found
• None of them account for the in-plane forces
  caused by modern high-compression internal
  combustion engines

Practical Propeller Design
5
Introduction
Practical Propeller Design
6
Practical Propeller Design

• Outline Theory and design of practical
  propellers, Part 3.
• Reality check Those darn physical constraints
• Reynolds' number and Mach number
• What about those tips?
• From minimum induced loss to maximum efficiency
  The effect of viscosity on all those theories
• Fuselage/nacelle blockage (a.k.a. "Source-sink
  slowdown")
• Optimum Propellers
• Airfoil choices
• How to make a proper hub
• Proper design of pusher props
• Ground and in-flight adjustable pitch and
  constant speed props
• Structural requirements
• By Request

Practical Propeller Design
7
1. Physical Constraints

• Diameter
• Number of Blades
• Hub Thickness
• Thickness of the Blank
• Machine Capacity

Practical Propeller Design
8
2. Reynolds and Mach Numbers

• Subsonic Propellers
• Use Rules-of-Thumb or
• Calculate Your Critical Mach Number then
• Adjust Diameter to Keep Tip Speeds Below MCR
• Transonic Propellers
• See NASA for Un-Ducted Fans, etc.
• Supersonic Propellers
• Yes, NASA went there, too

Practical Propeller Design
9
2. Reynolds and Mach Numbers
Practical Propeller Design
10
2. Reynolds and Mach Numbers
Practical Propeller Design
11
2. Reynolds and Mach Numbers
Practical Propeller Design
12
3. What About Those Tips?

• What do you have after you cut off the tip?
• Winglets
• Hoerner Tips
• Curving Up
• Curving Down
• Elliptical Tips
• Round Tips
• Sheared Wingtip

Practical Propeller Design
13
4. Viscosity

• Theodorsen (and all prior) adds the viscous
  effects after the fact
• Thats OK, especially with round blade shanks
• The coefficient of drag is constant at any RPM
• The effect of viscosity is minimal so long as the
  coefficient of drag isnt too high
• (Ohh, those round blade shanks are soooo bad!)
• However, they are in the place of least harm

Practical Propeller Design
14
5. Fuselage/Nacelle Blockage

• Larrabee et. al De-Pitch after the fact to
  accommodate the reduced inflow velocity
• This loses part of the relative wind thats used
  in the algorithm
• So, it deviates from the Goldstein distribution

Practical Propeller Design
15
6. Optimum Propellers
Practical Propeller Design
16
7. Airfoil Choices

• The Traditional Airfoil Choices
• Clark Y
• RAF 6
• NACA One series
• NACA Six series
• Eppler
• Others?

Practical Propeller Design
17
7. Airfoil Choices

• Can You Manufacture It?
• Design to What Coefficient of Lift?
• No Sharp Leading Edges
• Watch Out for Thin Trailing Edges
• Try to Stay Within a Family
• Ease of Thickness Scaling
• Ease of Performance Prediction (Modeling)
• Ease of Manufacture

Practical Propeller Design
18
7. Airfoil Choices
Practical Propeller Design
19
7. Airfoil Choices
Practical Propeller Design
20
7. Airfoil Choices
Practical Propeller Design
21
7. Airfoil Choices
Practical Propeller Design
22
7. Airfoil Choices
Practical Propeller Design
23
8. How to Make a Prop(er) Hub

• Must Carry ALL Loads
• Must Mate Mechanically to Engine
• Prop Flange and/or Extension
• Must Deliver Engine Power to Propeller
• See Sport Aviation archives

Practical Propeller Design
24
8. How to Make a Prop(er) Hub
Practical Propeller Design
25
8. How to Make a Prop(er) Hub
Practical Propeller Design
26
8. How to Make a Prop(er) Hub
Practical Propeller Design
27
8. How to Make a Prop(er) Hub
Practical Propeller Design
28
8. How to Make a Prop(er) Hub

• Sensenich Website Wood Propellers
  Installation, Operation, Maintenance
• Drive Lugs DO NOT Drive the Prop
• Static Friction Drives the Prop
• Static Friction Must be Greater Than the Torque
  Forces Developed in Power Pulses
• PLUS A LARGE MARGIN for Prop Strikes from Lost
  Exhaust Pipes, etc. (Silver Bullet ppt)

Practical Propeller Design
29
9. Design of Pusher Propellers

• Hub Goes on Backwards
• Center Bore on Front Face
• Drive Lug Bores on Front Face
• Aerodynamics Much More Difficult
• NO, I dont want to do a partially-ducted
  channel-wing contra-rotating asymmetrical pusher
  propeller with winglets
• (I might consider it if it were symmetrical) ?

Practical Propeller Design
30
10. Adjustable Pitch/Const. Speed

• Discussion

Practical Propeller Design
31
11. Structural Requirements

• ANC-9

Practical Propeller Design
32
11. Structural Requirements
Practical Propeller Design
33
11. Structural Requirements
Practical Propeller Design
34
11. Structural Requirements
Practical Propeller Design
35
11. Structural Requirements
Practical Propeller Design
36
11. Structural Requirements
Practical Propeller Design
37
12. By Request

• Airfoils
• Sweep
• Twist
• Noise
• Resonance
• Materials
• Contra-Rotating (Dual Rotation)
• Shrouded
• Ducted

Practical Propeller Design
38
Propeller Design Workshop

• David J. Gall
• Gall Aerospace
• David_at_Gall.com
• www.PropellerDesignWorkshop.com
