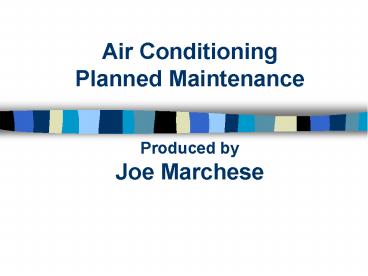

Air Conditioning Planned Maintenance Produced by Joe Marchese

1
Air ConditioningPlanned MaintenanceProduced
byJoe Marchese
2
Why Perform Planned Maintenance?

• To keep the equipment performing in good
  condition and at peak efficiencies
• They help to maintain good indoor air quality
• They help protect our environment

3
How do PMs keep equipment at peak efficiencies?

• Clean coils keep the heat transfer rate and
  temperature difference between the refrigeration
  and the cooling medium at optimum levels.
• Running system with an undercharge of refrigerant
  will cause the system to run longer not to its
  design efficiencies.

4
How Do PMs Keep Equipment at Peak Efficiencies?

• Poor electrical connects can cause the system to
  work harder
• Improper gas combustion will decrease the
  efficiency of a gas appliance may cause CO to
  be produced
• Dirty filters will reduce the airflow through a
  system which will decrease the systems
  efficiencies

5
Poor Indoor Air Quality

• Can lead to Lung/Respiratory illnesses
• Can inflame allergies
• Can cause damage to interior furnishings
• Stagnant water left in an appliance can be a
  breeding ground to biological contaminants.
• Such as Legionnaire's Disease

6
Protects Our Environment

• PM inspections will reduce the amount of
  refrigerant released in to our atmosphere.
• This will reduce
• Ozone depletion
• Global warming

7
PM Inspections Will Also

• Help to even out the workload of a contracting
  company
• Allow time for scheduled repairs - reduces the
  amount of emergency calls

8
What is the most important concern for a service
technician while performing a preventative
maintenance inspection?

• SAFETY

9
Safety

• Good safety practices helps to avoid injuring
  yourself prevents damage to the equipment.
• Must be first on your mind at all times
• Always remove any loose items you may be wearing
  when working around equipment with moving or
  rotating parts

10
Safety

• Always lift with your legs and not with your back
• Wear a back support belt when a lifting heavy
  objects
• When working with electrical equipment always
  verify the power is off
• Do not rely on a shut off switch or disconnect
  being off - Always check yourself

11
Other Safety Concerns

• Rotating moving part
• Sharp objects
• Hot and Cold surfaces and work areas
• Injury form working with refrigerants
• Refrigerant cylinders

12
Other Safety Concerns

• Gas leaks
• Oil leaks
• Incomplete combustion - CO poisoning
• Ladders
• Confines spaces

13
Personal Protective (Safety) Equipment (PPE)
14
Safety Shoes
15
Safety Goggles
16
Ear Plugs
17
Gloves
18
Who performs PM inspection?

• Normally it is those technicians starting out in
  the industry
• Occasionally an experience technician will
  perform the inspections

19
When are PMs normally performed?

• Depending on the type of equipment they can be
  performed
• Monthly
• Quarterly
• Semi-Annually
• Annually

20
How long should a PM inspection take?

• Mainly depends on
• the type of equipment
• the detail in which the inspection is performed

SHORT INSPECTION vs. LONG INSPECTION
21
How Much Should a PM Cost a Customer?

• The price of a P/M inspection is based on
• Travel setup time
• How long it will take to complete
• How maintenance supplies are used

22
What Is The Most Important Tools Used On A PM
Inspection?

• Your hands
• Your eyes
• Your ears
• Your nose

23
What Maintenance Items Should Be Done During A PM
Inspection?

• First, always following the manufacturers
  guidelines
• Tasks can be grouped in to four categories
• Inspection
• Cleaning
• lubrication
• Operation checks

24
General Checklist Items for most Planned
Maintenance Inspection
25
All Equipment

• Turn off furnace and/or air handlers disconnect
• Make a visual inspection of all wire terminals
  and wires
• Check all contactors for signs of wear
• Retighten all accessible screw terminals
• Check fuse holders for tightness
• Turn on furnace and/or handler disconnect

26
All Equipment

• Check thermostat operation for accuracy
• Use a good quality thermometer
• Honeywell T87 thermostat can be field calibrated,
  but takes too long
• Cycle equipment on an verify sequence of
  operation is check

27
Fan Compartment Belt Drives

• Check belt tension for proper adjustment - 3/8
  1/2 depression per foot of span between pulleys
• If possible, used a belt tension gauge
• Visual inspect belt, bearing and pulley for signs
  of wear
• Visual inspect pulley and drive alignment
• use straight edge or string

28
Fan Compartment Belt Drives

• Check pulley and drive set screws for tightness
• Record belt size
• When possible leave an extra belt on the job
• Mark belt size on unit
• Lubricate motor and fan bearings, when possible
• Some motors have sealed bearings and external
  lubrication is not needed

29
Fan Compartment Belt Drives

• Check blower wheel for dirt build-up and clean
  when required
• An important maintenance task
• Dirt on blower wheel will reduce CFM delivered by
  fan
• This may be a time consuming task
• May required removing entire drive assembly

30
Fan Compartment Direct Drives

• Check blower wheel for dirt build-up and clean
  when required
• Check blower wheel set screws for tightness
• Lubricate motor and fan bearings, when possible

31
Fan Compartment Direct Drives

• Visually inspect fan motor for bearing wear by
  spinning fan wheel and notice how it slows down
  and stops
• Check fan motor for excess end play
• Some motors may have up to 1/8 end play
• Check motor bearing for oval shape
• There should be no vertical play with shaft

32
Air Filters

• Clean or replaced
• Record size
• Keep a log of all filters sizes used so on next
  inspection the new filters can be order ahead of
  time
• If possible, keep extra filters stored on work
  site
• Make sure to install air filters in the correct
  direction of airflow

33
Air Filters

• Some owner may choose to replaced the own filters
  or have their in-house maintenance personnel
  install the filters
• There are many different types of filters
  available - notify the customer of the various
  types so the best filter can be selected for the
  job

34
Mechanical Air Filters

• Conventional filters
• Extended-surface filters
• Electrostatic filters
• High-efficiency filters
• Activated carbon filters
• Steel/aluminum mesh filters

35
Adjusting The Fan Speed

• Direct drive blowers fan speed can usually be
  changed selecting the appropriate speed tap on
  the motors electrical connection
• White - common
• Black - high
• Yellow - medium high
• Blue - medium low
• Red - low

36
Adjusting The Fan Speed

• Belt drives blower fan speed can usually be
  adjusted by changing the flange on the motor
  pulley or changing the pulley
• Adjusting the adjustable pulley flange towards
  the fixed flange will increase the speed of the
  blower

37
Always check the amperage draw of the motor after
making any adjust to the fan speed
38
Condensing Units

• Turn off air conditioner disconnect
• Make a visual inspection of all wire terminals
  and wires
• Check all contactors for signs of wear
• Retighten all accessible screw terminals
• Check fuse holders for tightness

39
Condensing Units

• Turn on disconnect
• Inspect condenser fan motor for bearing wear
• Spin motor and note how it slows down and stops
• Clean the condensate trap on the furnace or air
  handler

40
Clean Condenser

• Two types of coil cleaners
• Acidic
• Alkaline
• Using garden hose to rinse
• Do not use too much water pressure can damage
  fins on the condenser coil
• Best to backwash coil - Spray water in opposite
  direction of airflow

41
Cleaning Evaporator Coil

• Spray on evaporator coil cleaner
• Condensate water will rinse chemicals off coil
  and down drain
• Drain line needs to be check to ensure that the
  dirt off the coil does not clog the drain line

42
Check and Record Voltage

• At Contactor
• Measure across
• L1 L2
• L2 L3
• L1 L3
• T1 T2
• T2 T3
• T1 T3

43
Check and Record Voltage

• Check and record voltage drop across
• L1 T1
• L2 T2
• L3 T3
• Check and record amperage draw on each hot leg
• Check voltage at contactor coil

44
The Refrigeration System

• Head pressure
• Suction pressure
• Superheat compare with Manu. Specs.
• Subcooling - compare with Manu. Specs.
• Outdoor ambient
• Indoor ambient DB and WB

45
