Cyclogenesis in Polar Airstreams

1

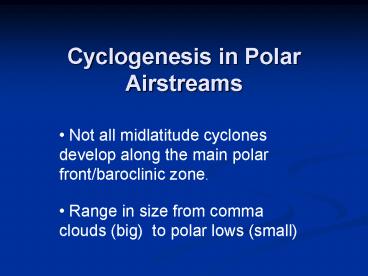

Cyclogenesis in Polar Airstreams

• Not all midlatitude cyclones develop along the
  main polar front/baroclinic zone.
• Range in size from comma clouds (big) to polar
  lows (small)

2
Comma Clouds 500-1500 km
3
Polar Lows 100-500 km
4
Comma Clouds

• Convection and sometimes stratiform-type clouds
  organized into a comma-shaped patterns
• Smaller than normal synoptic systems and on the
  cold side of the midlatitude jet stream.
• Most apparent over the oceans during a period
  with high-amplitude, long-wave trough development

5
Generally of a smaller scale (500 to 1000 km)
than classic midlatitude cyclones.
6

• Frequently multiple with typical spacing of
  1000-1500 km

7
Usually associated with the region of positive
vorticity advection (PVA) associated with a
short-wave trough aloft.
8
Scale often grows in time, particularly as they
move through a long wave trough
9
Three Stages of Comma Cloud Development

• Incipient Stage
• Two troughs large scale one and other
  associated with developing comma
• Appreciable baroclinicity with comma
• Intensifying Stage
• Convective elements grow in size and merge.
• Size of system increases
• Low center may appear
• Stronger advections and front-like
  characteristics
• Mature Stage
• Large size and movement to the forward side of
  the long-wave trough.
• Difficult to differentiate from a normal polar
  front cyclone

10

• Associated with regions of appreciable
  baroclinicity (temperature gradient) on the cold
  side of a major baroclinic zone (polar front).

11
Often develop in conditionally unstable
environments with lots of convection
12
Comma Clouds

• Most apparent over oceans in winter, but can
  develop over land

13
1445Z/05
GOES-12 Visible
2
1
14
1745Z/05
GOES-12 Visible
2
1
15
2045Z/05
GOES-12 Visible
2
1
16
15Z/05
2
2
17
Some, But Not All, Associated with Lightning
Strikes
Jan 18-21 2010 Lightning in Yellow
Nov 15-17 2009
18

• Sea-level low-pressure center is sometimes found
  under the comma head, with a trough of low
  pressure under the trailing edge of the comma
  tail.

19
Sometimes the associated trough can develop
frontal characteristics
20
There are a variety of ways for comma clouds, and
their associated vorticity maxima, to interact
with the main baroclinic zone/polar front
21
Little Interaction
22
Instant Occlusion
23
Instant Occlusion

• The comma cloud/PVA maximum can excite the
  development of a wave on a preexisting front.
• The comma cloud combines with the developing wave
  to form what appears to be a more occlusion
  WITHOUT the usual occluded front evolution.

24
Why such a small scale?

• Baroclinicity, latent heat release, and low
  stability appear to accompany most comma clouds.
• Several studies (e.g., Gall 76 and Staley and
  Gall 76) suggest that baroclinic instability in
  concert with low stability in the lower
  troposphere could contribute to such small
  scales.
• Needs more work.

25
Polar Lows
Look somewhat like hurricanesspiral rain bands,
cloud free eye
26
Polar Lows (also known as Arctic Hurricanes!)

• Small scale typically 300 to 800 km in size
• Usually develop near the ice margin where
  relatively warm, open water is adjacent to ice
  fields or cold continents.
• Thus, they develop in a region of very strong,
  low-level atmospheric baroclinicity.
• Low-stability environment as cold air moves over
  warm water. Usually convective clouds are
  present, frequently in linear, cloud streets.

27
Polar Lows

• Form rapidly when short-wave troughs aloft
  approach such baroclinic, unstable regions.
• Favored locations Bering Sea, Greenland,
  Norwegian and Barents Seas, Gulf of Alaska.

28
Polar Lows
29
Mesoscale Structure
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Polar Low Mechanisms

• Because they look like hurricanes, some have
  suggested they grow by similar air-sea
  interaction mechanisms
• CISK (Conditional Instability of the Second Kind)
• WISHE (Wind Induced Surface Heat Exchange)
• Others have suggested that baroclinic instability
  in the presence of low stability is dominant.
• Probably both mechanisms are important.

34
The END
