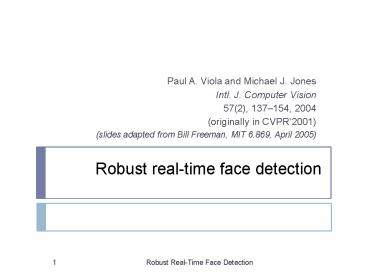

Robust real-time face detection

1
Robust real-time face detection

• Paul A. Viola and Michael J. Jones
• Intl. J. Computer Vision
• 57(2), 137154, 2004
• (originally in CVPR2001)
• (slides adapted from Bill Freeman, MIT 6.869,
  April 2005)

2
Scan classifier over locs. scales
3
Learn classifier from data

• Training Data
• 5000 faces (frontal)
• 108 non faces
• Faces are normalized
• Scale, translation
• Many variations
• Across individuals
• Illumination
• Pose (rotation both in plane and out)

4
Characteristics of Algorithm

• Feature set (is huge about 16M features)
• Efficient feature selection using AdaBoost
• New image representation Integral Image
• Cascaded Classifier for rapid detection
• Fastest known frontal face detector for gray
  scale images

5
Integral Image

• Allows for fast feature evaluation
• Do not work directly on image intensities
• Compute integral image using a few operations per
  pixel (similar with Haar Basis functions)

6
Simple and Efficient Classifier

• Select a small number of important features from
  a huge library of potential features using
  AdaBoost Freund and Schapire,1995

7
AdaBoost, Adaptive Boosting

• Formulated by Yoav Freund and Robert Schapire.1

• It is a meta-algorithm, can be used in
  conjunction with many other learning algorithms
  to improve their performance.
• AdaBoost is adaptive
• subsequent classifiers are tweaked in favor of
  instances misclassified by previous classifiers.
• Sensitive to noisy data and outliers.
• Less susceptible to the overfitting problem than
  most algorithms in some problems.
• Calls a weak classifier repeatedly in a series of
  rounds from T classifiers.
• For each call
• a distribution of weights Dt is updated that
  indicates the importance of examples in the data
  set
• On each round,
• the weights of each incorrectly classified
  example are increased
• Or alternatively, the weights of each correctly
  classified example are decreased),
• The new classifier focuses more on those examples

8
AdaBoost

• Given ,
• Initialize
• For
• For each classifier that
  minimizes the error with respect to the
  distribution
• is the weighted error rate of classifier
• If , then stop
• Choose , typically
• Update
• where is a normalized factor (choose so that
  Dt1 will sum_x1)

9
AdaBoost

• Output the final classifier
• The equation to update the distribution Dt is
  constructed so that
• After selecting an optimal classifier for the
  distribution
• Examples that the classifier identified correctly
  are weighted less
• Examples that is identified incorrectly are
  weighted more.
• When the algorithm is testing the classifiers on
  the distribution
• it will select a classifier that better
  identifies those examples that the previous
  classifier missed.

10
Characteristics of Algorithm

• Feature set (is huge about 16M features)
• Efficient feature selection using AdaBoost
• New image representation Integral Image
• Cascaded Classifier for rapid detection

11
Cascaded Classifier

• Combining successively more complex classifiers
  in a cascade structure
• Dramatically increases the speed of the detector
  by
• Focusing attention on promising regions of the
  image.
• Focus of attention approaches
• It is often possible to rapidly determine where
  in an image a face might occur (Tsotsos et al.,
  1995 Itti et al., 1998 Amit and Geman, 1999
  Fleuret and Geman, 2001).
• More complex processing is reserved only for
  these promising regions.
• The key measure of such an approach is the false
  negative rate of the attentional process.

12
Cascaded Classifier

• Training process
• An extremely simple and efficient classifier
• Used as a supervised focus of attention
  operator.
• A face detection attentional operator
• Filter out over 50 of the image
• Preserving 99 of the faces over a large dataset
• This filter is exceedingly efficient
• it can be evaluated in 20 simple operations per
  location/scale

13
Overview

• Features form and computing
• Combing features to form a classifier AdaBoost
• Constructing cascade of classifiers
• Experimental results
• Discussions

14
Features

• Using features rather than image pixels
• Features act to encode ad-hoc domain knowledge
  that is difficult to learn using a finite
  quantity of training data
• Much faster than a pixel-based system

15
Image features

• Rectangle filters Papageorgiou et al. 1998
• Similar to Haar wavelets
• Differences between sums of pixels inadjacent
  rectangles
• About 160000 rectangle features for a 200x200

16
Integral Image

• Partial sum
• Any rectangle is
• D 14-(23)
• Also known as
• summed area tables Crow84
• boxlets Simard98

17
Huge library of filters
18
Feature Discussion

• Primitive when compared with steerable filters,
  etc
• Excellent for the detailed analysis of
  boundaries, image compression, and texture
  analysis.
• Sensitive to the presence of edges, bars, and
  other simple image structure
• Quite coarse only three orientations (, X, --)
• Overcomplete 400 times, aspect ratio, location

19
Computational Advantage

• Face detector scans the input at many scales
• starting at the base scale detect face at a size
  of 24 24 pixels,
• Then at 12 scales, 1.25 larger than the last
• 384 288 pixel image is scanned at the top scale
• The conventional approach
• Compute a pyramid of 12 images (smaller and
  smaller image)
• A fixed scale detector is scanned at each image.
• Computation of the pyramid directly requires
  significant time.
• It takes around .05 seconds to compute a 12 level
  pyramid of this size (on an Intel PIII 700 MHz
  processor)
• Implemented efficiently on conventional hardware
  (using bilinear interpolation to scale each level
  of the pyramid)

20
Computational Advantage

• Define a meaningful set of rectangle features
• A single feature can be evaluated at any scale
  and location in a few operations.
• Effective detectors is constructed with two
  rectangle features.
• Computational efficiency of features
• Face detection process can be completed for an
  entire image at every scale at 15 frames per
  second
• About the same time required to evaluate the 12
  level image pyramid alone.

21
Learning Classification Functions

• Any machine learning methods
• Given the feature set and training set
• Mixture of Gaussian model (Sung and Poggio, 1998)
• Simple image feature and neural network (Rowley
  et al. 1998)
• Support Vector Machine (Osuna et al. 1997b)
• Winnow learning procedure (Roth et al. 2000)

160000 features Even though each feature can be
computed very efficiently, computing the complete
set is prohibitively expensive
22
AdaBoost

• A very small number of features can be combined
  to form an effective classifier
• Boost the classification performance
• Combining a collection of weak classification
  functions to form a stronger classifier
• Weak learner
• Do not expect even the best classification
  function to classify the training data well
• The first round of learning
• Examples are re-weighted in order to emphasize
  those which were incorrectly classified by the
  previous weak classifier.
• The final strong classifier
• takes the form of a perceptron, a weighted
  combination of weak classifiers followed by a
  threshold.6

Training error of the strong classifier
approaches zero exponentially in the number of
rounds
23
AdaBoost

• Selecting a small set of good classification
  functions nevertheless have significant variety
• Select effective features which nevertheless have
  significant variety
• Restrict the weak learner to classification
  functions
• Each function depends on a single feature
• Select the single rectangle feature
• which best separates the positive and negative
  examples

24x24 subwindow
Polarity indicating the direction of inequality
threshold
feature
24
AdaBoost

• No single feature can perform the classification
  task with low error
• Features selected early error rates 0.10.3
• Features selected later error rates 0.40.5
• Threshold single features
• Single node decision trees
• Decision stumps

25
Constructing the classifier

• Perceptron yields a sufficiently powerful
  classifier
• Use AdaBoost to efficiently choose best features
• add a new hi(x) at each round
• each hi(xk) is a decision stump

26
Constructing the Classifier

• For each round of boosting
• Evaluate each rectangle filter on each example
• Sort examples by filter values
• Select best threshold for each filter (min error)
• Use sorting to quickly scan for optimal threshold
• Select best filter/threshold combination
• Weight is a simple function of error rate
• Reweight examples
• (There are many tricks to make this more
  efficient.)

27
AdaBoost using single rectangular feature

• Given example images ,
• Initialize weight
• For
• Normalize the weights
• Select the best classifier with respect to the
  weighted error
• Define with the
  parameters minimizing
• Update weights

28
AdaBoost using single rectangular feature

• The final strong classifier

29
Good Reference on Boosting

• Friedman, J., Hastie, T. and Tibshirani, R.
  Additive Logistic Regression a Statistical View
  of Boosting
• http//www-stat.stanford.edu/hastie/Papers/boost
  .ps
• We show that boosting fits an additive logistic
  regression model by stagewise optimization of a
  criterion very similar to the log-likelihood, and
  present likelihood based alternatives. We also
  propose a multi-logit boosting procedure which
  appears to have advantages over other methods
  proposed so far.

30
Learning Discussion

• The set of weak classifier is extraordinarily
  large
• One weak classifier for each distinct
  feature/threshold combination
• KN weak classifier
• K the number of features
• N the number of examples
• Others have larger classifier sets
• Wrapper method
• M weak classifier O(MNKN) 1016 operations
• AdaBoost
• O(MKN) 1011 operations

31
Learning Discussion

• Dependency on N?
• Suppose that the examples are sorted by a given
  feature value.
• Any two thresholds that lie between the same pair
  of sorted examples is equivalent.
• Therefore the total number of distinct thresholds
  is N
• For each feature, sort the examples based on
  feature value
• Compute optimal threshold for that feature in a
  single pass over this sorted list.
• For each element in the list, Compute
• Total sum of positive example weights T
• Total sum of negative example weights T-
• the sum of positive weights below the current
  example S
• The sum of negative weights below the current
  example S-

32
Learning Discussion

• Error of a threshold split the list
• The final application demanded a very aggressive
  process which would discard the vast majority of
  features.

33
Other feature selection

• Papageorgiou et al.1998
• Feature selection based on feature variance.
• 37 features out of 1734 features for every image
  subwindow still large
• Roth et al. 2000
• Feature selection process based on the Winnow
  exponential perceptron learning rule
• A very large and unusual feature set each pixel
  is mapped into a binary vector of d dimensions
• Concatenate all pixels to nd-D vector
• Perceptron assign weight to each dimension
• Winnow learning process
• Converges to a solution where many of the weights
  are zero
• Very large number of features are retained
  (perhaps a few hundred or thousand).

34
Learning Results

• The classifier constructed from 200 features
  would yield reasonable results

For a face detector to be practical for real
applications, the false positive rate must be
closer to 1 in 1,000,000.
1 in 14084
35
Learning Results

• Features selected by AdaBoost are meaningful and
  easily interpreted
• In terms of detection
• Results are compelling but not sufficient for
  many real-world tasks.
• In terms of computation
• Very fast, requiring 0.7 seconds to scan an 384
  by 288 pixel image.

36
Attentional Cascade

• Achieves increased detection performance while
  radically reducing computation time
• Construct boost classifier
• Rejecting many of negative sub-windows
• Detecting almost all positive instances.
• Adjusting the strong classifier threshold to
  minimize false negatives lower threshold

37
Attentional Cascade

• Further processing
• Evaluate the rectangle features (requires between
  6 and 9 array references per feature).
• Compute the weak classifier for each feature
  (requires one threshold operation per feature)
• Combine the weak classifiers (requires one
  multiply per feature, an addition, and finally a
  threshold).

38
Attentional Cascade

• Subsequent classifiers

39
Trading speed for accuracy

• Given a nested set of classifier hypothesis
  classes
• Computational Risk Minimization

40
Training a Cascade of Classifiers

• Detection Goals
• Good detection rates (8595) and
• Extremely low false positive rates (on the order
  of 10-5 or 10-6).
• False positive rate of the cascade
• Detection rate

• To achieve a detection rate of 0.9 by a 10 stage
  classifier
• each stage has a detection rate of 0.99
• false positive rate 30 (0.3010 6 10-6).

41
Training a Cascade of Classifiers

• The expected number of features
• Scheme for trading off these errors is to adjust
  the threshold of the perceptron produced by
  AdaBoost

42
Tradeoffs in Training

• Classifiers with more features
• Achieve higher detection rates and lower false
  positive rates.
• require more time to compute
• An optimization framework in which
• the number of classifier stages,
• the number of features, ni, of each stage,
• the threshold of each stage
• are traded off in order to minimize the expected
  number of features N given a target for F and D.
• Finding this optimum is a tremendously difficult
  problem.

43
Training Cascaded Detector

• A simple framework to produce effective and
  efficient classifier
• The user selects the maximum acceptable rate for
  fi and the minimum acceptable rate for di .
• Each layer of the cascade is trained by AdaBoost
  with the number of features used being increased
  until the target detection and false positive
  rates are met for this level.
• The rates are determined by testing the current
  detector on a validation set.
• If the overall target false positive rate is not
  yet met then another layer is added to the
  cascade.
• The negative set for training subsequent layers
  is obtained by collecting all false detections
  found by running the current detector on a set of
  images which do not contain any instances of
  faces.

44
Training Cascaded Detector

• User selects values for f , the maximum
  acceptable false positive rate per layer and d,
  the minimum acceptable detection rate per layer.
• User selects target overall false positive
  rate, F_target .
• P set of positive examples, N set of
  negative examples
• F0 1.0 D0 1.0, i 0
• while F_i gt F_target
• i ?i 1
• ni 0 Fi Fi-1
• while Fi gt f Fi-1
• ni ? ni 1
• Use P and N to train a classifier with ni
  features using AdaBoost
• Evaluate current cascaded classifier on
  validation set to determine Fi and Di .
• Decrease threshold for the ith classifier until
  the current cascaded classifier has a detection
  rate of at least d Di-1 (this also affects Fi )
• N ? Ø
• If Fi gt Ftarget
• Evaluate the current cascaded detector on the set
  of non-face images
• put any false detections into the set N

45
Simple Experiment

• A monolithic 200-feature classifier and
• A cascade of ten 20-feature classifiers
• Training using
• 5000 faces 10000 nonface sub-windows

46
(No Transcript)
47
Simple Experiment

• A monolithic 200-feature classifier and
• A cascade of ten 20-feature classifiers
• Training using
• 5000 faces 10000 nonface sub-windows
• Little difference between them in terms of
  accuracy
• But cascaded classifier is nearly 10 times faster
• since its first stage throws out most non-faces
  so that they are never evaluated by subsequent
  stages.

48
Detector Cascade Discussion

• Similar to Rowley et al. (1998) (fast)
• Trained two neural networks
• One was moderately complex
• focused on a small region of the image,
• detected faces with a low false positive rate.
• Second neural network much faster
• focused on a larger regions of the image, and
• detected faces with a higher false positive rate
• This method
• two stage cascade ? include 38 stages

49
Training Dataset

• 4916 hand labeled faces scaled and aligned to a
  base resolution of 24 by 24 pixels.

50
Structure of the Detector Cascade

• 38 layer cascade of classifiers included a total
  of 6060 features
• First classifier constructed using two features
• rejects about 50 of non-faces while
• correctly detecting close to 100 of faces.
• The next classifier has ten features
• rejects 80 of nonfaces while
• detecting almost 100 of faces.
• The next two layers are 25-feature classifiers
• Then three 50-feature classifiers
• Then classifiers with variety of different
  numbers of features chosen according

51
Speed of Face Detector

• Speed is proportional to the average number of
  features computed per sub-window.
• On the MITCMU test set, an average of 9 features
  (/ 6061) are computed per sub-window.
• On a 700 Mhz Pentium III, a 384x288 pixel image
  takes about 0.067 seconds to process (15 fps).
• Roughly 15 times faster than Rowley-Baluja-Kanade
  and 600 times faster than Schneiderman-Kanade.

52
Scanning The Detector

• Multiple scales
• Scaling is achieved by scaling the detector
  itself, rather than scaling the image
• The features can be evaluated at any scale with
  the same cost
• Locations
• Subsequent locations are obtained by shifting the
  window some number of pixels D
• choice of D affects both speed and accuracy
• a step size gt 1 pixel tends to
• decrease the detection rate slightly while also
• decreasing the number of false positives

53
(No Transcript)
54
Integration of Multiple Detections

• Postprocess combine overlapping detections into
  a single detection
• The set of detections are first partitioned into
  disjoint subsets
• Two detections are in the same subset if their
  bounding regions overlap.
• Each partition yields a single final detection.
• The corners of the final bounding region are the
  average of the corners of all detections in the
  set.
• Decreases the number of false positives.

55
Integration of Multiple Detections

• A simple Voting Scheme further improves results
• Three detections performed similarly on the final
  task, but in some cases errors were different.
• Retaining only those detections where at least 2
  out of 3 detectors agree.
• This improves the final detection rate as well as
  eliminating more false positives.
• Since detector errors are not uncorrelated, the
  combination results in a measurable, but modest,
  improvement over the best single detector.

56
Sample results
MIT CMU test set
57
Failure Cases

• Trained on frontal, upright faces.
• The faces were only very roughly aligned so there
  is some variation in rotation both in plane and
  out of plane.
• Detect faces that are tilted up to about 15
  degrees in plane and about 45 degrees out of
  plane (toward a profile view).
• The detector becomes unreliable with more
  rotation.
• Harsh backlighting in which the faces are very
  dark while the background is relatively light
  sometimes causes failures.
• Nonlinear variance normalization based on robust
  statistics to remove outliers
• The problem with such a normalization is the
  greatly increased computational cost within our
  integral image framework.
• Fails on significantly occluded faces.
• Occluded eyes usually fail.
• The face with covered mouth will usually still be
  detected.

58
Summary (Viola-Jones)

• Fastest known face detector for gray images
• Three contributions with broad applicability
• Cascaded classifier yields rapid classification
• AdaBoost as an extremely efficient feature
  selector
• Rectangle Features Integral Image can be used
  for rapid image analysis

59
Face detector comparison

• Informal study by Andrew Gallagher, CMU,for CMU
  16-721 Learning-Based Methods in Vision, Spring
  2007
• The Viola Jones algorithm OpenCV implementation
  was used. (lt2 sec per image).
• For Schneiderman and Kanade, Object Detection
  Using the Statistics of Parts IJCV04, the
  www.pittpatt.com demo was used. (10-15 seconds
  per image, including web transmission).

60
SchneidermanKanade
ViolaJones
