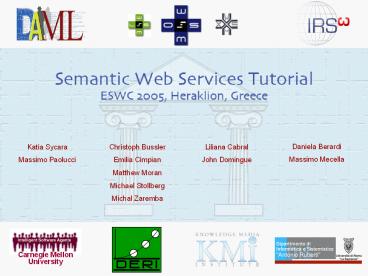

Semantic Web Services Tutorial ESWC 2005

1
Daniela Berardi Massimo Mecella
Katia Sycara Massimo Paolucci
Christoph Bussler Emilia Cimpian Matthew
Moran Michael Stollberg Michal Zaremba
Liliana Cabral John Domingue
2
Agenda

• Part I Introduction to Semantic Web Services
• Part II Semantic Web Service Ontologies
• OWL-S
• WSMO
• differences commonalities
• Coffee Break 11.00 11.30
• Part III Addressing Semantic Web Service
  Challenges
• Discovery
• Composition
• Lunch 12.30 14.00
• Part IV Semantic Web Service Tools Systems
• CMU OWL-S Browser
• Service Composer
• WSMX
• Coffee Break 15.30 16.00
• Part V Hands-On Session

3
PART I Introduction to Semantic Web Services

• Michael Stollberg

4
Contents

• The vision of the Semantic Web
• Ontologies as the basic building block
• Current Web Service Technologies
• Vision and Challenges for Semantic Web Services

5
The Vision

• 500 million users
• more than 3 billion pages

WWW URI, HTML, HTTP
Static
6
The Vision

• Serious Problems in
• information finding,
• information extracting,
• information representing,
• information interpreting and
• and information maintaining.

WWW URI, HTML, HTTP
Semantic Web RDF, RDF(S), OWL
Static
7
The Vision
Web Services UDDI, WSDL, SOAP
Dynamic

• Bringing the computer back as a device for
  computation

WWW URI, HTML, HTTP
Semantic Web RDF, RDF(S), OWL
Static
8
The Vision

• Bringing the web to its full potential

Semantic Web Services
Web Services UDDI, WSDL, SOAP
Dynamic
WWW URI, HTML, HTTP
Semantic Web RDF, RDF(S), OWL
Static
9
The Semantic Web

• the next generation of the WWW
• information has machine-processable and
  machine-understandable semantics
• not a separate Web but an augmentation of the
  current one
• Ontologies as basic building block

10
Ontology Definition

• formal, explicit specification of a shared
  conzeptualization

conceptual model of a domain (ontological theory)
unambiguous terminology definitions
commonly accepted understanding
machine-readability with computational semantics
11
Ontology Technology

• To make the Semantic Web working we need
• Ontology Languages
• expressivity
• reasoning support
• web compliance
• Ontology Reasoning
• large scale knowledge handling
• fault-tolerant
• stable scalable inference machines
• Ontology Management Techniques
• editing and browsing
• storage and retrieval
• versioning and evolution Support
• Ontology Integration Techniques
• ontology mapping, alignment, merging
• semantic interoperability determination
• and Applications

12
Web Services

• loosely coupled, reusable components
• encapsulate discrete functionality
• distributed
• programmatically accessible over standard
  internet protocols
• add new level of functionality on top of the
  current web

13
The Promise of Web Services
web-based SOA as new system design paradigm
14
WSDL

• Web Service Description Language
• W3C effort, WSDL 2 final construction phase

describes interface for consuming a Web
Service - Interface operations (in- output)
- Access (protocol binding) - Endpoint
(location of service)
15
UDDI

• Universal Description, Discovery, and Integration
  Protocol
• OASIS driven standardization effort

Registry for Web Services - provider -
service information - technical access
16
SOAP

• Simple Object Access Protocol
• W3C Recommendation

XML data transport - sender / receiver -
protocol binding - communication aspects -
content
17
Lacks of Web Service Technology

• current technologies allow usage of Web Services
• but
• only syntactical information descriptions
• syntactic support for discovery, composition and
  execution
• gt Web Service usability, usage, and integration
  needs to be inspected manually
• no semantically marked up content / services
• no support for the Semantic Web
• gt current Web Service Technology Stack failed to

• realize the promise of Web Services

18
Semantic Web Services

• Semantic Web Technology
• Web Service Technology

• allow machine supported data interpretation
• ontologies as data model

automated discovery, selection, composition, and
web-based execution of services
gt Semantic Web Services as integrated solution
for realizing the vision of the next generation
of the Web
19
Semantic Web Services

• define exhaustive description frameworks for
  describing Web Services and related aspects (Web
  Service Description Ontologies)
• support ontologies as underlying data model to
  allow machine supported data interpretation
  (Semantic Web aspect)
• define semantically driven technologies for
  automation of the Web Service usage process (Web
  Service aspect)

20
Semantic Web Services

• Usage Process
• Publication Make available the description of
  the capability of a service
• Discovery Locate different services suitable for
  a given task
• Selection Choose the most appropriate services
  among the available ones
• Composition Combine services to achieve a goal
• Mediation Solve mismatches (data, protocol,
  process) among the combined
• Execution Invoke services following programmatic
  conventions

21
Semantic Web Services

• Execution support
• Monitoring Control the execution process
• Compensation Provide transactional support and
  undo or mitigate unwanted effects
• Replacement Facilitate the substitution of
  services by equivalent ones
• Auditing Verify that service execution occurred
  in the expected way

22
PART II Semantic Web Service Ontologies

• Katia Sycara
• Dumitru Roman

23
Contents

• OWL-S
• Upper Ontology
• Service Profile
• Process Model
• Service Grounding
• WSMO
• WSMO top level notions
• Choreography and Mediation
• Mediation
• Differences and Commonalities

24
OWL-S

• Katia Sycara

25
OWL-S Ontology

• OWL-S is an OWL ontology to describe Web services
• OWL-S leverages on OWL to
• Support capability based discovery of Web
  services
• Support automatic composition of Web Services
• Support automatic invocation of Web services
• Complete do not compete
• OWL-S does not aim to replace the Web services
  standards
• rather OWL-S attempts to provide a semantic
  layer
• OWL-S relies on WSDL for Web service invocation
  (see Grounding)
• OWL-s Expands UDDI for Web service discovery
  (OWL-S/UDDI mapping)

26
OWL-S Upper Ontology

• Capability specification
• General features of the Service
• Quality of Service
• Classification in Service
• taxonomies

• Mapping to WSDL
• communication protocol (RPC, HTTP, )
• marshalling/serialization
• transformation to and from XSD to OWL

• Control flow of the service
• Black/Grey/Glass Box view
• Protocol Specification
• Abstract Messages

27
Service Profiles

• Service Profile
• Presented by a service.
• Represents
• what the service provides
• Two main uses
• Advertisements of Web Services capabilities
• Request of Web services with a given set of
  capabilities

28
OWL-S Profile in a Nutshell

• Describes Web service
• What capabilities it provides
• What transformation the service computes
• Type of service and products
• General features such as
• Agent providing the service
• Security requirements
• Quality guarantees of service
• Primary role to assist discovery
• Allows capability based search
• Allows selection based on requirements of the
  requester
• Profile does not specify use/invocation

29
OWL-S Service ProfileCapability Description

• Preconditions
• Set of conditions that should hold prior to
  service invocation
• Inputs
• Set of necessary inputs that the requester should
  provide to invoke the service
• Outputs
• Results that the requester should expect after
  interaction with the service provider is
  completed
• Effects
• Set of statements that should hold true if the
  service is invoked successfully.
• Service type
• What kind of service is provided (eg selling vs
  distribution)
• Product
• Product associated with the service (eg travel vs
  books vs auto parts)

30
OWL-S Service ProfileAdditional Properties

• Security Parameters
• Specify the security capabilities of a Web
  service (eg support X509 Encryption)
• Specify the security requirements of a Web
  service (eg a client should be able to provide
  X509 Encryption)
• Quality rating
• What level of service quality does the Web
  service provide?
• Description with standard business taxonomies
• How would the service be classified in standard
  taxonomies such as UNSPSC or NAICS?
• This is not a closed set, new properties can be
  added using existing ontologies

31
Process Model

• Process Model
• Describes how a service works internal processes
  of the service
• Specifies service interaction protocol
• Specifies abstract messages ontological type of
  information transmitted
• Facilitates
• Web service invocation
• Composition of Web services
• Monitoring of interaction

32
Viewpoints of Process Model

• Three viewpoints of a Web service
• Glass Box
• The Web service reveals all its internal
  structure
• Which parts of the service it performs in-house,
  which one it subcontracts, etc
• Black Box
• The Web service model does not reveal anything
  about the internal working of the service
• It just specifies what data it gathers and what
  data it sends back
• Grey Box
• The Web service selectively hides some parts of
  its Process Model, while it publicizes others

33
Definition of Process

• A Process represents a transformation (function).
  It is characterized by four parameters
• Inputs the inputs that the process requires
• Preconditions the conditions that are required
  for the process to run correctly
• Outputs the information that results from (and
  is returned from) the execution of the process
• Results a process may have different outcomes
  depending on some condition
• Condition under what condition the result occurs
• Constraints on Outputs
• Effects real world changes resulting from the
  execution of the process

34
Motivation for Results

• Processes may terminate in exceptional states
• The credit company may fail to charge the credit
  card
• The book may be out of stock
• The deliver of the goods may fail
• Results support modeling of non-deterministic
  outcomes of Web services
• The condition specifies when an outcome is
  generated
• Each outcome is characterized by
• a set of constraints on outputs
• a set of effects

35
Example of Process

• ltprocessAtomicProcess rdfID"LogIn"gt
• ltprocesshasInput rdfresource"AcctName"/gt
• ltprocesshasInput rdfresource"Password"/gt
• ltprocesshasOutput rdfresource"Ack"/gt
• ltprocesshasPrecondition isMember(AccName)/gt
• ltprocesshasResultgt
• ltprocessResultgt
• ltprocessinConditiongt
• ltexprSWRL-Conditiongt
• correctLoginInfo(AccName,Password)
• lt/exprSWRL-Conditiongt
• lt/processinConditiongt
• ltprocesswithOutput rdfresourceAckgt
  ltvalueType rdrresourceLoginAcceptMsggt
  lt/processwithOutputgt ltprocesshasEffectgt
• ltexprSWRL-Conditiongt
• loggedIn(AccName,Password)
• lt/exprSWRL-Conditiongt
• lt/processhasEffectgt
• lt/processResultgt
• lt/processhasResultgt

Inputs / Outputs
Precondition
Condition
Result
OutputConstraints
Effect
36
Ontology of Processes
Process
Atomic
Invokable bound to grounding
Simple
Provides abstraction, encapsulation etc.
Composite
Defines a workflow composed of process performs
37
Process Model Organization

• Process Model is described as a tree structure
• Composite processes are internal nodes
• Simple and Atomic Processes are the leaves
• Simple processes represent an abstraction
• Placeholders of processes that arent specified
• Or that may be expressed in many different ways
• Atomic Processes correspond to the basic actions
  that the Web service performs
• Hide the details of how the process is
  implemented
• Correspond to WSDL operations

38
Composite Processes

• Composite Processes specify how processes work
  together to compute a complex function
• Composite processes define
• Control Flow
• Specify the temporal relations between the
  executions of the different sub-processes
• Data Flow
• Specify how the data produced by one process is
  transferred to another process

39
Example of Composite Process
Control Flow Links Specify order of execution
Sequence BookFlight
Airline
Flight
Data-Flow Links Specify transfer of data
Perform
Perform
Airline
Select Flight
Get Flights
Flights
Flight
Flights
Depart
Arrive
Perform statements Specify the execution of a
process
40
Perform Construct

• Perform provides invocation mechanism
• Specify context of process execution
• input data flow
• hooks for output data flow
• Distinction between definition and invocation of
  a process
• Definition specifies the process I/P/R
• Perform specify when the process is invoked and
  with what parameters

41
Control Flow

• Processes can be chained to form a workflow
• OWL-S supports the following control flow
  constructs
• Sequence/Any-Order represents a list of
  processes that are executed in sequence or
  arbitrary order
• Conditionals if-then-else statements
• Loops while and repeat-until statements
• Multithreading and synchronization split process
  in multiple threads, and rendezvous (joint)
  points
• Non-deterministic choices (arbitrarily) select
  one process of a set

42
Data Flow

• Dataflow allows information that is transferred
  from process to process.
• Output?Input
• The information produced by one process is
  transferred to another in the same control
  construct
• Input ?Input
• The information received by a composite process
  is transferred to the sub-processes
• Output?Output
• The information produced by a subprocess is
  transferred to a super-process

43
Process Model take home lesson

• Service Model describes
• Set of processes that define the operations
  performed by the Web service
• Control flow describing the temporal flow of
  processes
• Data flow describing the transfer of information
  between sub-processes

44
Service Grounding

• Service Grounding
• Provides a specification of service access
  information.
• Service Model Grounding give everything needed
  for using the service
• Builds upon WSDL to define message structure and
  physical binding layer
• Specifies
• communication protocols, transport mechanisms,
  communication languages, etc.

45
Rationale of Service Grounding

• Provides a specification of service access
  information.
• Service Model Grounding give everything needed
  for using the service
• Service description is for reasoning about the
  service
• Decide what information to send and what to
  expect
• Service Grounding is for message passing
• Generate outgoing messages, and get incoming
  messages
• Mapping XML Schemata to OWL concepts
• Builds upon WSDL to define message structure and
  physical binding layer

46
Mapping OWL-S / WSDL 1.1

• Operations correspond to Atomic Processes
• Input/Output messages correspond to
  Inputs/Outputs of processes

47
Example of Grounding
Sequence BookFlight
Airline
Flight
Perform
Perform
Airline
Select Flight
Get Flights
Flights
Flight
Flights
Depart
Arrive
Arrive
Get Flights Op
Select Flight op
Depart
Flights
Flight
Flights
Airline
WSDL
48
Result of using the Grounding

• Invocation mechanism for OWL-S
• Invocation based on WSDL
• Different types of invocation supported by WSDL
  can be used with OWL-S
• Clear separation between service description and
  invocation/implementation
• Service description is needed to reason about the
  service
• Decide how to use it
• Decide how what information to send and what to
  expect
• Service implementation may be based on SOAP an
  XSD types
• The crucial point is that the information that
  travels on the wires and the information used in
  the ontologies is the same
• Allows any web service to be represented using
  OWL-S
• For example Amazon.com

49
Handling stateful vs stateless Web services

• Stateless Web services
• The server does not maintain the state of the
  computation
• Dataflow links specify how the client communicate
  the state to the service
• Stateful Web services
• The service does maintain the state
• No need of dataflow links since transfer of
  information is opaque to the client

50
Representing Stateful Web services
Client
Sequence BookFlight
Airline
Flight
Perform
Perform
Select Flight
Get Flights
Flights
Airline
Flight
Flights
Select Flight op
Get Flights Op
Arrive
Flights
Flight
Flights
Server
Server
Stateless no information is transferred between
the two operations
51
Representing Stateless Web services
Client
Sequence BookFlight
Airline
Flight
Perform
Perform
Select Flight
Get Flights
Flights
Airline
Flight
Select Flight op
Get Flights Op
Arrive
Flights
Flight
Flights
Server
Stateful information is recorded by the server,
no need of transfer between the two operations
52
Conclusion OWL-S section

• OWL-S provides a language for the description of
  Web services
• Service Profile provides description of
  capabilities of Web Service
• Allows capability-based discovery
• Process Model provides the description of how to
  use a Web service
• Allows automatic invocation of Web service
• Service Grounding maps Atomic Processes into WSDL
  operations
• Allows separation between description and
  implementation
• Supports description of arbitrary Web services

53
Web Service Modeling Ontology WSMO

• Michael Stollberg

54
Outline

• WSMO
• aims objectives
• working structure
• Design Principles
• Top Level Notions
• Ontologies
• Web Services
• Goals
• Mediators

55
WSMO is ..

• a conceptual model for Semantic Web Services
• Ontology of core elements for Semantic Web
  Services
• a formal description language (WSML)
• execution environment (WSMX)
• derived from and based on the Web Service
  Modeling Framework WSMF
• a SDK-Cluster Working Group
• (joint European research and development
  initiative)

56
WSMO Working Groups

A Conceptual Model for SWS
A Formal Language for WSMO
Execution Environment for WSMO
A Rule-based Language for SWS
57
WSMO Design Principles

• Web Compliance
• Ontology-Based
• Strict Decoupling
• Centrality of Mediation
• Ontological Role Separation
• Description versus Implementation
• Execution Semantics

58
WSMO Top Level Notions
Objectives that a client wants to achieve by
using Web Services
Provide the formally specified terminology of the
information used by all other components

• Semantic description of Web Services
• Capability (functional)
• Interfaces (usage)

Connectors between components with mediation
facilities for handling heterogeneities
WSMO D2, version 1.2, 13 April 2005 (W3C
submission)
59
Non-Functional Properties

• every WSMO elements is described by properties
  that contain relevant, non-functional aspects
• Dublin Core Metadata Set
• complete item description
• used for resource management
• Versioning Information
• evolution support
• Quality of Service Information
• availability, stability
• Other
• Owner, financial

60
Non-Functional Properties List
Dublin Core Metadata Contributor Coverage
Creator Description Format Identifier
Language Publisher Relation Rights Source
Subject Title Type
Quality of Service Accuracy NetworkRelatedQoS Pe
rformance Reliability Robustness Scalability
Security Transactional Trust
Other Financial Owner TypeOfMatch Version
61
WSMO Ontologies
Objectives that a client wants to achieve by
using Web Services
Provide the formally specified terminology of the
information used by all other components

• Semantic description of Web Services
• Capability (functional)
• Interfaces (usage)

Connectors between components with mediation
facilities for handling heterogeneities
62
Ontology Usage Principles

• Ontologies are used as the data model
  throughout WSMO
• all WSMO element descriptions rely on ontologies
• all data interchanged in Web Service usage are
  ontologies
• Semantic information processing ontology
  reasoning
• WSMO Ontology Language WSML
• conceptual syntax for describing WSMO elements
• logical language for axiomatic expressions (WSML
  Layering)
• WSMO Ontology Design
• Modularization import / re-using ontologies,
  modular approach for ontology design
• De-Coupling heterogeneity handled by OO
  Mediators

63
Ontology Specification

• Non functional properties (see before)
• Imported Ontologies importing existing
  ontologies where no heterogeneities arise
• Used mediators OO Mediators (ontology import
  with terminology mismatch handling)
• Ontology Elements
• Concepts set of concepts that belong to the
  ontology, incl.
• Attributes set of attributes that belong to a
  concept
• Relations define interrelations between several
  concepts
• Functions special type of relation (unary range
  return value)
• Instances set of instances that belong to the
  represented ontology
• Axioms axiomatic expressions in ontology (logical
  statement)

64
WSMO Web Services
Objectives that a client wants to achieve by
using Web Services
Provide the formally specified terminology of the
information used by all other components

• Semantic description of Web Services
• Capability (functional)
• Interfaces (usage)

Connectors between components with mediation
facilities for handling heterogeneities
65
WSMO Web Service Description

• complete item description
• quality aspects
• Web Service Management

• Advertising of Web Service
• Support for WS Discovery

Capability functional description
Non-functional Properties DC QoS Version
financial

• realization of functionality by aggregating
• other Web Services
• functional
• decomposition
• WS composition

• client-service interaction interface for
  consuming WS
• External Visible
• Behavior
• - Communication
• Structure
• - Grounding

Web Service Implementation (not of interest in
Web Service Description)
Choreography --- Service Interfaces ---
Orchestration
66
Capability Specification

• Non functional properties
• Imported Ontologies
• Used mediators
• OO Mediator importing ontologies with mismatch
  resolution
• WG Mediator link to a Goal wherefore service is
  not usable a priori
• Pre-conditions What a web service expects in
  order to be able to
• provide its service. They define conditions
  over the input.
• Assumptions Conditions on the state of the
  world that has to hold before
• the Web Service can be executed
• Post-conditions
• describes the result of the Web Service in
  relation to the input,
• and conditions on it
• Effects
• Conditions on the state of the world that hold
  after execution of the
• Web Service (i.e. changes in the state of the
  world)

67
Choreography Orchestration

• VTA example
• Choreography how to interact with the service
  to consume its functionality
• Orchestration how service functionality is
  achieved by aggregating other Web Services

68
Choreography Aspects
Interface for consuming Web Service

• External Visible Behavior
• those aspects of the workflow of a Web Service
  where Interaction is required
• described by workflow constructs sequence,
  split, loop, parallel
• Communication Structure
• messages sent and received
• their order (communicative behavior for service
  consumption)
• Grounding
• concrete communication technology for interaction

• choreography related errors (e.g. input wrong,
  message timeout, etc.)
• Formal Model
• reasoning on Web Service interfaces (service
  interoperability)
• allow mediation support on Web Service interfaces

69
Orchestration Aspects
Control Structure for aggregation of other Web
Services
1
Web Service Business Logic
3
2

• decomposition of service functionality
• all service interaction via choreographies

4
70
WSMO Web Service Interfaces

• service interfaces are concerned with service
  consumption and interaction
• Choreography and Orchestration as sub-concepts of
  Service Interface
• common requirements for service interface
  description
• represent the dynamics of information interchange
  during service consumption and interaction
• support ontologies as the underlying data model
• appropriate communication technology for
  information interchange
• sound formal model / semantics of service
  interface specifications in order to allow
  operations on them.

71
Service Interface Description

• Ontologies as data model
• all data elements interchanged are ontology
  instances
• service interface evolving ontology
• Abstract State Machines (ASM) as formal
  framework
• dynamics representation high expressiveness
  low ontological commitment
• core principles state-based, state definition by
  formal algebra, guarded transitions for state
  changes
• overcome the Frame Problem
• further characteristics
• not restricted to any specific communication
  technology
• ontology reasoning for service interoperability
  determination
• basis for declarative mediation techniques on
  service interfaces

72
Service Interface Description Model

• Vocabulary ?
• ontology schema(s) used in service interface
  description
• usage for information interchange in, out,
  shared, controlled
• States ?(O)
• a stable status in the information space
• defined by attribute values of ontology instances

• Guarded Transition GT(?)
• state transition
• general structure if (condition) then (action)
• different for Choreography and Orchestration

73
Service Interface Example
Communication Behavior of a Web Service
Vocabulary - Concept A in Oin - Concept B in
Oout
Oout hasValues concept B att1 ofType W
att2 ofType Z
Oin hasValues concept A att1 ofType X
att2 ofType Y
State ?1
Guarded Transition GT(?1)
State ?2
IF (a memberOf A att1 hasValue x ) THEN (b
memberOf B att2 hasValue m )
a memberOf A att1 hasValue x att2 hasValue y
a memberOf A att1 hasValue x, att2 hasValue
m b memberOf B att2 hasValue m
received ontology instance a
sent ontology instance b
74
Future Directions
Choreography - interaction of services /
service and client - a choreography
interface describes the behavior of a Web
Service for client-service interaction for
consuming the service
Orchestration - how the functionality of a Web
Service is achieved by aggregating other Web
Services - extends Choreography descriptions by
control data flow constructs between
orchestrating WS and orchestrated WSs.
Conceptual models
User language - based on UML2 activity diagrams
- graphical Tool for Editing Browsing
Service Interface Description
workflow constructs as basis for describing
service interfaces - workflow based process
models for describing behavior - on basis of
generic workflow constructs (e.g. van der Aalst)
Formal description of service interfaces -
ASM-based approach - allows reasoning
mediation
Ontologies as data model - every resource
description based on ontologies - every data
element interchanged is ontology instance
Grounding - making service interfaces
executable - currently grounding to WSDL
75
WSMO Goals
Objectives that a client wants to achieve by
using Web Services
Provide the formally specified terminology of the
information used by all other components

• Semantic description of Web Services
• Capability (functional)
• Interfaces (usage)

Connectors between components with mediation
facilities for handling heterogeneities
76
Goals

• Ontological De-coupling of Requester and Provider
• Goal-driven Approach, derived from AI rational
  agent approach
• Requester formulates objective independently
• Intelligent mechanisms detect suitable services
  for solving the Goal
• allows re-use of Services for different purposes
• Usage of Goals within Semantic Web Services
• A Requester, that is an agent (human or machine),
  defines a Goal to be resolved
• Web Service Discovery detects suitable Web
  Services for solving the Goal automatically
• Goal Resolution Management is realized in
  implementations

77
Goal Specification

• Non functional properties
• Imported Ontologies
• Used mediators
• OO Mediators importing ontologies with
  heterogeneity resolution
• GG Mediator
• Goal definition by reusing an already existing
  goal
• allows definition of Goal Ontologies
• Requested Capability
• describes service functionality expected to
  resolve the objective
• defined as capability description from the
  requester perspective
• Requested Interface
• describes communication behaviour supported by
  the requester for consuming a Web Service
  (Choreography)
• Restrictions / preferences on orchestrations of
  acceptable Web Services

78
WSMO Mediators
Objectives that a client wants to achieve by
using Web Services
Provide the formally specified terminology of the
information used by all other components

• Semantic description of Web Services
• Capability (functional)
• Interfaces (usage)

Connectors between components with mediation
facilities for handling heterogeneities
79
Mediation

• Heterogeneity
• Mismatches on structural / semantic / conceptual
  / level
• Occur between different components that shall
  interoperate
• Especially in distributed open environments
  like the Internet
• Concept of Mediation (Wiederhold, 94)
• Mediators as components that resolve mismatches
• Declarative Approach
• Semantic description of resources
• Intelligent mechanisms that resolve mismatches
  independent of content
• Mediation cannot be fully automated (integration
  decision)
• Levels of Mediation within Semantic Web Services
  (WSMF)
• Data Level mediate heterogeneous Data Sources

• Protocol Level mediate heterogeneous
  Communication Patterns
• Process Level mediate heterogeneous Business
  Processes

80
WSMO Mediators Overview
81
Mediator Structure
WSMO Mediator uses a Mediation Service via
Source Component
Target Component
1
1 .. n
Source Component

• as a Goal
• directly
• optionally incl. Mediation

Mediation Services
82
OO Mediator - Example
Merging 2 ontologies
Train Connection Ontology (s1)
OO Mediator Mediation Service
Train Ticket Purchase Ontology
Purchase Ontology (s2)
Goal merge s1, s2 and s1.ticket subclassof
s2.product
Discovery
Mediation Services
83
GG Mediators

• Aim
• Support specification of Goals by re-using
  existing Goals
• Allow definition of Goal Ontologies (collection
  of pre-defined Goals)
• Terminology mismatches handled by OO Mediators
• Example Goal Refinement

GG Mediator Mediation Service
Target Goal Buy a Train Ticket
Source Goal Buy a ticket
postcondition aTicket memberof trainticket
84
WG WW Mediators

• WG Mediators
• link a Web Service to a Goal and resolve
  occurring mismatches
• match Web Service and Goals that do not match a
  priori
• handle terminology mismatches between Web
  Services and Goals
• broader range of Goals solvable by a Web Service
• WW Mediators
• enable interoperability of heterogeneous Web
  Services
• support automated collaboration between Web
  Services
• OO Mediators for terminology import with data
  level mediation
• Protocol Mediation for establishing valid
  multi-party collaborations
• Process Mediation for making Business Processes
  interoperable

85

• OWL-S and WSMOCommonalities and Differences

86
Outline

• Perspectives
• Relation of Ontology Elements
• Interoperability and Mediation
• Semantic Representation

87
OWL-S Perspective

• OWL-S is an ontology and a language to describe
  Web services
• guiding lines for the development of OWL-S
• Strong relation to Web Services standards
• rather than proposing another WS standard, OWL-S
  aims at enriching existing standards
• OWL-S is grounded in WSDL and it has been mapped
  into UDDI
• Based on the Semantic Web
• Ontologies provide conceptual framework to
  describe the domain of Web services and an
  inference engine to reason about the domain
• Ontologies are essential elements of
  interoperation between Web services
• Build upon 30 years of AI research on Knowledge
  Representation and Planning

88
WSMO Perspective

• WSMO is a conceptual model for the core elements
  of Semantic Web Services
• core elements Ontologies, Web Services, Goals,
  Mediators
• ontology for precise, unambiguous, element
  description
• language for semantic element description (WSML)
• reference implementation (WSMX)
• Focus on solving the integration problem
• Mediation as a key element
• Ontologies as data model
• every resource description is based on ontologies

• every data element interchanged is an ontology
  instance
• Based on Knowledge Engineering and B2B
  Integration experience

89
OWL-S and WSMO
OWL-S profile WSMO capability goal
non-functional properties

• Request
• OWL-S uses Profiles to express existing
  capabilities (advertisements) and desired
  capabilities (requests)
• WSMO separates provider (capabilities) and
  requester points of view (goals)
• Conceptually, OWL-S requested profile and WSMO
  goal are not exactly the same
• Requested service profile vs requester objectives

90
OWL-S and WSMO
OWL-S Process Model ? WSMO Service Interfaces

• Differences
• WSMO provides choreography orchestration while
  OWL-S provides only choreography and facilitates
  automatic orchestration
• WSMO service interface description model with
  ASM-based formal semantics
• OWL-S formal semantics has been developed in very
  different frameworks such as Situation Calculus,
  Petri Nets, Pi-calculus
• OWL-S Process Model is extended by SWRL / FLOWS
• both approaches are not finalized yet

91
OWL-S and WSMO
OWL-S Grounding ? current WSMO Grounding

• OWL-S provides default mapping to WSDL
• clear separation between WS description and
  interface implementation
• other mappings could be used
• WSMO also defines a mapping to WSDL, but aims at
  an ontology-based grounding
• avoid loss of ontological descriptions throughout
  service usage process
• Triple-Spaced Computing as innovative
  communication technology

92
Mediation and Interoperation

• Interaction of Web services is bound to produce
  many forms of mismatch
• Data mismatch the interacting parties do not
  agree on the data format that they are using
• Ontology mismatch the interacting parties refer
  to different ontologies
• Protocols mismatch the interacting parties
  expect information at different times
• Goals Mismatch the interacting parties attempt
  to achieve very different goals
• Interpretations Mismatch The interacting parties
  interpret the same information in very different
  ways
• These mismatches need to be reconciled for the
  interoperation to succeed.
• Mediators are the components that reconcile these
  mismatches

93
Mediation in OWL-S and WSMO

• OWL-S does not have an explicit notion of
  mediator
• Mediation is a by-product of the orchestration
  process
• For example protocol mismatches are resolved by
  constructing a plan that coordinates the activity
  of the Web services
• or it results from translation axioms that are
  available to the Web services
• It is not the mission of OWL-S to generate these
  axioms
• WSMO regards mediators as key conceptual elements
• Different kinds of mediators modelled
• OO Mediators for ensuring semantic
  interoperability
• GG, WG mediators to link Goals and Web Services
• WW Mediators to establish service
  interoperability
• Reusable mediators
• Mediation mechanism under development

94
Mediation in OWL-S and WSMO

• There is no clear mapping between OWL-S and WSMO
  approach to mediation
• OWL-S adopts the view that mediators emerge
• as infrastructure elements
• or as by product of the reasoning capabilities of
  the Web service (for example through matchmaking
  or planning)
• WSMO views mediators as fundamental conceptual
  elements
• But they can also be located as the result of
  matchmaking or composition

95
Semantic Representation

• OWL-S and WSMO adopt a similar view on the need
  of ontologies and explicit semantics
• but they rely on different logics
• OWL-S is based on OWL/SWRL
• OWL represent taxonomical knowledge
• SWRL provides inference rules
• FLOWS as formal model for process model
• WSMO is based on WSML a family of languages with
  a common basis for compatibility and extensions
  in the direction of Description Logics and Logic
  Programming

96
OWL vs WSML

• The relation between WSML and OWLSWRL is still
  to be completely worked out
• For some languages it is known
• WSML-Core is an interesting subset of OWL Lite
• WSML-DL is equivalent to OWL DL
• but for other languages the relation is still
  unknown

97
Summary
OWL-S WSMO current Web Service technologies
Discovery What it does Profile Goals and Web Services (capability) UDDI API
Consumption Interaction How to consume realize Process Model Service Interfaces (Choreography Orchestration) BPEL4WS
Invocation How to invoke Grounding WSDL/SOAP Grounding (WSDL / SOAP, ontology-based) WSDL/SOAP
98
PART III Addressing Semantic Web Service
Challenges

• Michael Stollberg
• Daniela Berardi

99
Contents

• Aspects of Semantic Web Services
• Discovery
• Problem of Discovery
• Existing approaches overview
• Composition
• Problem of Composition
• Existing approaches overview

100
Challenges

• Web services as loosely coupled components that
  shall interoperate dynamically and automatically
• Techniques required for
• Discovery
• How are Web services found and selected?
• Composition
• How to aggregate Web Services into a complex
  functionality?
• Contracting
• How to ensure automated interaction of Web
  Services?
• Invocation
• How is data transformed to fit the requirement of
  the partner Web service?
• Mediation and Interoperability
• How are data and protocol mismatches resolved?

101
Discovery Problems Approaches Overview

• Michael Stollberg

102
Outline

• Aspects of Discovery
• Terminology
• Discovery Process
• Discovery Techniques
• keyword-word based retrieval
• controlled vocabulary / pre-filtering
• Semantic Discovery
• Matchmaking Notions
• Approaches Prototypes

103
Aspects of Discovery

• find appropriate Web Service for automatically
• resolving the objective of a requester
• Aims
• high precision discovery
• maximal automation
• effective discoverer architectures
• Requirements
• infrastructure that allows storage and retrieval
  of information about Web services
• description of Web services functionality
• description of requests or goals
• algorithms for matching requesters for
  capabilities with the corresponding providers

104
Terminology

• Web Services
• abstract Web Services
• provides access to concrete Web Services
• has a description
• concrete Web Services
• a concrete execution of a Web Service with given
  input values
• corresponds to an abstract Web Service
• Goals / Requests
• predefined goals (Goal Templates)
• generic structure of user requests
• ease goal / request creation by users
• defined in Goal Ontologies
• concrete goals (Goal Instances)
• concrete objectives
• serve as client for automated service usage

based on Conceptual Architecture for Semantic
Web Services, C. Preist, ISWC 2004
105
Overall Discovery Process
Requester Desire
ease of goal description
Goal Repository
Goal Discovery
Selected Goal Template
Goal Template
Goal Refinement
Concrete Goal
efficient filtering
Service Repository
Abstract Service Discovery
abstract WS
Concrete Service Discovery Selection
usable abstract Web Services
accuracy
Concrete Web Service
Keller, U. Lara, R. Lausen, H. Polleres, A.
Fensel, D. Automatic Location of Services. In
Proc. of the 2nd European Semantic Web Symposium
(ESWS2005), Heraklion, Crete, 2005.
106
Discovery Techniques

• different techniques available
• trade-off ease-of-provision lt-gt accuracy
• resource descriptions matchmaking algorithms
• Key Word Matching
• match natural language key words in resource
  descriptions
• Controlled Vocabulary
• ontology-based key word matching
• Semantic Matchmaking
• what Semantic Web Services aim at

Ease of provision
Possible Accuracy
107
Keyword-based retrieval UDDI

• Service Information by
• provider
• services binding templates
• categories
• T-Models allow creating specific information
  models on resources
• standard API for finding retrieving information
  provider

gt allows finding all information on available
Web Service gt Web Service usage / integration
to be done manually
108
Semantic Web Services in UDDI

• Mapping semantic resource descriptions into UDDI
• OWL-S Service Profile mapping to UDDI
• WSMO elements to UDDI mapping (for all top level
  elements)

• mapping semantic descriptions to syntactic
  repository
• allows retrieval of structural information

M. Paolucci, T. Kawamura, T. Payne, and K.
Sycara Importing the Semantic Web into UDDI. In
Proc. of E-Services and the Semantic Web
Workshop. Herzog, R. Lausen, H. Roman, D.
Zugmann, P. WSMO Registry. WSMO Working Draft
D10 v0.1, 26 April 2004.
109
Controlled VocabularyOWL-S Profile Hierarchies

• hierarchy of Web Services
• functional similarities (domain, in- / outputs)
• allows pre-filtering of services on basis of
  categorization

Web Services
E-commerce
Information
Ticketing
Web Search
Weather
Book Selling
Event Ticketing
Airline Ticketing
http//www.daml.org/services/owl-s/1.0/ProfileHier
archy.owl
110
Controlled VocabularyWSMO non-functional
properties

• Ontology keywords in non-functional properties
• dcsubject contains main ontology concepts
  related to Web Service
• allows pre-filtering similar to OWL-S Profile
  Hierarchy, but on basis on ontologies
  (controlled vocabulary)

• Example
• a Web Service for selling train tickets in
  Austria
• dcsubject hasValue _tctrainticket,
  popurchase, locaustria
• does not precisely describe Web Service
  functionality
• gt accuracy of discovery result meager

Lara, R., Lausen, H. Toma, I. (Eds) WSMX
Discovery. WSMX Working Draft D10 v0.2, 07 March
2005.
111
Semantic Matchmaking

• usability determination on basis of
• precise semantic descriptions
• OWL-S Profile provides capability description
  request
• Functional capabilities (what the Web services
  does)
• Quality parameters (how the Web service does it)

• Capability description request are both
  Profile-based
• OWL-S reliance on OWL provides basis for semantic
  matching
• WSMO separates requester and provider viewpoints
• WSMO goals describe requester objectives
• WSMO capabilities describe WS functionality
• Non-functional properties used for security,
  trust, etc.

112
OWL-S Profile Matching

• Adverstisement (service provider) and request
  described as OWL-S Service Profiles
• Matching inputs and outputs of
• advertisement and request
• Five degrees of match
• Exact
• PlugIn R ? A
• Subsumed A ? R
• Intersection ?(A ?? R??)
• Fail when disjoint A ?? R??
• this is ontology-subsumption
• matching

Thing
subsume
Vehicle
Price
Car
Truck
exact
Sedan
Coupe
plug-in
Mid-Size
Luxury
M. Paolucci, T. Kawamura, T. Payne, and K.
Sycara Semantic matching of web services
capabilities. Proceedings of the First
International Semantic Web Conference,
Springer-Verlag, 2002 pp 333-347. Li, L. and
Horrocks, I. A software framework for
matchmaking based on semantic web technology. In
Proc. of the 12th International Conference on
the World Wide Web, Budapest, Hungary, May 2003.
113
WSMO Capabilities Set-based Modeling

• capability as state-relation (pre- post state
  of service usage)
• each capability description element restricts the
  information space to the set of possible
  instances that satisfy the element
• used in both goals and service descriptions

post-state
pre-state
Postcondition
Precondition
computational
shared variables
Assumption
Effect
non-computational
Information Space all possible instances of
used ontologies
114
Matchmaking Notions Intentions
G
WS

• Exact Match
• G, WS, O, M ?x. (G(x) ltgt WS(x) )
• PlugIn Match
• G, WS, O, M ?x. (G(x) gt WS(x) )
• Subsumption Match
• G, WS, O, M ?x. (G(x) lt WS(x) )
• Intersection Match
• G, WS, O, M ?x. (G(x) ? WS(x) )
• Non Match
• G, WS, O, M ?x. (G(x) ? WS(x) )

Keller, U. Lara, R. Polleres, A. (Eds) WSMO
Web Service Discovery. WSML Working Draft D5.1,
12 Nov 2004.
115
Discovery Approach

• Matchmaking Notion to be used defined for each
  goal capability element
• Basic Procedure

Web Service Capability
Goal Capability
Plug-In
Precondition
Precondition
valid pre-state?
Exact
Assumption
Assumption
no
yes
Intersection
abort
Postcondition
Postcondition
valid post-state?
Exact
Effect
Effect
no
yes
abort
Match
116
Prototype with TA/Flora2

• Realization
• F-Logic Reasoner with Transaction Logic Support
• Resource Modeling
• Service Capability set of rules for each element

• Goal Capability pre-state as facts, post-state
  as queries
• State model of a logical theory (facts rules)
• State-Transitions Update of the logical theory
• Insertion Deletion of Facts and/or Rules
• Matchmaking on basis of current state

• Procedure
• Goal pre-state satisfies Service pre-state?
• Insert Goal pre-state into Knowledge Base (KB)
• Can KB satisfy Service post-state (hypoth.
  execution)?
• If yes, can Service post-state satisfy Goal
  post-state?

M. Kifer, R. Lara, A. Polleres, C. Zhao, U.
Keller, H. Lausen and D. Fensel A Logical
Framework for Web Service Discovery. Proc. 1st.
Intl. Workshop SWS'2004 at ISWC 2004,Hiroshima,
Japan, November 8, 2004, CEUR Workshop
Proceedings, ISSN 1613-0073
117
Prototype with VAMPIRE

• Realization
• FOL Theorem Prover
• Universe as Knowledge Definition
• ontology schemas (concepts, relations, axioms)
• generic instances for all concepts and relations
• Matchmaking Proof Obligations
• Goal and Service descriptions as logical theories

• Matchmaking Notions as Proof Obligations
• not bound to DL / LP reasoning support
• Universe Definition
• supports matchmaking without knowledge creation /
  insertion at runtime
• handling of incomplete facts (modeling
• intention ? semantics in logics)

Generic Instance
Incomplete Facts
concept Person age ofType integer sex ofType
string
Ontology
?x memberOf Person age hasValue ?A and ?A
80 .
Goal
Stollberg, M. Keller, U. Fensel. D. Partner
and Service Discovery for Collaboration on the
Semantic Web. Proc. 3rd Intl. Conference on Web
Services (ICWS 2005), Orlando, Florida, July
