Yaping Zhu

1

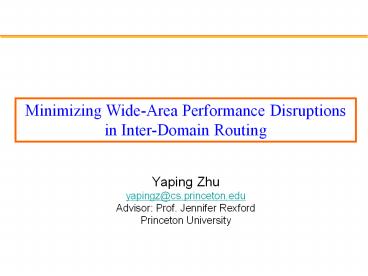

Minimizing Wide-Area Performance Disruptions in
Inter-Domain Routing

• Yaping Zhu
• yapingz_at_cs.princeton.edu
• Advisor Prof. Jennifer Rexford
• Princeton University

2
Minimize Performance Disruptions

• Network changes affect user experience
• Equipment failures
• Routing changes
• Network congestion
• Network operators have to react and fix problems
• Fix equipment failure
• Change route selection
• Change server selection

3
Diagnosis Framework Enterprise Network
Diagnose
Measure network changes
Fix equipment, config, etc.
Full Control
Full Visibility
4
Challenges to Minimize Wide-Area Disruptions

• The Internet is composed of many networks
• ISP (Internet Service Provider) provides
  connectivity
• CDN (Content Distribution Network) provides
  services
• Each network has limited visibility and control

Small ISPs
Large ISP
Client
CDN
5
ISPs Challenge Provide Good Transit for Packets

• Limited visibility
• Small ISP lack of visibility into problem
• Limited control
• Large ISP lack of direct control to fix
  congestion

Small ISPs
Large ISP
Client
CDN
6
CDNs Challenge Maximize Performance for Services

• Limited visibility
• CDN cant figure out exact root cause
• Limited control
• CDN lack of direct control to fix problem

Small ISPs
Large ISP
Client
CDN
7
Summary of Challenges of Wide-Area Diagnosis

• Measure large volume and diverse kinds of data
• Diagnosis today ad-hoc
• Takes a long time to get back to customers
• Does not scale to large number of events

Our Goal Build Systems for Wide-Area
Diagnosis Formalize and automate the diagnosis
process Analyze a large volume of measurement data
8
Techniques and Tools for Wide-Area Diagnosis
Tool Problem Statement Results
Route Oracle Track route changes scalably for ISPs Deployed at ATT IMC09, PER10
NetDiag Diagnose wide-area latency increases for CDNs Deployed at Google In submission
9
Rethink Routing Protocol Design

• Many performance problems caused by routing
• Route selection not based on performance
• 42.2 of the large latency increases in a large
  CDN correlated with inter-domain routing changes
• No support for multi-path routing

Our Goal Routing Protocol for Better
Performance Fast convergence to reduce
disruptions Route selection based on
performance Scalable multi-path to avoid
disruptions Less complexity for fewer errors
10
Thesis Outline
Chapter Problem Statement Results
Route Oracle Track route changes scalably for ISPs Deployed at ATT IMC09, PER10
NetDiag Diagnose wide-area latency increases for CDNs Deployed at Google In submission
Next-hop BGP Routing protocol designed for better performance HotNets10 In submission to CoNext
11
Route Oracle Where Have All the Packets Gone?

• Work with Jennifer Rexford
• Aman Shaikh and Subhabrata Sen
• ATT Research

12
Route Oracle Where Have All the Packets Gone?
ATT IP Network
IP Packet
Egress Router
Ingress Router

• Inputs
• Destination IP Address
• When? Time
• Where? Ingress router
• Outputs
• Where leaving the network? Egress router
• Whats the route to destination? AS path

AS Path
Destination IP Address
13
Application Service-Level Performance Management
ATT CDN Server in Atlanta
ATT
Leave ATT in Atlanta
Router in Atlanta
Leave ATT in Washington DC
Sprint

• Troubleshoot CDN throughput drop
• Case provided by ATT ICDS (Intelligent Content
  Distribution Service) Project

Atlanta users
14
Background IP Prefix and Prefix Nesting

• IP prefix IP address / prefix length
• E.g. 12.0.0.0 / 8 stands for 12.0.0.0,
  12.255.255.255
• Suppose the routing table has routes for
  prefixes
• 12.0.0.0/8 12.0.0.0-12.255.255.255
• 12.0.0.0/16 12.0.0.0-12.0.255.255
• 12.0.0.0-12.0.255.255 covered by both /8 and
  /16 prefix
• Prefix nesting IPs covered by multiple prefixes
• 24.2 IP addresses are covered by more than one
  prefix

15
Background Longest Prefix Match (LPM)

• BGP update format
• by IP prefix
• egress router, AS path
• Longest prefix match (LPM)
• Routers use LPM to forward IP packets
• LPM changes as routes are announced and withdrawn
• 13.0 BGP updates cause LPM changes

Challenge determine the route for an IP
address -gt LPM for the IP address
-gt track LPM changes for the IP address
16
Challenge Scale of the BGP Data

• Data collection BGP Monitor
• Have BGP session with each router
• Receive incremental updates of best routes
• Data Scale
• Dozens of routers (one per city)
• Each router has many prefixes (300K)
• Each router receives lots of updates (millions
  per day)

Best routes
Software Router
Centralized Server
BGP Routers
17
Background BGP is Incremental Protocol

• Incremental Protocol
• Routes not changed are not updated
• How to log routes for incremental protocol?
• Routing table dump daily
• Incremental updates 15mins

Daily table dump 15 mins updates
Best routes
Software Router
Centralized Server
BGP Routers
18
Route Oracle Interfaces and Challenges

• Challenges
• Track longest prefix match
• Scale of the BGP data
• Need answer to queries
• At scale for many IP addresses
• In real time for network operation

BGP Routing Data
Inputs Destination IP Address
Ingress Router Time
Route Oracle
Outputs
Egress Router
AS Path
19
Strawman Solution Track LPM Changesby
Forwarding Table

• How to implement
• Run routing software to update forwarding table
• Forwarding table answers queries based on LPM
• Answer query for one IP address
• Suppose n prefixes in routing table at t1, m
  updates from t1 to t2
• Time complexity O(nm)
• Space complexity
• O(P) P stands for prefixes covering the query
  IP address

20
Strawman Solution Track LPM Changes by
Forwarding Table

• Answer queries for k IP addresses
• Keep all prefixes in forwarding table
• Space complexity O(n)
• Time complexity major steps
• Initialize n routes nlog(n)kn
• Process m updates mlog(n)km
• In sum (nm)(log(n)k)
• Goal reduce query processing time
• Trade more space for less time pre-processing
• Store pre-processed results not scale for 232
  IPs
• need to track LPM scalably

21
Track LPM Scalably Address Range

• Prefix set
• Collection of all matching prefixes for given IP
  address
• Address range
• Contiguous addresses that have the same prefix
  set
• E.g. 12.0.0.0/8 and 12.0.0.0/16 in routing table
• 12.0.0.0-12.0.255.255 has prefix set /8, /16
• 12.1.0.0-12.255.255.255 has prefix set /8
• Benefits of address range
• Track LPM scalably
• No dependency between different address ranges

22
Track LPM by Address Range Data Structure and
Algorithm

• Tree-based data structure node stands for
  address range
• Real-time algorithm for incoming updates

12.0.1.0-12.0.255.255
12.0.0.0-12.0.0.255
12.1.0.0-12.255.255.255
/8 /16 /24
/8 /16
/8
Routing Table
Prefix BGP Route
12.0.0.0/8
12.0.0.0/16
12.0.0.0/24
23
Track LPM by Address Range Complexity

• Pre-processing
• for n initial routes in the routing table and m
  updates
• Time complexity (nm)log(n)
• Space complexity O(nm)
• Query processing for k queries
• Time complexity O((nm)k)
• Parallelization using c processors O((nm)k/c)

Strawman approach Route Oracle
Space complexity O(n) O(nm)
Pre-processing time O((nm)log(n))
Query time O((nm)(log(n)k)) O((nm)k)
Query parallelization No Yes
24
Route Oracle System Implementation
BGP Routing Data Daily table dump,
15 mins updates
Precomputation
Daily snapshot of routes by address ranges
Incremental route updates for address ranges
Query Inputs Destination IP Ingress router Time
Query Processing
Output for each query Egress router, AS path
25
Query Processing Optimizations

• Optimize for multiple queries
• Amortize the cost of reading address range
  records across multiple queried IP addresses
• Parallelization
• Observation address range records could be
  processed independently
• Parallelization on multi-core machine

26
Performance Evaluation Pre-processing

• Experiment on SMP server
• Two quad-core Xeon X5460 Processors
• Each CPU 3.16 GHz and 6 MB cache
• 16 GB of RAM
• Experiment design
• BGP updates received over fixed time-intervals
• Compute the pre-processing time for each batch of
  updates
• Can we keep up? pre-processing time
• 5 mins updates 2 seconds
• 20 mins updates 5 seconds

27
Performance Evaluation Query Processing

• Query for one IP (duration 1 day)
• Route Oracle 3-3.5 secs Strawman approach
  minutes
• Queries for many IPs scalability (duration 1
  hour)

28
Performance Evaluation Query Parallelization
29
Conclusion
Challenges Contributions
1 Prefix nesting LPM changes Introduce address range Track LPM changes scalably for many IPs
2 Scale of BGP data Tree based data structure Real-time algorithm for incoming updates
3 Answer queries at scale and in real time Pre-processing more space for less time Amortize the processing for multiple queries Parallelize query processing
30
NetDiag Diagnosing Wide-Area Latency Changes for
CDNs

• Work with Jennifer Rexford
• Benjamin Helsley, Aspi Siganporia, and Sridhar
  Srinivasan Google Inc.

31
Background CDN Architecture

• Life of a client request
• Front-end (FE) server selection
• Latency map
• Load balancing (LB)

Ingress Router
Front-end Server (FE)
CDN Network
Client
AS Path
Egress Router
32
Challenges

• Many factors contribute to latency increase
• Internal factors
• External factors
• Separate cause from effect
• e.g., FE changes lead to ingress/egress changes
• The scale of a large CDN
• Hundreds of millions of users, grouped by ISP/Geo
• Clients served at multiple FEs
• Clients traverse multiple ingress/egress routers

33
Contributions

• Classification
• Separating cause from effect
• Identify threshold for classification
• Metrics analyze over sets of servers and routers
• Metrics for each potential cause
• Metrics by an individual router or server
• Characterization
• Events of latency increases in Googles CDN
  (06/2010)

34
Background Client Performance Data
Ingress Router
Performance Data
Front-end Server (FE)
CDN Network
Client
AS Path
Egress Router
Performance Data Format IP prefix, FE, Requests
Per Day (RPD), Round-Trip Time (RTT)
35
Background BGP Routing and Netflow Traffic

• Netflow traffic (at edge routers) 15 mins by
  prefix
• Incoming traffic ingress router, FE, bytes-in
• Outgoing traffic egress router, FE, bytes-out
• BGP routing (at edge routers) 15 mins by prefix
• Egress router and AS path

36
Background Joint Data Set

• Granularity
• Daily
• By IP prefix
• Format
• FE, requests per day (RPD), round-trip time (RTT)
• List of ingress router, bytes-in
• List of egress router, AS path, bytes-out

BGP Routing Data
Netflow Traffic Data
Performance Data
Joint Data Set
37
Classification of Latency Increases
Latency Map FE Capacity and Demand
Latency Map Change vs. Load Balancing
Performance Data
FE Changes
Group by Region
Identify Events
FE Change vs. FE Latency Increase
BGP Routing Netflow Traffic
Events
FE Latency Increase
Routing Changes Ingress Router vs. Egress
Router, AS path
38
Case Study Flash Crowd Leads some Requests to a
Distant Front-End Server

• Identify event RTT doubled for an ISP in
  Malaysia
• Diagnose follow the decision tree

Latency Map FE Capacity and Demand
Latency Map Change vs. Load Balancing
97.9 by FE changes
32.3 FE change By load balancing
FE Change vs. FE Latency Increase
RPD (requests per day) jumped
RPD2/RPD1 2.5
39
Classification FE Server and Latency Metrics
Latency Map FE Capacity and Demand
Latency Map Change vs. Load Balancing
Performance Data
FE Changes
Group by Region
Identify Events
FE Change vs. FE Latency Increase
BGP Routing Netflow Traffic
Events
FE Latency Increase
Routing Changes Ingress Router vs. Egress
Router, AS path
40
FE Change vs. FE Latency Increase

• RTT weighted by requests from FEs
• Break down RTT change by two factors
• FE change
• Clients switch from one FE to another (with
  higher RTT)
• FE latency change
• Clients using the same FE, latency to FE increases

41
FE Change vs. FE Latency Change Breakdown

• FE change
• FE latency change
• Important properties
• Analysis over a set of FEs
• Sum up to 1

42
FE Changes Latency Map vs. Load Balancing
Latency Map FE Capacity and Demand
Latency Map Change vs. Load Balancing
Performance Data
FE Changes
Group by Region
Identify Events
FE Change vs. FE Latency Increase
BGP Routing Netflow Traffic
Events
FE Latency Increase
Routing Changes Ingress Router vs. Egress
Router, AS path
43
FE Changes Latency Map vs. Load Balancing

• Classify FE changes by two metrics
• Fraction of traffic shift by latency map
• Fraction of traffic shift by load balancing

Latency Map FE Capacity and Demand
Latency Map Change vs. Load Balancing
FE Changes
FE Change vs. FE Latency Increase
44
Latency Map Closest FE Server

• Calculate latency map
• Latency map format (prefix, closest FE)
• Aggregate by groups of clients
• list of (FEi, ri)
• ri fraction of requests directed to FEi by
  latency map
• Define latency map metric

45
Load Balancing Avoiding Busy Servers

• FE request distribution change
• Fraction of requests shifted by the load balancer
• Sum only if positive target request load gt
  actual load
• Metric more traffic load balanced on day 2

46
FE Latency Increase Routing Changes

• Correlate with routing changes
• Fraction of traffic shifted ingress router
• Fraction of traffic shifted egress router, AS
  path

FE hange vs. FE Latency Increase
BGP Routing Netflow Traffic
FE Latency Increase
Routing Changes Ingress Router vs. Egress
Router, AS path
47
Routing Changes Ingress, Egress, AS Path

• Identify the FE with largest impact
• Calculate fraction of traffic which shifted
  routes
• Ingress router
• f1j, f2j fraction of traffic entering ingress j
  on days 1 and 2
• Egress router and AS path
• g1k, g2k fraction of traffic leaving egress/AS
  path k on day 1, 2

48
Identify Significant Performance Disruptions
Latency Map FE Capacity and Demand
Latency Map Change vs. Load Balancing
Performance Data
FE Changes
Group by Region
Identify Events
FE Change vs. FE Latency Increase
BGP Routing Netflow Traffic
Events
FE Latency Increase
Routing Changes Ingress Router vs. Egress
Router, AS path
49
Identify Significant Performance Disruptions

• Focus on large events
• Large increases gt 100 msec, or doubles
• Many clients for an entire region (country/ISP)
• Sustained period for an entire day
• Characterize latency changes
• Calculate daily latency changes by region

Event Category Percentage
Latency Increase by more than 100 msec 1
Latency more than doubles 0.45
50
Latency Characterization for Googles CDN

• Apply the classification to one month of data
  (06/2010)

Category Events
FE latency increase 73.9
Ingress router 10.3
(Egress router, AS path) 14.5
Both 17.4
Unknown 31.5
FE server change 34.7
Latency map 14.2
Load balancing 2.9
Both 9.3
Unknown 8.4
Total 100.0
51
Conclusion and Future Work

• Conclusion
• Method for automatic classification of latency
  increases
• Tool deployed at Google since 08/2010
• Future work
• More accurate diagnosis on smaller timescale
• Incorporate active measurement data

52
Putting BGP on the Right Path Better Performance
via Next-Hop Routing

• Work with Michael Schapira, Jennifer Rexford
• Princeton University

53
Motivation Rethink BGP Protocol Design

• Many performance problems caused by routing
• Slow convergence during path exploration
• Path selection based on AS path length, not
  performance
• Selecting a single path, rather than multiple
• Vulnerability to attacks that forge the AS-PATH

Many performance problems related to Routing
decision based on AS path length, not performance
54
Next-Hop Routing for Better Performance

• Control plane path-based routing -gt next-hop
  routing
• Fast convergence through less path exploration
• Scalable multipath routing without exposing all
  paths
• Data plane performance and security
• Path selection based on performance
• Reduced attack surface without lying on AS-PATH

55
Todays BGP Path-Based Routing
3, Im using 1d
32d gt 31d
1
1, 2, Im available
3
d
2
Dont export 2d to 3
56
Background BGP Decision Process

• Import policy
• Decision process
• Prefer higher local preference
• Prefer shorter AS path length
• etc.
• Export policy

Choose single bestroute (ranking)
Send route updates to neighbors (export policy)
Receive route updates from neighbors
57
Next-hop Routing Rules

• Rule 1 use next-hop rankings

541d gt 53d gt 542d
4 gt 3
1
4
d
5
2
3
58
Next-hop Routing Rules

• Rule 1 use next-hop rankings
• Rule 2 prioritize current route
• To minimize path exploration

23 Break ties in favor of lower AS number
23 Prioritize current route
2
d
1
3
59
Next-hop Routing Rules

• Rule 1 use next-hop rankings
• Rule 2 prioritize current route
• Rule 3 consistently export
• If a route P is exportable to a neighbor AS i,
  then so must be all routes that are more highly
  ranked than P.
• To avoid disconnecting upstream nodes

1 gt 2, Export 32d, but not 31d, to 4
1 gt 2, Export 31dto 4
1
d
3
4
2
60
Next-Hop Routing for Better Performance

• Control plane
• Fast convergence
• Scalable multipath routing
• Data plane
• Performance-driven routing
• Reduced attack surface

61
Simulation Setup

• C-BGP simulator. Cyclops AS-level topology
• Jan 1st 2010 34.0k ASes, 4.7k non-stubs
• Protocols
• BGP, Prefer Recent Route (PRR), Next-hop routing
• Metrics
• updates, routing changes, forwarding
  changes
• Events
• prefix up, link failure, link recovery
• Methodology
• 500 experiments
• vantage points all non-stubs, randomly chosen 5k
  stubs

62
Fast Convergence Updates

• X-axis updates after a link failure
• Y-axis Fraction of non-stubs with more than x
  updates

63
Fast Convergence Routing Changes

• X-axis routing changes after a link failure
• Y-axis Fraction of non-stubs with more than x
  changes

64
Next-Hop Routing for Better Performance

• Control plane
• Fast convergence
• Scalable multipath routing
• Data plane
• Performance-driven routing
• Reduced attack surface

65
Multipath with Todays BGP Not Scalable
Im using 1 and 2
5
1
Im using 5-1, 5-2, 6-3 and 6-4
2
d
7
8
3
Im using 3 and 4
4
6
66
Making Multipath Routing Scalable

• Benefits availability, failure recovery, load
  balancing

Im using 1,2
5
1
Im using 1,2,3,4,5,6
2
d
7
8
3
Im using 3,4
4
6
67
Next-Hop Routing for Better Performance

• Control plane
• Fast convergence
• Scalable multipath routing
• Data plane
• Performance-driven routing
• Reduced attack surface

68
Performance-driven Routing

• Next-hop routing can lead to longer paths
• Evaluate across events prefix up, link
  failure/recovery
• 68.7-89.9 ASes have same path length
• Most other ASes experience one extra hop
• Decision based on measurements of path quality
• Performance metrics throughput, latency, or loss
• Adjust ranking of next-hop ASes
• Split traffic over multiple next-hop ASes

69
Monitoring Path Performance Multi-homed Stub

• Apply existing techniques
• Intelligent route control supported by routers
• Collect performance measurements
• Stub AS see traffic in both directions forward,
  reverse

Provider A
Provider B
Multi-home Stub
70
Monitoring Path Performance Service Provider

• Monitor end-to-end performance for clients
• Collect logs at servers e.g. round-trip time
• Explore alternate routes route injection
• Announce more-specific prefix
• Direct a small portion of traffic on alternate
  path
• Active probing on alternate paths

71
Monitoring Path Performance ISPs

• Challenges
• Most traffic does not start or end in ISP network
• Asymmetric routing
• Focus on single-homed customers
• Why single-homed?
• See both directions of the traffic
• How to collect passive flow measurement
  selectively?
• Hash-based sampling

72
Next-Hop Routing for Better Performance

• Control plane
• Fast convergence
• Scalable multipath routing
• Data plane
• Performance-driven routing
• Reduced attack surface

73
Security

• Reduced attack surface
• Attack announce shorter path to attract traffic
• Next-hop routing AS path not used, cannot be
  forged!
• Incentive compatible
• Definition AS cannot get a better next-hop by
  deviating from protocol (e.g. announce bogus
  route, report inconsistent information to
  neighbors)
• Theorem 1 ASes do not have incentives to
  violate the next-hop routing protocol
• End-to-end security mechanisms
• Not rely on BGP for data-plane security
• Use encryption, authentication, etc.

1 J. Feigenbaum, V. Ramachandran, and M.
Schapira, Incentive-compatible interdomain
routing, in Proc. ACM Electronic Commerce, pp.
130-139, 2006.
74
Conclusion

• Next-hop routing for better performance
• Control-plane fast convergence, scalable
  multipath
• Data-plane performance-driven routing, less
  attacks
• Future work
• Remove the AS path attribute entirely
• Stability and efficiency of performance-driven
  routing

75
Conclusion
Chapter Contributions Results
Route Oracle Analysis of prefix nesting, LPM changes Track LPM scalably by address range System implementation with optimizations Deployed at ATT IMC09, PER10
NetDiag Classification for causes of latency increases Metrics to analyze sets of servers and routers Latency characterization for Googles CDN Deployed at Google In submission
Next-hop BGP Proposal of BGP variant by next-hop routing Evaluate better convergence Scalable multi-path performance-driven routing HotNets10 In submission to CoNext
